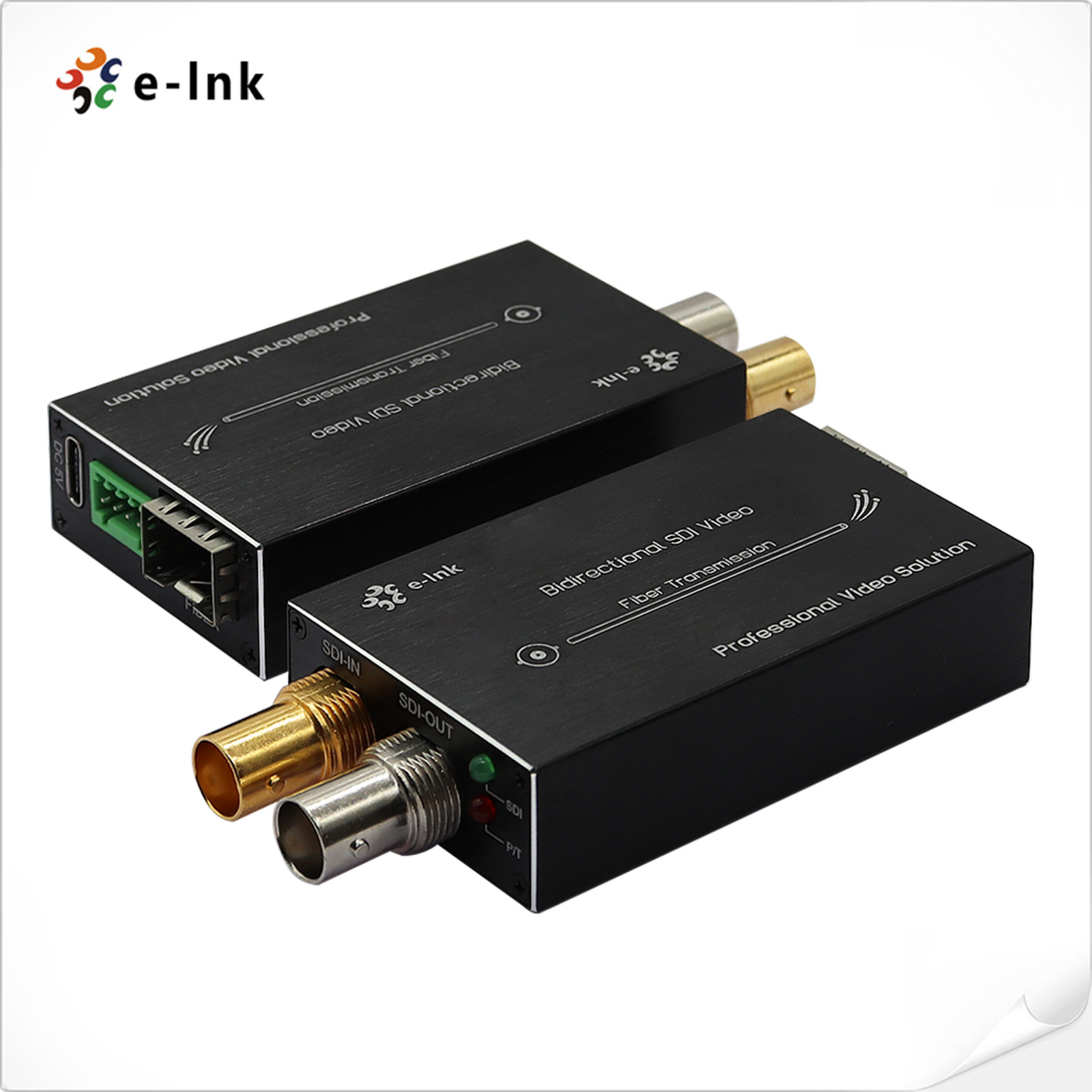

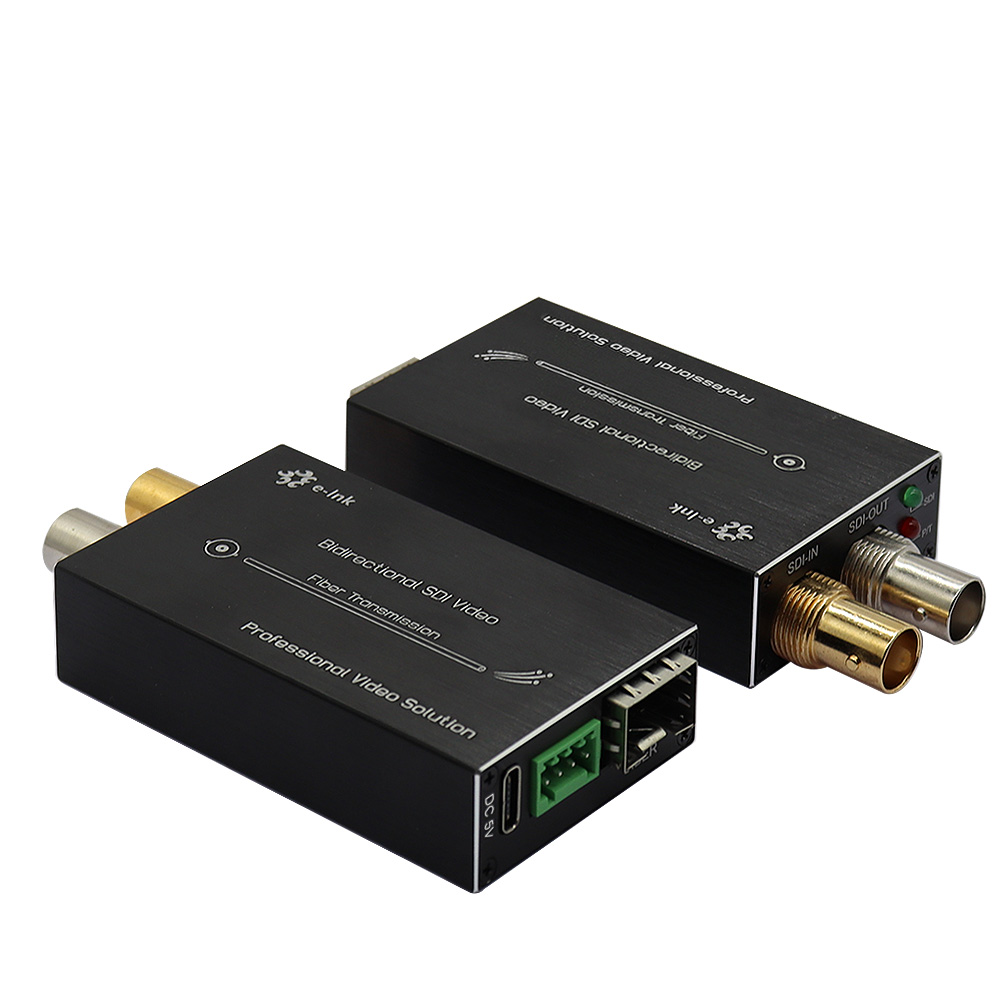

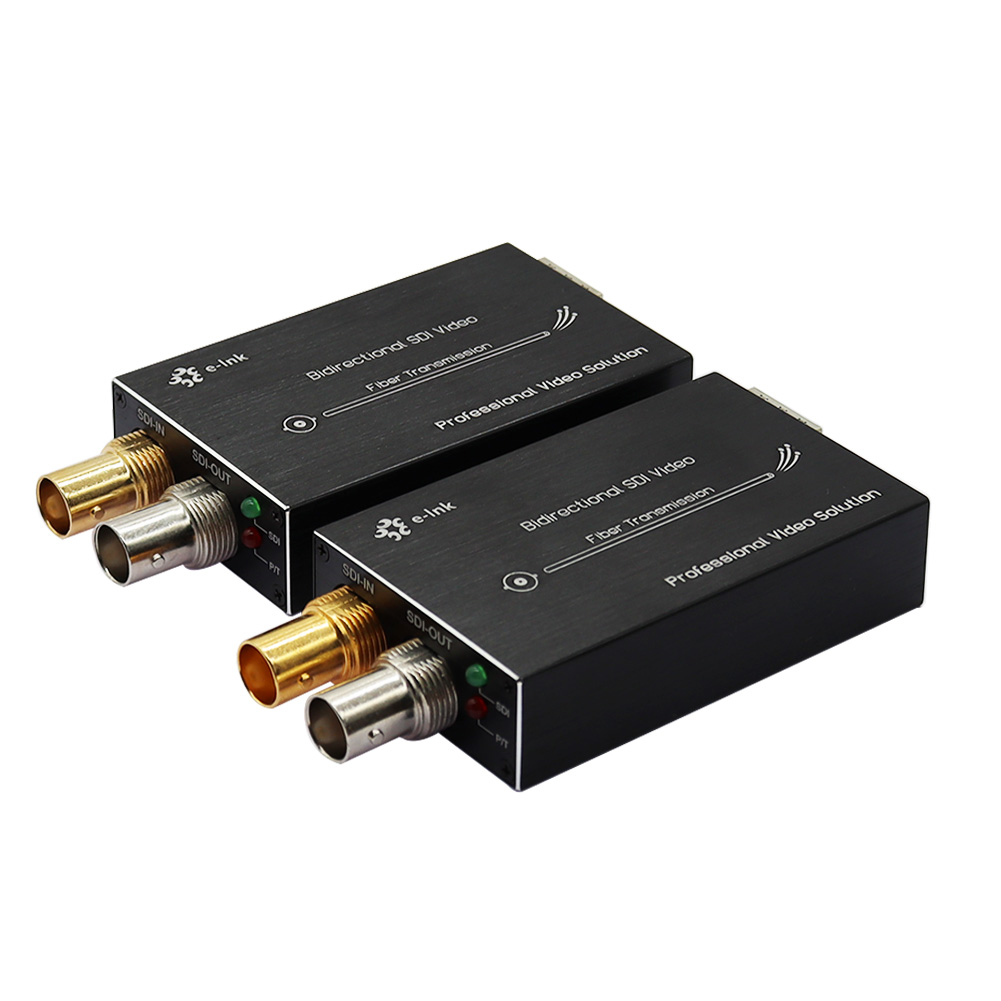

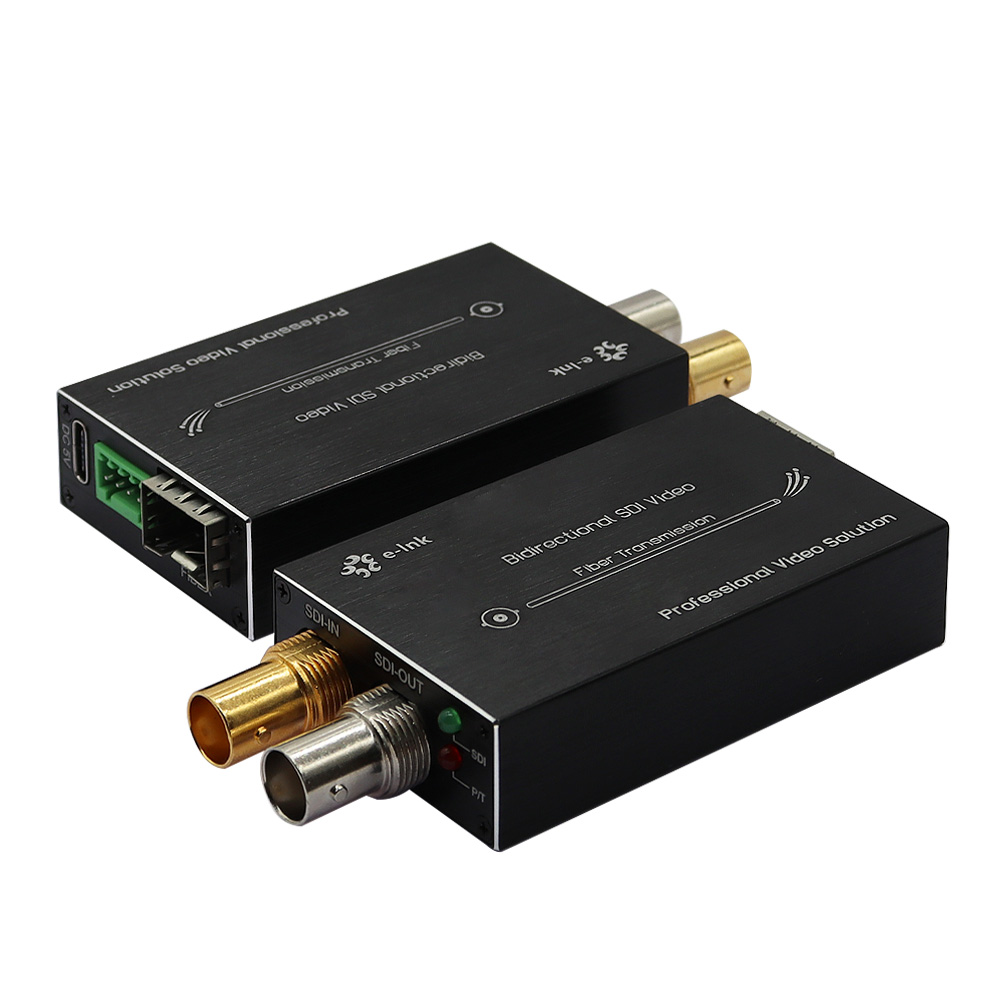

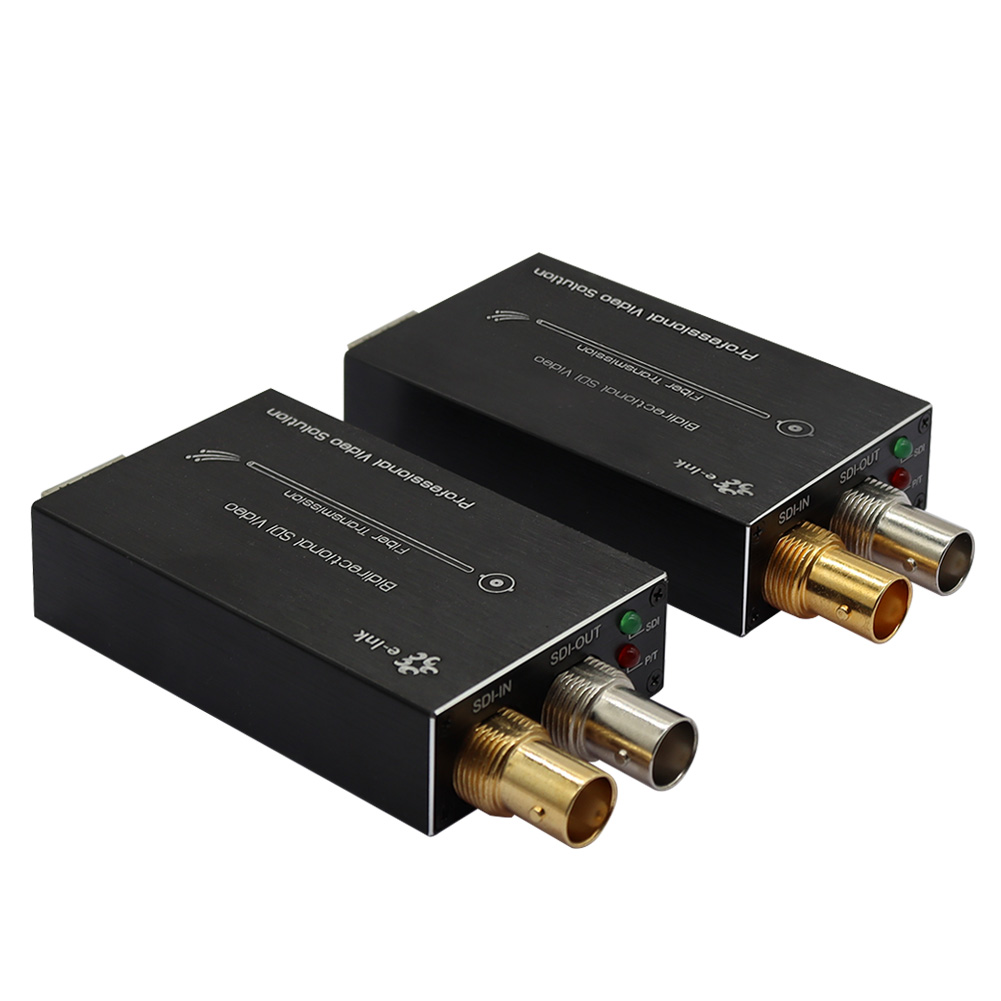

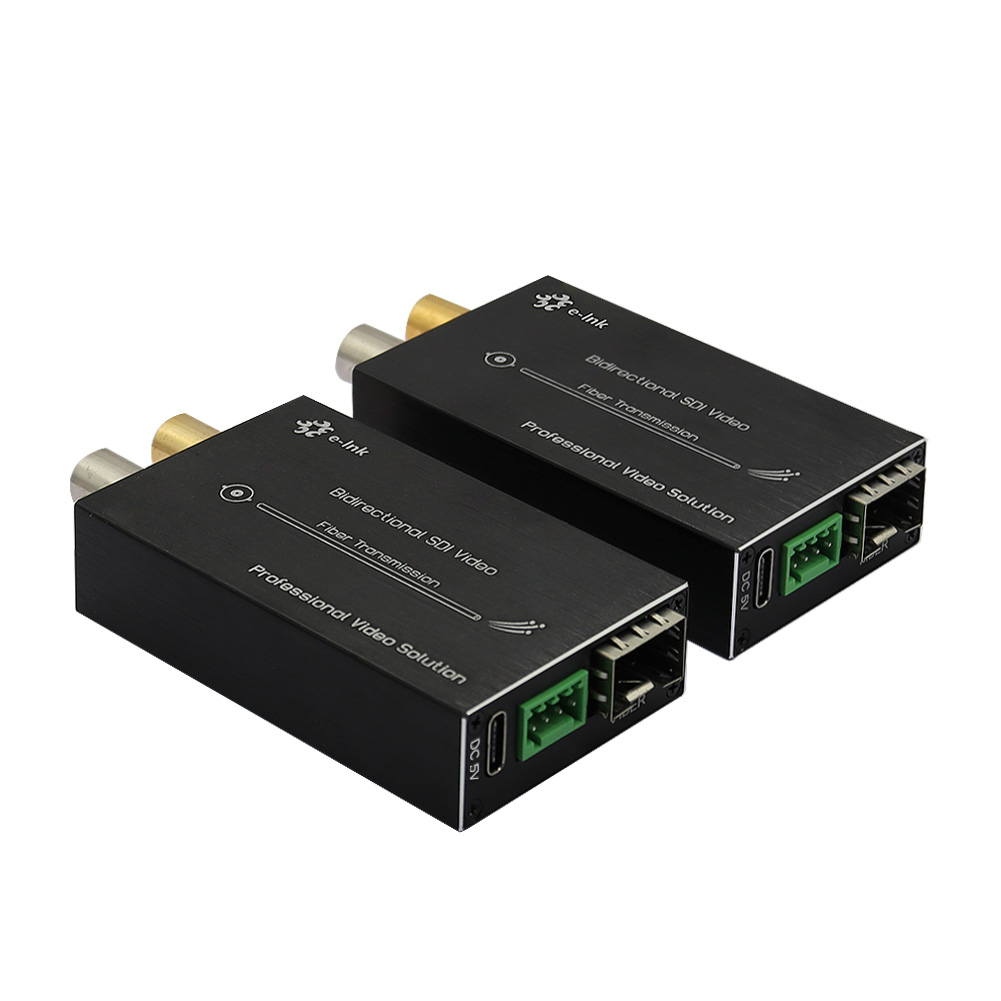

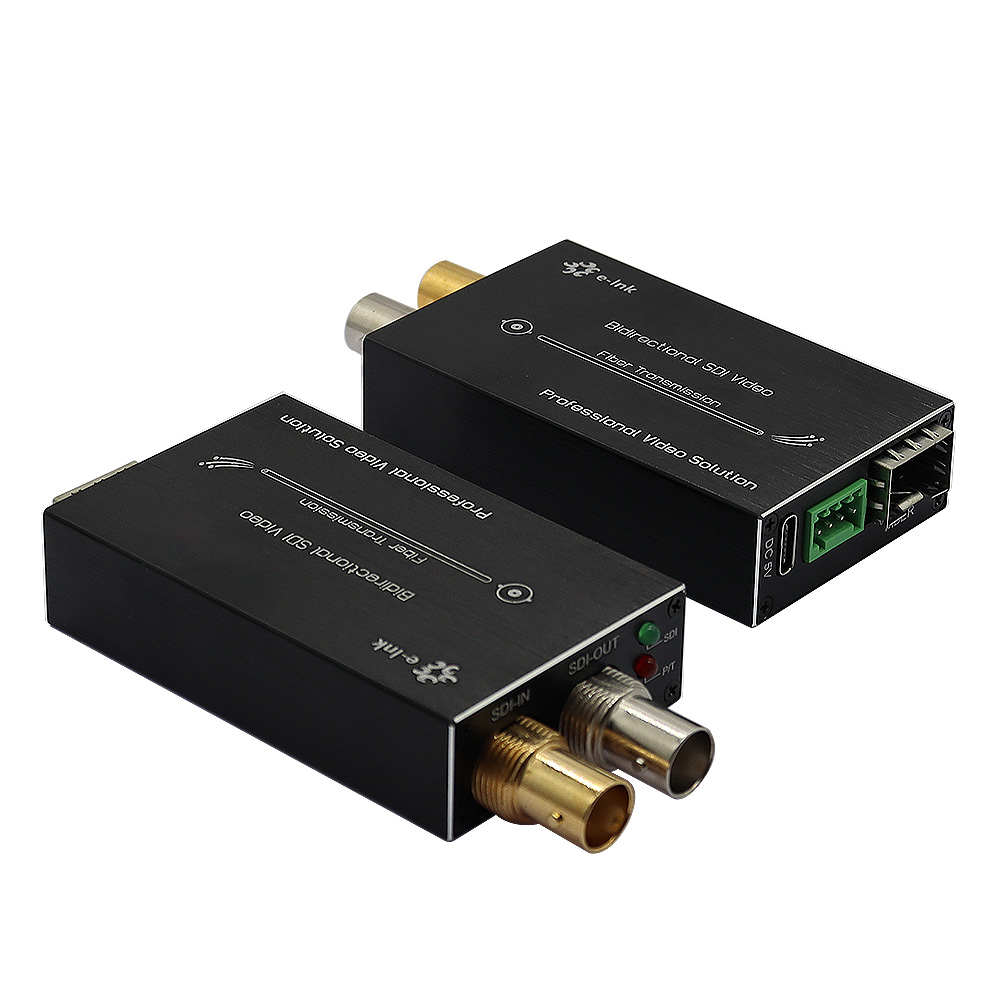

Mini Bi-directional HD/3G-SDI to Fiber Converter
Model:LNK-M3G-BI20 Series
► Each channel includes 4-channel audio embedded
► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A)
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
Overview
LNK-M3G-BI20 Series Mini-type 3G/HD-SDI Fiber Converter supports 1-Channel Bi-directional 3G/HD-SDI Video(audio embedded)via fiber optical cable. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal. Handle all Pathological patterns, fully digital non-compression broadcast level transmission. It’s widely used in security system, video conference, broadcasting and live Events etc.
Feature
► Each channel includes 4-channel audio embedded;
► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80 km
► Hot swap and hot plug;
► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;
► LED Status Indication to monitor the working conditions;
► Super optic dynamic range and free of adjustment;
► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

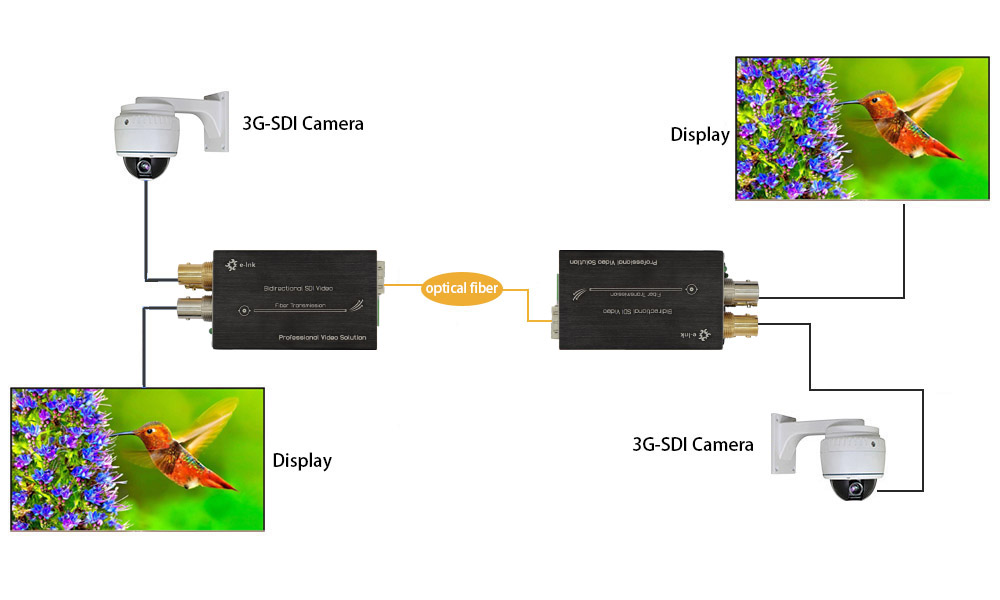

Application
Technical Indexes
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
0-20Km (Other distance available) |
|
Wavelength |
1310nm/1550nm |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Electrical |
|
|
Power adaptor |
DC 5~12V |
|
Power consumption |
<5W |
|
LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
80 x 40 x 20 mm |
|
Weight |
0.8KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
- Download FileName：E-link LNK-M3G-BI20 Mini-type Bi-di 3G-SDI to Fiber Converter Datasheet V1.2.pdf Size： 1.58MB
Order Information
|
Model |
Description |
|
LNK-MHD-BIMM |
Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
|
LNK-MHD-BI20 |
Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
|
LNK-MHD-BI40 |
Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
|
Model |
Description |
|
LNK-M3G-BIMM |
Mini-type Bi-directional 3G-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
|
LNK-M3G-BI20 |
Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
|
LNK-M3G-BI40 |
Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
