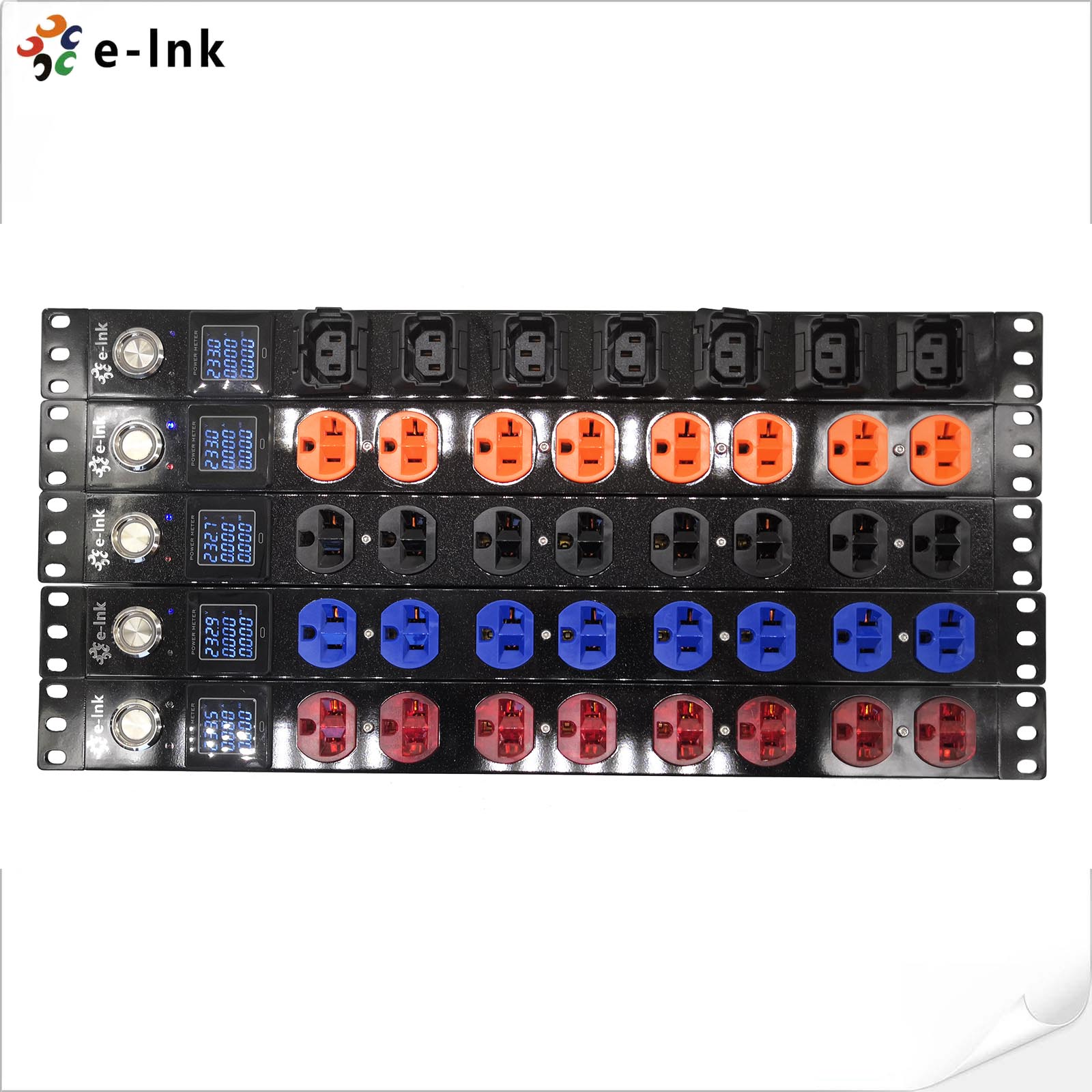

19 Inch 1U 8 Port Metered Power Distribution Unit PDU
Model:LNK- IPDU Series
► 85–265V AC input, 8 total outlets
► Max 16A / 2800W Output
► Support 19 inch Rack-mount
► Different plug types available
► Build-in Power meter with OLED display
► Gen 3 10KA Surge Protection module
Overview
E-link's Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the 19’’ rack. The PDU with 8 outlets and build-in surge protector. Universal 10/16A 100–240V PDU is compatible with wide range of voltages to deliver single-phase AC power to multiple loads from a utility outlet, generator or UPS system. Ideal for data centers, server rooms and network wiring closets.
The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical
mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
Feature
► 85–265V AC input, 8 total outlets
► Max 16A / 2800W Output
► Support 19 inch Rack-mount
► Different plug types available
► Build-in Power meter with OLED display
► Gen 3 10KA Surge Protection module
► L and N Double-break Switch
► UL94V-0 Grade Flame Resistant Material
► Four-layer Piano Paint T6 Hardened Aluminum Profile
► Complies with the requirements of IEC60297 standards
► EMI.RFI Protection
Technical Indexes
|
OUTPUT |
|
|
PDU type |
19 inch rack mount Surge Protection PDU |
|
Voltage output |
85V~265VAC |
|
Working Frequency |
50/60Hz |
|
Output Capacity Details |
3.68kW (230V), 1.76kW(110V) |
|
Outlets type |
US, EU, UK, IEC available |
|
Overload Protection |
Yes |
|
Voltage Measurement |
Range: 0~300V |
|
Display Digits: 0.01V |
|
|
Current Measurement |
Input: Transformer |
|
Range: 0~30mA |
|
|
Display Digits: 0.01A |
|
|
Power Measurement |
Accuracy: Grade 1 |
|
Display Digits: 0.01kW |
|
|
Electricity Measurement |
Accuracy: Grade 1 |
|
Display Digits: 0.01kW |
|
|
Display |
OLED Screen, Blue text on black / White text on black |
|
INPUT |
|
|
PDU Input Voltage |
85-265V AC |
|
Maximum Input Amps |
10/16A |
|
PDU Plug Type |
US, EU, UK, IEC 3 Pin available |
|
Phase line |
Single Phase |
|
Input Cord Details |
1.8m / 5.9ft |
|
PHYSICAL |
|
|
Form Factors Supported |
1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation |
|
Material of Construction |
Aluminum T6 Hardened Profile with Four-layer Piano Paint |
|
Minimum Required Rack Depth |
59mm / 2.3in |
|
Unit Weight |
1.05kg / 2.31 lbs |
|
Photosensitive Detection |
Normally used for automatic lighting with extended functions |
|
ENVIRONMENTAL |
|
|
Operating Temperature |
-10 to 50°C |
|
Storage Temperature |
-30 to 60°C |
|
Relative Humidity |
5 to 95% non-condensing |
|
Operating Elevation |
0-4000m |
|
Warranty Period |
5-year limited warranty |
- Download FileName：E-link 19inch 1U Metered Power Distribution Unit Datasheet V1.0.pdf Size： 936KB
Order Information
|
Model Number |
Input |
Output |
Output Interface |
accessories |
Remark |
|
|
Control |
||||||
|
LNK- IPDU_7GB10_ZK_GB |
85-265V AC |
GB2015, Max=13A, 8CH Control output |
GB1002(10A/250V) |
Smart Meter |
Input Plug Customizable |
|
|
LNK- IPDU_7IEC13K_ZK_IEC14 |
85-265V AC |
IEC320-C1 (Cable anti falling), Max=13A, 7CH Control output |
IEC60320 C13 |
Smart Meter |
Input Plug Customizable |
|
|
LNK- IPDU_7WY10_ZK_GB |
85-265V AC |
Universal plug Max=16A, 7CH Control output |
GB 2099.3(16A/250V) |
Smart Meter |
Input Plug Customizable |
|
|
LNK- IPDU_8UL_ ZK_UL |
85-265V AC |
Universal plug Max=16A, 8CH Control output |
NEMA5-15R(16A/250V) |
Smart Meter |
Input Plug Customizable |
|
