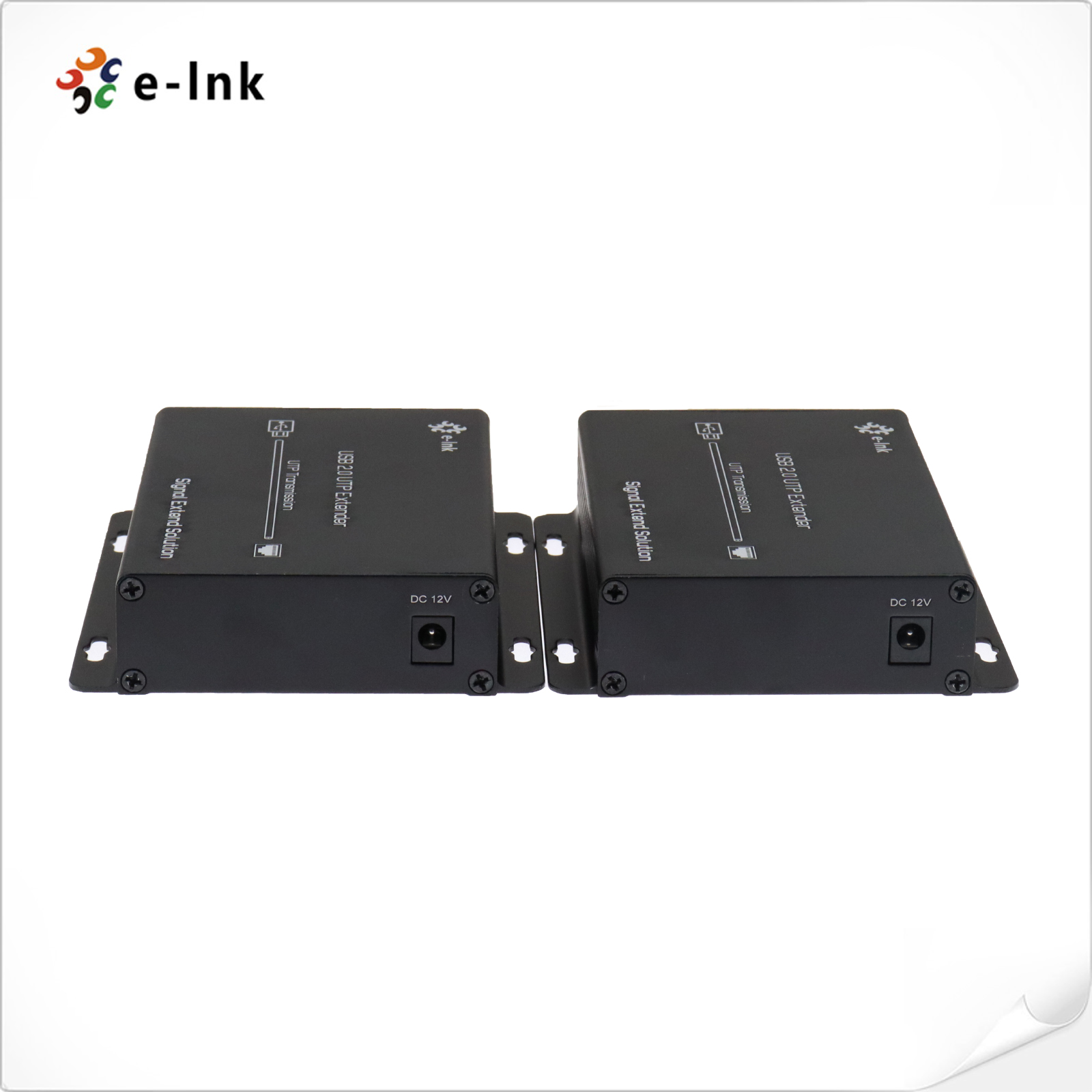

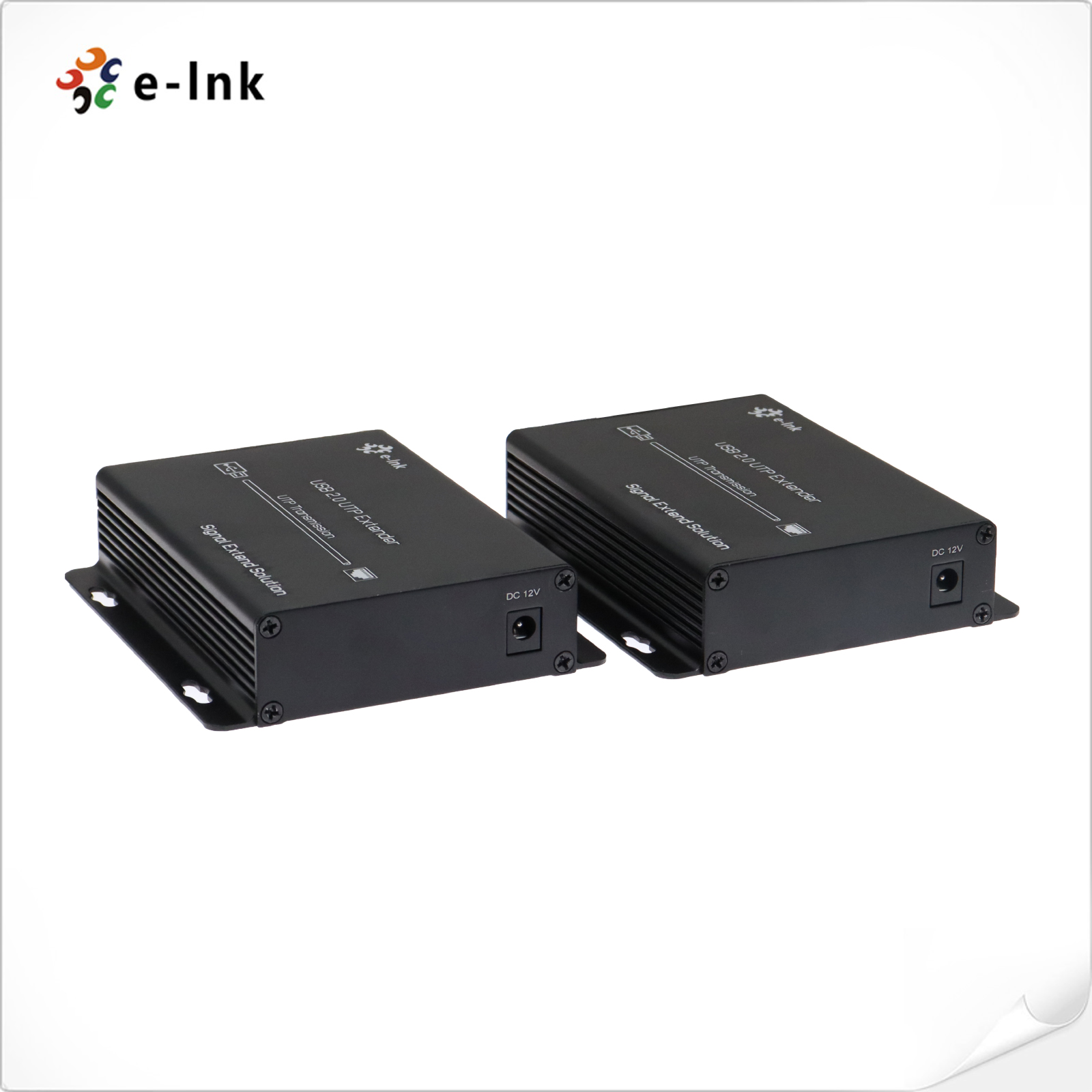

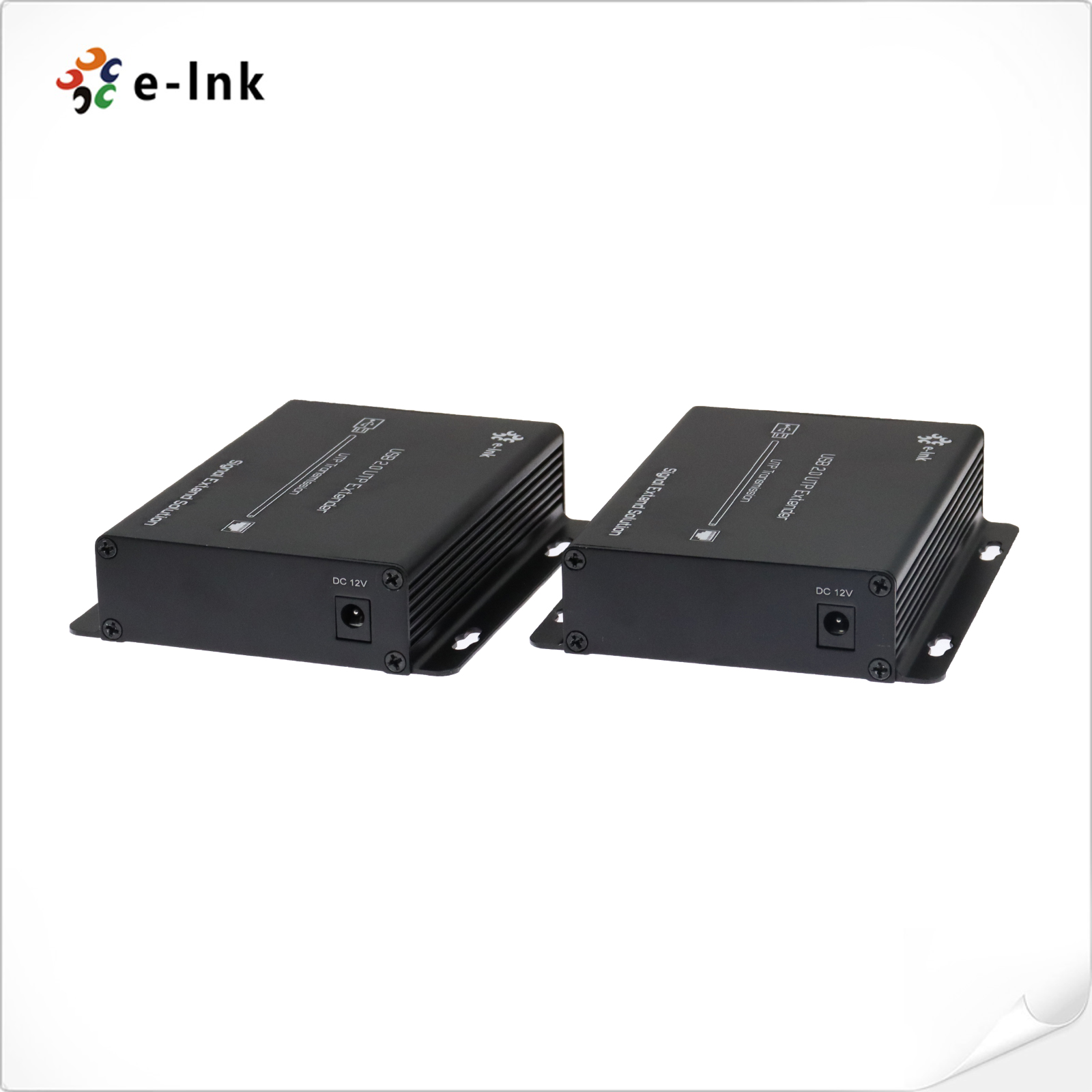

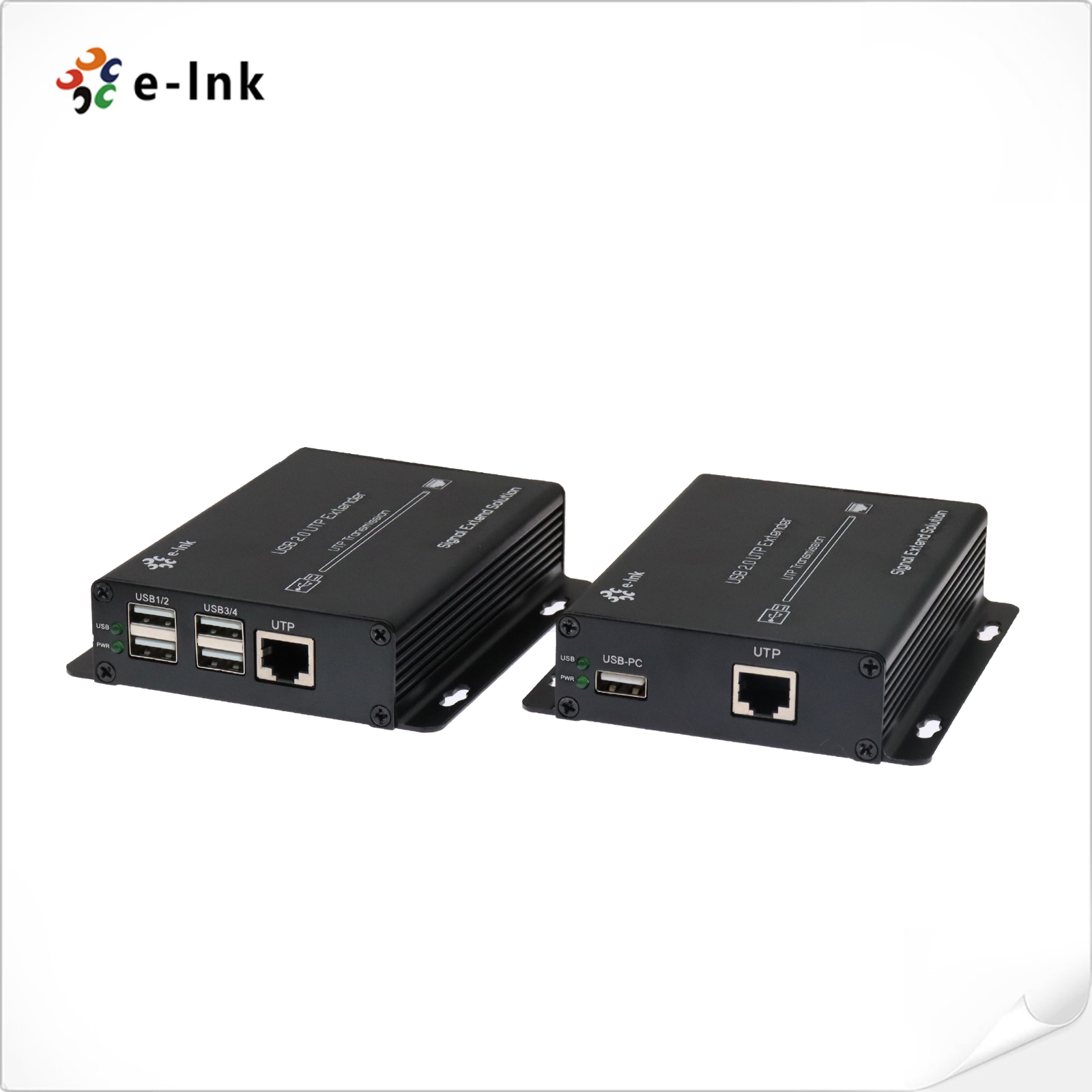

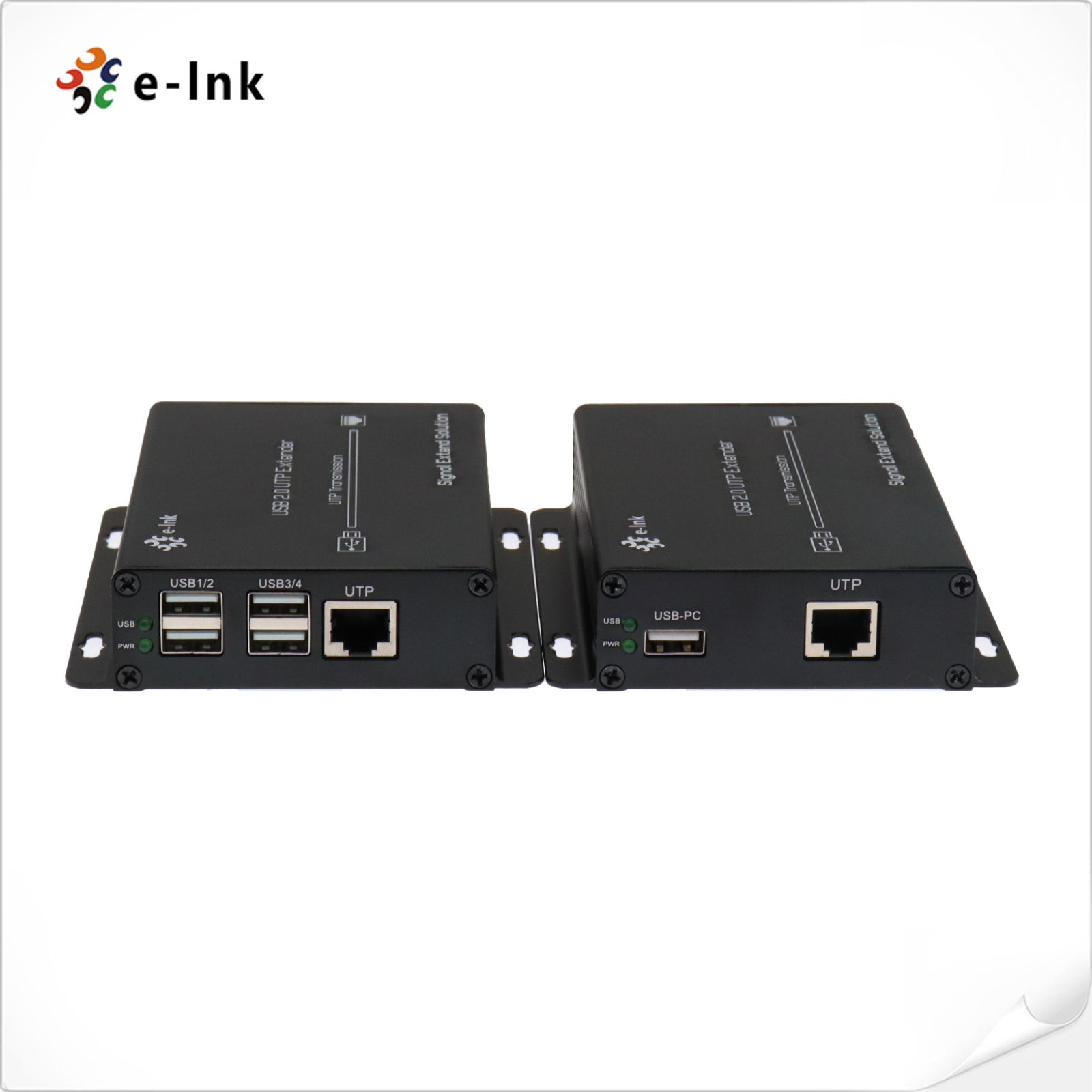

4-Port USB 2.0 over UTP Extender
Model:LNK-U4TF1-2.0
► Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;
► Support USB-HUB expansion, support all kinds of USB devices;
► Extension Distance: Cat5 cable 100 meter, Cat6 cable 170 meter.
Overview
This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the extension of USB signal more than 100 Meter through the network cable. The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Feature
►
Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed
(Low-Speed) device;
►
Support USB-HUB expansion, support all kinds of USB devices;
►
No Drivers Required, compatible with all operating systems;
►
Support hot-swappable, plug and play;
► Extension Distance: Cat5 cable 100 meter, Cat6 cable 170 meter.

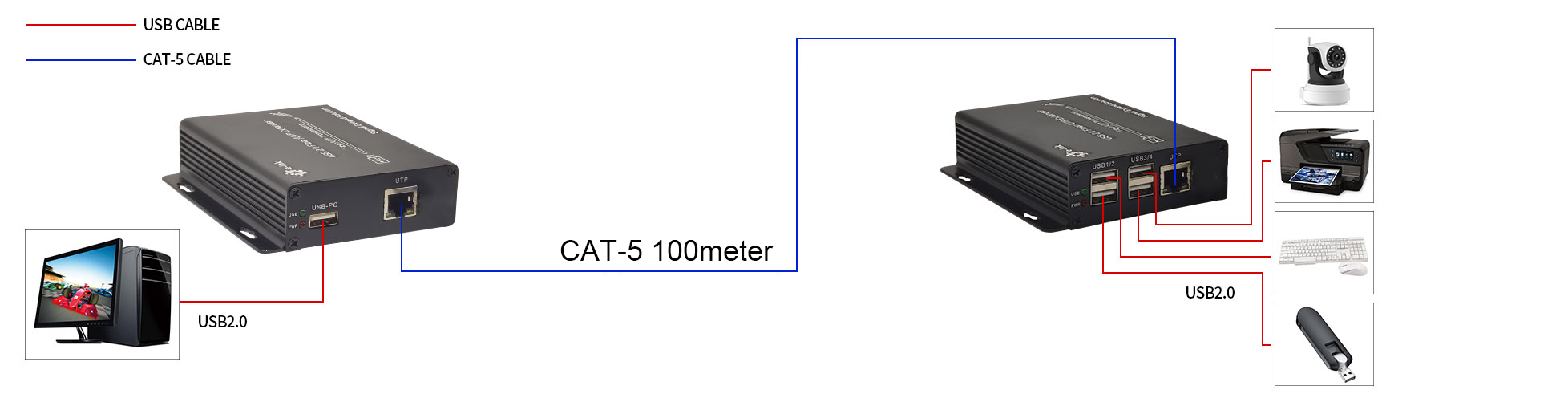

Application
Technical Indexes
|
UTP |
Connector |
RJ45 |
|
Max. Distance |
Cat5 cable: 100 meter, Cat6 cable: 170 meter |
|
|
USB2.0 |
Input / Output |
USB2.0 Type-A |
|
Physical |
Size (L× W ×H) |
117mm x104mm x28mm |
|
Case |
Aluminum |
|
|
Color |
Black |
|
|
N.W. |
0.75Kg |
|
|
Power |
Voltage |
5-12V DC |
|
Power consumption |
<5W |
|
|
Environment |
Working temperature |
-20℃~70℃ |
|
Storage temperature |
-40~85℃ |
|
|
Humidity |
0-95% (non-condensing) |
- Download FileName：E-link 4-Port USB2.0 UTP Extender Datasheet V1.0.pdf Size： 625KB
Order Information
|
Part No |
Description of product |
|
LNK-U4TF1-2.0 |
4-port USB 2.0 UTP extender, 1xUSB port for Local Unit, 4xUSB ports for Remote Unit, up to 100m via Cat5 cable,170m via Cat6 cable |
