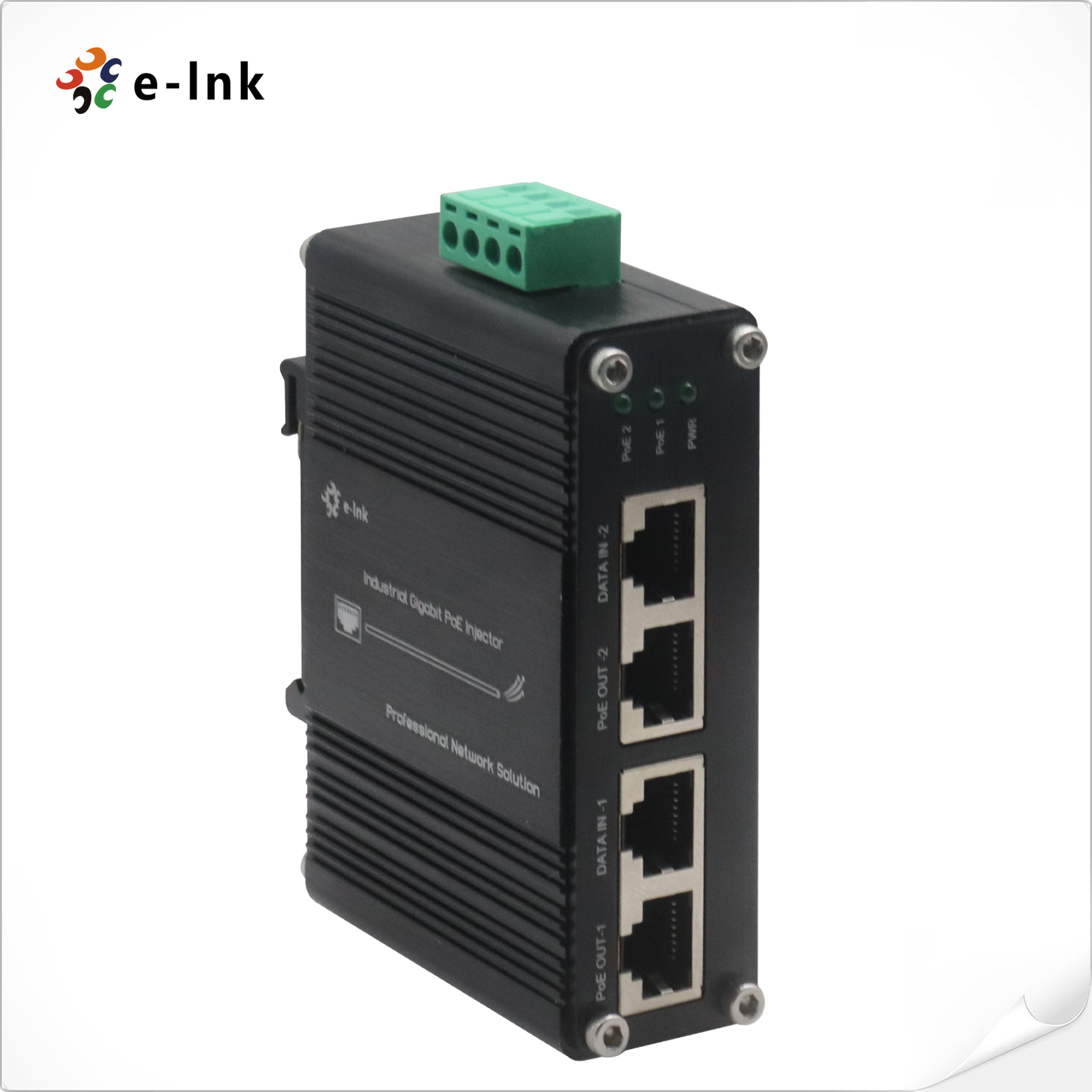

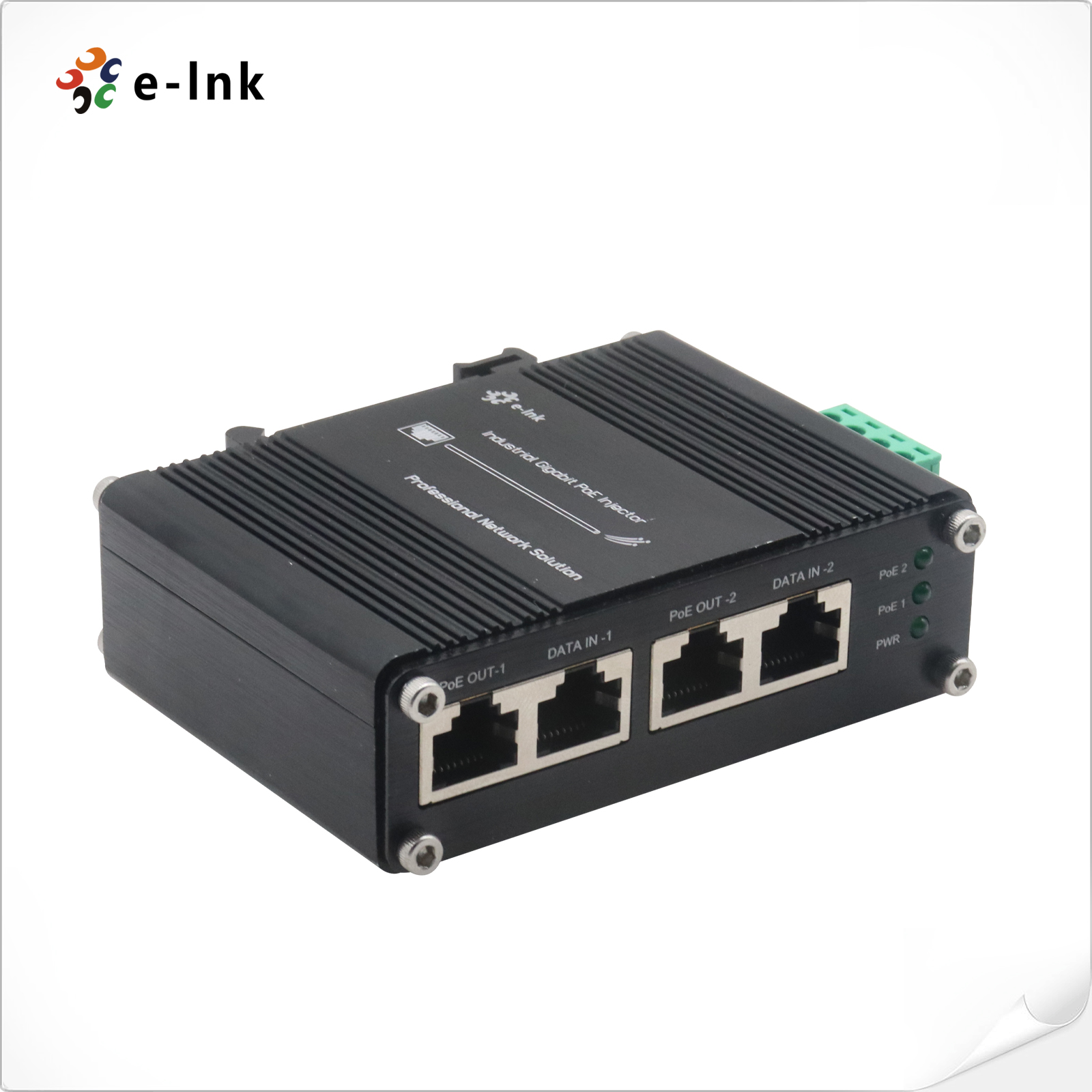

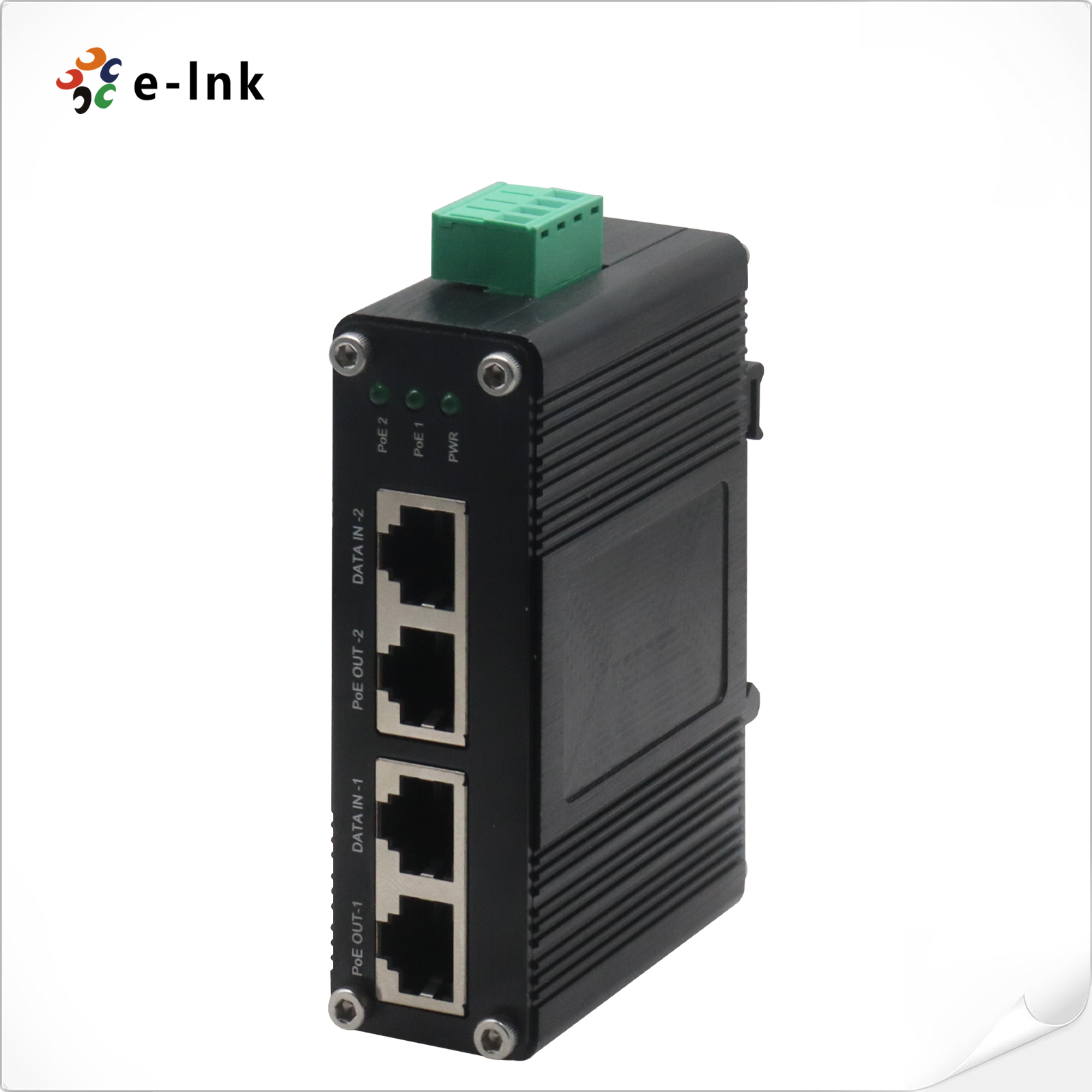

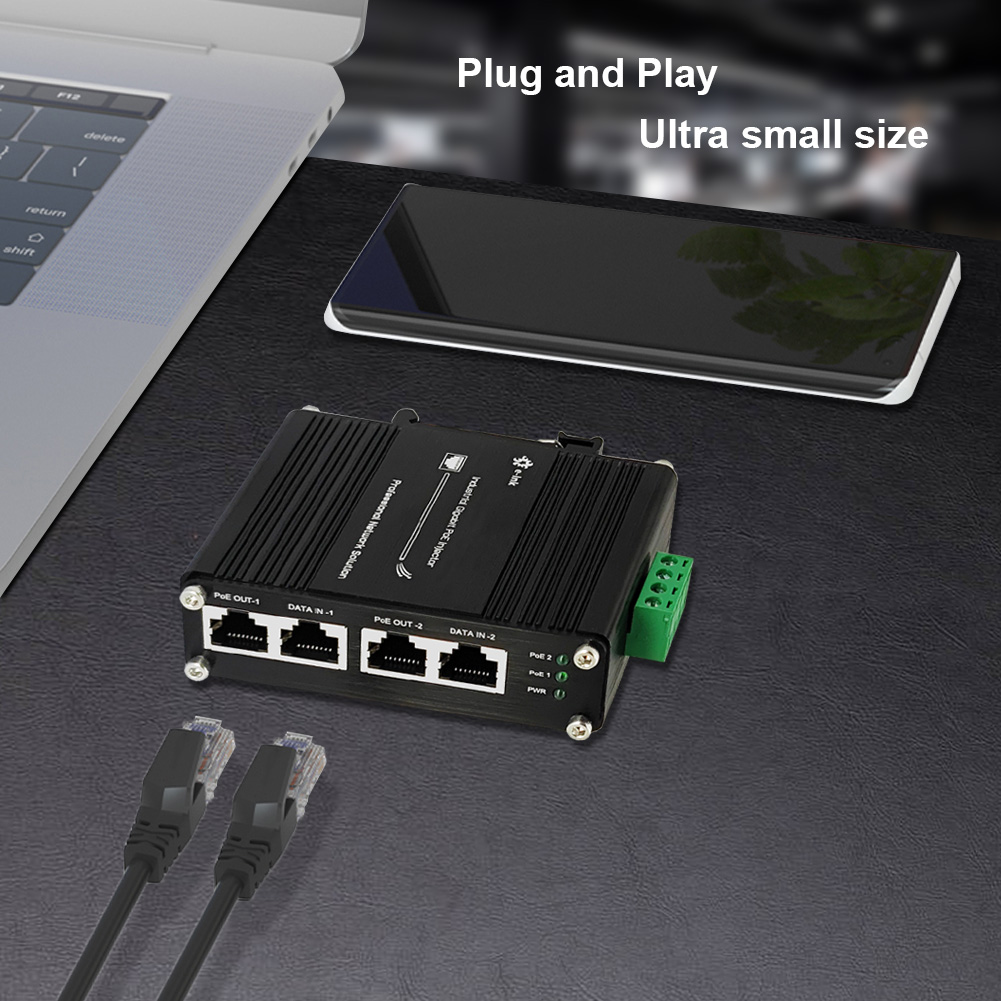

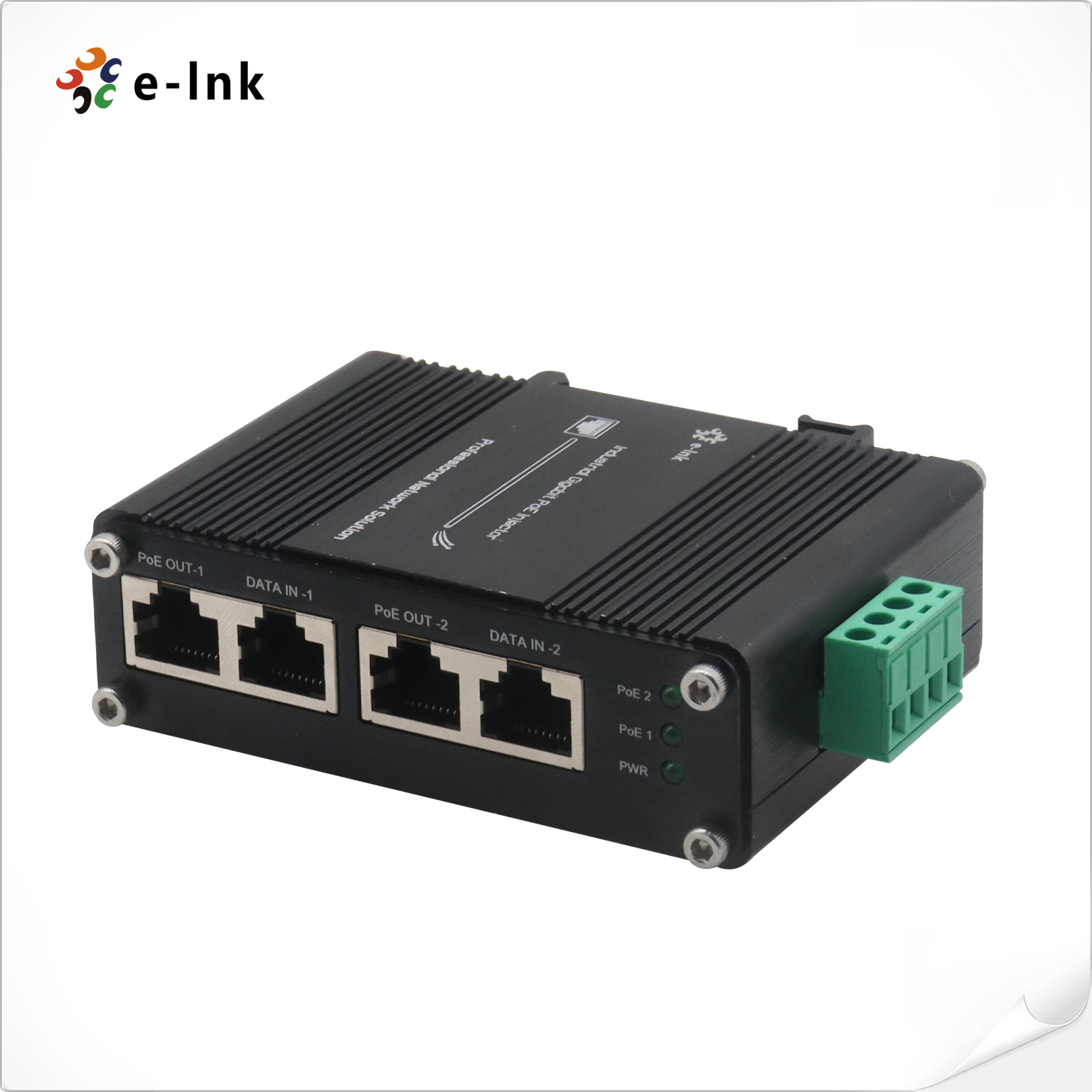

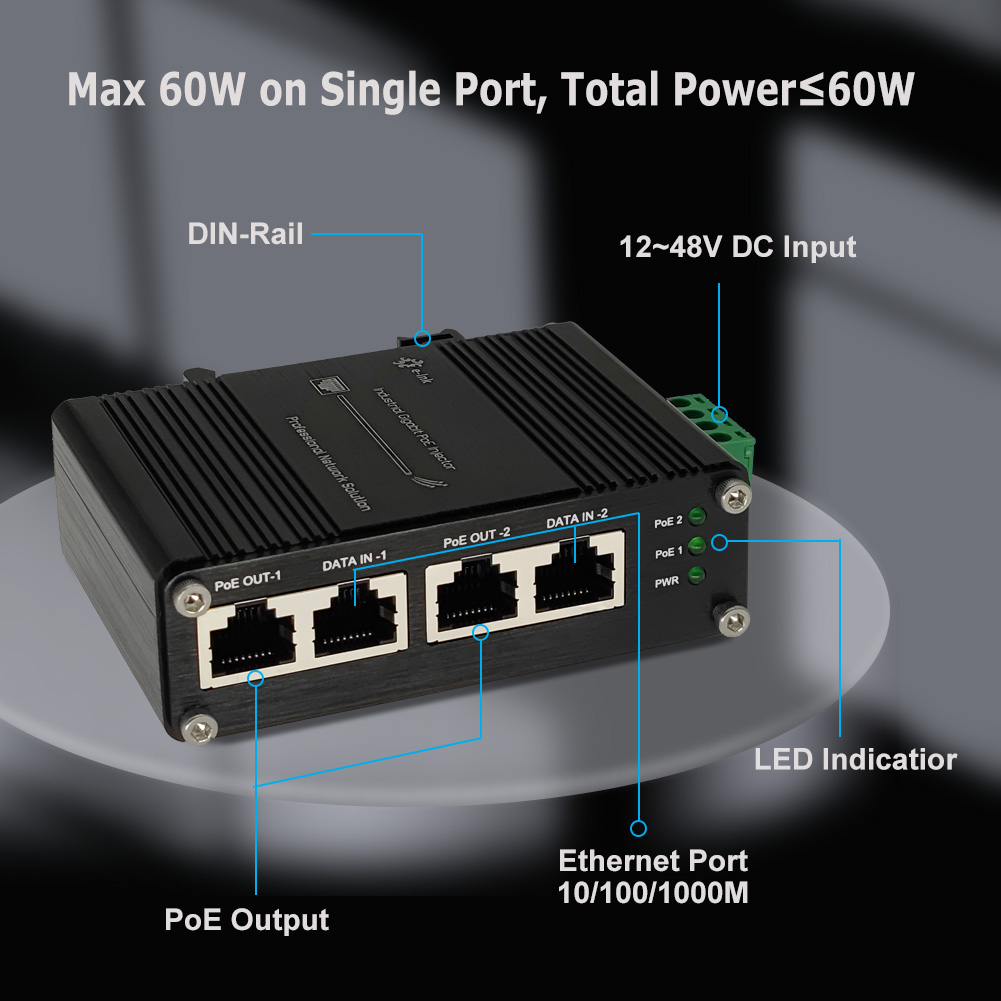

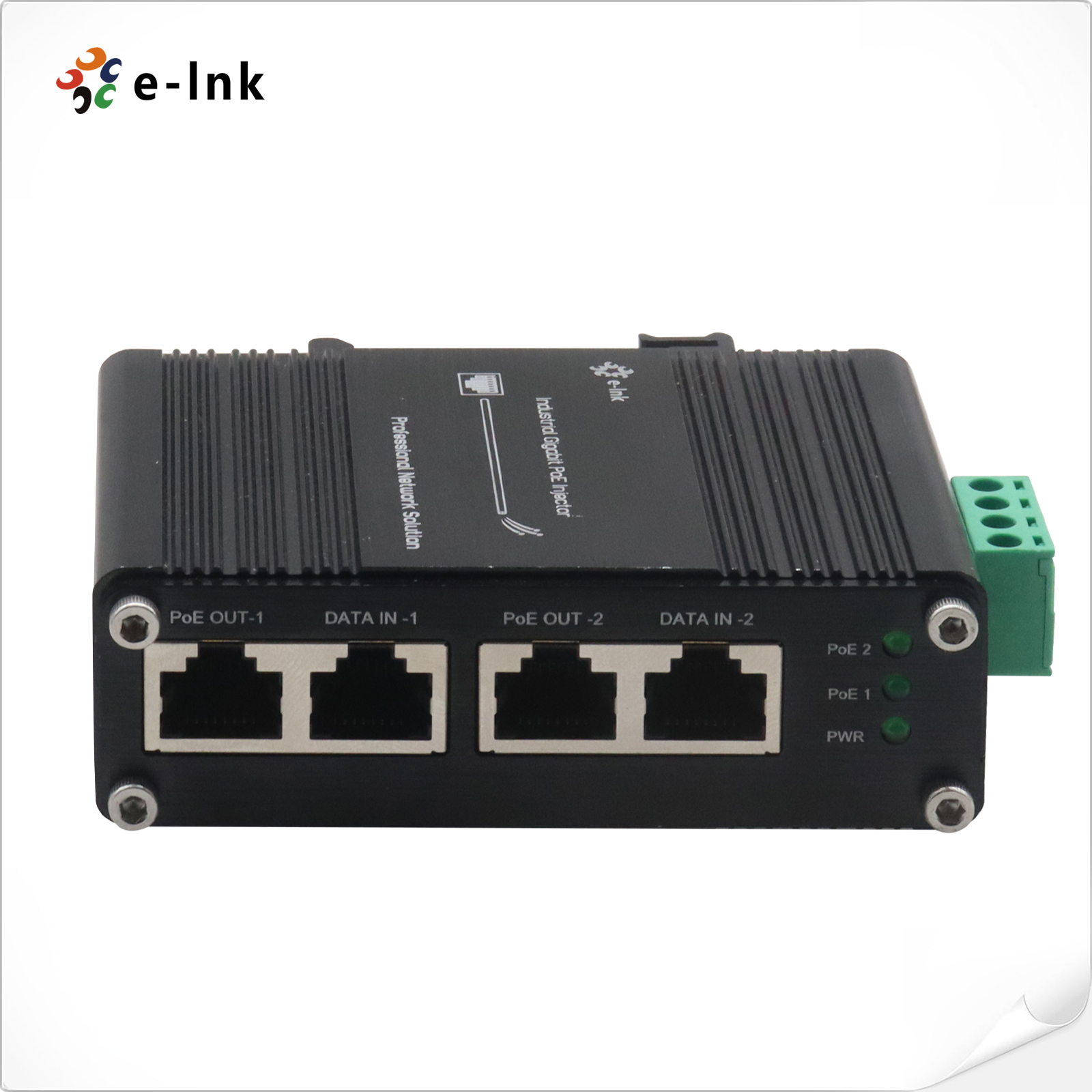

12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector

Model:LNK-INJ302

►    12~48VDC Power Input

►    2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)

►    Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

►    Max 60W PoE at one port, total POE power less than 60W

►    Support 10/100/1000Base-TX

Overview


The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.


Feature


►    12~48VDC Power Input

►    2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)

►    Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

►    Max 60W PoE at one port, total POE power less than 60W

►    Support 10/100/1000Base-TX

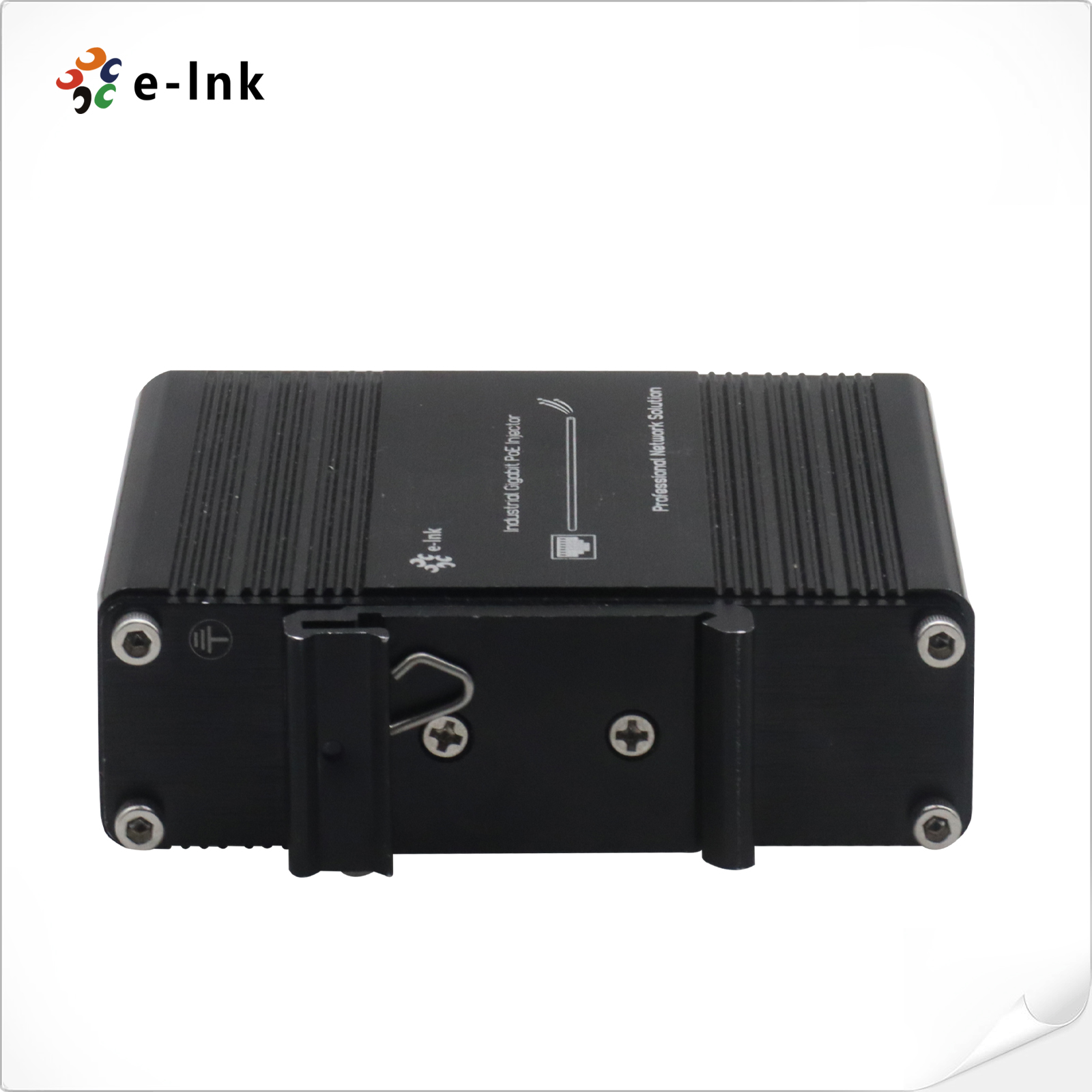

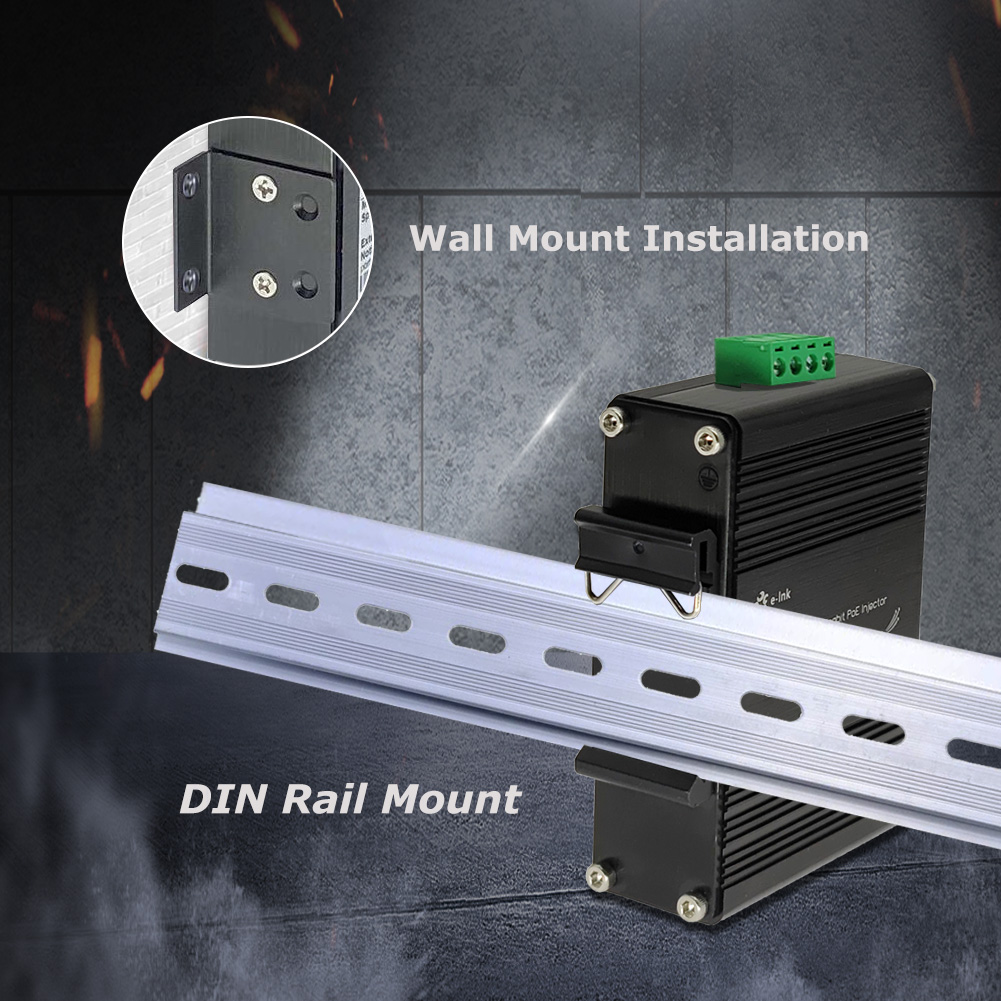

►    Support DIN-Rail & Wall-mount installation.

►    Extensive LED indicators for PoE diagnostics

►    Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature


Application

Technical Indexes

Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

4x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

70W Max.

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

Max. Power per Port:

60W Max (Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.26Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

CE-EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV

  • Download FileName:E-link LNK-INJ302 12-48VDC Industrial 1000M PoE Injector Datasheet V1.0.pdf Size: 707KB

Order Information


Model

Description

LNK-INJ302

12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
