► 10/100/1000Mbps Ethernet Ports
► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
► IP40-rated aluminum case
► Can be Powered by IEEE 802.3at or High-Power PoE 95W Power Sourcing Equipment
► Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 95W Powered Devices
Overview

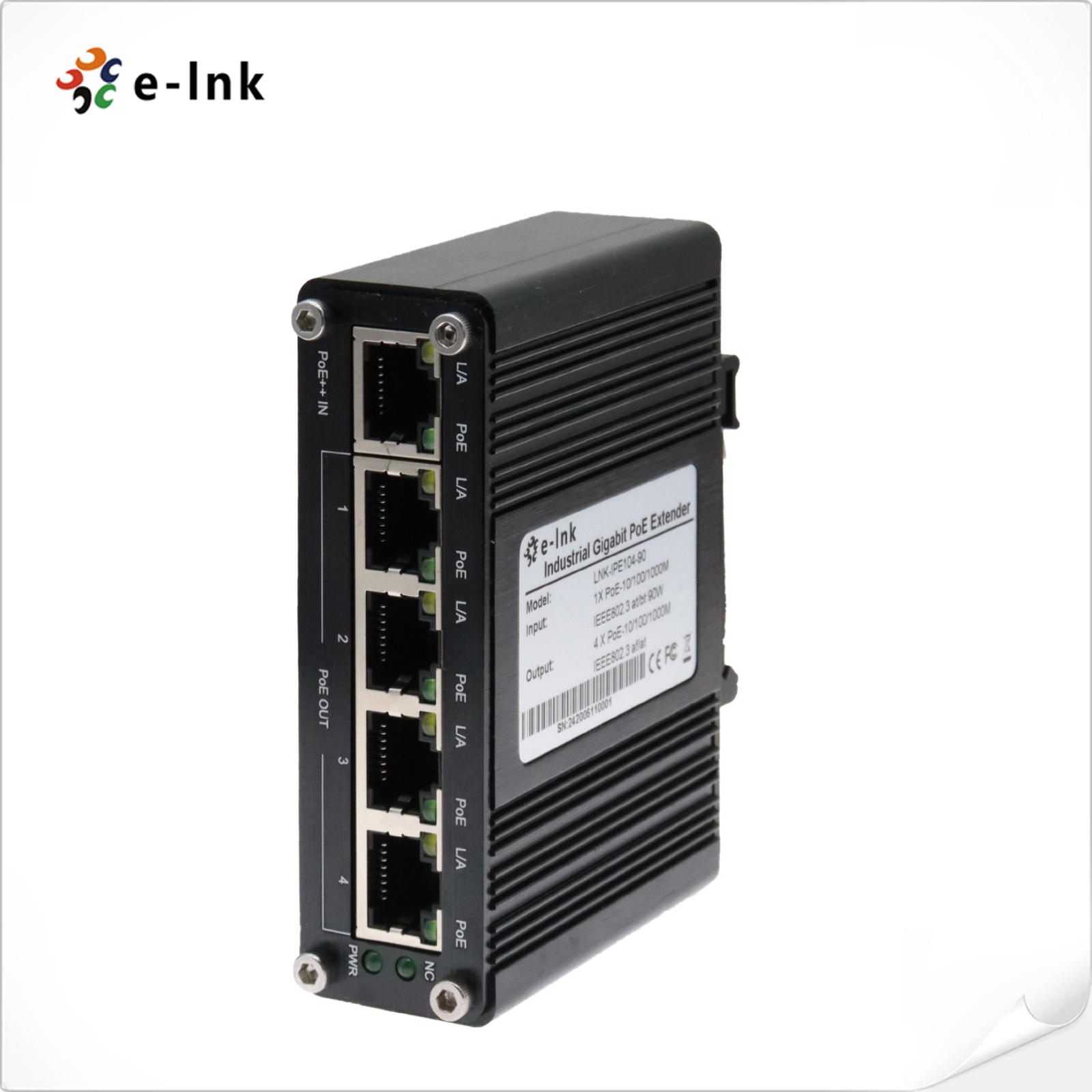

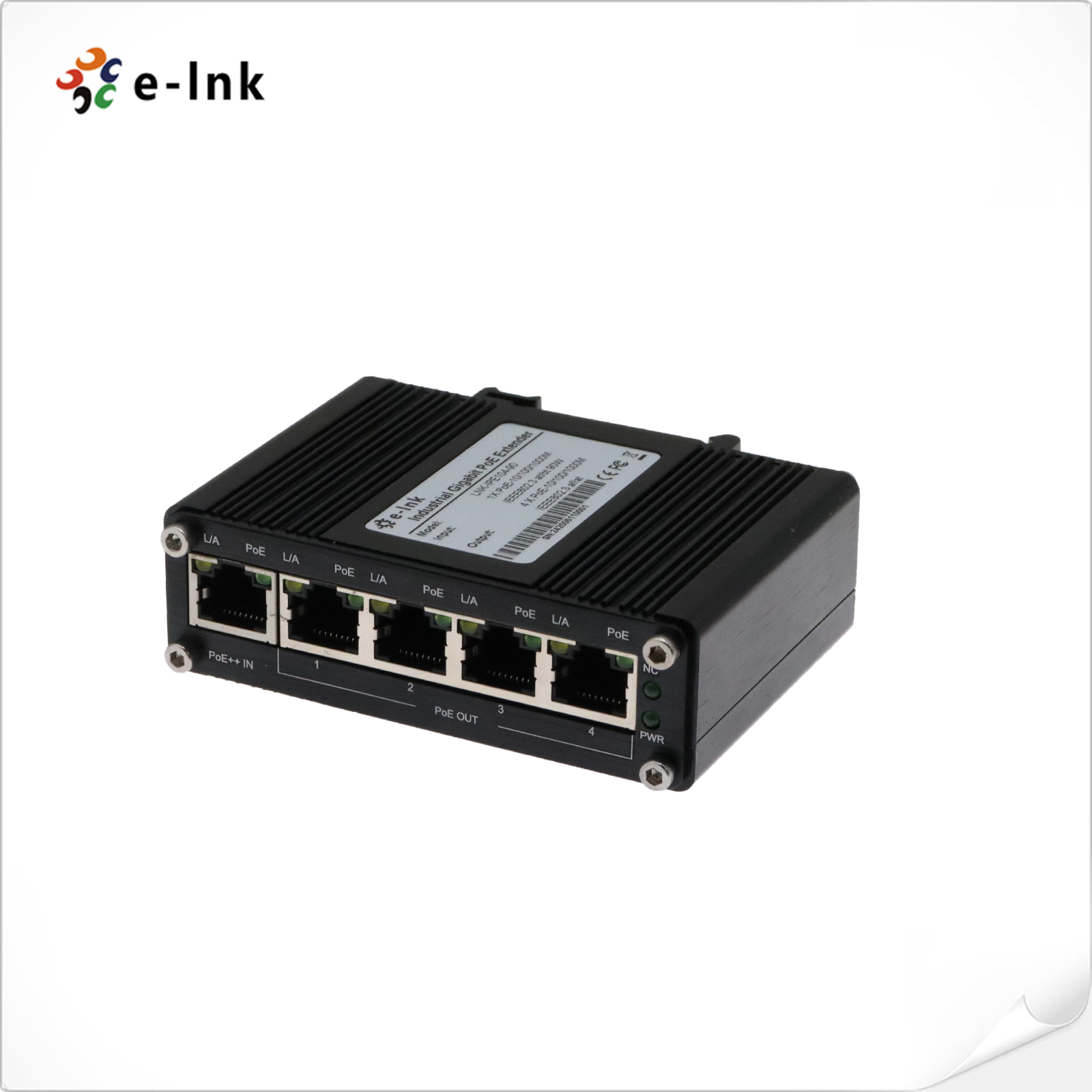

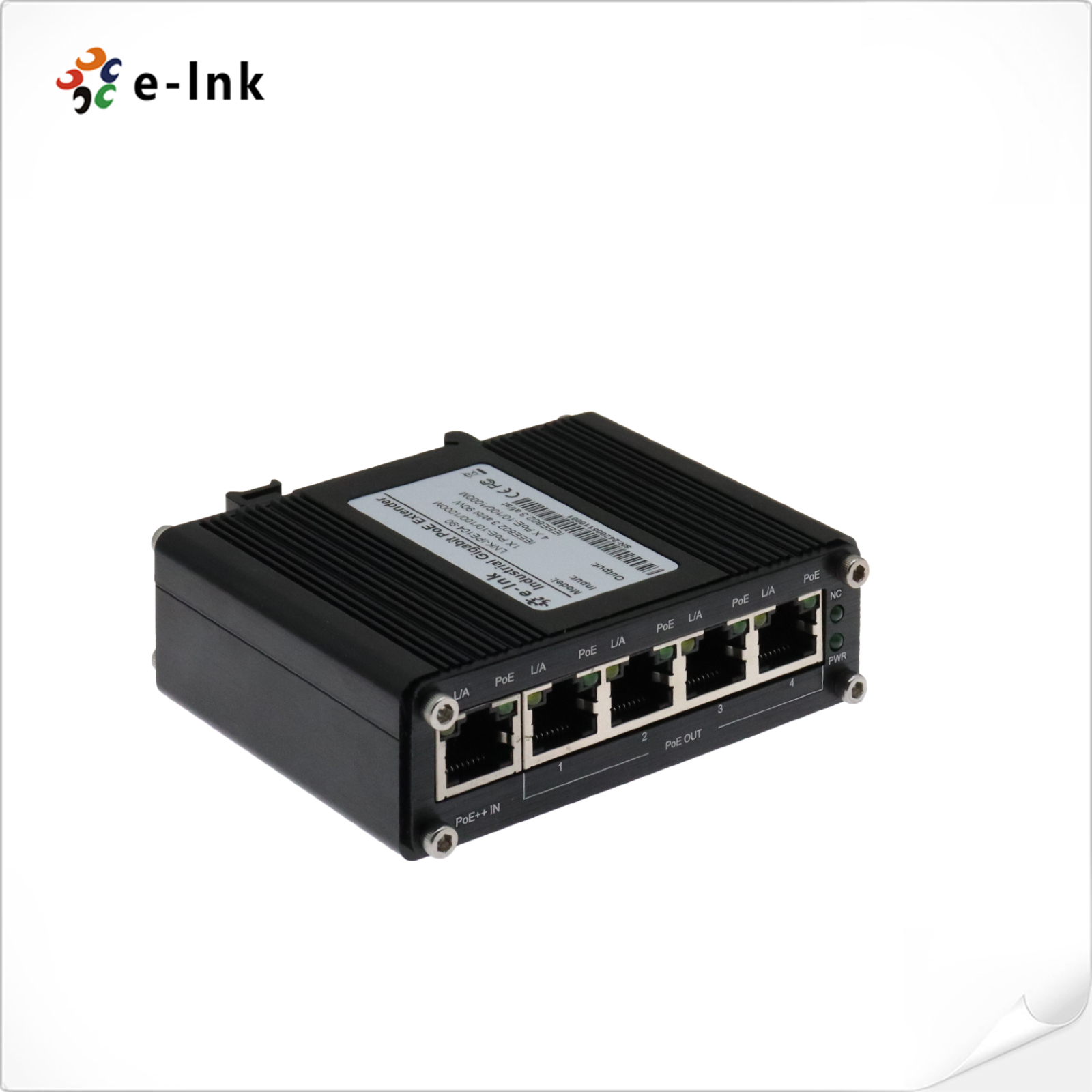

LNK-IPE104-90 is an industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The LNK-IPE104-90 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ input port and supplies a maximum of 75-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. The LNK-IPE104-90 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
Feature
► 10/100/1000Mbps Ethernet Ports
► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
► IP40-rated aluminum case
► Can be Powered by IEEE 802.3at or High-Power PoE 95W Power Sourcing Equipment
► Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 95W Powered Devices
► Extends an additional 100m for PoE network. Daisy chain support connection up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)
► Support DIN-Rail & Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Application
Technical Indexes
Ethernet Port |
|
PoE Input Port |
10/100/1000Base-TX RJ45, IEEE 802.3bt PoE Input Input Power 50~57V DC, Max 95W |
PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m |
Cascade connection |
Support 3 grade |
Power over Ethernet |
|
PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
PoE Power Supply Type |
Mid-span and End-span |
PoE Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
Switch Property |
|
Standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control |
Forwarding Modes |
Store and Forward |
Transmission Distance |
100m |
MAC Table |
8K |
Switching Capacity |
10Gbps |
Packet Forwarding Rate |
14.88Mpps |
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
Jumbo Frame |
10K bytes |
Environment |
|
Surge Immunity |
6KV, Standard: IEC6000-4-5 |
ESD Protection |
6KV1aContactDischargeLevel3, 8KV1bAirDischargeLevel3, Standard: IEC61000-4-2 |
Protection Level |
IP 40 |
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
Operating Humidity |
0~95% (non-condensing) |
Physical Parameter |
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
Weight |
0.25Kg |
Casing |
Aluminum Case |
Mounting Options |
DIN-Rail / Wall-mount |
Certifications |
|
Certifications |
CE, FCC, RoHS |
Order Information
Model |
Description |
LNK-IPE104-90 |
Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender |
Mounting Options |

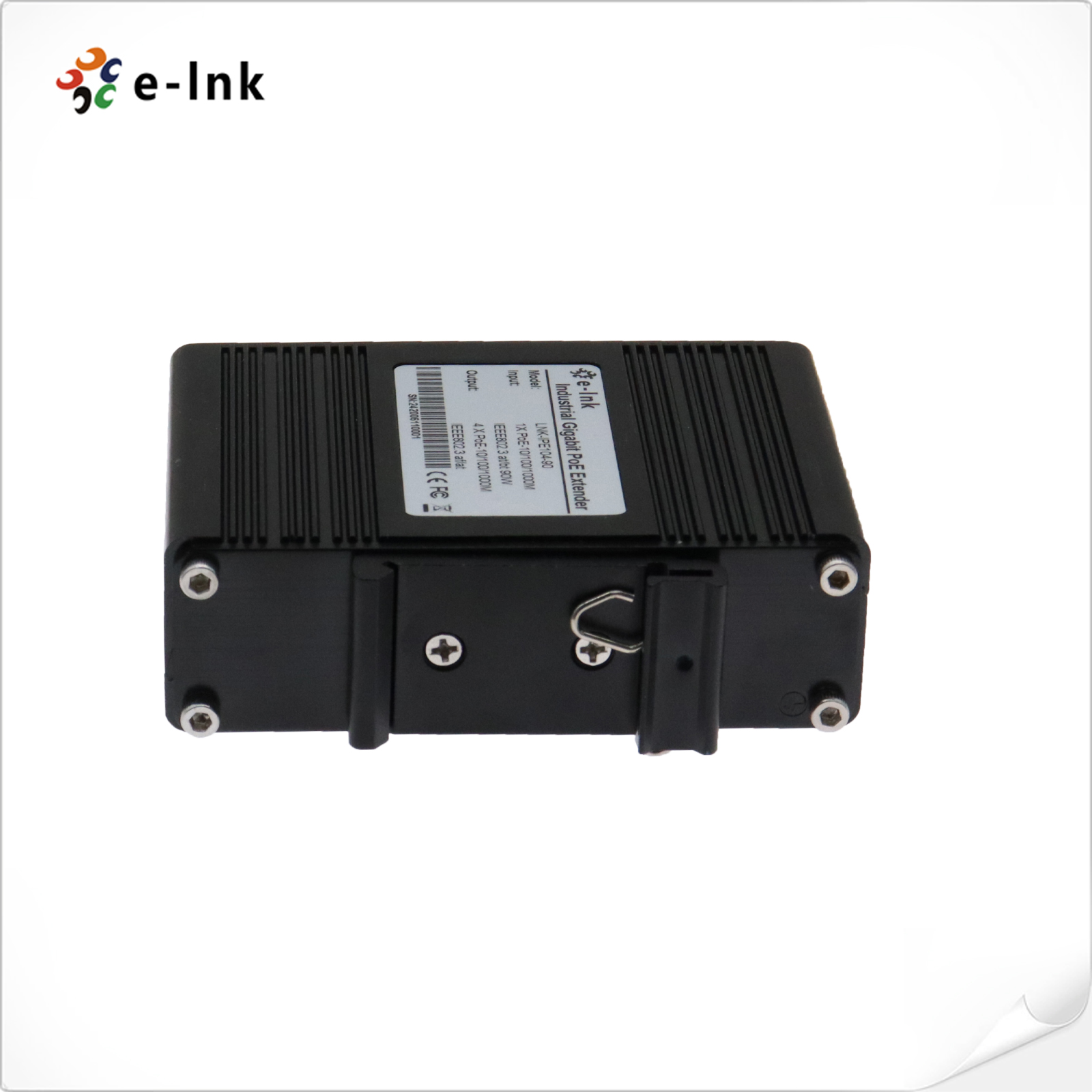

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
