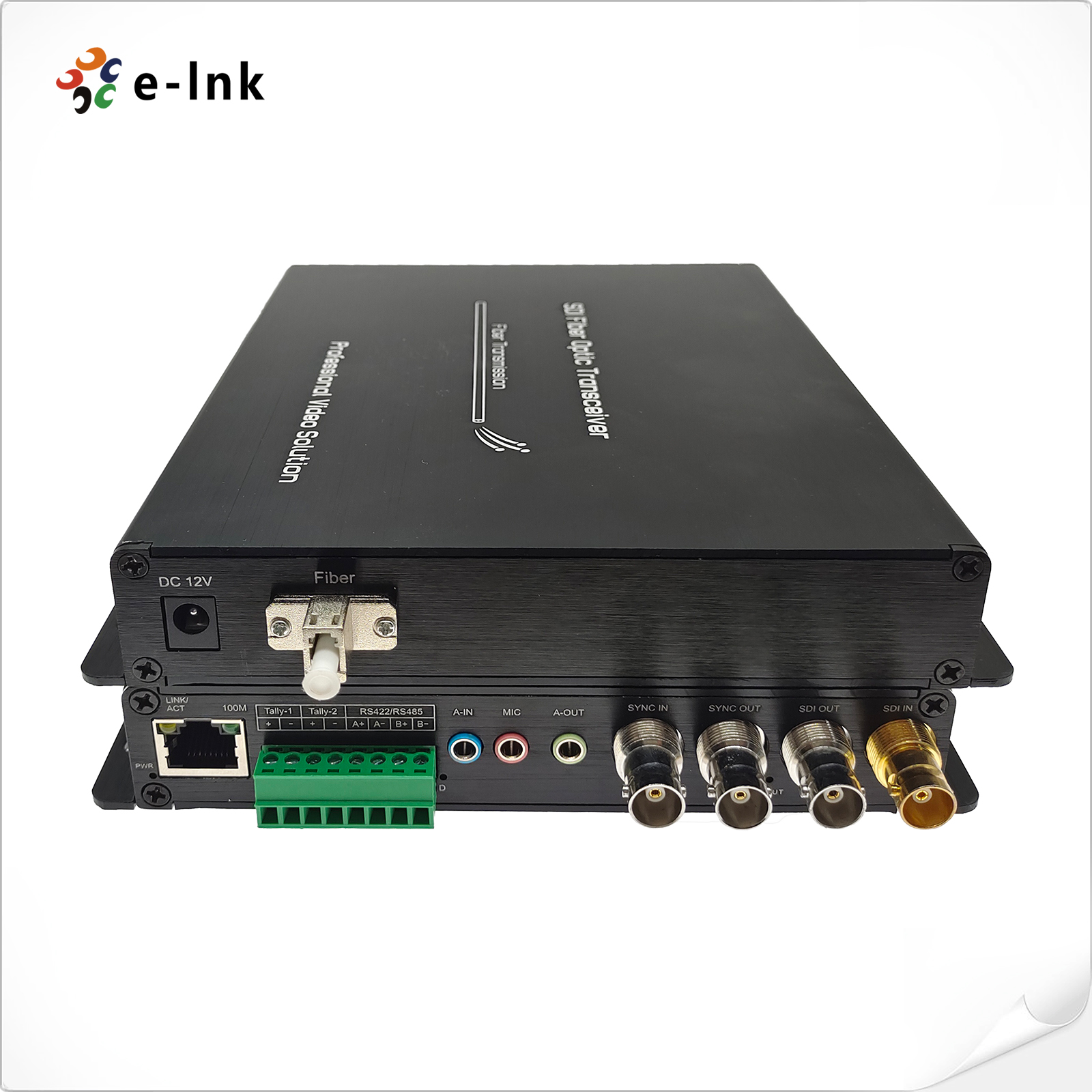

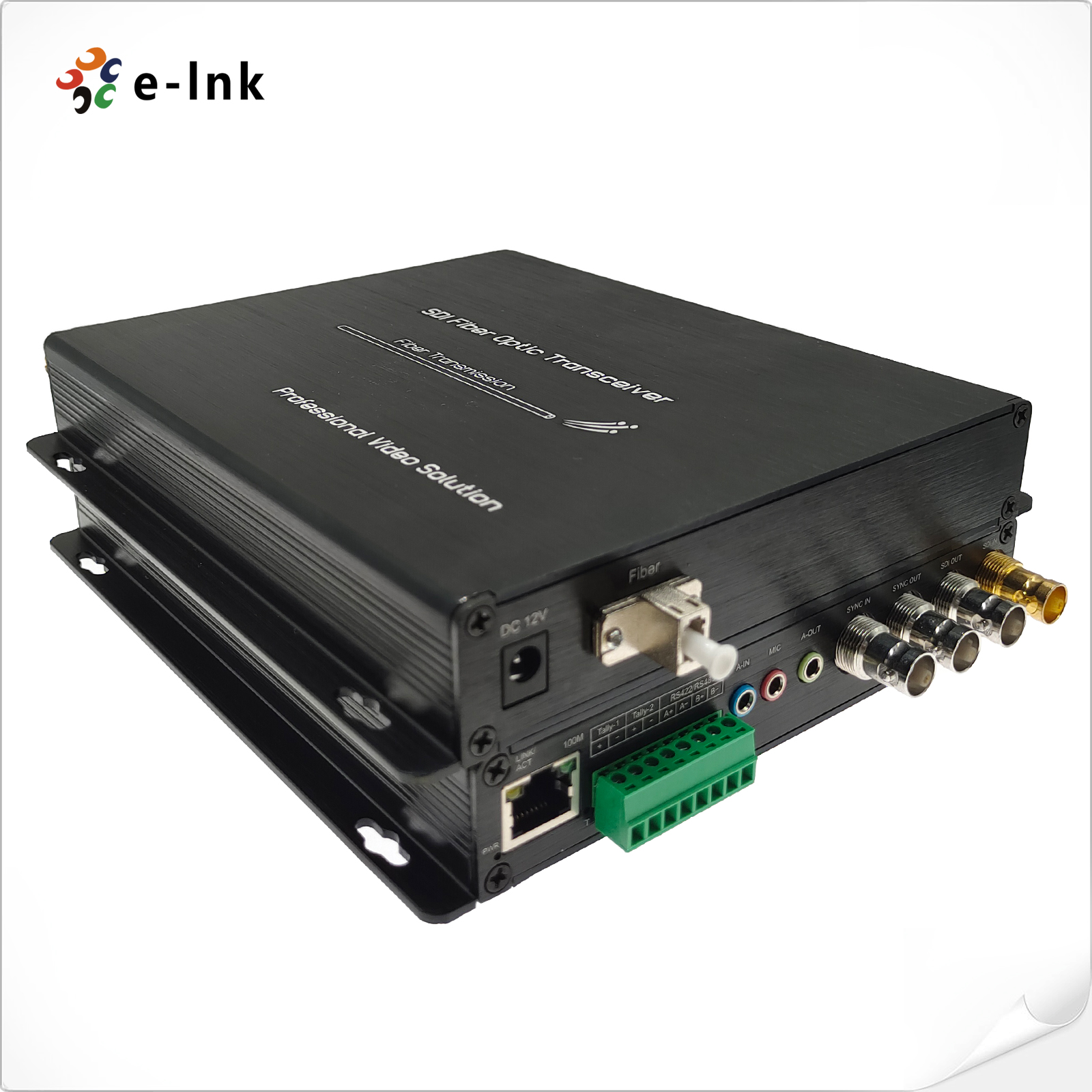

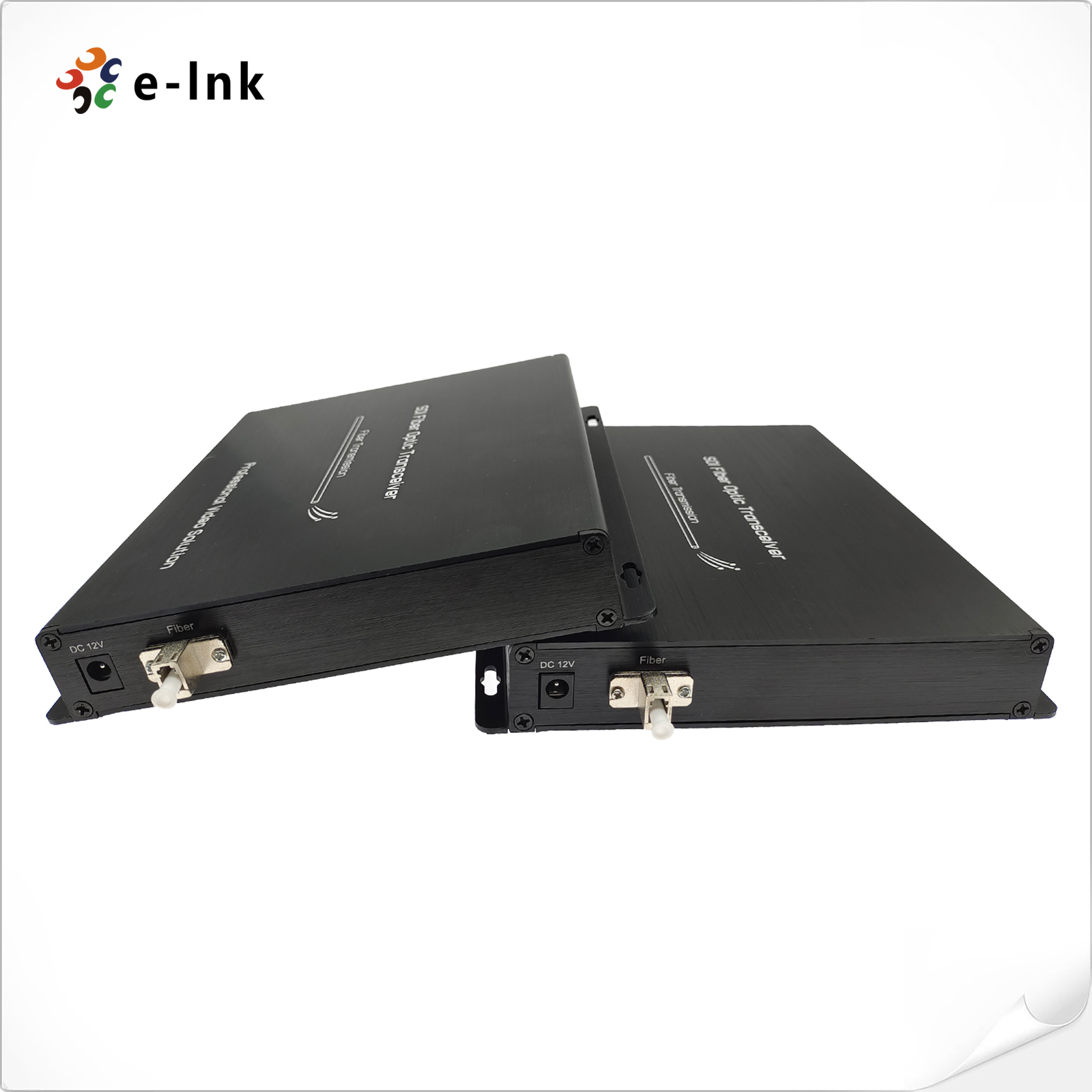

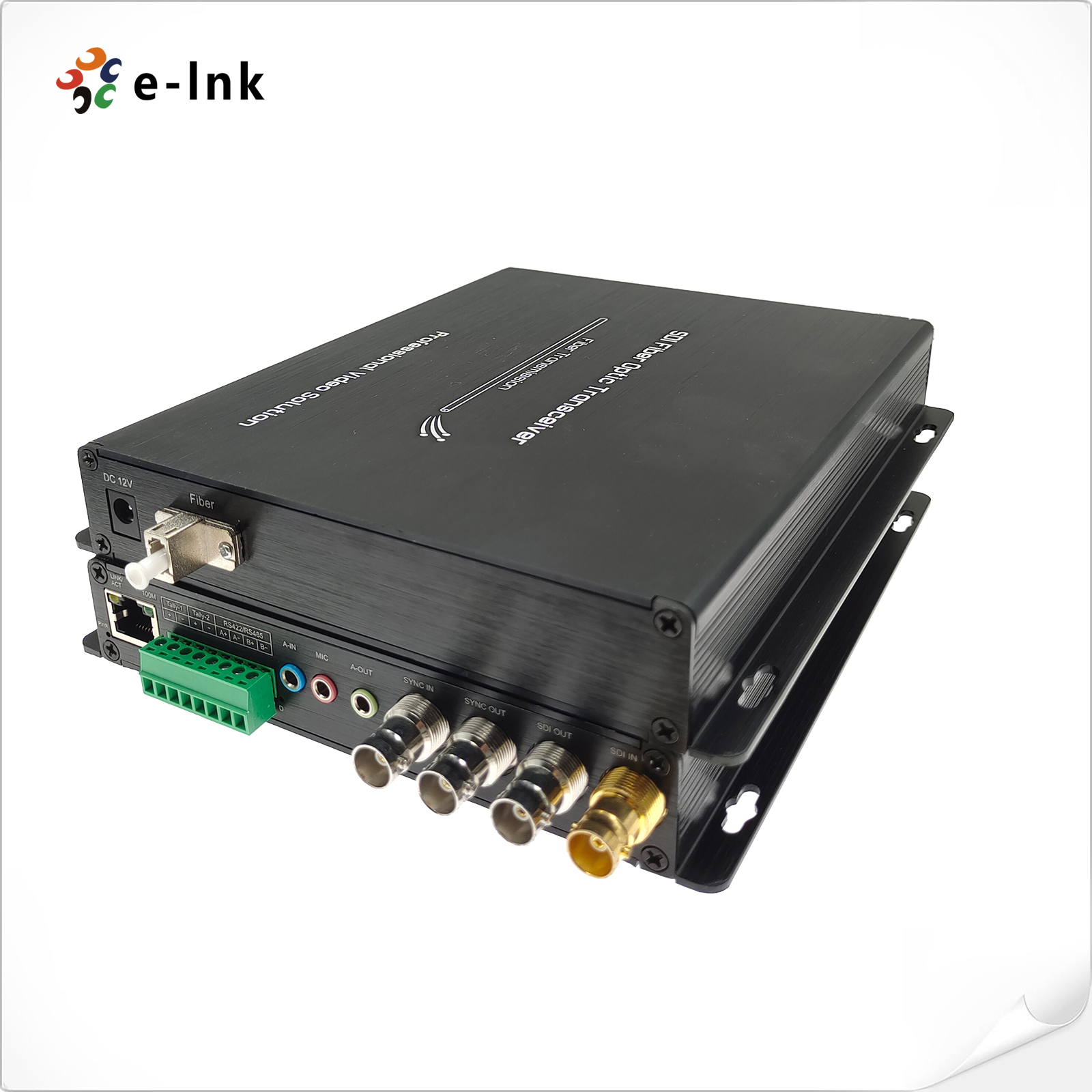

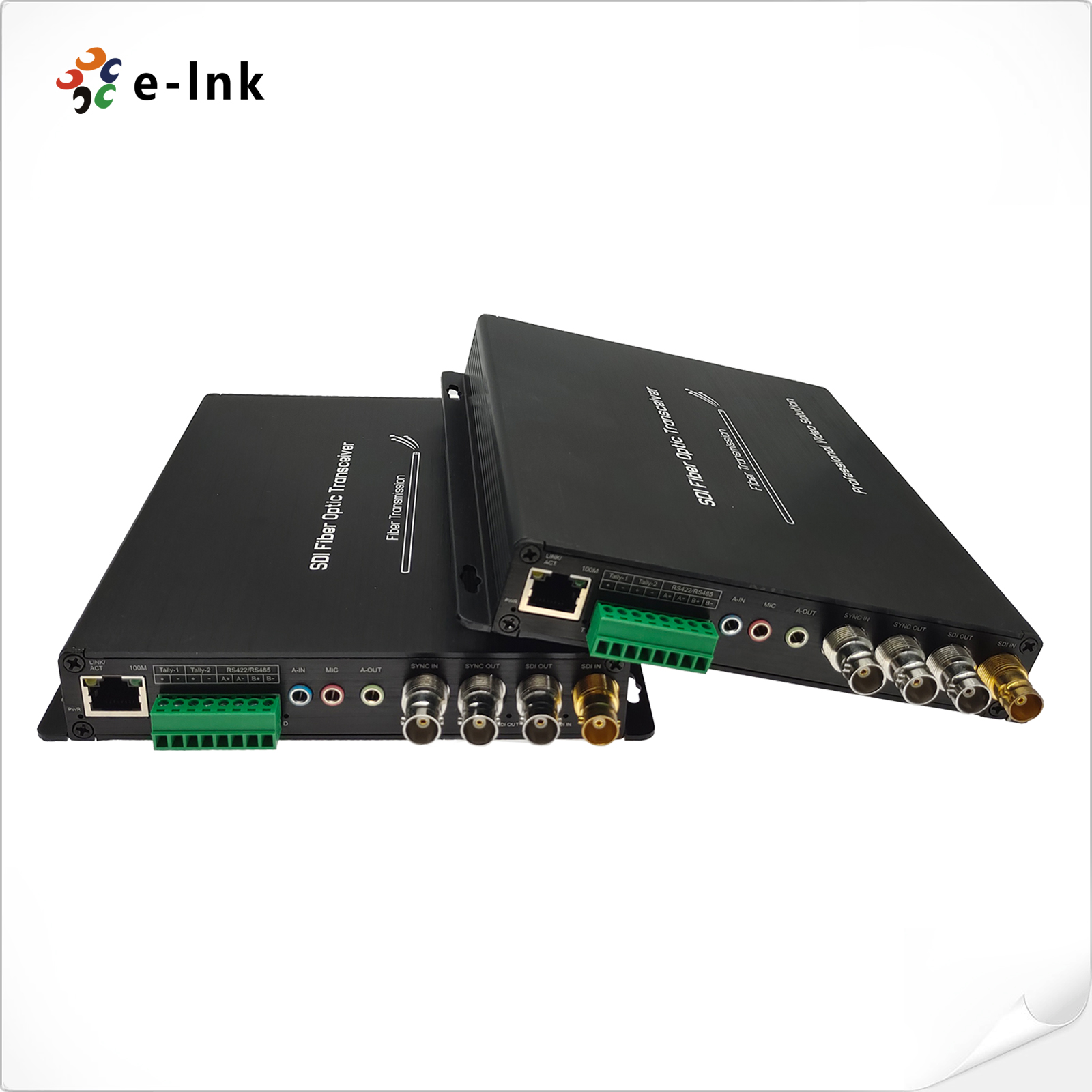

3G-SDI Video Fiber Converter with Audio + RS422 + Ethernet + Tally + Sync
Model:LNK-3G2V2BA2D1E1T1S
► 1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Syn over one fiber
► Compatible with HD-SDI, SD-SDI, DVB-AST
► Bandwidth range from 19.4Mb/s to 2.97Gb/s
Overview
E-link LNK-3G2V2BA2D1E1T1S 3G-SDI fiber extender provides transmission of 1Ch BIDI 3G-SDI Video, 2Ch Backward Analog Audio, 1Ch BIDI RS422, 1Ch 100M Ethernet, 1Ch Backward Tally and 1Ch Backward Analog Tri-level Sync over Fiber Converter, including 1 transmitter & 1 receiver, used by pairs over single mode optical cables. This 3G-SDI optical fiber converter enables high optical performance and brilliant HD video processing in real time. IP interfaces can dramatically increase scalability and compatibility with all modern high-end networking systems.
Since optical signals are not affected by electromagnetic noise, LNK-3G2V2BA2D1E1T1S makes your system more reliable and secure. It’s good solution for any HD surveillance system or live broadcasting application. All things considered, LNK-3G2V2BA2D1E1T1S pushes the limits of conventional coax CCTV or broadcast system to a completely new level and allows you to extend transmission distances up to 20km (optional 40/60/80km).
Features
► 1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Syn over one fiber
► Compatible with HD-SDI, SD-SDI, DVB-AST
► Bandwidth range from 19.4Mb/s to 2.97Gb/s
► SMPTE 424M (2.97Gb/s) clock recovery
► Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively
► Built-in CWDM system, SFP modules for each path
► Support automatic cable equalization based on the data rate detected
► LED status indicators monitor the critical parameters

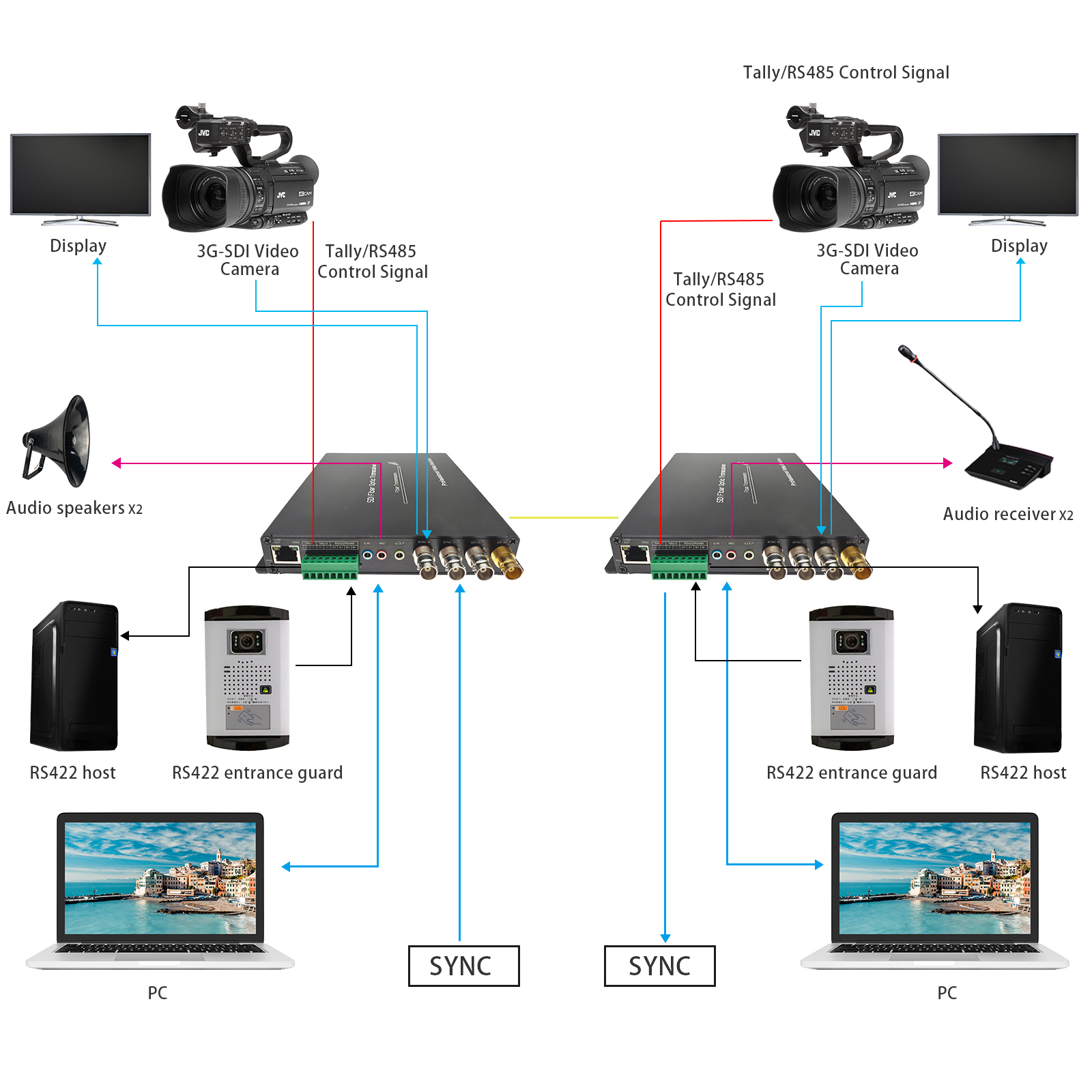

Application
Technical Indexes
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
20Km |
|
Wavelength |
1310nm/1490nm//1550nm |
|
3G-SDI Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Video Input |
1Ch SDI IN + 1Ch SDI OUT on TX |
|
Video Output |
1Ch SDI IN + 1Ch SDI OUT on RX |
|
Audio |
|
|
Audio interface |
3.5mm Jack |
|
Audio format |
@48KHz |
|
Audio input |
1Ch Audio IN or 1Ch Mic + 1Ch Audio OUT on TX |
|
Audio output |
1Ch Audio IN or 1Ch Mic + 1Ch Audio OUT on RX |
|
RS422/485 Serial Data |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
RS422/RS485 Bi-Direction |
|
Frequency/Rate support |
Max. 115200bps for RS422 Max. 115200bps for RS485 |
|
BER |
<10ˉ9 |
|
Tally |
|
|
Tally interface |
Industrial standard screw terminal |
|
LED load type |
Can drive the LED indicator directly |
|
Tally input |
Tally-2+; Tally-2 - |
|
Tally output |
Tally-1+; Tally-1 - |
|
Ethernet |
|
|
Standards |
IEEE 802.3 10Base-T IEEE 802.3u 100BASE-TX IEEE 802.3x full-duplex flow control |
|
Interface |
1 x 10/100BASE-TX RJ45 |
|
Working mode |
Auto-negotiation by default |
|
Analog Tri-level Sync |
|
|
Sync Interface |
75Ω BNC |
|
Sync |
Analog black burst / SDTV bi-level / HDTV tri-level |
|
Signal |
Analog tri-level sync SMPTE ST 274, ST 276 |
|
Return Loss |
46.5 dB to 10 MHz |
|
Input |
1Ch Sync IN + 1Ch Sync OUT on TX |
|
Output |
1Ch Sync IN + 1Ch Sync OUT on RX |
|
Electrical |
|
|
Power Input |
DC12V 1A |
|
Power consumption |
<6W |
|
LED Indicator |
|
|
PWR |
Power Supply |
|
SDI 1~8 |
3G-SDI Signal |
|
ACT |
RJ45 Ethernet Signal |
|
LINK |
Link Status |
|
Mechanical |
|
|
Dimensions (LxWxH) |
85 x 70 x 30mm |
|
Weight |
1.1KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Wall-mount or Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
- Download FileName：LNK-3G2V2BA2D1E1T1S 3G-SDI Fiber Extender Datasheet V1.0.pdf Size： 1.12MB
Order Information
|
Model |
Description |
|
LNK-3G2V2BA2D1E1T1S |
1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Syncover Fiber Converter, SMF, LC, 20KM, including 1 transmitter & 1 receiver, used by pairs |
