Ethernet

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Interface:

“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T

“Data” Out Port: 1 x RJ-45 10/100/1000Base-T

DC Out Plug Connector: 1 removable 2-Pin terminal block

Power over Ethernet

PoE Standard:

IEEE 802.3af/at Power over Ethernet

Number of devices that can be powered:

1 (5V/9V/12V/19V DC)

(Vary on device’s power requirement; cannot be over 20 watts.)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Power Output:

20W 5V/9V/12V/19V DC (Terminal Block)

Power Consumption:

25W Max.

LED Indicators:

PWR:

5V/9V/12V/19V DC Power OUT

POE:

PoE Power IN

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

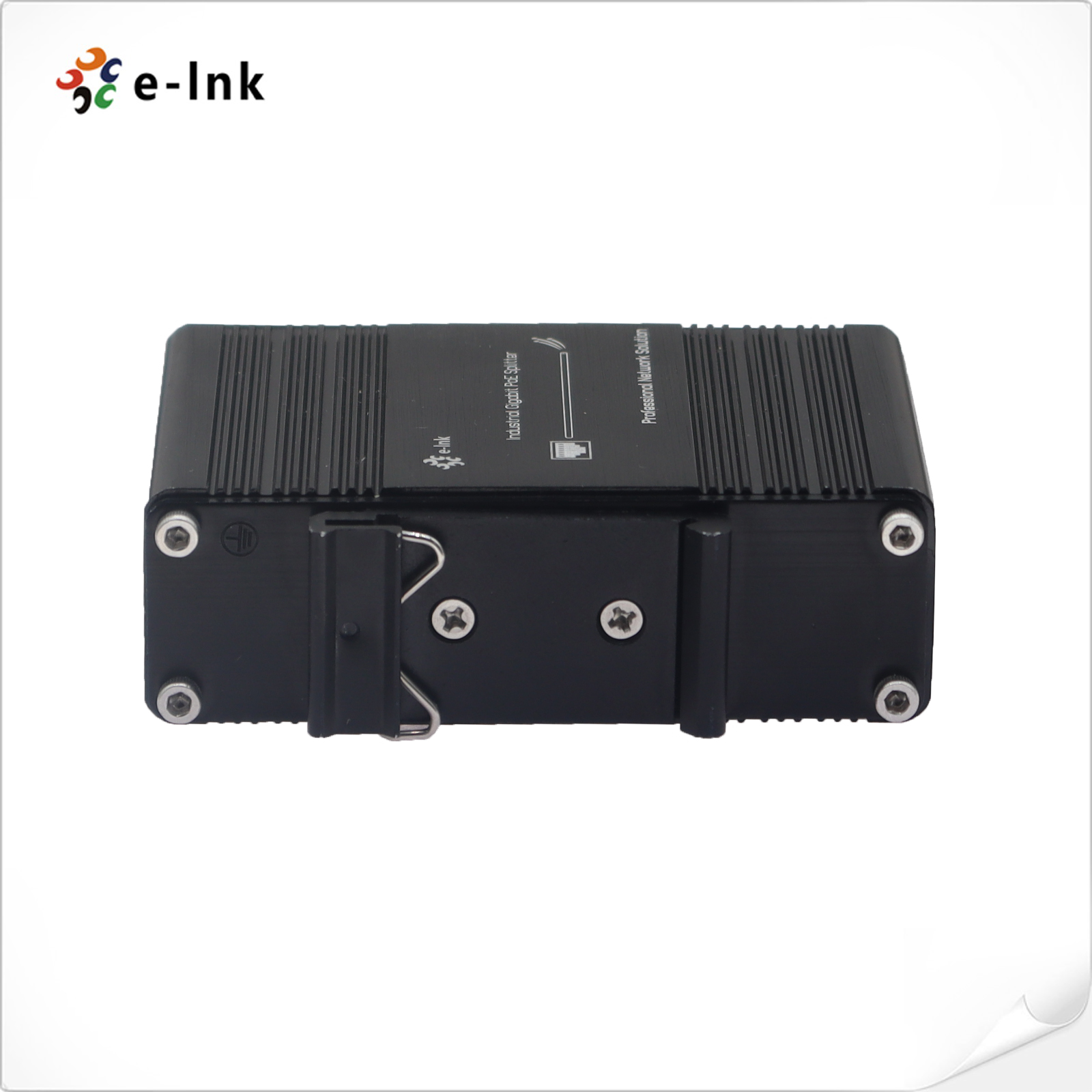

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV
