► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 5/12/19/24/36V DC Output (2-pin Terminal Block)
► Support IEEE802.3af/at/bt PoE++

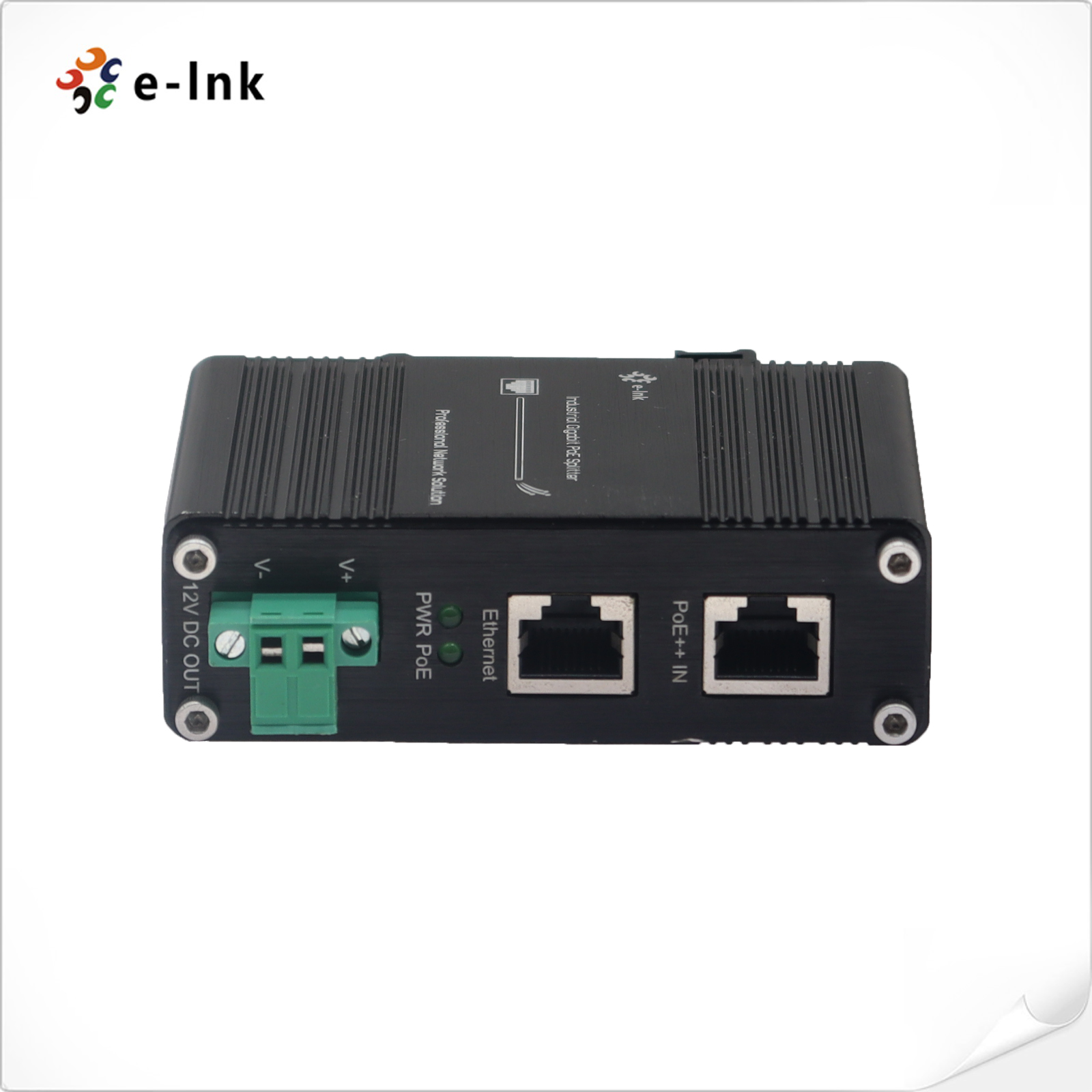

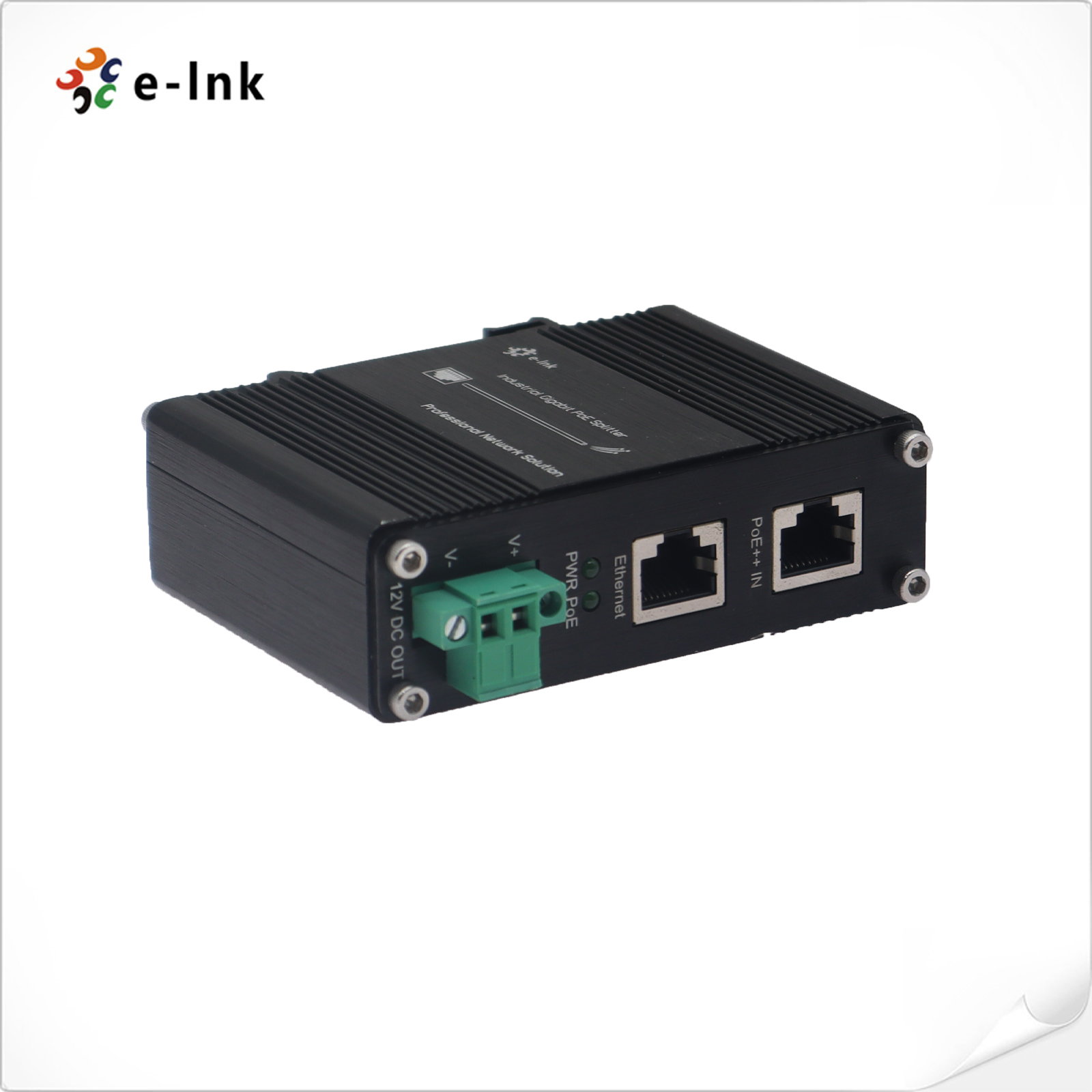

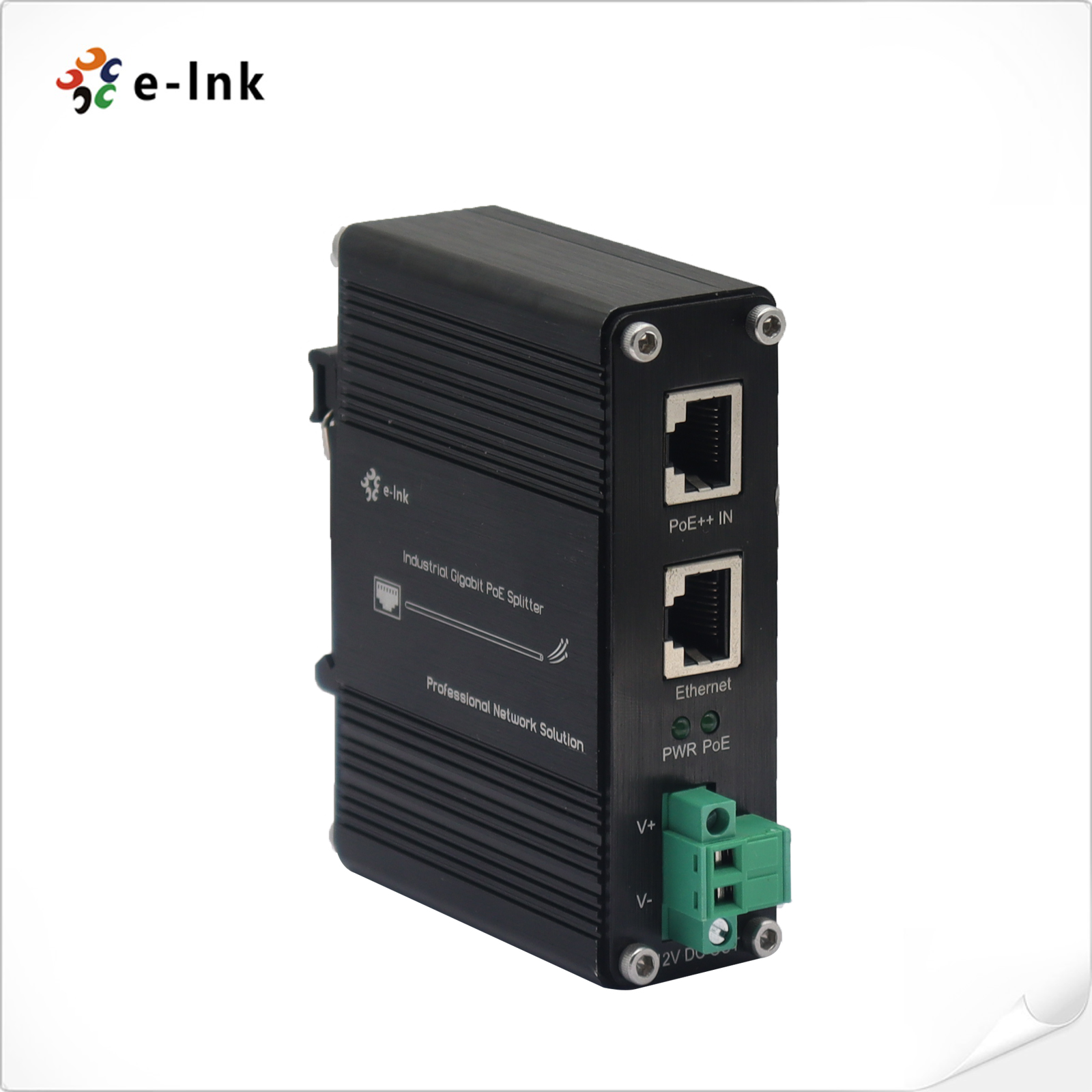

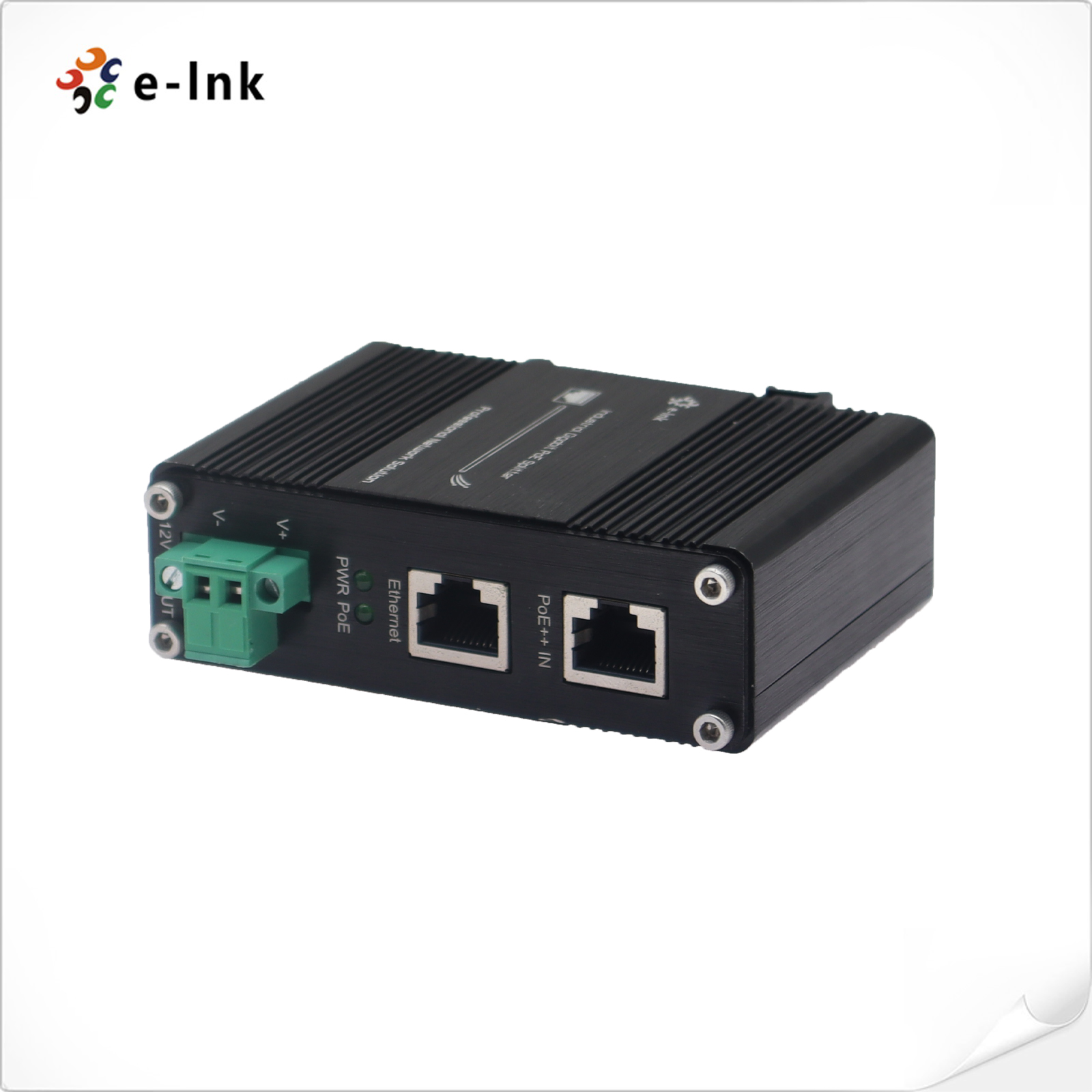

Overview
LNK-INS901 series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.
The LNK-INS901 acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt PSE (Power Source Equipment) switches or work when paired with LNK-INJ-48-95W PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 5/12/19/24/36V DC, run simultaneously up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS901, make it a plug and play device, requiring no tools or software configuration, and provides ease of use, with flexible installation and high reliability.
Features
► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 5/12/19/24/36V DC Output (2-pin Terminal Block)
► Support IEEE802.3af/at/bt PoE++
► Support 10/100/1000Base-T
► Distance up to 100 meters
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless

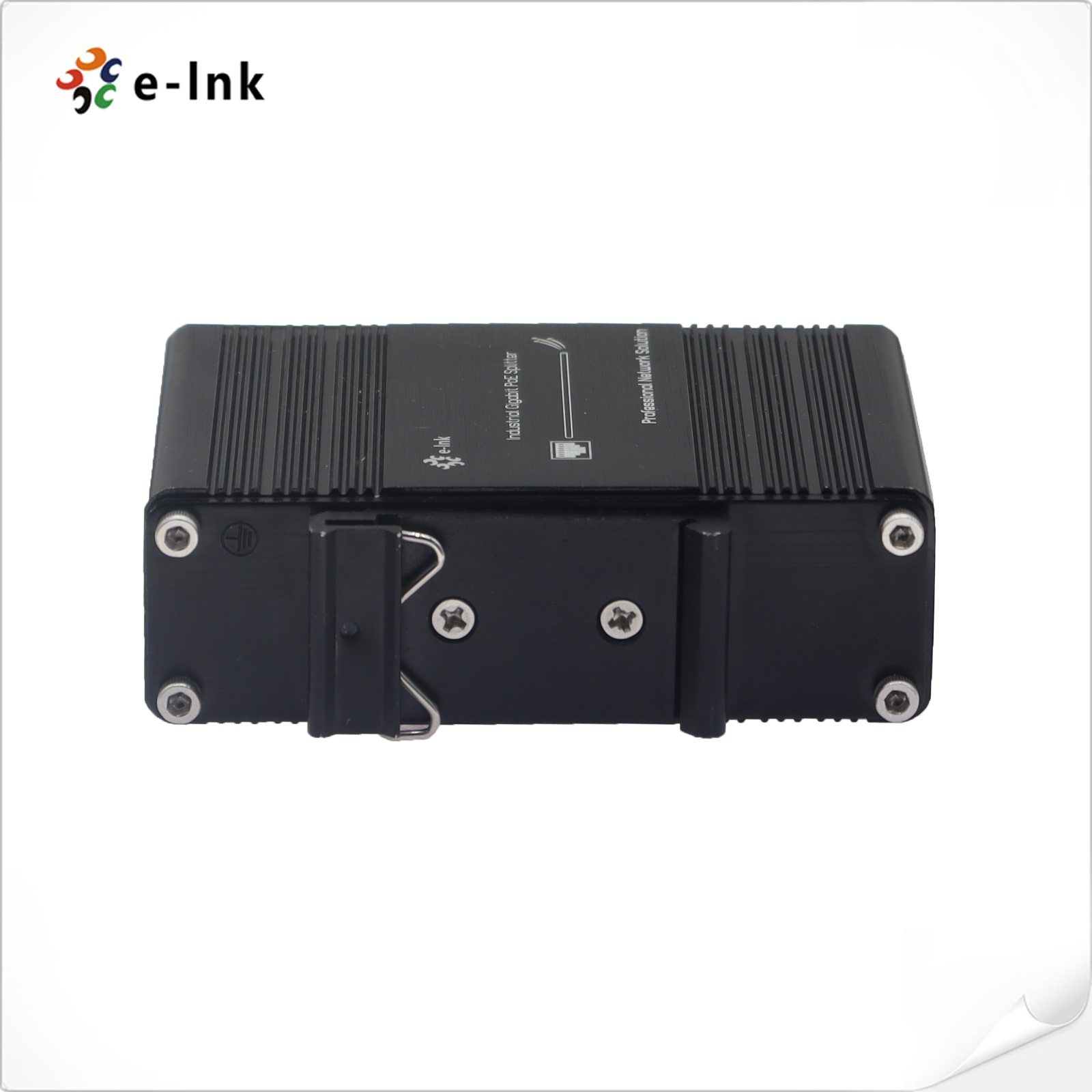

► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
► Wide operating temperature -40 ~ 80°C

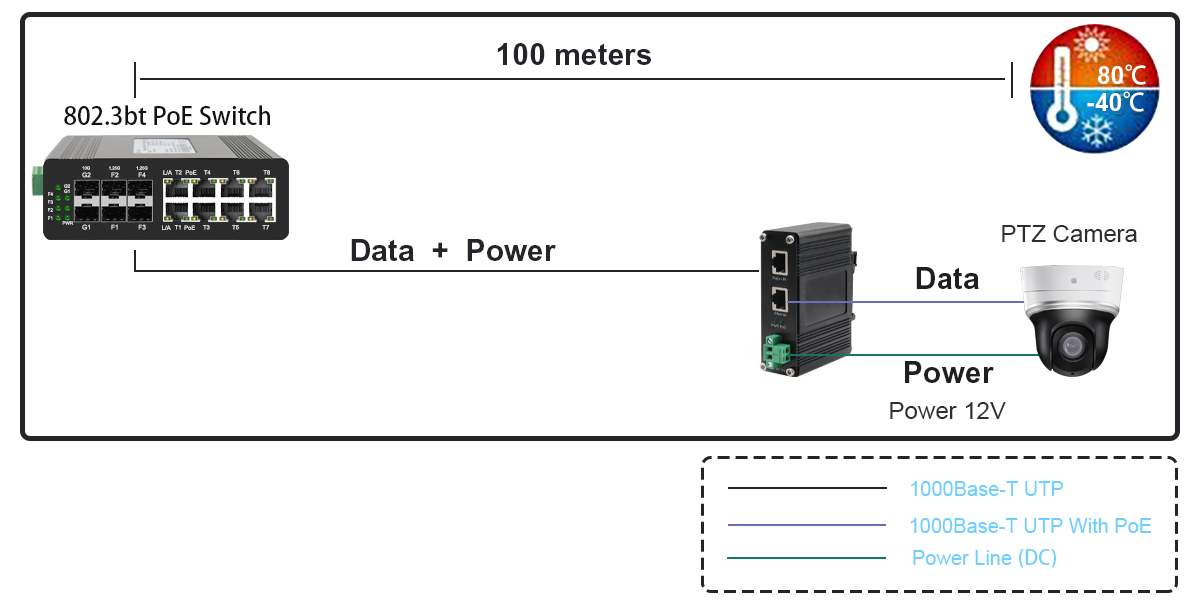

Application
Specifications
Standards: |
IEEE 802.3 10Base-T Ethernet |
IEEE 802.3u 100Base-TX Fast Ethernet |
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
IEEE 802.3af Power over Ethernet |
|
IEEE 802.3at Power over Ethernet Plus |
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
Processing Type: |
Forward |
Half-duplex, Full-duplex |
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
Cabling: |
1000Base-T: Cat5 or above |
Maximum Distance: |
Cat5 UTP up to 100m |
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
Power over Ethernet |
|
PoE Standard: |
IEEE 802.3af/at/bt Power over Ethernet |
Number of devices that can be powered: |
1 (5/12/19/24/36V DC) (Vary on device’s power requirement; cannot be over 36 watts.) |
Environmental |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF: |
>200,000hrs |
Electrical and Mechanical |
|
Power Output: |
20W 5/12/19/24/36V DC (Terminal Block) |
Power Consumption: |
25W Max. |
LED Indicators: |
|
PWR: |
5/12/19/24/36V DC Power OUT |
POE: |
PoE Power IN |
Dimensions (WxDxH): |
95 x 70 x 30 mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Regulatory Approvals |
|
ISO9001 |
|
FCC part 15, Class A |
|
EN55022:2006+A1: 2007 Class A |
|
Surge Protection: |
|
RJ45: 1KV |
|
Power: 500W |
|
ESD: 4KV/8KV |
Order Information
Model | Description |
LNK-INS901-5V | Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter, Output Voltage 5VDC, 20W/5VDC output, standalone, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
LNK-INS901-12V | Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter, Output Voltage 12VDC, 36W/12VDC output, standalone, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
LNK-INS901-19V | Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter, Output Voltage 19VDC, 36W/19VDC output, standalone, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
LNK-INS901-24V | Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter, Output Voltage 24VDC, 40W/24VDC output, standalone, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
LNK-INS901-36V | Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter, Output Voltage 36VDC, 70W/36VDC output, standalone, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
