► 1x10/100/1000Mbps RJ45 Slot + 1xTYPE-C USB3.0 Slot
► Supports Gigabit networking over USB 3.0
► IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
► Powered directly from the USB ports
► Crossover Detection & Auto-Correction (Auto MDIX)
► IEEE 802.1Q VLAN Tagging support
► 1x10/100/1000Mbps RJ45 Slot + 1xTYPE-C USB3.0 Slot
► Supports Gigabit networking over USB 3.0
► IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
► Powered directly from the USB ports
► Crossover Detection & Auto-Correction (Auto MDIX)
► IEEE 802.1Q VLAN Tagging support
► Jumbo Frame support
► Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
► Activity and Link LED indicators
► Compact, lightweight design for maximum portability
|
|
Standards: |
IEEE 802.3 10BASE-T |
IEEE 802.3u 100Base-TX Fast Ethernet |
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
IEEE 802.1q VLAN tagging |
|
Chipset ID: |
Realtek RTL8153B |
Network Transfer Rate: |
14,880pps (10Mbps) |
148,800pps (100Mbps) |
|
1,488,000pps (1000Mbps) |
|
Jumbo Frame Support: |
9K max. |
Other: |
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload |
Software |
|
OS Compatibility: |
Windows® XP, Vista, 7, 8, 8.1, 10, 11 Windows® Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.3 to 13.0VLAN tagging is currently not supported in macOS Linux Kernel 2.6.25 and up - LTS Versions only ChromeOS 55+ |
Interface |
|
USB: |
1x USB-C 3.0 |
RJ45: |
1 x RJ-45 10/100/1000Mbps LAN port |
Electrical and Mechanical |
|
Power: |
USB Bus Powered |
Power Consumption: |
5W Max. |
LED Indicators: |
|
L/A: |
Link/Activity |
Dimensions (LxWxH): |
78 x 27 x 18 mm |
Weight: |
46g |
Casing: |
|
Mounting Options: |
Desktop |
Environmental |
|
Operating Temperature: |
0°C ~ 60°C (32° ~ 140°F) |
Storage Temperature: |
-10° ~ 70°C (14° ~ 158°F) |
Relative Humidity: |
5% to 90% non-condensing |
MTBF |
>100,000 hrs |
Regulatory Approvals |
|
ISO9001, CE, FCC, RoHS |
Model |
Description |

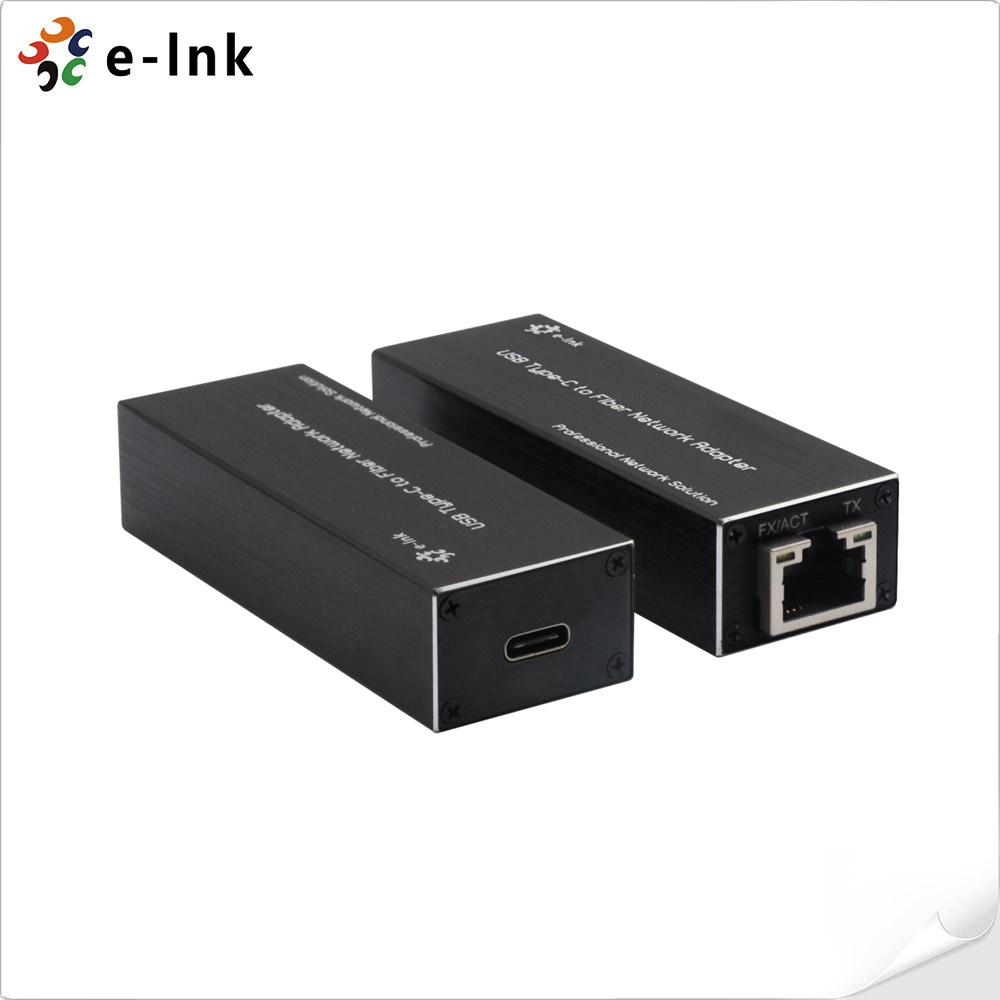

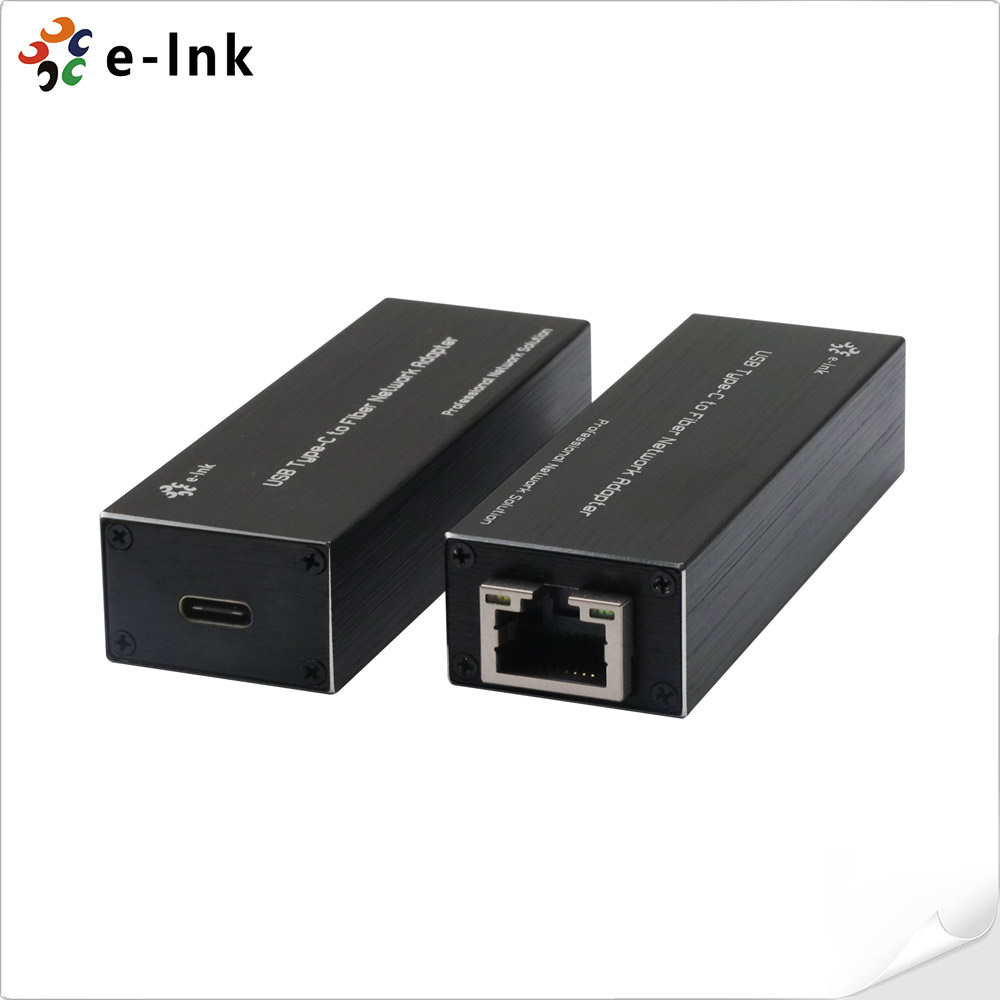

LNK-TCU1000 |
Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter |
Mounting Options |
► Desktop |
Power Options |
► No need for an external power adapter (bus powered) |
Package Contents |
► USB 3.0 Gigabit Ethernet Adapter x 1 |
► Quick installation guide x 1 |
