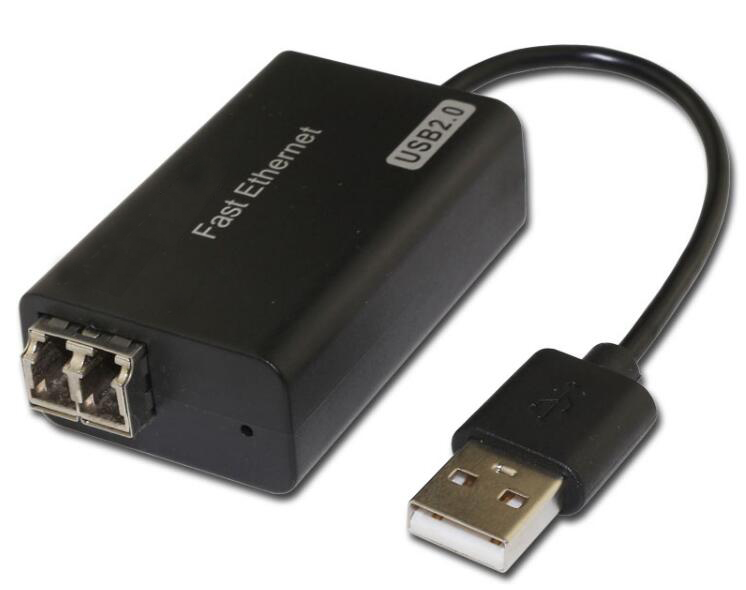

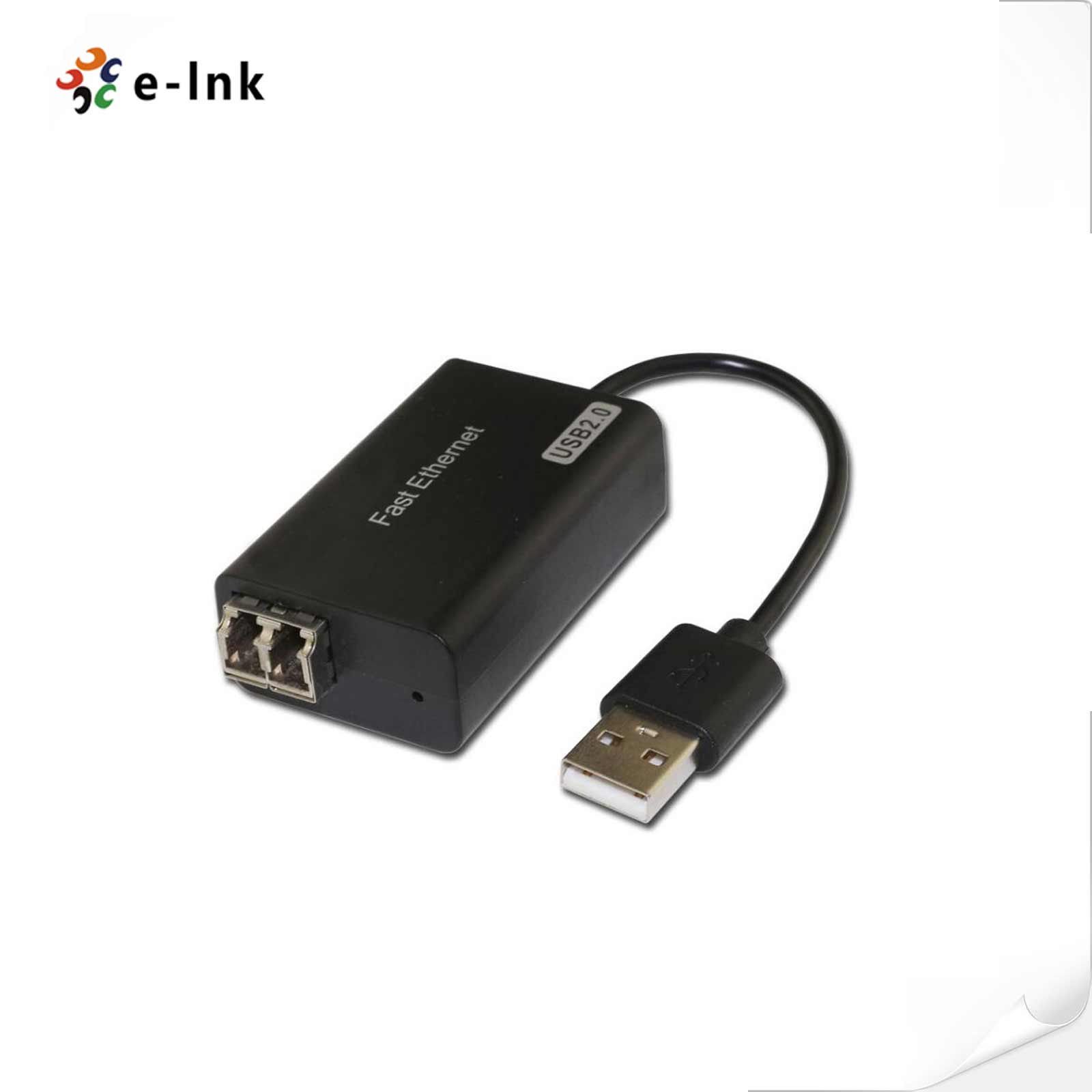

Single Port USB2.0 to 100Mase-Fx SFP Fiber Network Adapter
Model:LNK-1100USB-SFP Series
► Converts USB2.0 to 100Base SFP
► Supports external SFP
► Supports USB2.0 and 1.1
► Supports CDC-ECM
► Supports LPM (Link Power Management)
► Converts USB2.0 to 100Base SFP
► Supports external SFP
► Supports USB2.0 and 1.1
► Supports CDC-ECM
► Supports LPM (Link Power Management)
► Supports pair swap/polarity/skew correction
► Crossover Detection & Auto-Correction
► Supports power down/link down power saving
► Supports hardware CRC (Cyclic Redundancy Check) function
► USB Powered and Data Transmission, no need external power supply
|
General |
|
|
Model: |
LNK-1100USB-SFP |
|
Material: |
Plastic + fiber + copper |
|
Color: |
Black or White |
|
Specification |
|
|
USB Port: |
1 x USB 2.0 |
|
Optical Port: |
1 x SFP 100Base-FX |
|
Transmission Rate: |
100Mbps |
|
Chipset: |
Realtek |
|
Transmitted Power: |
3.0W Max. |
|
Supports System |
Win XP , Linux , Android 2.x , Android 4.x , Win 2000 , Win 2008 , Win vista , Win7 32 , Win7 64 , Win8 32 , Win8 64 |
|
Environmental |
|
|
Operating Temperature: |
0°C to 50°C (32°F to 122°F) |
|
Storage Temperature: |
-40°Cto 80°C (-40°Fto 176°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
> 100,000 hrs |
|
LED Indicators |
|
|
1000FX (Per Port): |
Link/Activity |
|
Mechanical |
|
|
Dimensions (LxWxH): |
9.61 in x 1.57 in x 0.73 in (24.4 cm x 4 cm x 1.85 cm) |
|
Weight: |
0.06Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
FCC part 15,Class A |
|
- Download FileName：E-link Single Port USB2.0 to Fiber Ethernet Converter Datasheet V1.pdf Size： 127KB
