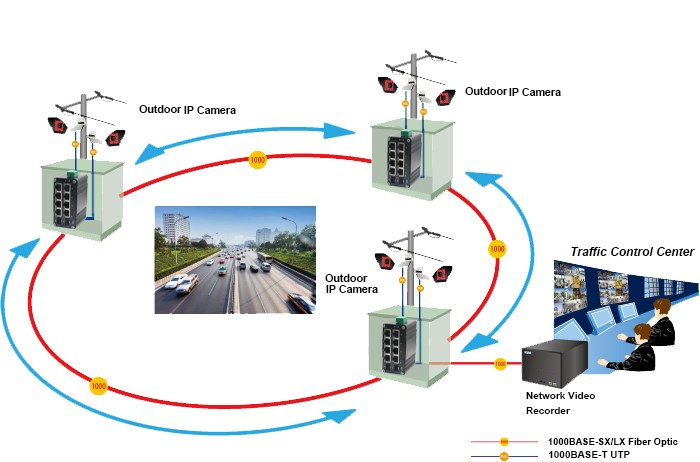

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Backplane bandwidth

20Gbps

Packet Buffer Memory:

9216 bits

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

4K MAC Addresses

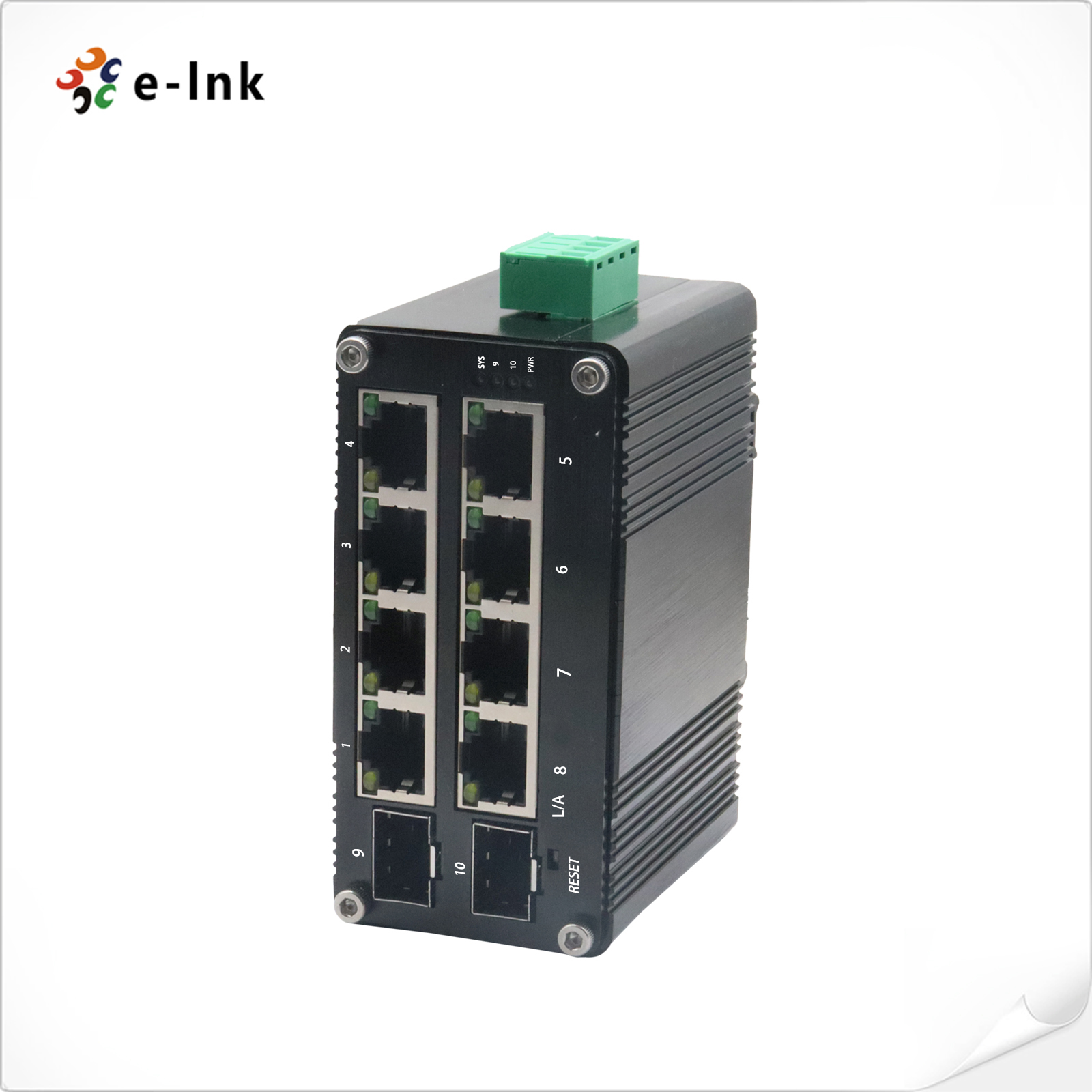

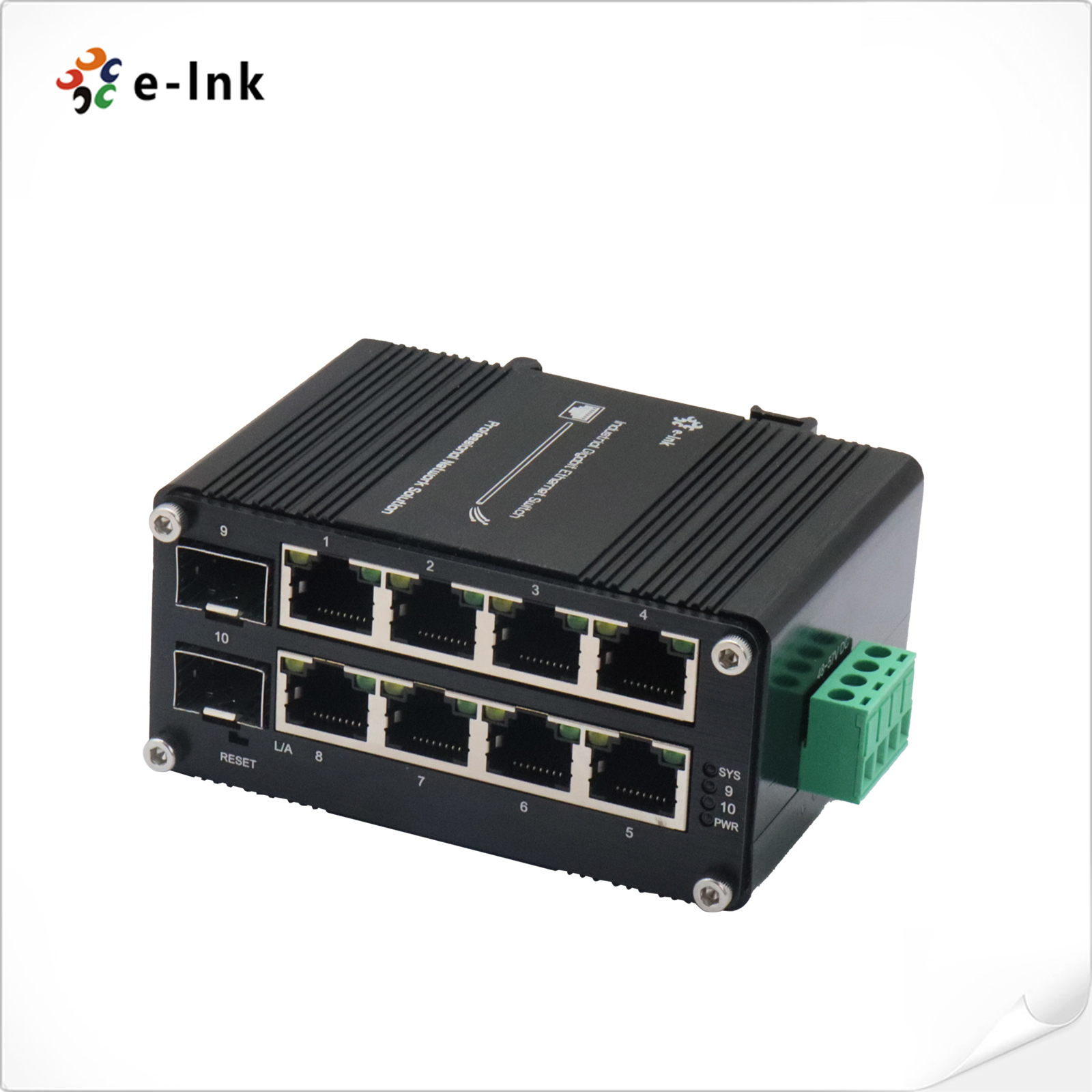

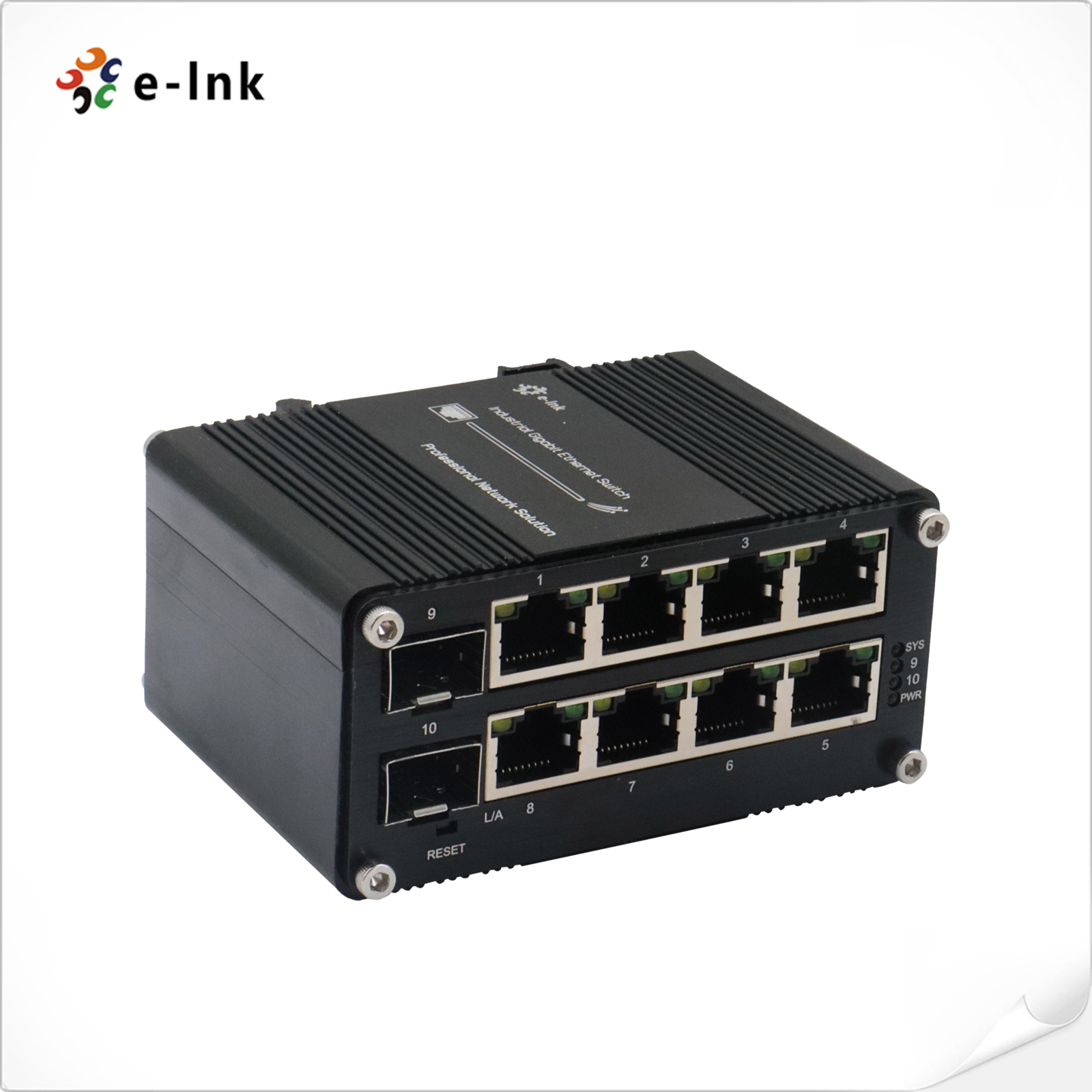

Interface

Connector:

8 x RJ45

Optical Port:

2 x 100/1000Base-X SFP

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC,Redundant Power (4-pin Terminal Block)

Power Consumption:

5W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

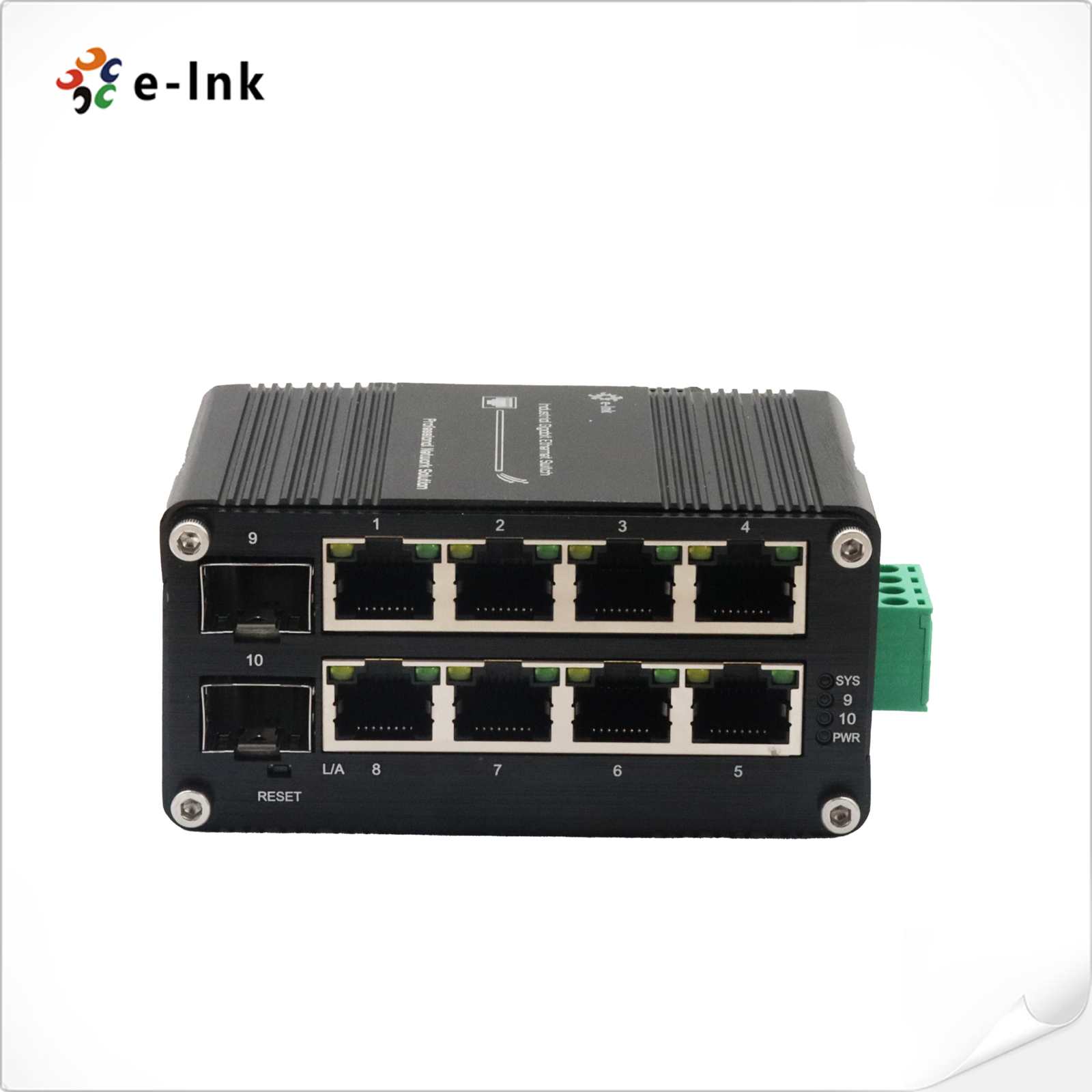

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

Fiber:

Gigabit SFP Port: F9~F10

Dimensions (WxDxH):

95 x 63 x 46 mm

Weight:

300g

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount

Software Features

Redundancy Protocols

Support STP

Multicast Support

Support IGMP Snooping V1/V2/V3

VLAN

Support IEEE 802.1Q 4K VLAN

QOS

Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Management Function

WEB

Security

Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
