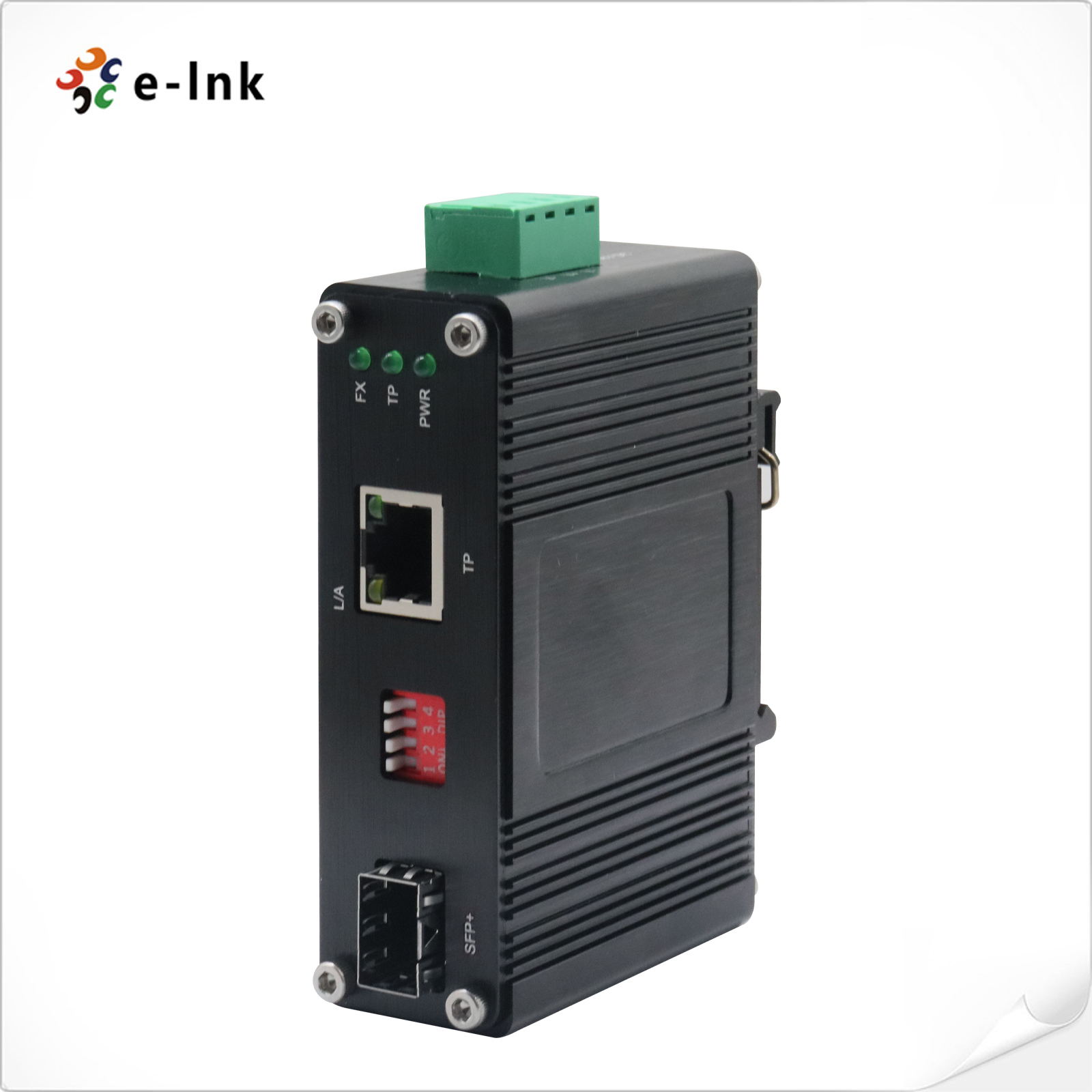

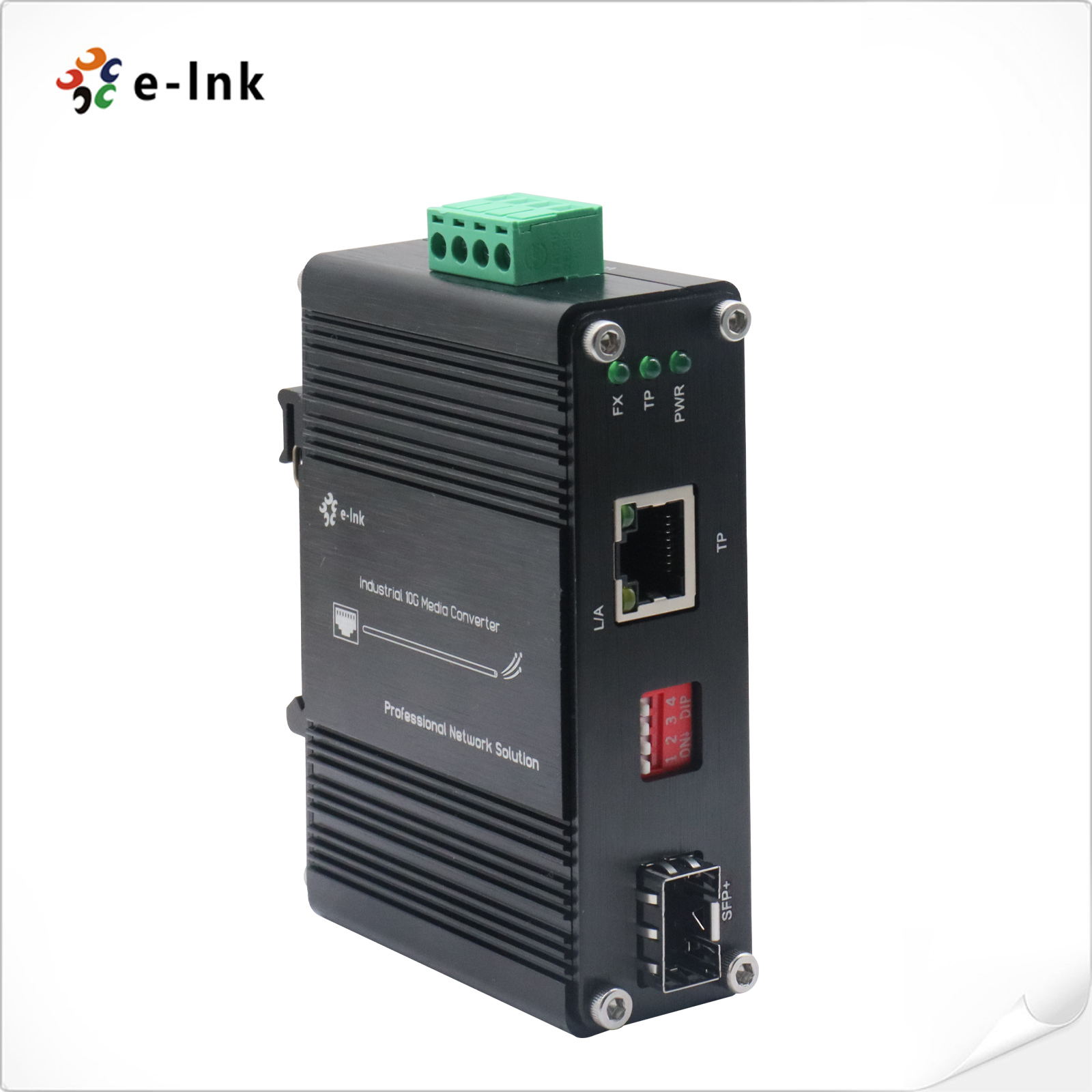

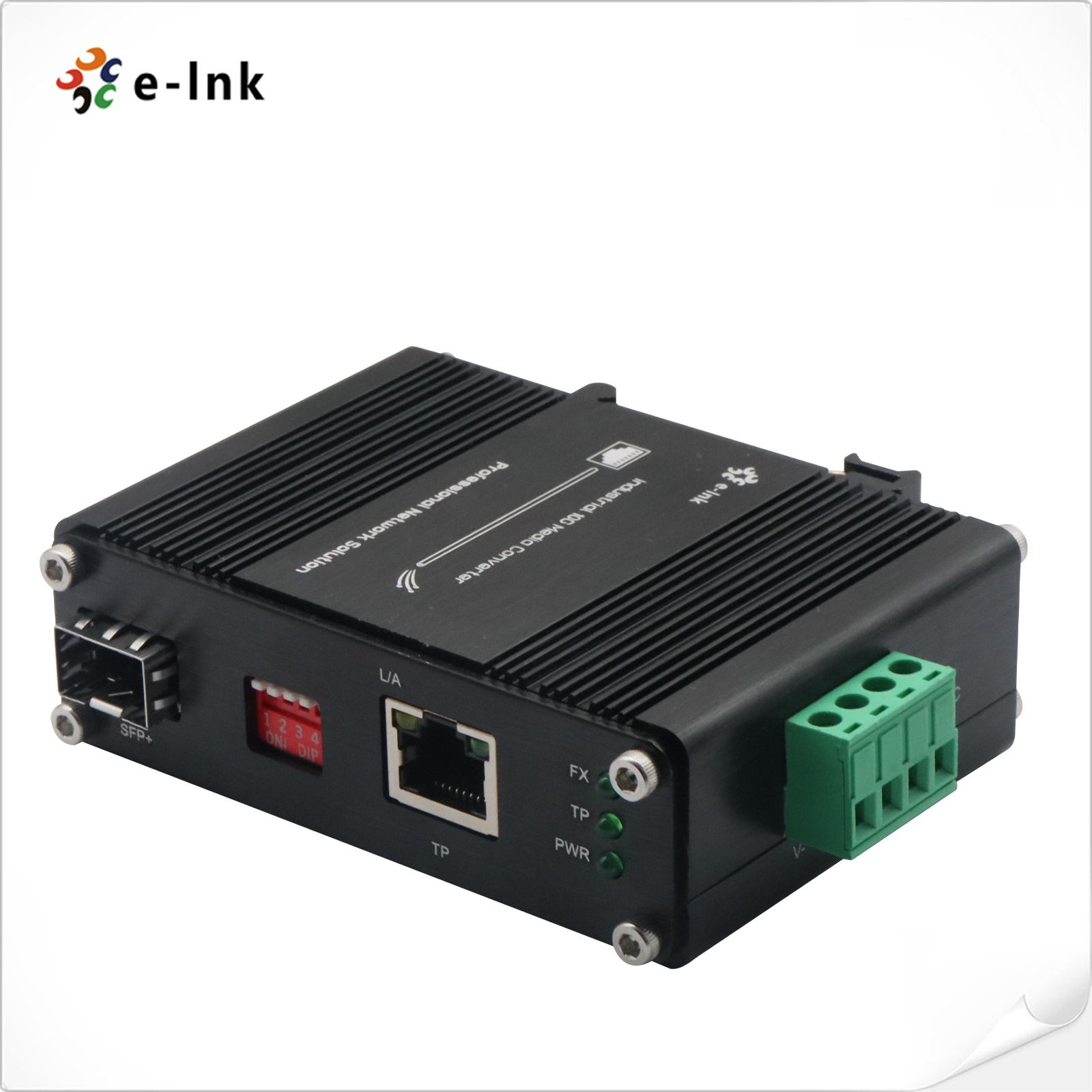

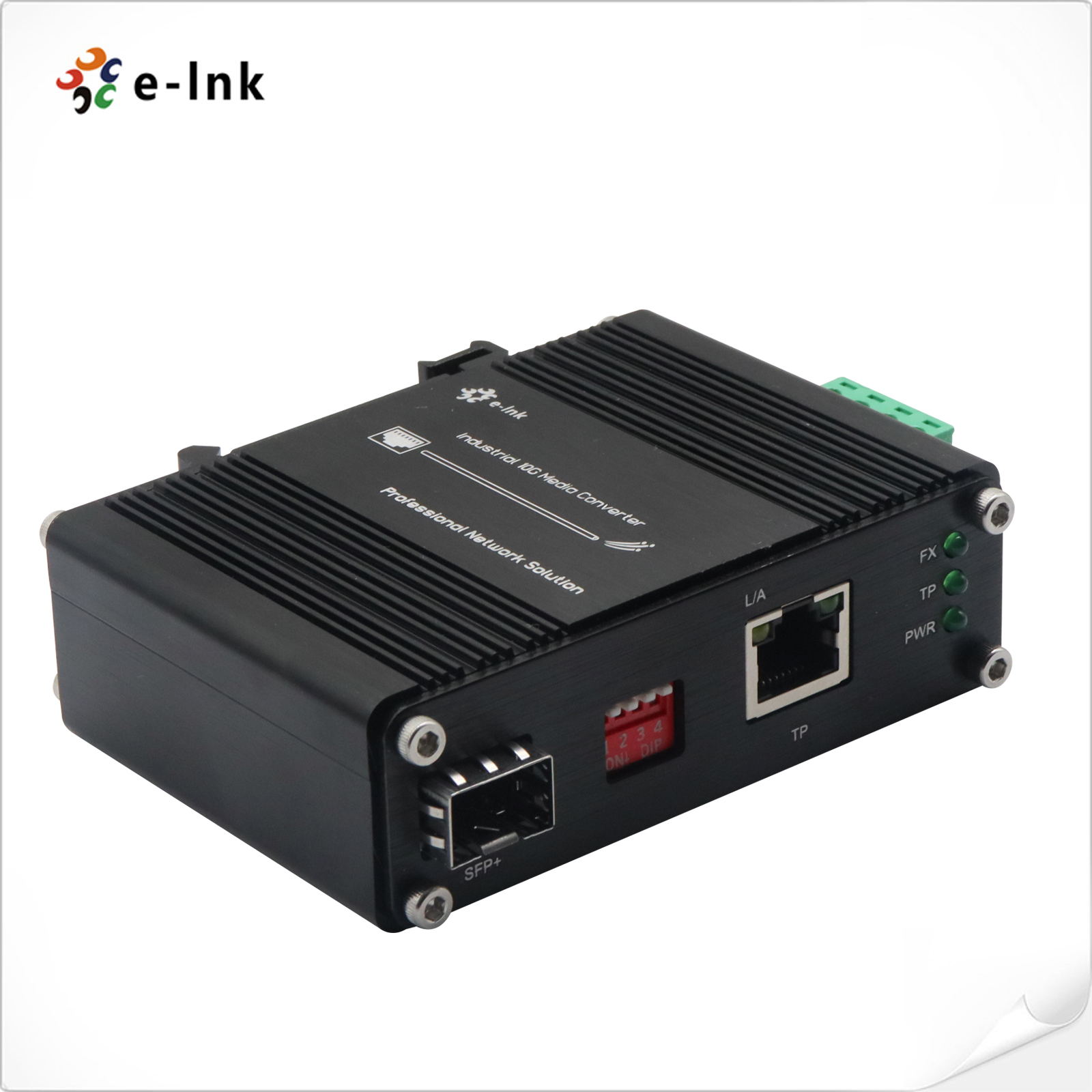

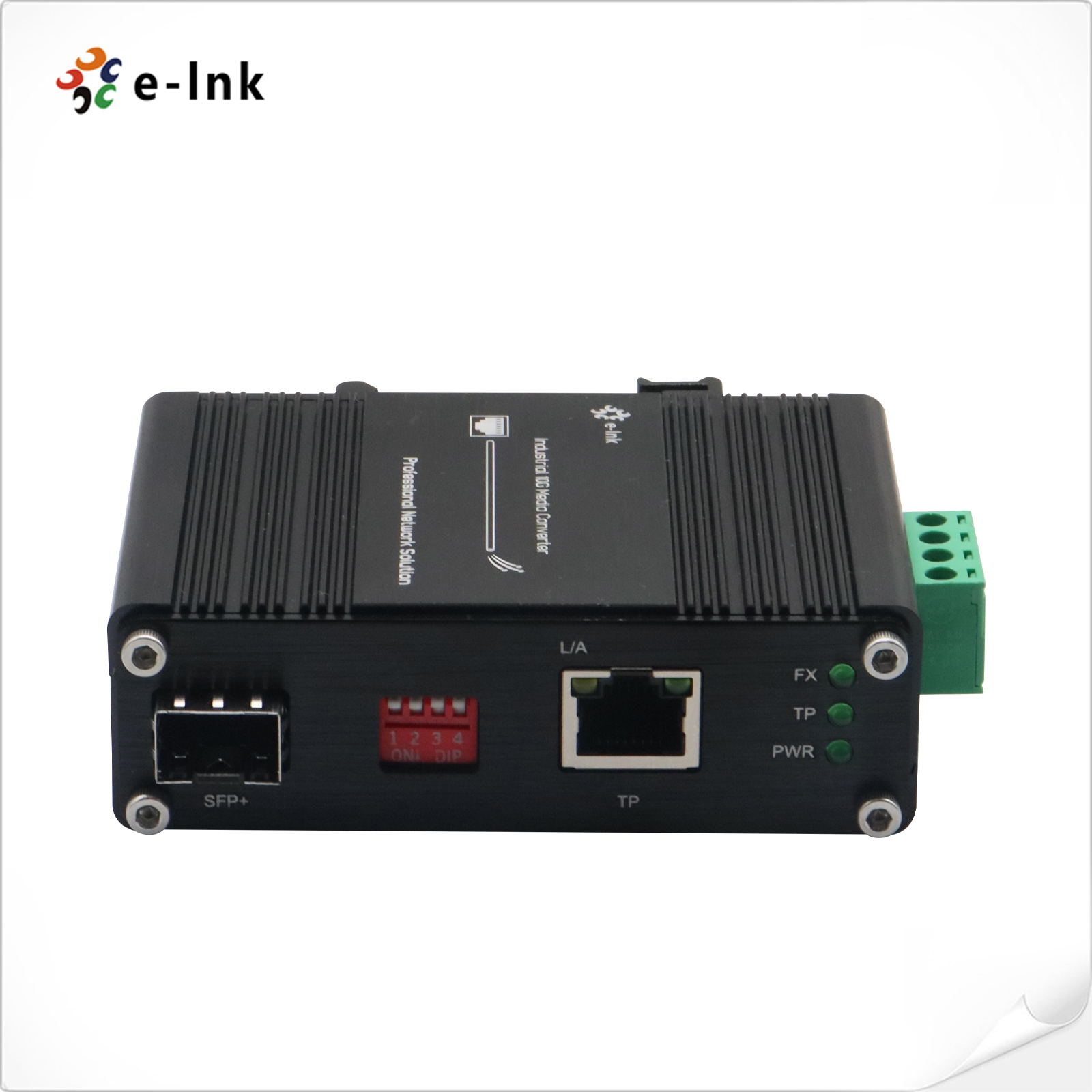

Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
Model:LNK-IMC10G-SFP+
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
LNK-IMC10G-SFP+ is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system. The LNK-IMC10G-SFP+ is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40 to 80 degrees C.
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
|
Ethernet |
||||
|
Standards: |
IEEE 802.3u 100BASE-TX |
|||
|
IEEE 802.3ab 1000BASE-T |
||||
|
IEEE 802.3bz 2.5G/5GBASE-T |
||||
|
IEEE 802.3an 10GBASE-T |
||||
|
IEEE 802.3ae 10Gbps Ethernet |
||||
|
IEEE 802.3x full-duplex flow control |
||||
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
||||
|
Forward & Filtering Rate: |
100Mbps |
|||
|
1000Mbps |
||||
|
2.5Gbps |
||||
|
5Gbps |
||||
|
10Gbps |
||||
|
Network Cables: |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
|||
|
Processing Type: |
Store-and-Forward |
|||
|
Fabric: |
20Gbps |
|||
|
Jumbo Frame: |
16K |
|||
|
Address Table: |
9K entries, automatic source address learning and aging |
|||
|
Interface |
||||
|
Connector: |
1 x RJ45 |
|||
|
Optical Port: |
1 x SFP+ |
|||
|
Environmental |
||||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Electrical and Mechanical |
||||
|
Input Power: |
12~48VDC,Redundant Power (4-pin Terminal Block) |
|||
|
Power Consumption: |
5W Max |
|||
|
Protection: |
||||
|
Power Input Overload: |
Automatic Resettable |
|||
|
Reverse Polarity: |
Present |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function |
DIP |
Function |
Settings |
|
|
SW 1 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 2 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
Note: DIP Switch’s function can be customized based on client’s requirements. |
||||
|
LED Indicators: |
||||
|
PWR: |
Power Status |
|||
|
L/A: |
Link/Activity at Ethernet Port |
|||
|
TP: |
Ethernet Status |
|||
|
FX: |
SFP+ Fiber Port Status |
|||
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|||
|
Weight: |
0.25Kg |
|||
|
Casing: |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail/Wall-mount |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, RoHS, FCC |
||||
|
EN55022:2010+AC: 2011, Class A |
||||
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
||||
|
EN 61000-3-3: 2013 |
||||
|
EN55024:2010 |
||||
|
IEC 61000-4-2: 2008 (ESD) |
||||
|
IEC 61000-4-3: 2010 (RS) |
||||
|
IEC 61000-4-4: 2012 (EFT) |
||||
|
IEC 61000-4-5: 2014 (Surge) |
||||
|
IEC 61000-4-6: 2013 (CS) |
||||
|
IEC 61000-4-8: 2009 (PFMF) |
||||
- Download FileName：E-link LNK-IMC10G-SFP Industrial Ethernet Media Converter Datasheet V1.0.pdf Size： 794KB
|
Model |
Description |
|
LNK-IMC10G-SFP+ |
MiniIndustrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter |
|
SFP Options |
► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
|
► SFP+ module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
|
► Power Supply is to be purchased separately. |
