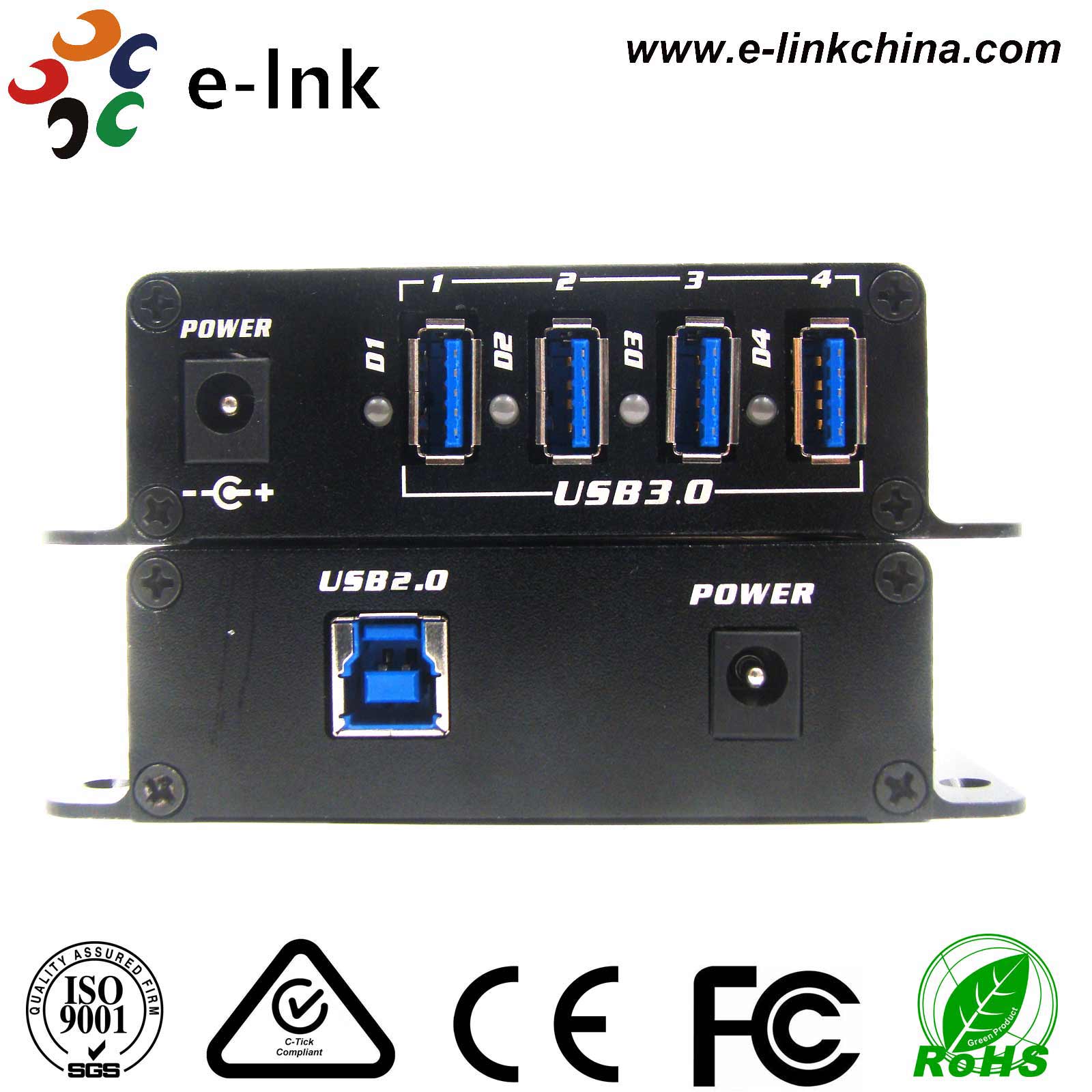

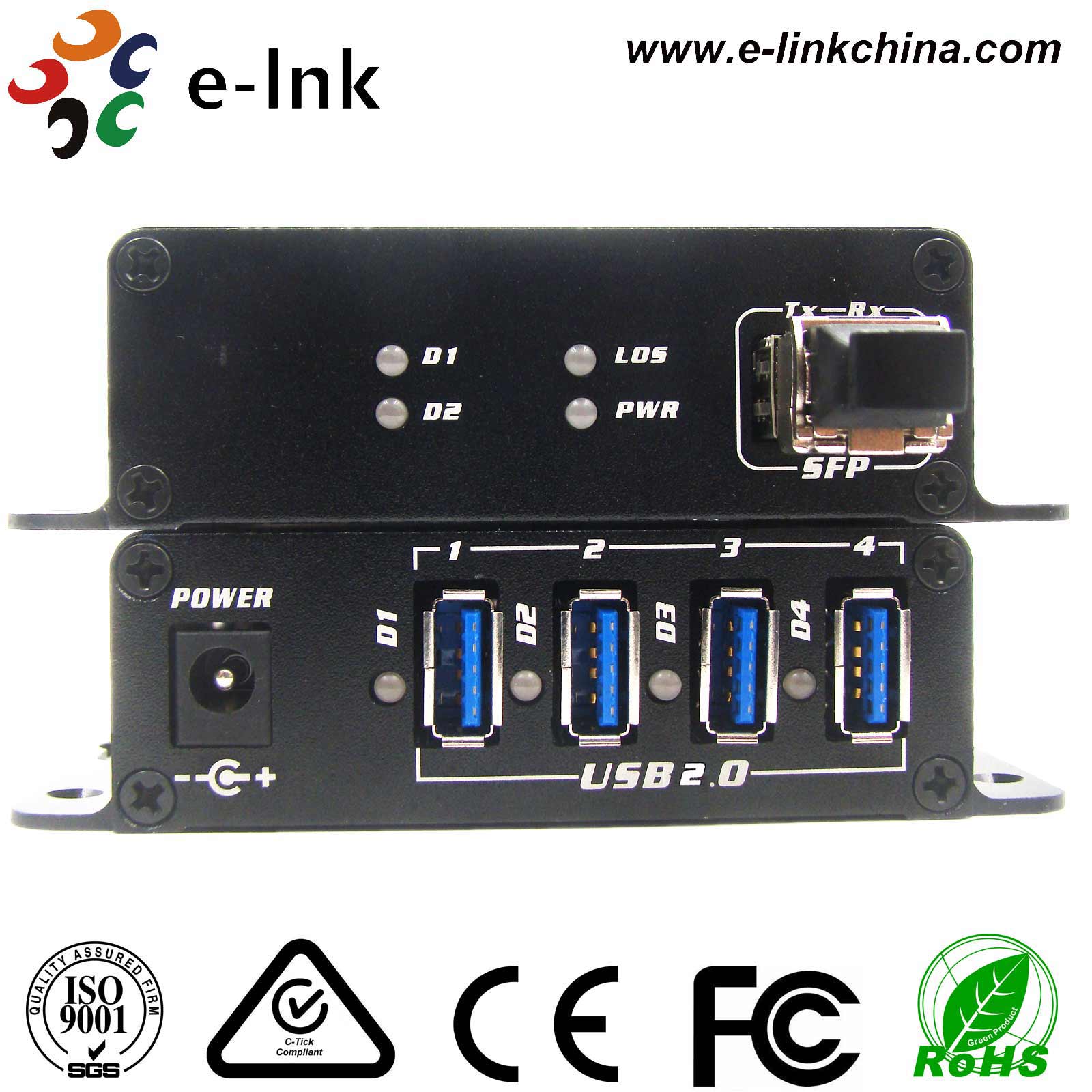

4-Port USB2.0 over Fiber Extender
Model:LNK-U4F1-2.0
► Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices
► Operates with USB 1.1 and USB 2.0 hosts
► Supports all USB devices up to 480 Mbps
► Distance of up to 200m over multi-mode fiber optics (SFP transceiver modules included)
► Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices
► Operates with USB 1.1 and USB 2.0 hosts
► Supports all USB devices up to 480 Mbps
► Distance of up to 200m over multi-mode fiber optics (SFP transceiver modules included)
► Integrated hub provides four remote USB 2.0 ports.
► Number of devices can be increased using additional USB hubs
► Transparent USB extension
► True plug and play;no software drivers required
► Works with all major operating systems: Windows®, Mac OS X®, and Linux®
► Low RFI / EMI profile for sensitive applications
► Surface-mountable
|
Performance |
||
|
Local
Unit |
Upstream Port |
USB2.0 Type A Male |
|
Downstream Port |
USB2.0 SFP*1 |
|
|
Remote Unit |
Upstream Port |
USB2.0 SFP*1 |
|
Downstream Port |
4-Port |
|
|
USB Power Supply |
1*500mA |
|
|
Operation Mode |
Support low speed(1.5 Mbps), full speed(12 Mbps), and high speed(480 Mbps) USB data transfer |
|
|
Connections |
||
|
USB2.0 Input |
USB2.0 Type-A Female |
|
|
USB2.0 Output |
USB2.0 Type-A Female |
|
|
Optical |
1x SFP port |
|
|
Cable |
||
|
Fiber Cable Type |
Multi-Mode |
|
|
Max. Length |
≤ 200 meters |
|
|
Mechanical |
||
|
Construction |
High-impact Alufer enclosure |
|
|
Dimensions (L x W x H) (Unit:mm) |
LOCAL EXTENDER : 104*114*28 REMOTE EXTENDER: : 104*114*28 |
|
|
Net Weight |
LNK-U4F1-2.0-L: 200g LNK-U4F1-2.0-R: 350g |
|
|
Environmental |
||
|
Operating Temperature |
32° to +122° F. (0° to +50° C) |
|
|
Storage Temperature |
-40° to +185° F. (-40° to +85° C) |
|
|
Operating Humidity |
5% to 80% (non-condensing) |
|
|
Storage Humidity |
5% to 95% (non-condensing) |
|
|
Power Requirements |
||
|
External AC Power Adapter |
Local Unit:Power adapter at host is not required |
|
|
Remote Unit: Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A 5/2.5mm jack |
||
|
Power Consumption |
LNK-U4F1-2.0-T: 2watts LNK-U4F1-2.0-R: 3.5 watts |
|
|
Warranty |
||
|
Limited Warranty |
2 year warranty |
|
- Download FileName：E-link USB2.0 to Fiber Extender Datasheet V1.0.pdf Size： 376KB
|
Model |
Description |
|
LNK-U4F1-2.0 |
USB2.0 to Fiber Extender, Single 5V 2A External power supply |
