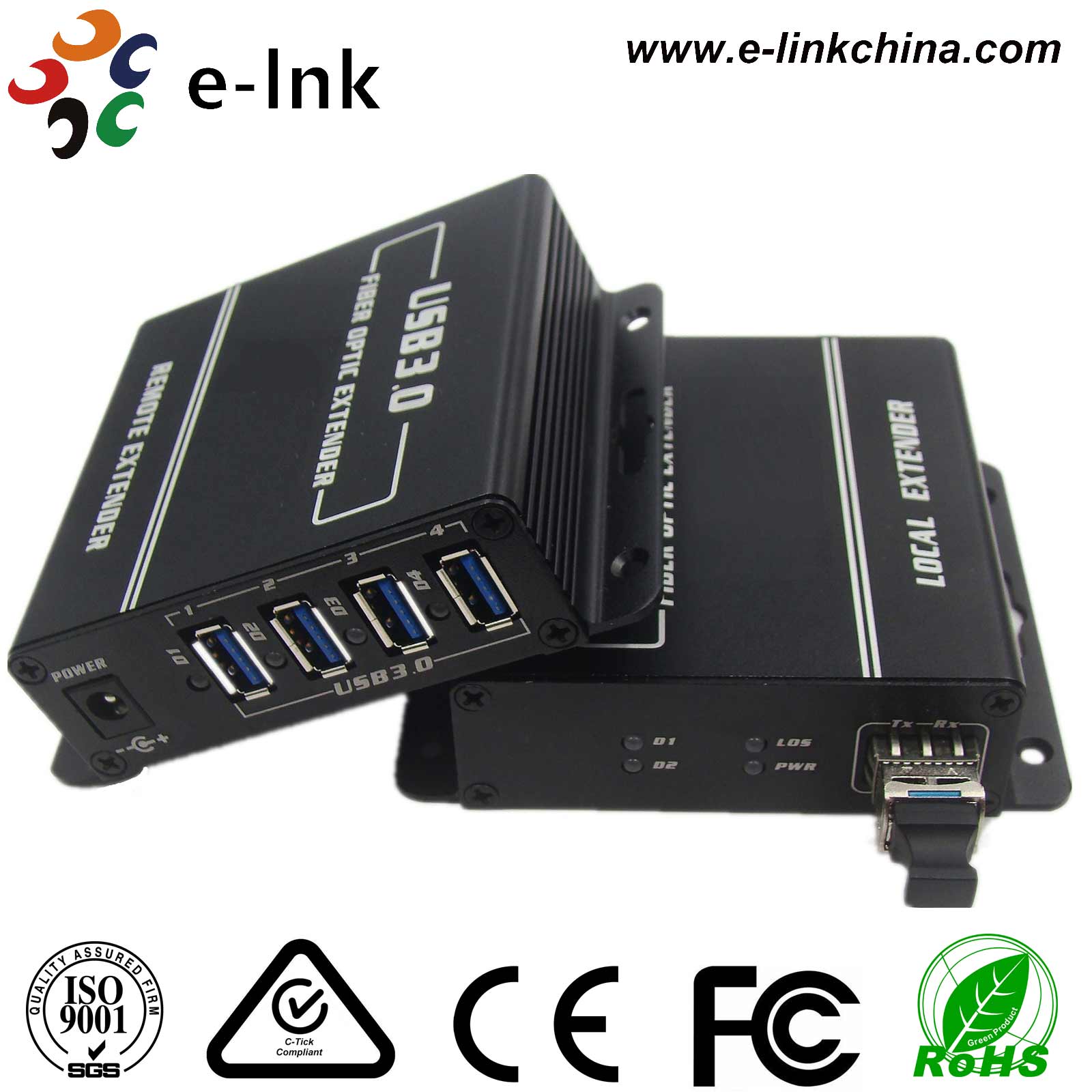

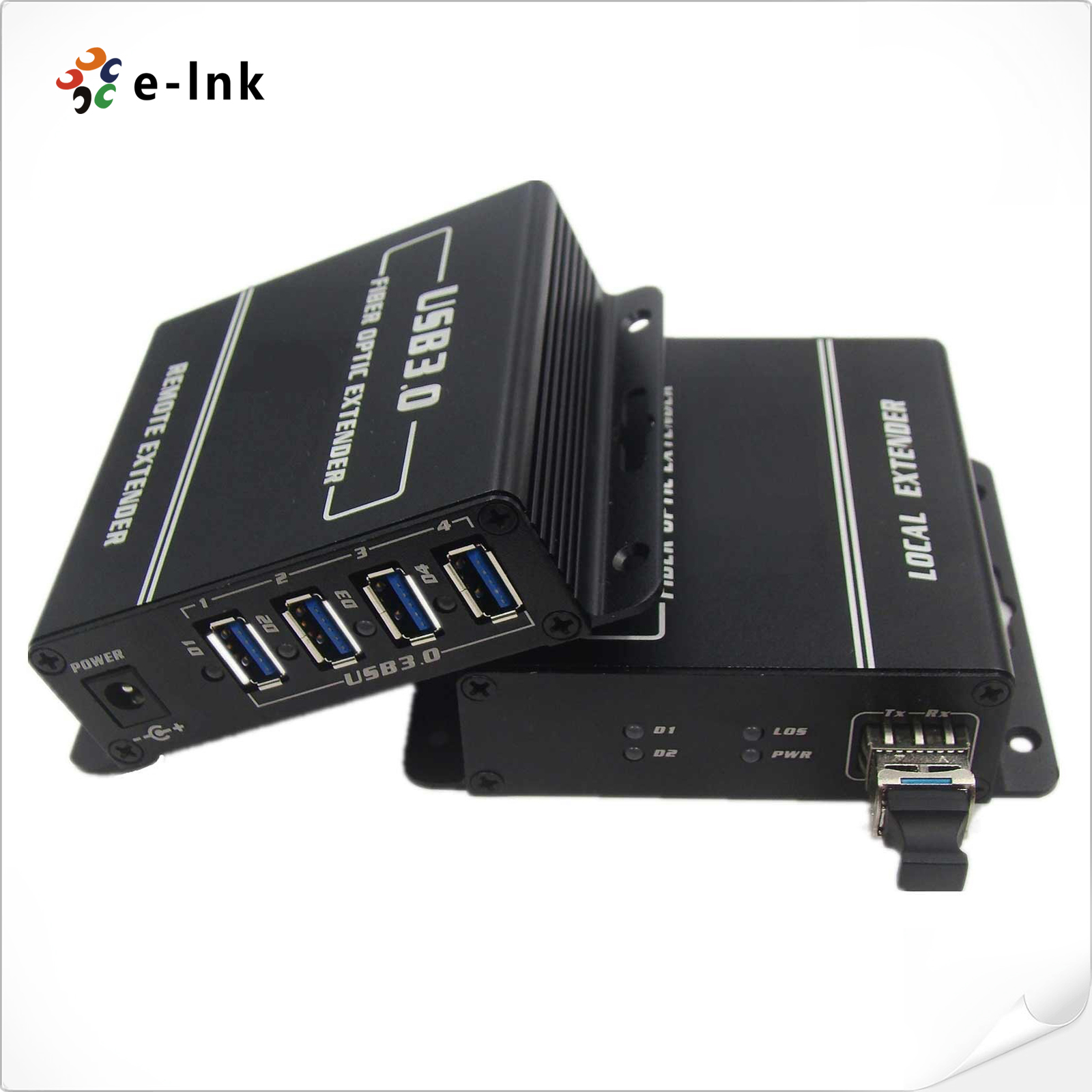

4-Port USB3.0 over Fiber Extender
Model:LNK-U4F1
► Extends USB 3.0 supper-speed, backward compatibility with USB 2.0/1.1
► Operates with USB 3.0 hosts
► Supports all USB devices up to 5Gbps
► Distance of up to 300m over OM3 multi-mode fiber optics
► Extends USB 3.0 supper-speed, backward compatibility with USB 2.0/1.1
► Operates with USB 3.0 hosts
► Supports all USB devices up to 5Gbps
► Distance of up to 300m over OM3 multi-mode fiber optics
► Number of devices can be increased using additional USB hubs
► True plug and play
► Software drivers required
► Works with operating systems: Windows7, Windows8, Windows10
► Low RFI / EMI profile for sensitive applications
► Power adapter at host is not required
► Surface-mountable
|

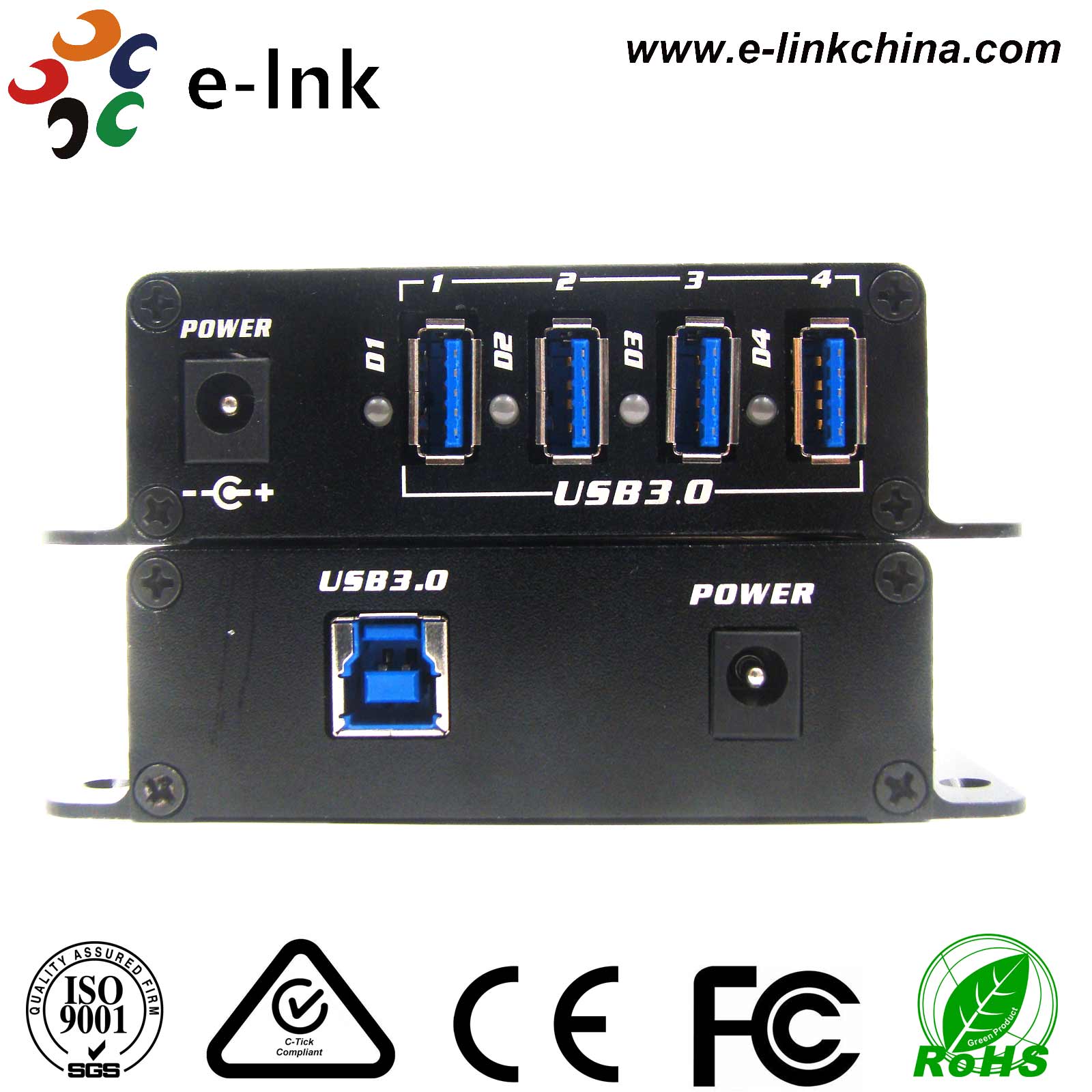

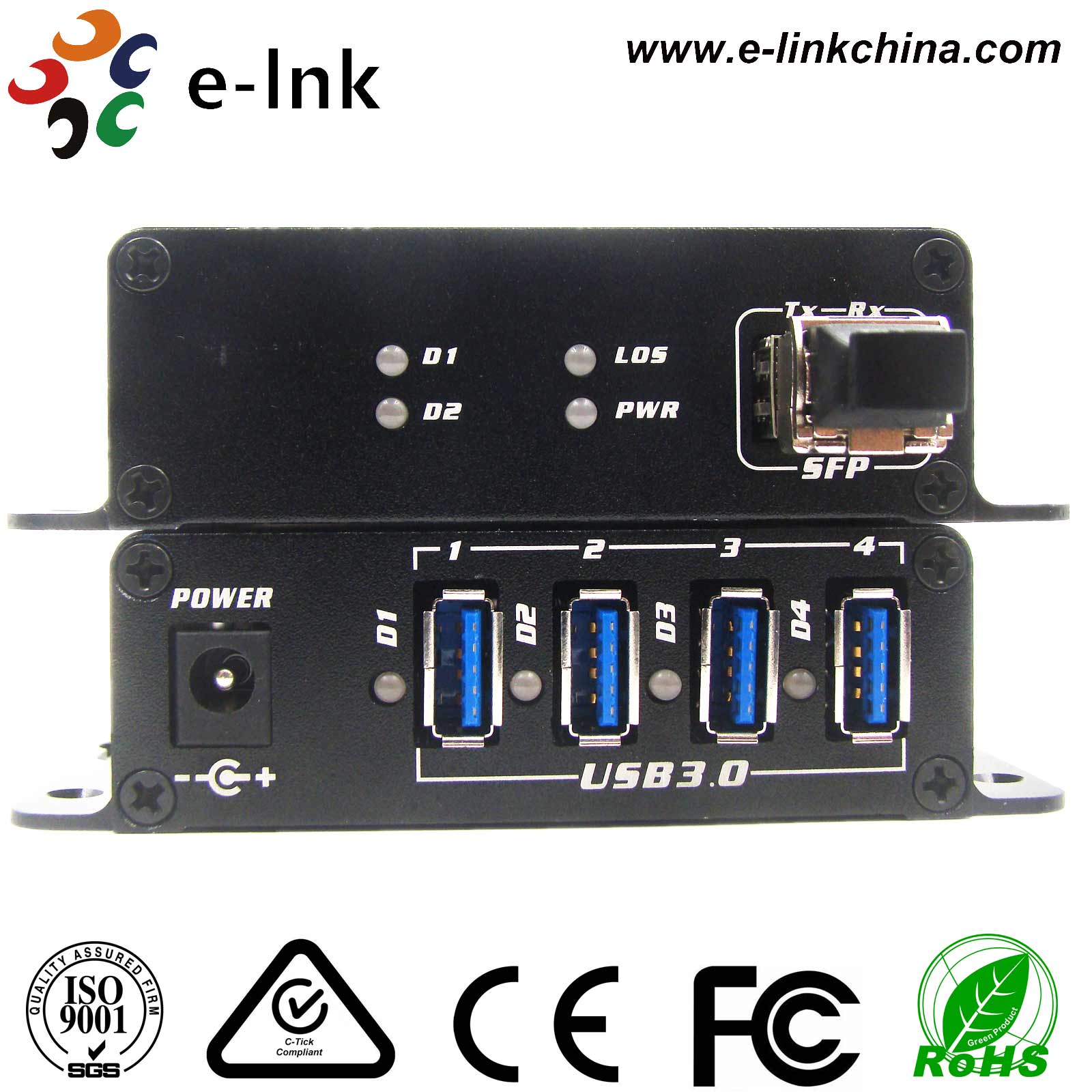

Performance |
||
|
Local
Unit |
Upstream Port |
USB3.0 Type B Male |
|
Downstream Port |
USB3.0 SFP*1 |
|
|
Remote Unit |
Upstream Port |
USB3.0 SFP*1 |
|
Downstream Port |
4-Port |
|
|
Operation Mode |
Support USB3.0 5Gbps,backward compatibility with USB 2.0/1.1 |
|
|
Connections |
||
|
USB3.0 Input(Local Unit) |
USB3.0 Type-B Female |
|
|
USB3.0 Output(Remote Unit) |
USB3.0 Type-A Female |
|
|
Optical |
1x SFP+ port |
|
|
Cable |
||
|
Fiber Cable Type |
Multi-Mode Fiber: OM3-300 *2 |
|
|
Max. Length |
≤ 300 meters |
|
|
Mechanical |
||
|
Construction |
High-impact Alufer enclosure |
|
|
Dimensions (L x W x H) (Unit:mm) |
LOCAL EXTENDER : 104*114*28 REMOTE EXTENDER: : 104*114*28 |
|
|
Net Weight |
LNK-U4F1-L: 200g LNK-U4F1-R: 350g |
|
|
Environmental |
||
|
Operating Temperature |
32° to +122° F. (0° to +50° C) |
|
|
Storage Temperature |
-40° to +185° F. (-40° to +85° C) |
|
|
Operating Humidity |
5% to 80% (non-condensing) |
|
|
Storage Humidity |
5% to 95% (non-condensing) |
|
|
Power Requirements |
||
|
External AC Power Adapter |
Local Unit: Power adapter at host is not required |
|
|
Remote Unit: Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A 5/2.5mm jack |
||
|
Power Consumption |
LNK-U4F1-L: 2watts LNK-U4F1-R: 3.5 watts |
|
|
Warranty |
||
|
Limited Warranty |
2 year warranty |
|
- Download FileName：E-link USB3.0 to Fiber Extender Datasheet V3.0.pdf Size： 435KB
|
Model |
Description |
|
LNK-U4F1 |
USB3.0 to Fiber Extender |
|
Power Options: |
► Single 5V 2A External power supply |
