► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000/2.5G/5G/10G Base-TX
Overview
The LNK-INJ601-60 product is a Hardened 10G High Power 60W PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000/2.5G/5G/10G Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
LNK-INJ601-60 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Features
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000/2.5G/5G/10G Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
► Small Size 95 x 70 x 30 mm
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation

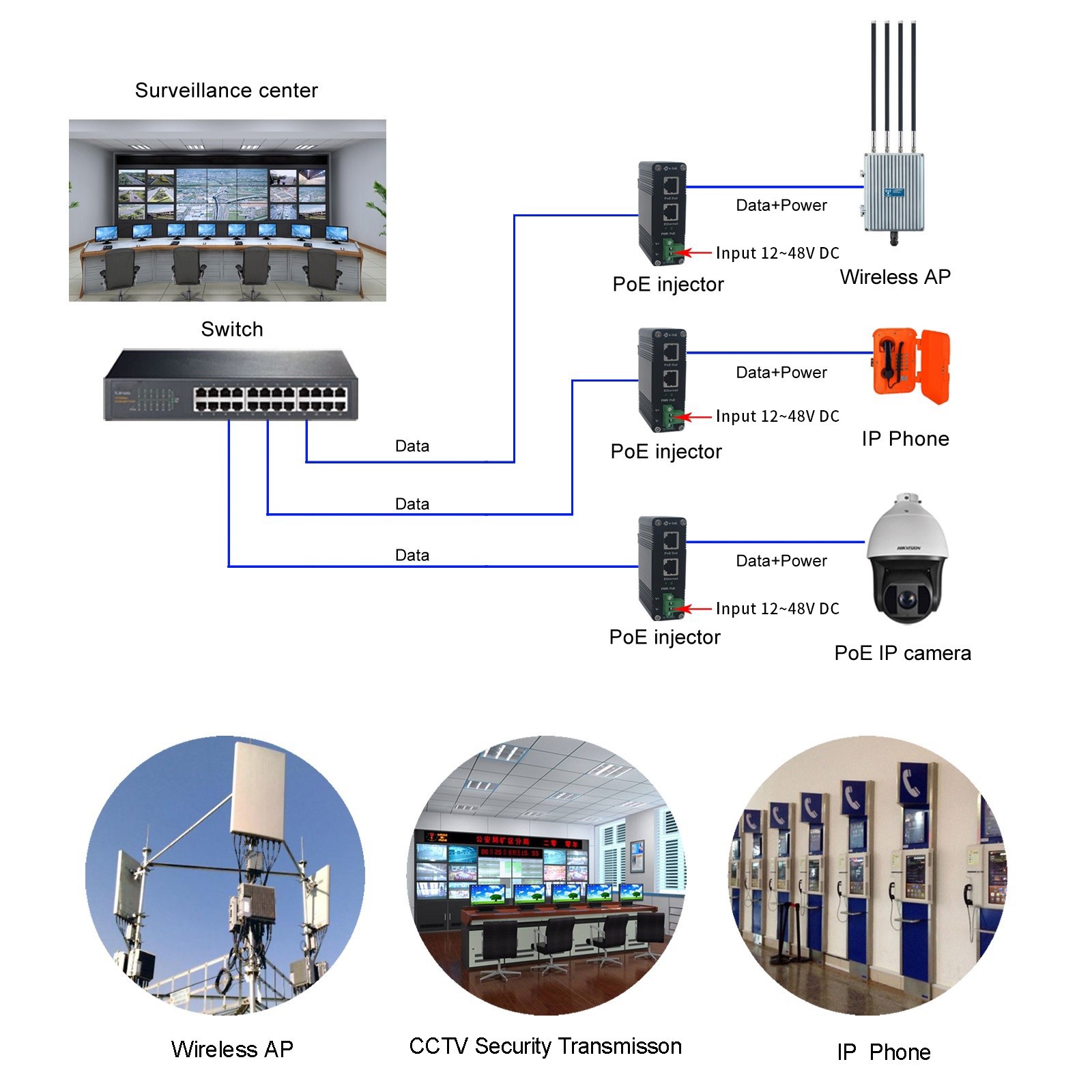

Application
Specifications
Standards: |
IEEE802.3af Power over Ethernet |
IEEE802.3at Power over Ethernet |
|
Processing Type: |
Forward |
Half-duplex, Full-duplex |
|
Forward Filter Rate: |
14,880,000pps (10Gbps) |
Cabling: |
10/100/1000/2.5G/5G/10G Base-T: Cat7 or above |
Maximum Distance: |
Cat7 UTP up to 30m |
Connector: |
2x RJ45 |
Environmental |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF: |
>200,000hrs |
Electrical and Mechanical |
|
Input Power: |
12~48VDC (Terminal Block) |
Power Consumption: |
65W Max. |
PoE (Power over Ethernet) |
|
Standard: |
IEEE802.3af/at |
Port: |
RJ45 |
Power Pin Assignment |
4/5(+), 7/8(-) |
Max. Power per Port: |
60W Max per port (Alternative B Mode) |
LED Indicators: |
|
Power: |
Power Status |
PoE: |
PoE Status |
Dimensions (WxDxH): |
95 x 70 x 30 mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Regulatory Approvals |
|
ISO9001 |
|
FCC part 15, Class A |
|
EN55022:2006+A1: 2007 Class A |
|
Surge Protection: |
|
RJ45: 1KV |
|
Power: 500V |
|
ESD: 4KV/8KV |
Order Information
Model |
Description |
LNK-INJ601-60 |
12~48V DC Power Input Industrial 10G 60W PoE Injector |
Mounting Options |

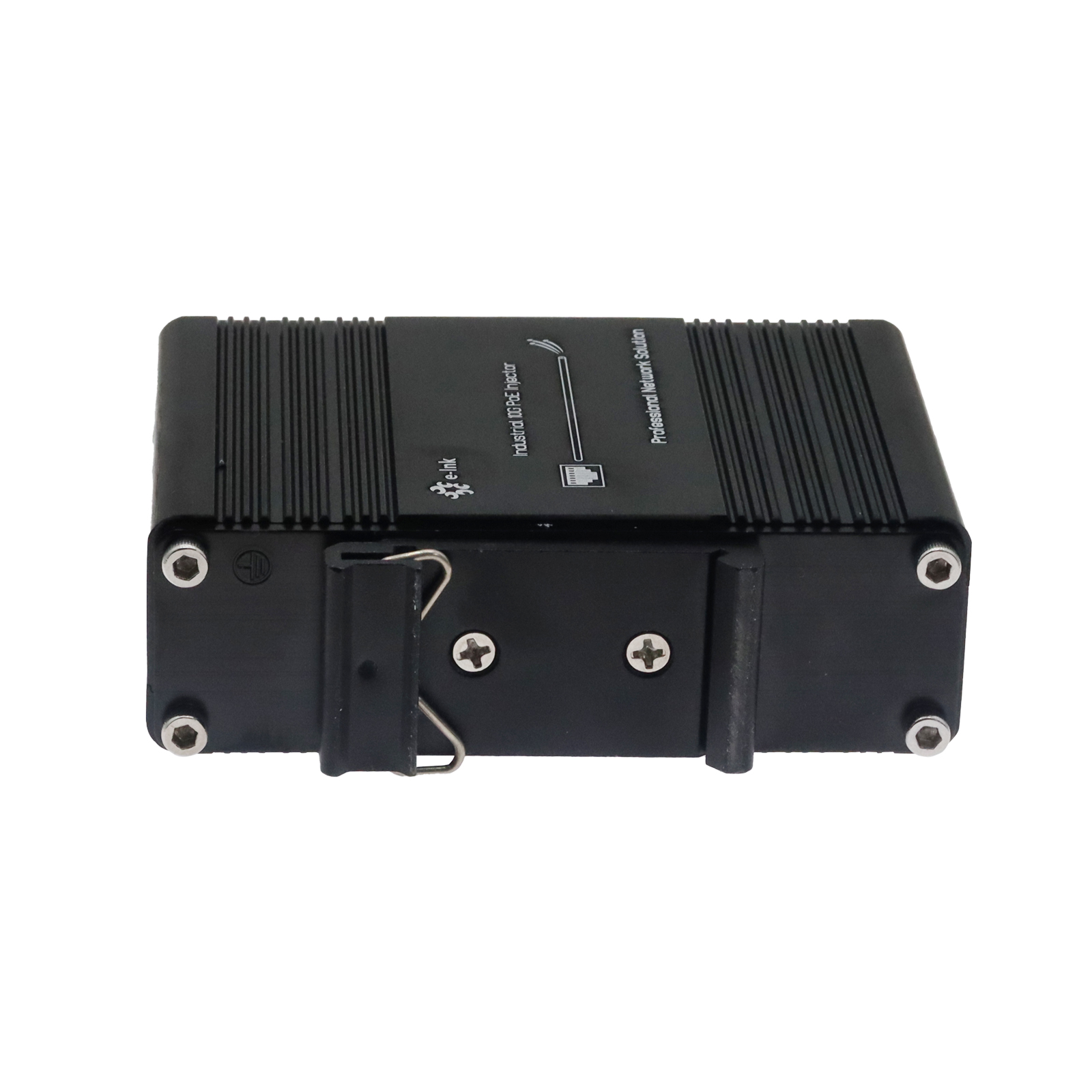

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► Power Supply is to be purchased separately |
