The LNK-OM8569XX100 module uses a 104-pin CFP2 MSA connector for all electrical interfaces with the
host card, whereas the optical interfaces on the line side are provided through the optical receptacles
on the CFP2. The module can be portioned into three functional parts: Tx path, Rx path and control &
power block.
All control interface pins are routed to the MCU and oDSP. The MCU is also used for fast controls inside
the module such as modulator bias adjustment, software image management, overall control coordination
and status reporting.

● Transmission reach beyond 2000 km over SMF for
100G
● Hot-pluggable
● Supports PM-QPSK (100G) modulation
● Supports SD-FEC
● Supports OTU4 signaling
● Compliant with CEI-28G-MR specifications
● Compliant with OTL4.4 signaling
● Compliant with CFP2 MSA Hardware Specification
Rev. 1.0
● Compliant with OIF-CFP2-DCO-01.0
● Compliant with CFP MSA Management Interface
Specification Version 2.6 (R06a)
● Line & client PRBS generator and checker
● Line loopback, host terminal/facility loopback
● Power consumption: 23 W (100G)

The LNK-OM8569XX100 module is designed to be used on the host board of system integrators to
support transmission over DWDM links in Metro networks. As shown in Figure 2-1, it comprises high-
data lanes, a single reference clock from hosts, a single 3.3 V power supply, an MDIO interface for
module control and status report, and dedicated alarm and control pins.

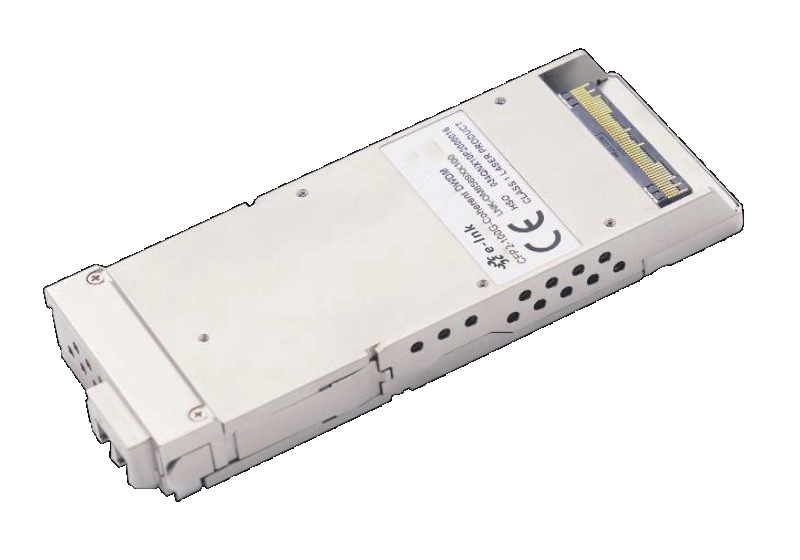

The LNK-OM8569XX100 CFP2 module is designed to be inserted into a host board with a railing
system that includes a heat sink. The module is 107.5 mm x 41.5 mm x 12.4 mm in size
and is mechanically compliant with the requirements detailed the CFP2 HW Baseline Design Rev.1L.
Please check whether the cage matches before using the module because of the side has dissipation
hole structure. For example, the cage part CN121C-104-0029(H1) (YAMAICHI) has side openings
and a side without sharp protrusions.

• Download FileName：E-link 100G CFP2 Coherent 2000km LNK-OM8569XX100 Databrief Rev1-0.pdf Size： 2.62MB

Part Number	Description
LNK-OM8569XX100	100G, PM-QPSK, Coherent CFP2
