The LNK-OM8669XX100 module uses a 104-pin CFP2 MSA connector for all electrical interfaces with the
host card, whereas the optical interfaces on the line side are provided through the optical receptacles
on the CFP2. The module can be portioned into three functional parts: Tx path, Rx path and control &
power block.
All control interface pins are routed to the MCU and oDSP. The MCU is also used for fast controls inside
the module such as modulator bias adjustment, software image management, overall control coordination
and status reporting.

● Transmission reach beyond 1300 km/3000 km over
SMF for 200G/100G
● Hot-pluggable
● Support PM-16QAM(200G) and PM-DQPSK/PM-
QPSK(100G) modulation
● Supports SD-FEC
● Supports 100G/200G Flex-rate
● Supports OTU4/OTUC2/2 x 100GE/100GE signaling
● Compliant with CEI-28G-MR specifications
● Compliant with OTL4.4/OTLC2/CAUI-4 signaling
● Compliant with CFP2 MSA Hardware Specification
Rev. 1.0
● Compliant with OIF-CFP2-DCO-01.0
● Compliant with CFP MSA Management Interface
Specification Version 2.6 (R06a)
● Line & client PRBS generator and checker
● Line loopback, host terminal/facility loopback
● Power consumption: 26 W (200G)/21 W (100G)

The module is designed to be used on the host board of system integrators to support transmission over
DWDM links in Metro networks. As shown in Figure 2-1, it comprises high-data lanes, a single reference
clock from hosts, a single 3.3 V power supply, an MDIO interface for module control and status report,
and dedicated alarm and control pins.

The LNK-OM8669XX100 module uses a 104-pin CFP2 MSA connector for all electrical interfaces with the
host card, whereas the optical interfaces on the line side are provided through the optical receptacles
on the CFP2. The module can be portioned into three functional parts: Tx path, Rx path and control &
power block.
All control interface pins are routed to the MCU and oDSP. The MCU is also used for fast controls inside
the module such as modulator bias adjustment, software image management, overall control coordination
and status reporting.

• Download FileName：E-link 200G 1300km & 100G 3000km CFP2 Coherent (LNK-OM8669XX100) Datasheet Rev2.3.pdf Size： 2.89MB

Part Number	Description

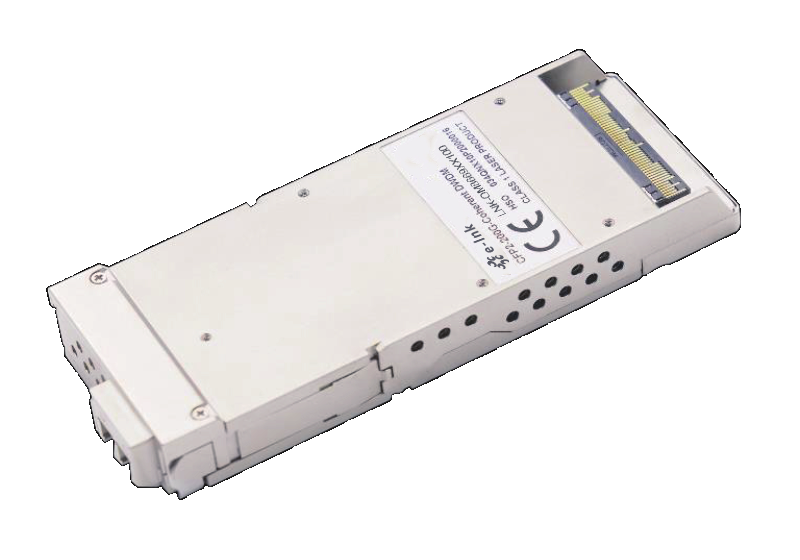

LNK-OM8669XX100	200G/100G, PM-16QAM/PM-DQPSK/PM-QPSK, Coherent CFP2
