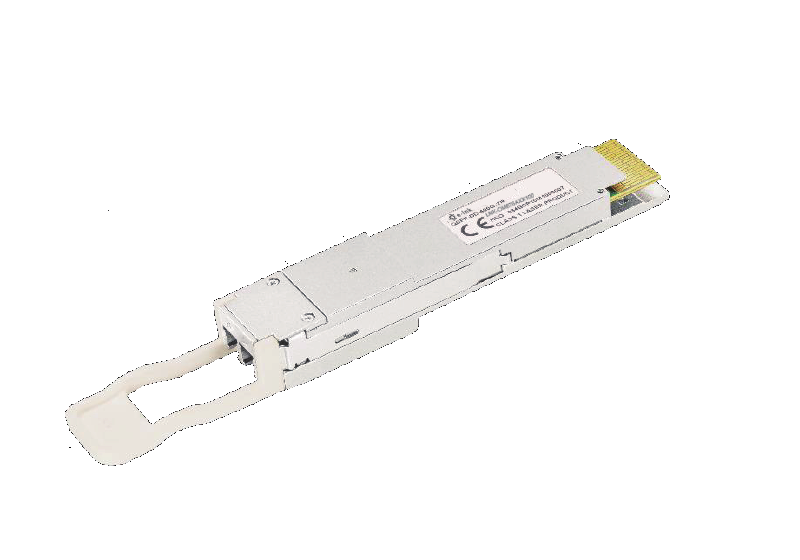

The LNK-OM876AXX100 coherent module, compliant with the OIF 400ZR MSA and QSFP-DD MSA
standards, is designed for DCI applications. The digital diagnostics function is available via an I2C
interface, as specified by the QSFP-DD MSA.
The LNK-OM876AXX100is a C-band 75G/100 GHz grid coherent optical module that combines coherent
DSP ASIC functionality with best in class ultra-narrow line-width tunable lasers, high speed modulators
and high responsively coherent receivers to deliver high performance at 400G 16QAM modulation
formats (at 60G baud rate).
Mechanical dimensions, connectors and footprint of LNK-OM876AXX100 conform to QSFP-DD MSA.
The module is QSFP-DD type2 size (18.4 mm x 93.4 mm x 8.5 mm) and hot pluggable by a 76-pin
connector. The maximum power consumption is 16.5 W and power supply voltage is +3.3 V.

● QSFP-DD MSA compliant
● Compliant with OIF 400ZR, version 01.0, March 10, 2020
● Digital diagnostic monitoring support
● Hot pluggable by 76-pin electrical interface
● Maximum power consumption 16.5 W
● 400G 16QAM modulation
● Compact size (18.35 mm x 93.26 mm x 8.5 mm)
● LC duplex connector
● 400GBASE-R, 425 Gbps bit rate
● 400G-AUI-8 C2M; 8 x CEI-56G-VSR PAM-4 electrical
interface
● Operating case temperature: 0°C to 75°C
● Single 3.3 V power supply
● RoHS 2 compliant

LNK-OM876AXX100 is intended to be used in conjunction with a host platform to support
400G transmission over optical links in DCI applications.
LNK-OM876AXX100isdesigned for 400ZRtype 1(code 0x01) in amplified applications and type2 (code
0x02) in unamplified applications.

Please see the datasheet in Download page

• Download FileName：E-link 400ZR Coherent QSFP-DD (LNK-OM876AXX100) Datasheet Rev1.2.pdf Size： 3.15MB

Part Number	Description
LNK-OM876AXX100	400ZR Coherent QSFP-DD 80-120 km
