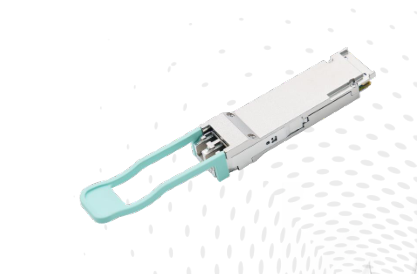

LNK-OM3358SX100is a QSFP+ transceiver module designed for 2 km SM Fiber or 150m OM3/OM4 MM
fiber optical communication applications. It is compliant with IEEE 802.3-2018 40GBASE-LR4
(partly compliant), IEEE 802.3-2018 Annex 86A, QSFP+ MSA standards. Digital diagnostic
management interface (DDMI) is realized by I2C interface in compliance with SFF-8636. The
module is RoHS 2 compliant.
This module can convert 4-channel 10 Gbps electrical data to 4-channel optical signals, and multiplex
them into a single channel for 40 Gbps optical transmission. Similarly, it optically de-multiplexes a 40
Gbps input into 4-channel signals, and converts them to 4-channel output electrical data on the receiver
side. It has been designed to meet the harshest external operating conditions including temperature,
humidity and EMI interference.

● QSFP+ MSA compliant
● IEEE 802.3-2018 compliant
● 4 CWDM lanes MUX/DEMUX design
● 4x 10G electrical interface (XLPPI)
● Maximum power consumption 3.5 W
● LC duplex connector
● 41.25 Gbps aggregate bit rate
● Up to 150 m transmission on OM3/OM4 fiber
without FEC
● Up to 2 km transmission on single mode fiber
without FEC
● Operating case temperature: 0°C to 70°C
● Single 3.3 V power supply
● I2C digital management interface
● RoHS 2 compliant

● 40GE Ethernet
● Data Center Interconnect
● Enterprise networking

Please see the datasheet in the Download page

• Download FileName：E-link QSFP 40GE LX4 LNK-OM3358SX100 Databrief Rev1-0.pdf Size： 809KB

Part Number	Description
LNK-OM3358SX100	QSFP+ 40GE LX4
