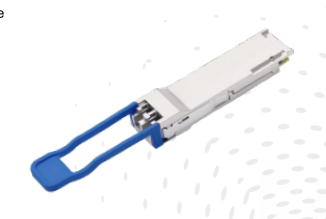

LNK-OM9380LS100 QSFP28 transceiver module is designed for use in 50 Gigabit Ethernet
links on up to 10km of single mode fiber. It is compliant with the QSFP28 MSA (SFF-8679 SFF-8636,
etc), IEEE P802.3cn. Digital diagnostic functions are available via the I2C interface, as specified by the
MSA.

● QSFP28 MSA compliant
● Hot pluggable 38 pin electrical interface
● 1x50G PAM4 transmitter
● 26.5625 Gbps Channel Electrical Serial Interface
(50GAUI-2)
● Maximum power consumption 3.5 W
● LC duplex connector
● Supports 53.125 Gbps aggregate bit rate
● Up to 10 km transmission on single mode fiber
● Operating case temperature: 0°C to 70°C
● Single 3.3 V power supply
● RoHS 2 compliant

● 50GBASE-LR
● Telecom Networking

LNK-OM9380LS100 50GE LR QSFP28 transceivers are compatible with the QSFP28
Specification for pluggable form factor modules.

Part Number	Description
LNK-OM9380LS100	50G BASE-LR QSFP28, Pull-tap
