LNK-OM9380ZS100is designed for 80 km optical communication applications. This
module contains 2-lane optical transmitter, 2-
lane optical receiver and module management block including 2 wire serial interfaces. The optical signals
are multiplexed to a single-mode fiber through an industry standard LC connector.

● QSFP28 MSA compliant
● Hot pluggable 38 pin electrical interface
● 2 LAN-WDM lanes MUX/DEMUX design
● 2 x 25G electrical interface
● Maximum power consumption 5 W
● LC duplex connector
● Supports 51.5625 Gbps aggregate bit rate
● Up to 80 km transmission on single mode
fiber with KR4 FEC
● Operating case temperature: 0°C to 70°C
● Single 3.3 V power supply
● RoHS 2 compliant

● 50GBASE-ZR2 Ethernet
● Telecom networking

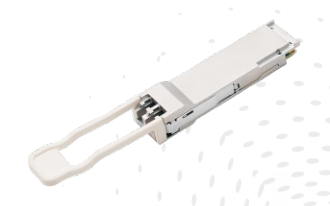

LNK-OM9380ZS100 50G ZR2 QSFP28 transceivers are compatible with the QSFP28
Specification for pluggable form factor modules.

• Download FileName：E-link QSFP28 50GE ZR2 80km LNK-OM9380ZS100 Databrief Rev1-7.pdf Size： 844KB

Part Number	Description
LNK-OM9380ZS100	QSFP28 50GE ZR2 80 km
