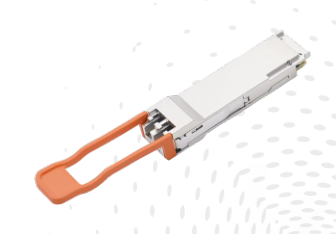

LNK-OM3558ES100 module is designed for 40 km with FEC/30 km without FEC on the host card
optical communication applications, and it is compliant to 4-Wavelength WDM MSA. This module
contains 4-
lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial
interfaces. The optical signals are multiplexed to a single-mode fiber through an industry standard LC
connector.

● QSFP28 MSA compliant
● Compliant to 4-Wavelength WDM MSA
● Hot pluggable 38 pin electrical interface
● 4 LAN-WDM lanes MUX/DEMUX design
● 4 x 25G electrical interface
● Maximum power consumption 4.5 W
● LC duplex connector
● Supports 103.125 Gbps aggregate bit rate
● Up to 40 km with FEC/30 km without FEC
● Operating case temperature: 0°C to 70°C
● Single 3.3 V power supply
● RoHS 2 compliant

● 100G 4WDM-40 Ethernet and ER4-Lite Ethernet
● Telecom networking
● Data center interconnect

Please see the datasheet in Download page

• Download FileName：E-link QSFP28 100GE 4WDM-40_ER4-Lite 40km LNK-OM3558ES100 Databrief Rev1-0.pdf Size： 855KB

Part Number	Description
LNK-OM3558ES100	QSFP28 100GE 4WDM-40&ER4-Lite 40 km
