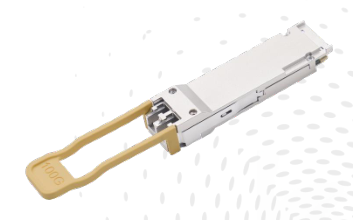

LNK-OM3558SX101 is a QSFP28 transceiver module designed for 70/100m OM3/OM4 MM fiber
optical communication applications. It is compliant with IEEE 802.3 bm-2015, QSFP28 MSA standards.
Digital diagnostic management interface (DDMI) is realized by I2C interface in compliance with SFF-
8636. The module is RoHS 2 compliant.
This module can convert 4-channel 25.78125 Gbps electrical data to 2-channel optical signals, and
multiplex each into a BiDi (Bidirectional) 53.125 Gbps optical transmission. Similarly, it optically de-
multiplexes from Bidi 53.125 Gbps optical signals, and converts them to 4-channel output electrical data
on the receiver side. It has been designed to meet the harshest external operating conditions including
temperature, humidity and EMI interference.

● QSFP28 MSA compliant
● IEEE 802.3 bm-2015 compliant
● 2 BiDi lanes MUX/DEMUX design
● 4 x 25.78125G electrical interface (CAUI-4)
● Maximum power consumption 4 W
● LC duplex connector
● 103.125 Gbps aggregate bit rate
● Up to 70 m/100 m transmission on OM3/OM4 fiber with FEC
● Operating case temperature: 0 to 70°C
● Single 3.3 V power supply
● I2C digital management interface
● RoHS 2 compliant

● 100GE Ethernet
● Data Center Interconnect
● Enterprise Networking

Please see the datasheet in Download page

• Download FileName：E-link QSFP28 100GE BiDi LNK-OM3558SX101 Databrief Rev 1-0.pdf Size： 904KB

Part Number	Description
LNK-OM3558SX101	QSFP28 100G BiDi
