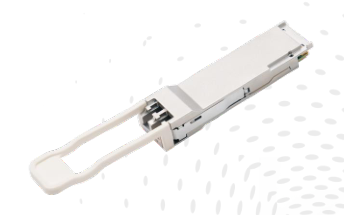

LNK-OM9558ZD105is designed for 80 km optical communication applications. This module contains 4-
lane optical transmitter, 4-lane optical receiver and module management block including 2 wire
serial interfaces. The optical signals are multiplexed to a single-mode fiber through an industry
standard LC connector.

● QSFP28 MSA compliant
● Hot pluggable 38 pin electrical interface
● 4 LAN-WDM lanes MUX/DEMUX design
● 4 x 25G & 4 x 28G electrical interface
● Maximum power consumption 5.5 W
● LC duplex connector
● Supports 103.125 Gbps and 111.81 Gbps aggregate bit rate
● Up to 80 km transmission on single mode fiber
● Operating case temperature: 0°C to 70°C
● Single 3.3 V power supply
● RoHS 2 compliant

● 100GBASE-ZR4 100G Ethernet
● OTN OTU4 4I1-9D1F
● Telecom networking

100G ZR4 QSFP28 transceivers are compatible with the QSFP28 specification for pluggable form factor

modules.

Please see the datasheet in Download page

• Download FileName：E-link QSFP28 100GE-OTU4 ZR4 80km LNK-OM9558ZD105 Databrief Rev1-0.pdf Size： 874KB

Part Number	Description
LNK-OM9558ZD105	QSFP28 100GE&OTU4 ZR4 80 km
