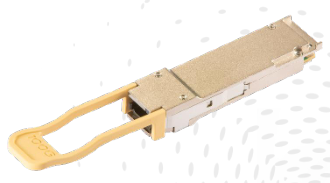

LNK-OM3538SX101 is a parallel full-duplex 100GE Quad Small Form-factor Pluggable (QSFP28)
transceiver designed for short-range multi-lane data communication. It offers four independent data
lanes based on 850 nm VCSEL/PD array technology, and each lane is capable of 25GE operation for an
aggregate data rate of 100GE over 100 m OM4 MMF, 70 m OM3 MMF.
LNK-OM3538SX101 is compliant with the QSFP28 MSA and IEEE 802.3bm, PMD Type 100GBASE-SR4
and CAUI-4, integrating DDM function for real-time performance monitoring and troubleshooting.

● QSFP28 MSA compliant
● IEEE 802.3bm 100GBASE-SR4 compliant
● 4 x 25.78125 Gbps electrical interface (CAUI-4)
● Transmitter: 1 x 4 Vcsel Array
● Reciever: 1 x 4 PINPD Array
● Digital diagnostic monitoring support
● Four independent full-duplex channels
● MPO-12 optical connector
● 103.125 Gbps aggregate bit rate
● Link distances up to 100 m OM4, 70 m OM3
● Operating case temperature ranges from 0°C to 70°C
● Single 3.3 V power supply
● RoHS 2 compliant

● 100GE Ethernet
● Data Center Interconnect
● Enterprise networking

Please see the datasheet in Download page

• Download FileName：E-link QSFP28 100GE SR4 100m (LNK-OM3538SX101) Datasheet Rev1.4.pdf Size： 1.97MB

Part Number	Description
LNK-OM3538SX101	QSFP28 100GE SR4 100 m Optical Transceiver Module
