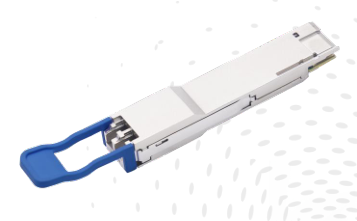

LNK-OM9758LS100 module is designed for 10 km optical communication applications, and
it is compliant to IEEE 802.3cn for 200GE Ethernet. This module contains 4-lane optical transmitter, 4
-lane optical receiver and module management block including 2 wire serial interfaces. The optical
signals are multiplexed to a single-mode fiber through an industry standard LC connector.

● QSFP-DD MSA compliant
● Compliant to IEEE 802.3cn 200GBASE-LR4
● Digital diagnostic monitoring support
● Hot pluggable 76 pin electrical interface
● 4 LAN-WDM lanes MUX/DEMUX design
● 53.125 Gbps PAM4 Channel Electrical Serial
Interface (200GAUI-4)
● 26.5625 Gbps NRZ Channel Electrical Serial
Interface (200GAUI-8)
● Maximum power consumption 10.8 W
● LC duplex connector
● Supports 212.5 Gbps bit rate
● Up to 10 km transmission on single mode fiber
● Operating case temperature: 0°C to 70°C
● Single 3.3 V power supply
● RoHS 2 compliant

● 200GBASE-LR4 Ethernet
● Telecom networking
● Data Center Interconnect

Please see the datasheet in Download page

• Download FileName：E-link QSFP-DD 200G LR4 10km LNK-OM9758LS100 Databrief Rev1-3.pdf Size： 840KB

Part Number	Description
LNK-OM9758LS100	200GBASE-LR4 QSFP-DD, Pull-tap, Single rate
