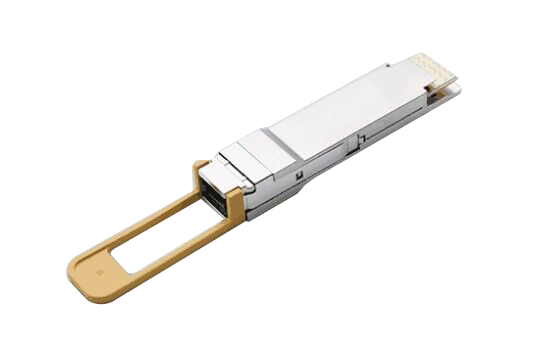

LNK-OM3680SX200is a parallel 400GE Quad Small Form Factor Pluggable Double Density (QSFP-DD)
SR8 optical module designed for optical communication applications. The optical module uses a 4-level
pulse amplitude modulation (PAM4) format. The optical module provides point-to-point 400 Gigabit
Ethernet links over eight pairs of multimode fiber, with a reach of up to 100 m for OM4 (MMF) and 70 m
for OM3 (MMF).
It is compliant with QSFP-DD MSA standard and IEEE 802.3cm 400GBASE-SR8 standard and IEEE
802.3bs 400GAUI-8 standard. Digital diagnostics functions are available via the I2C interface, as
specified by the QSFP-DD MSA.

● QSFP-DD MSA compliant
● QSFP-DD CMIS4.0 management interface compliant
● IEEE 802.3cm 400GBASE-SR8 standard compliant
● IEEE 802.3bs 400GAUI-8 standard compliant
● Digital diagnostic functions
● 8-channel full-duplex transceiver module
● 425 Gbps aggregate bit rate
● Maximum link length of 70 m OM3, 100 m OM4 with FEC
● Single MPO-16/APC receptacle
● Maximum power dissipation < 10 W
● Operating case temperature range 0°C to 70°C
● Single 3.3 V power supply
● RoHS 2 compliant

● 400G Ethernet
● Data center network

The QSFP-DD SR8 module edge connector consists of a single paddle card with 38 pads on the top and
38 pads on the bottom for a total of 76 pads. The pads are defined in such a manner so as to

accommodate insertion of a QSFP module into a QSFP-DD receptacle.

Please see the datasheet in Download page

• Download FileName：E-link QSFP-DD 400GE SR8 100m (LNK-OM3680SX200) Datasheet Rev2.1.pdf Size： 1.43MB

Part Number	Description
LNK-OM3680SX200	QSFP-DD 400GE SR8 100m OM4 & 70m OM3
