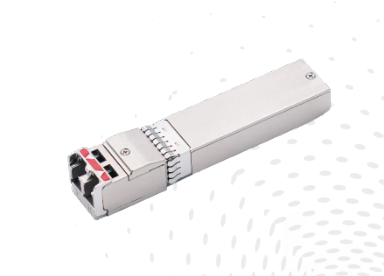

This module is a tunable transceiver module designed for 80 km optical communication applications, and
it is compliant to SFP+ MSA standard. This module can convert a 10 Gbps electrical data to 10 Gbps
optical signals. Similarly, it can convert a 10 Gbps optical input signal to 10 Gbps serial electrical data. It
has been designed to meet the harshest external operating conditions including temperature, humidity
and EMI interference. The module offers very high functionality and feature integration, accessible via a
two-wire serial interface.

● SFP+ MSA compliant
● 48 channels (191.4–196.1 THz)
● 100 GHz channel spacing
● Maximum power consumption:

2.5 W (LNK-OM6253ZX200)/2.0 W (LNK-OM6253ZX201)

● LC duplex connector

● Supports 9.8304 Gbps, 10.1376 Gbps, 10.3125Gbps, 11.32 Gbps without CDR
● Wavelength auto-tuning
● APD receiver
● Up to 80 km transmission on single mode fiber

● Operating case temperature:

–20°C to +85°C, cold start at –40°C (LNK-OM6253ZX200)

0°C to 70°C (LNK-OM6253ZX201)

● Single 3.3 V power supply
● RoHS 2 compliant

Please see the datasheet in Download page

• Download FileName：E-link TSFP 10G DWDM 80km LNK-OM6253ZX200 LNK-OM6253ZX201 Databrief Rev1-2.pdf Size： 859KB

Part Number	Description
LNK-OM6253ZX200	TSFP+ 10G 80 km C Band Tunable
LNK-OM6253ZX201	TSFP+ 10G 80 km C Band Tunable
