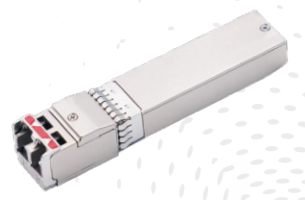

LNK-OM6353LX200 is a tunable transceiver module designed for 10 km optical communication
applications, and it is compliant to SFP28 MSA standard. This module can convert a 25 Gbps
electrical data to 25 Gbps optical signals. Similarly, it can convert a 25 Gbps optical input signal to 25
Gbps serial electrical data. It has been designed to meet the harshest external operating conditions
including temperature, humidity and EMI interference. The module offers very high functionality
and feature integration, accessible via a two-wire serial interface.

● SFP28 MSA compliant
● 25G electrical interface (OIF CEI-28G-VSR)
● 48 channels (191.3–196.0 THz/191.4–196.1 THz)
● 100 GHz channel spacing
● Maximum power consumption 2.5 W
● LC duplex connector
● 24.33024 Gbps, 25.78125 Gbps (with FEC); 9.8304 Gbps, 10.1376 Gbps, 10.3125 Gbps
● Wavelength auto-tuning
● Up to 10 km transmission on single mode fiber
● Operating case temperature: –20°C to +85°C
● Single 3.3 V power supply
● RoHS 2 compliant

● CPRI/eCPRI
● 10G/25G Ethernet switches and routers

Please see the datasheet in Download page

• Download FileName：E-link TSFP28 25G DWDM 10km LNK-OM6353LX200 Datasheet Rev2-0.pdf Size： 842KB

Part Number	Description
LNK-OM6353LX200	TSFP28 25G DWDM 10 km
