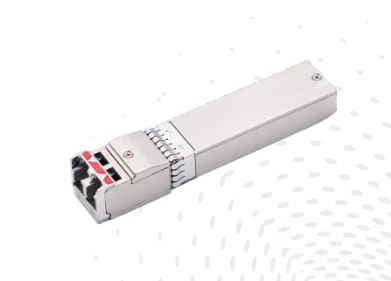

LNK-OM6353LE200 is a tunable transceiver module designed for 15 km optical communication
applications, and it is compliant to SFP28 MSA standard. This module can convert a 25 Gbps
electrical data to 25 Gbps optical signals. Similarly, it can convert a 25 Gbps optical input signal to 25
Gbps serial electrical data. It has been designed to meet the harshest external operating conditions
including temperature, humidity and EMI interference. The module offers very high functionality
and feature integration, accessible via a two-wire serial interface. The module supports auto-tuning,
remote-tuning and remote-DDMI.

● SFP28 MSA compliant
● 25G electrical interface (OIF CEI-28G-VSR)
● 48 channels (191.4–196.1 THz)
● 100 GHz channel spacing
● Maximum power consumption 2.5 W
● LC duplex connector
● Support 24.33024G, 25.78125 Gbps (with FEC); 9.8304G, 10.1376G, 10.3125 Gbps
● Wavelength auto-tuning
● Up to 15 km transmission on single mode fiber
● Operating case temperature: –20°C to +85°C, cold start at –40°C
● Single 3.3 V power supply
● RoHS 2 compliant

● CPRI/eCPRI: 24.33024G/25.78125 Gbps; 9.8304G/10.1376G/10.3125 Gbps
● 10G/25G Ethernet switches and routers

Please see the datasheet in Download page

• Download FileName：E-link TSFP28 25G DWDM 15km LNK-OM6353LE200 Databrief Rev1-2.pdf Size： 837KB

Part Number	Description
LNK-OM6353LE200	SFP28 25G 15 km C Band Tunable
