Parameter

Specifications

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Wavelength

850nm/1310nm/1550nm

Transmission distance

multi-mode Dual-fiber:220m(62.5/125μm)/550m(50/125μm)

single mode Dual-fiber: 20/40/60/80 Km

single mode Single fiber: 20/40/60/80 Km

Category-5 twisted pairs:100m

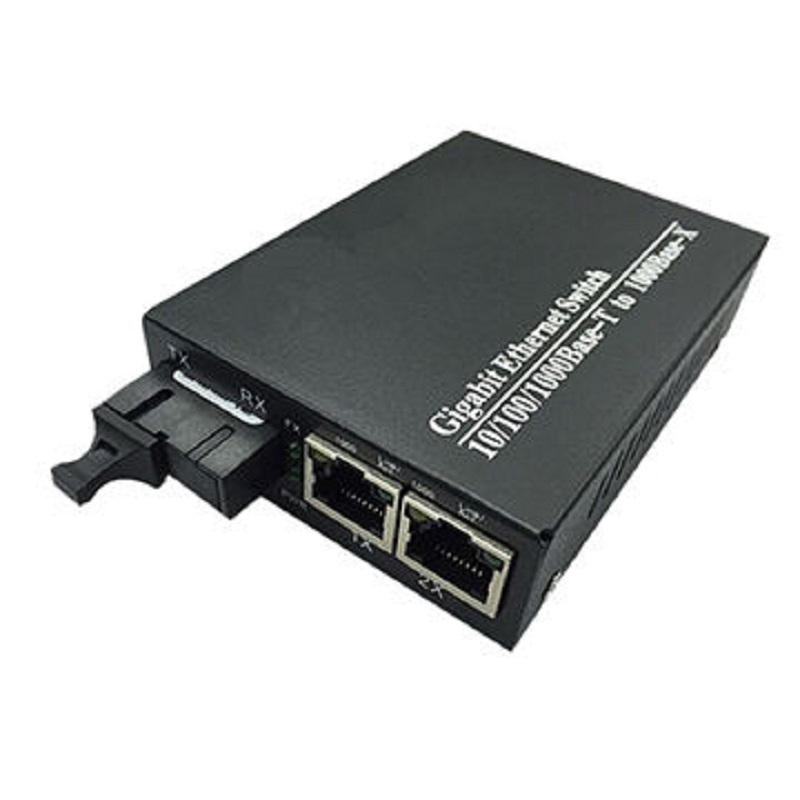

Port

Two RJ45 port: for connecting STP/UTP category-5 twisted pairs

One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm)

Single mode, dual fiber: SC or ST (9/125μm)

Single mode Single fiber: SC or ST (9/125μm)

Conversion means

Store and Forward mode or Cut-Through mode

Buffer space

Built in 128Kb RAM for data buffer

Flow control

Full duplex: flow control;

Half duplex: back pressure

BER

<19-9

MTBF

100,000 hours

LED indicator

POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate100M), TP ACT (TP cable packet forwarding action)

Power supply

External: AC90~264V/DC100~380V input, 5V2Aoutput

Power consumption

5W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing
