► 8x10/100/1000Base-TX RJ45 ports, 2xSFP Combo ports
► SFP interface support 100/1000Base-X SFP auto-negotiation
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 9K bytes giant frame, compatible with various extension protocol
► 8K MAC address table
► 8x10/100/1000Base-TX RJ45 ports, 2xSFP Combo ports
► SFP interface support 100/1000Base-X SFP auto-negotiation
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 9K bytes giant frame, compatible with various extension protocol
► 8K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
► Support IPv6 Protocol
► Static Routing can be customized
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
► Installation method: Wall mounting
Physical Port |
|
RJ45 port and speed |
8x10/100/1000ase-TX |
Fiber port and speed |
2x1000Base-FX SFP |
Parameters |
|
Ethernet standards |
IEEE802.3 10BASE-T |
Packet buffer |
4Mbits |
Maximum packet length |
Up to 10k Bytes |
MAC address table |
8K |
Transmission mode |
Store and Forward (full/half duplex mode) |
Exchange property |
Delay time: < 7μs |
Backplane bandwidth: 1Gbps |
|
Packet forwarding rate: 148810 (64Byte) |
|
LED Indicator |
|
Power |
Connect-always |
RJ45 |
Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
Fiber |
Link/Act: connect-always; data exchange-twinkle |
Power Information |
|
Redundant power input |
AC 100-240V |
Overload protection |
Yes |
Power reverse |
Support |
Physical Property |
|
Enclosure |
Metal |
Cooling mode |
Natural cooling, no fan design |
Dimensions |
249mm x 152mm x 45mm (L x W x H) |
Installation mode |
Wall-mountable |
Weight |
1.3kg |
Working Environment |
|
Operating Temperature |
-5℃~50℃ |
Operating Humidity |
5%~90% non-condensing |
Storage Temperature |
-10℃~70℃ |
Warranty |
|
MTBF |
65,000 hours |
Defects Liability Period |
2-year warranty, lifetime technical support |
Certification Standard |
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
EMS |
EN61000-4-2(ESD), |
Collision |
IEC60068-2-27 |
Drop |
IEC60068-2-32 |
Vibration |
IEC60068-2-6 |
Safety grade |
EN60950-1 |
Software Features |
|
Redundant network: STP/RSTP |
|
Multicast: IGMP Snooping V1/V2 |
|
VLAN: IEEE 802.1Q 4K VLAN, QINQ |
|
Link Aggregation: manual |
|
Management Function: CLI/WEB/SNMP |
|
Diagnostic Maintenance: Port mirroring, Ping |
|
Alarm management: 1-way relay alarm output, RMON, SNMP Trap |
|
Security: DHCP Snooping, User hierarchical management |
|
Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control. |
|
Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression |
Model |
Description |

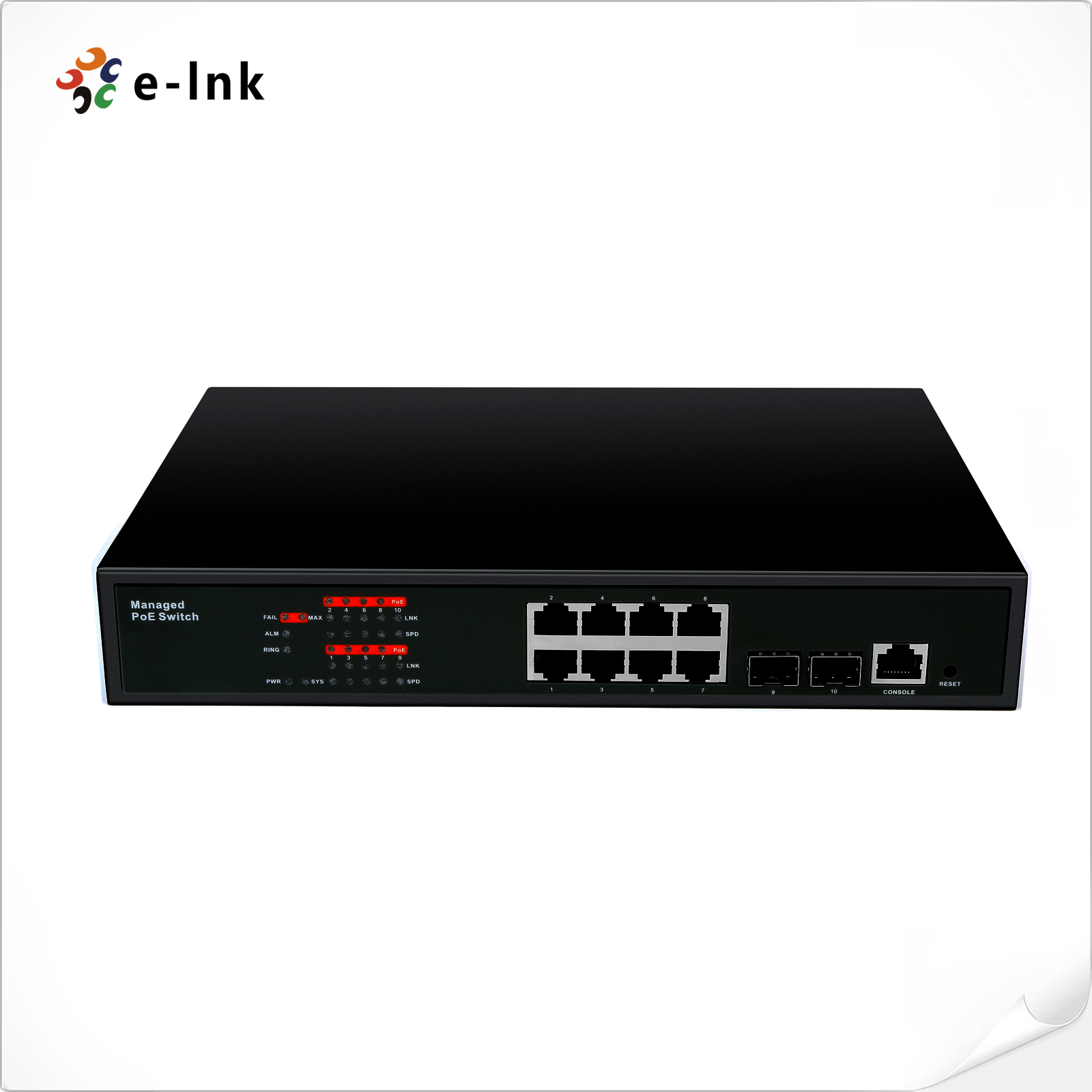

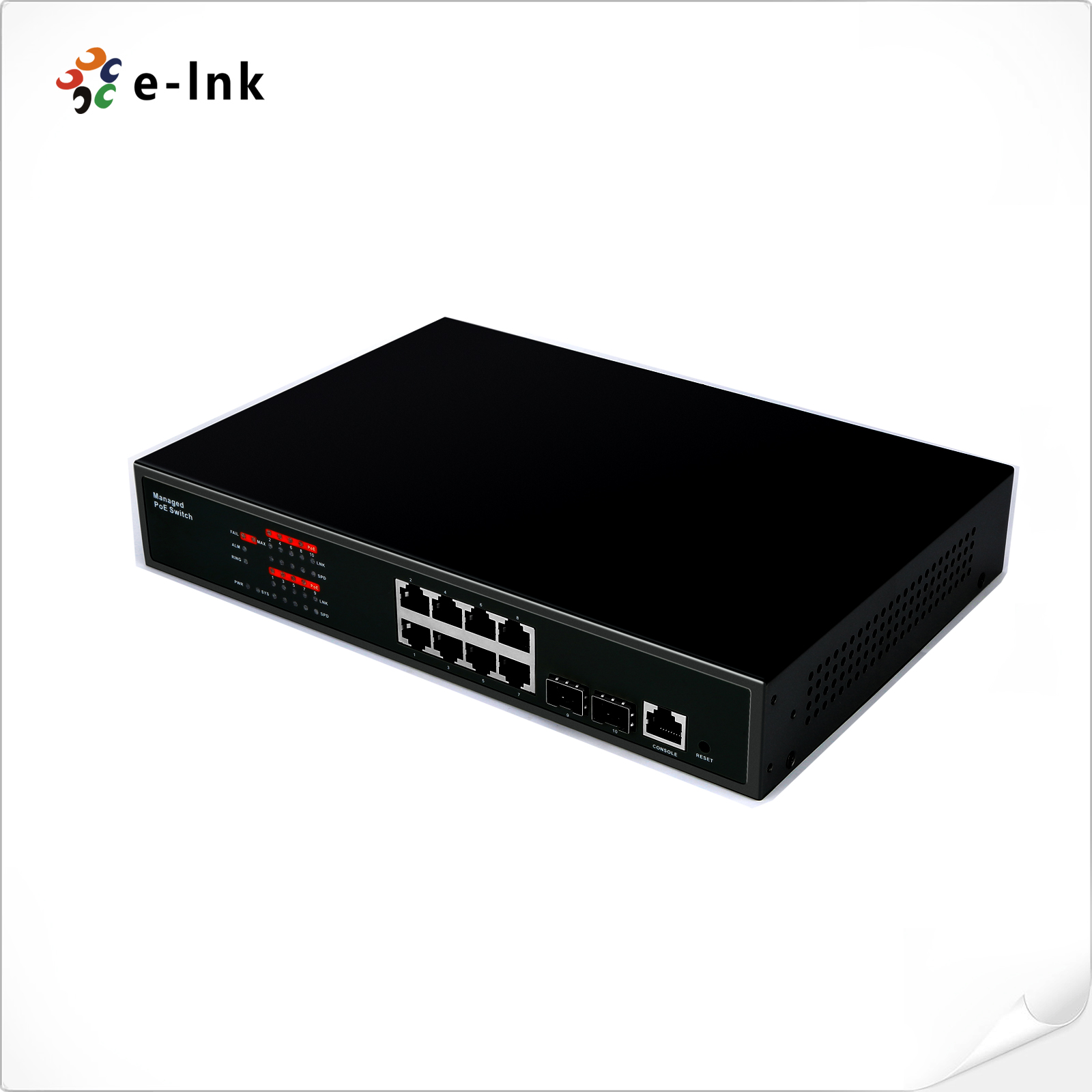

LNK-M208G-SFP |
Managed 8-Port 10/100/1000T + 2-Port 100/1000M SFP Ethernet Switch |
