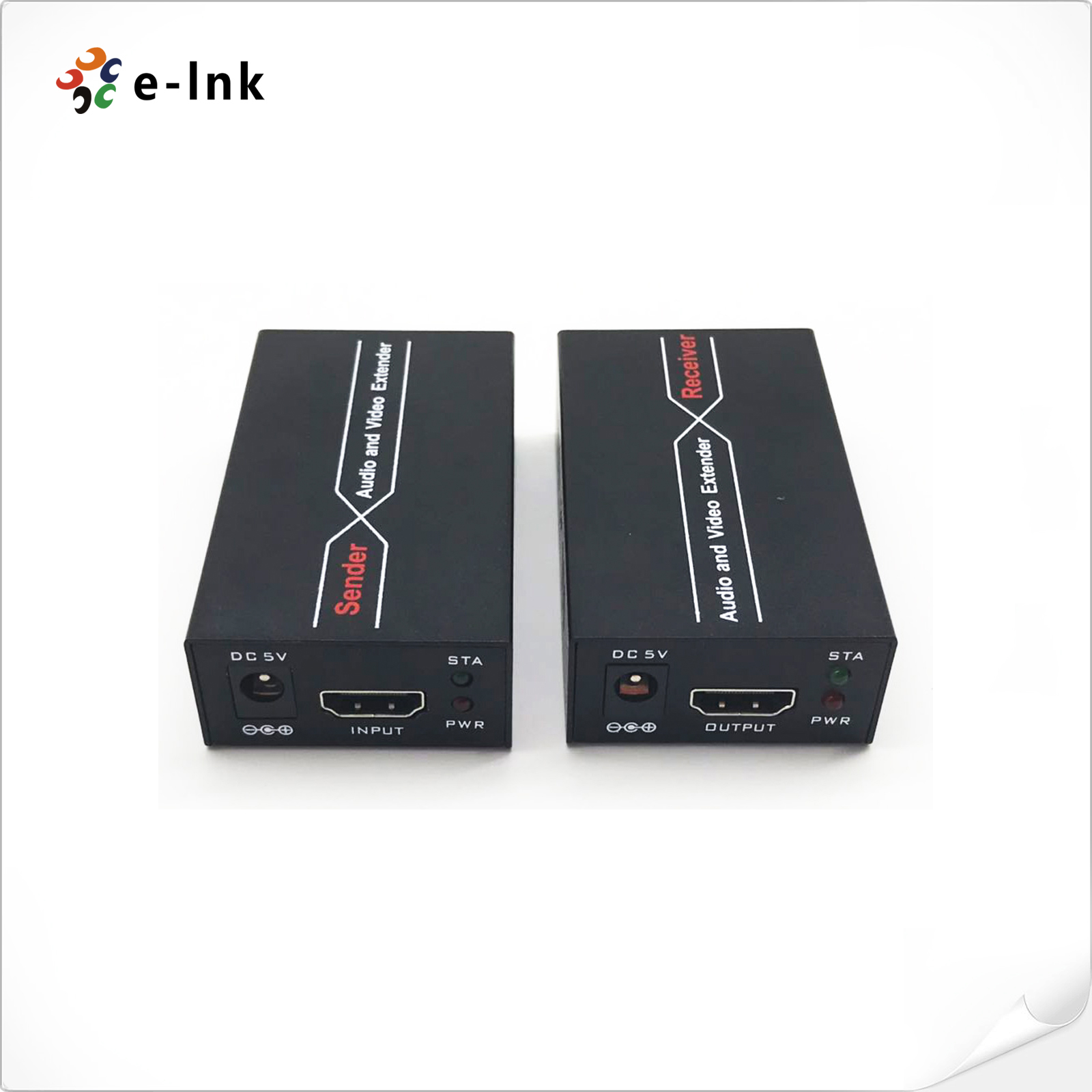

60M 1080P@60Hz HDMI Extender over cat6

Model:LNK-HDE-60 Series

► Uncompressed and zero latency

► Auto adjustment to match the cable length

► The highest resolutions supported is up to 1080P@60Hz

► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m

上一张

下一张

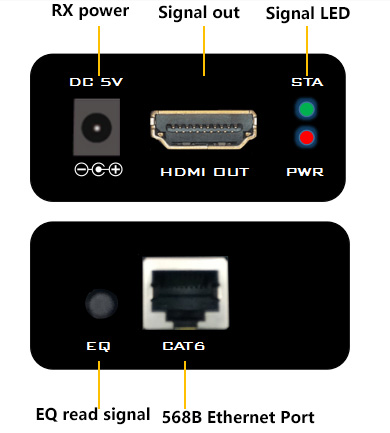

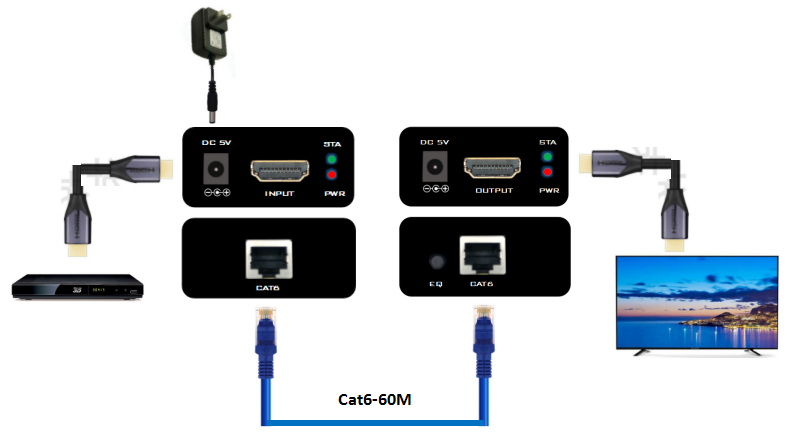

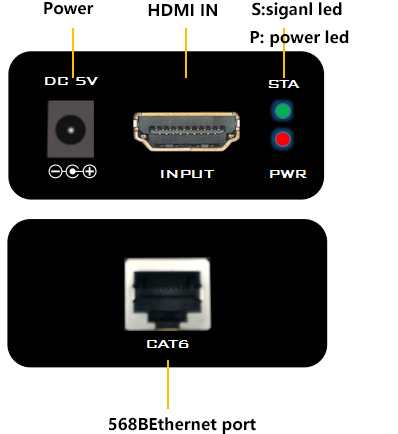

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control and local loop-out, also it supports PoE to power the sender/receiver (Connect power supply to the transmitter /receiver, each unit will power up, as the unit through network cable). This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc. The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.

► Uncompressed and zero latency

► Auto adjustment to match the cable length

► The highest resolutions supported is up to 1080P@60Hz

► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m

► Support EDID pass-through for smart match between the source device and display device

► Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.3
	Maximum pixel clock	165MHz Digital
	Maximum data rate	6.75Gbps
	Resolution	3D:1080p@60Hz; 1080i@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz,
HDMI	Impedance	100Ω
	Connector	HDMI-A
	HDMI cable	Less than 5m at 1080p@60hz
RJ45	Interface	RJ45
	Transmission distance	CAT6/7--- 60m at 1080p@60hz
	Network cable	Low resistance and consumption oxygen-free copper core （CAT6、CAT6A、CAT7）-UTP
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	794323mm
	The warranty	1 year free warranty
