Parameter |
Description |
|
|
Video |
Standards |
HDMI2.0; HDCP 2.2 |
|
Maximum pixel clock |
340MHz |
|
|
Maximum data rate |
18Gbps |
|
|
Maximum resolution |
3840*2160@60Hz （backward-compatible） |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
IR |
Interface |
3.5mm earphone seat |
|
Signal direction |
Bi-directional |
|
|
Signal type |
Digital |
|
|
IR frequency |
20-60kHz |
|
|
UTP |
Interface |
RJ45 (IEEE - 568b connection) |
|
Transmission distance |
CAT6-60M |
|
|
Other |
Power supply |
The power adapter: DC 5V/1A |
|
Power dissipation |
MAX 3W |
|
|
Temperature |
Operating: -5℃~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
82*65*17mm |
|
|
The warranty |
1 year free warranty |
|
- Download FileName：E-link 4K60HZ HDMI Extender 60M with Loopout & Dual IR Datasheet V1.0.pdf Size： 438KB
|
Part No |
Description of product |
|
LNK-H4KE-60 |

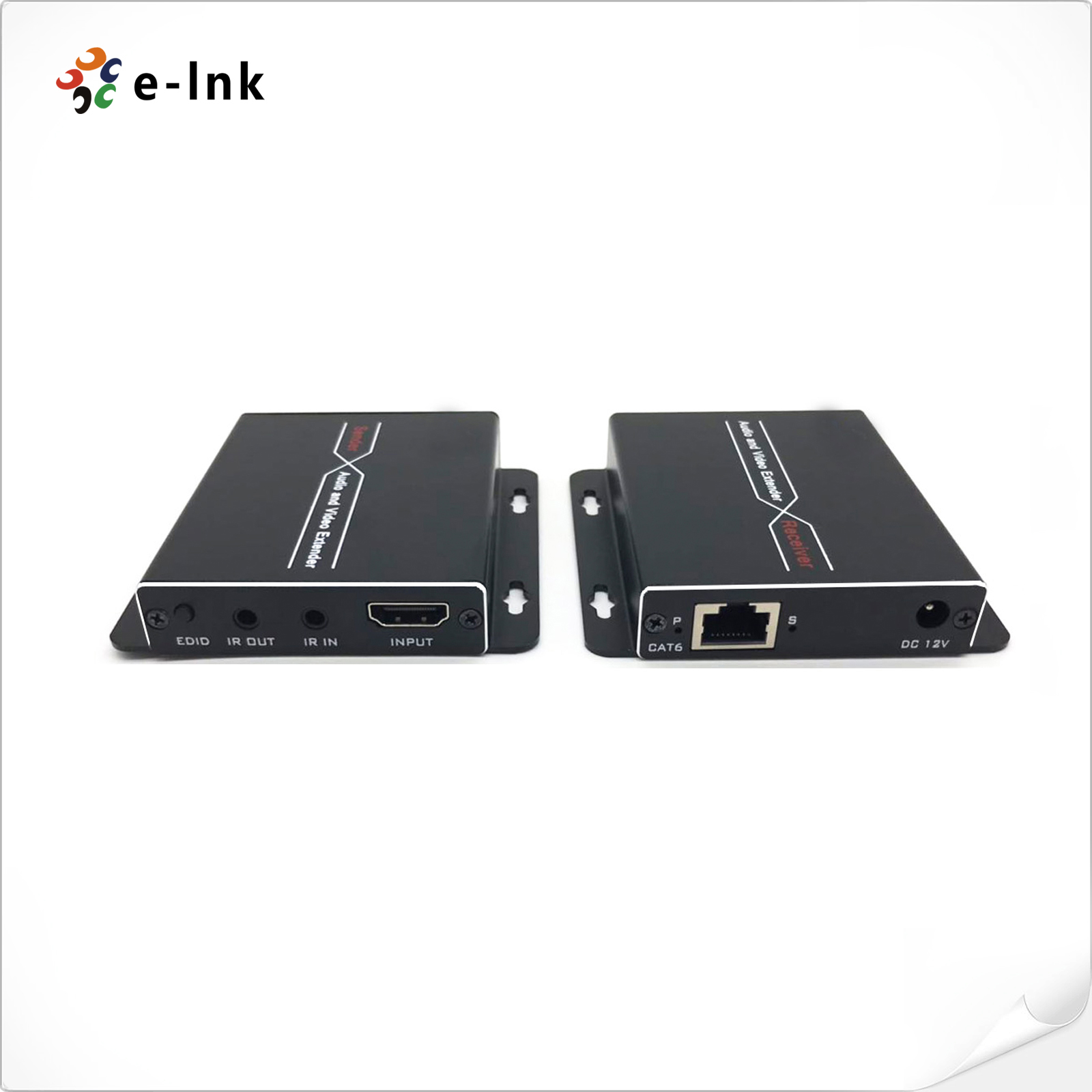

4K@60HZ HDMI Extender 60M With Loopout & Dual IR - 197 ft (60m |
