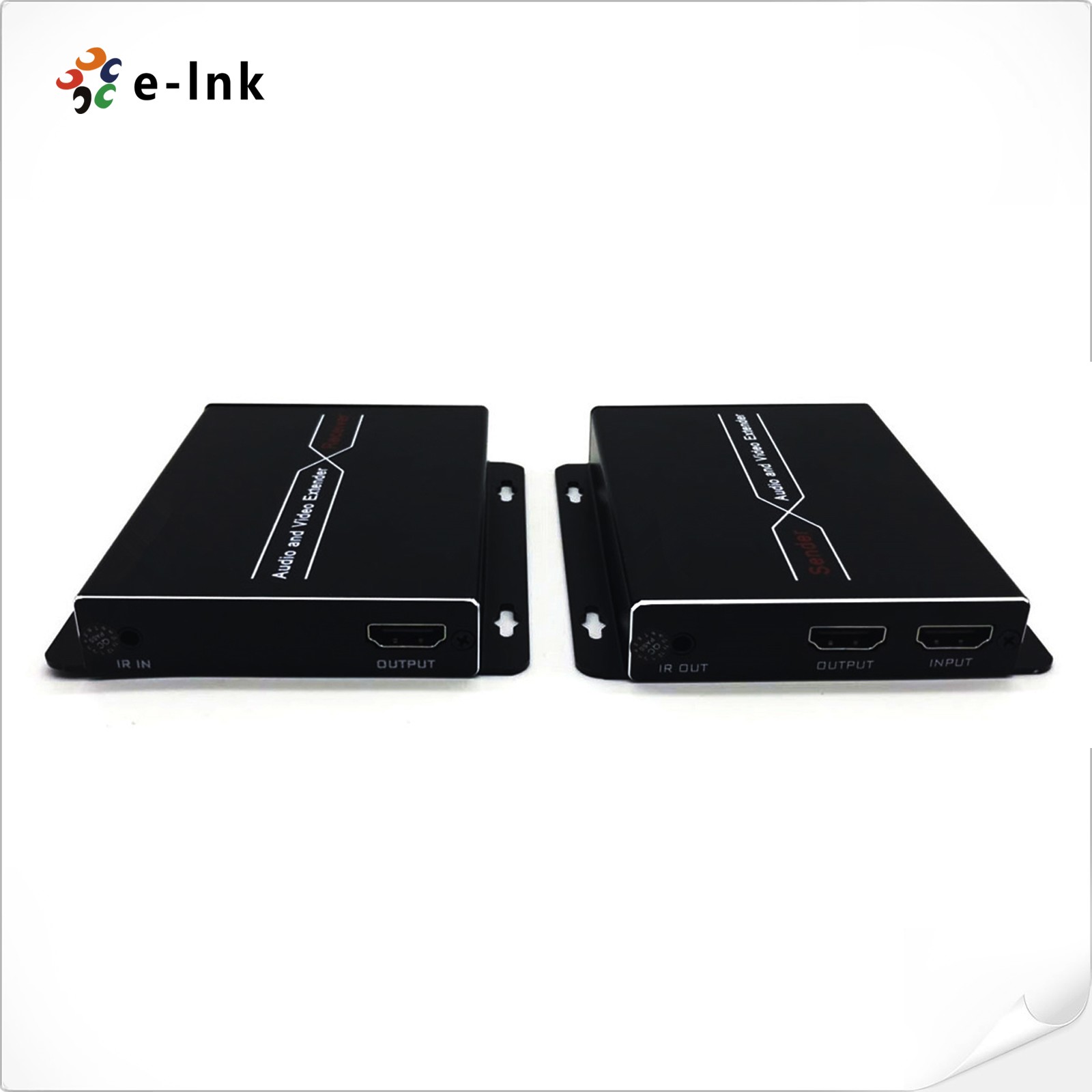

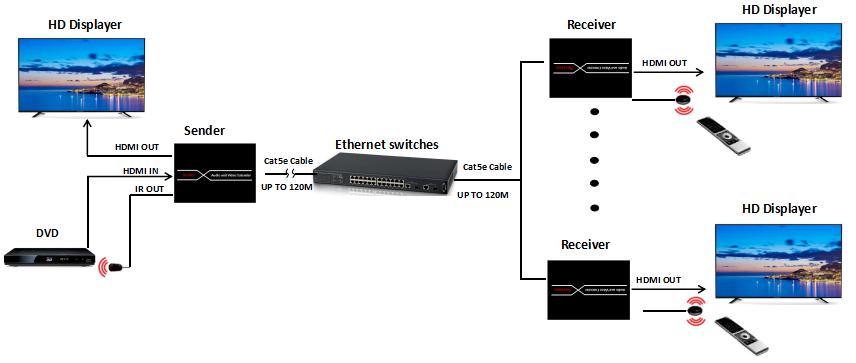

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.

This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.

The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.

►    Aluminum shell, compact size and Slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type

►    Uncompressed and zero latency

►    Auto adjustment to match the cable length

►    The highest resolutions supported is up to 1080P@60Hz

►    Extend HDMI signal over single UTP CAT6/6a/7 cable up to 120m

►    Support EDID pass-through

►    Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable.

• Download FileName：E-link LNK-HDE-120 HDMI Extender Datasheet V1.0.pdf Size： 606KB
• Download FileName：E-link HDMI Over CAT5,6 Extender 120m with IR User Manual V1.0.pdf Size： 364KB
