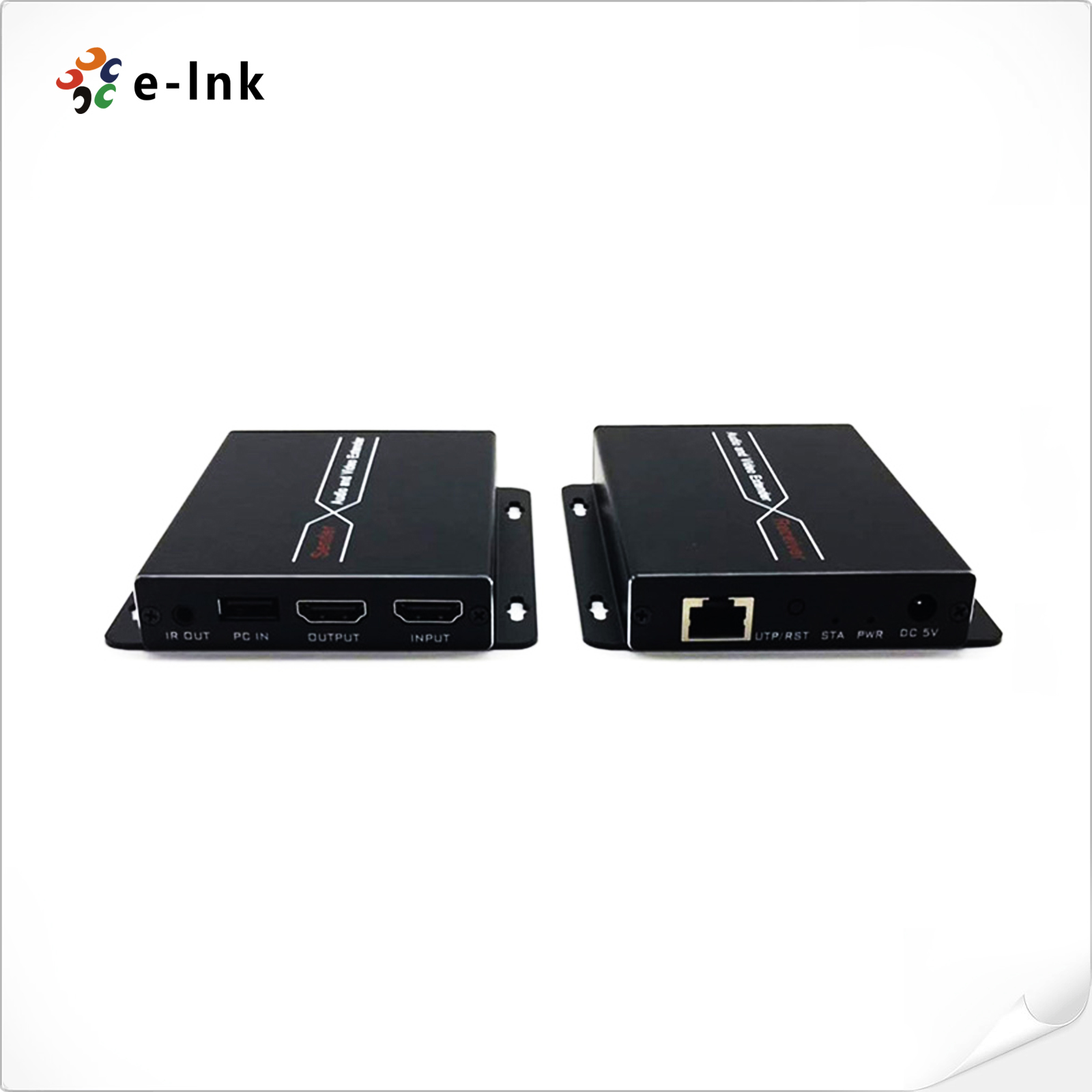

120M 1080P@60Hz HDMI KVM Extender Over TCP/IP

Model:LNK-HDE-120KVM

► Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference; Wall-mounted type is more convenient.

► Distance up to 120m over UTP CAT5E/6 cable.

► Video resolution max up to 1920*1080@60Hz.

► Support keyboard and mouse control .

► Have a local HDMI loop-out ;

► Support IR(38khz) signal pass back transmission .

► HDMI 1.3 and HDCP 1.2 standard.

上一张

下一张

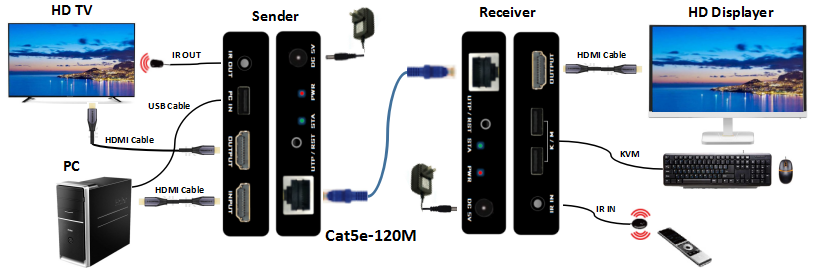

This HDMI KVM Extender includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. It supports keyboard & mouse remote control and local loop-out. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.

► Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference; Wall-mounted type is more convenient.

► Distance up to 120m over UTP CAT5E/6 cable.

► Video resolution max up to 1920*1080@60Hz.

► Support keyboard and mouse control .

► Have a local HDMI loop-out ;

► Support IR(38khz) signal pass back transmission .

► HDMI 1.3 and HDCP 1.2 standard.

► High compatibility, can auto-match source and display device.

► Built-in automatic adjustment system, make the image smooth, clear and stable.

► Built-in ESD protection system; Simple to install, plug and play.

► TCP/IP Ethernet communication.

► Real-Time Video/Audio Transmission over IP.

► Pure Ethernet , Simple Cabling .

► Ordinary 100M or 1000M Ethernet switch.

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Max: 1920X1080@60Hz（backward-compatible）
	Connector	HDMI-A
	Impedance	100Ω

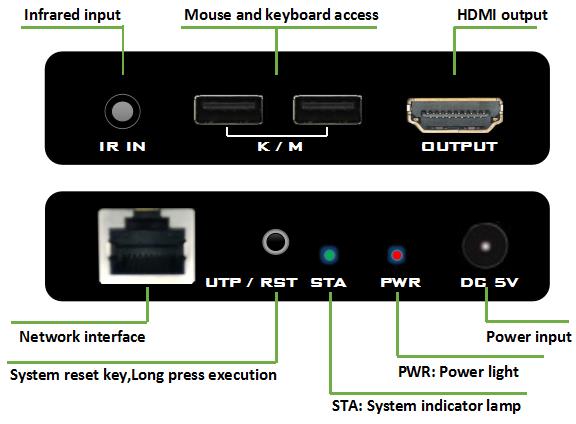

IR	Interface	3.5mm earphone seat
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	38kHz
USB	Interface	PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional)
USB	USB Signal	HID Signal
Ethernet	Interface	RJ45（568B）
Ethernet	Transmission distance	UTP CAT5e/---120m
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	10097.517mm
	The warranty	1 year free warranty
