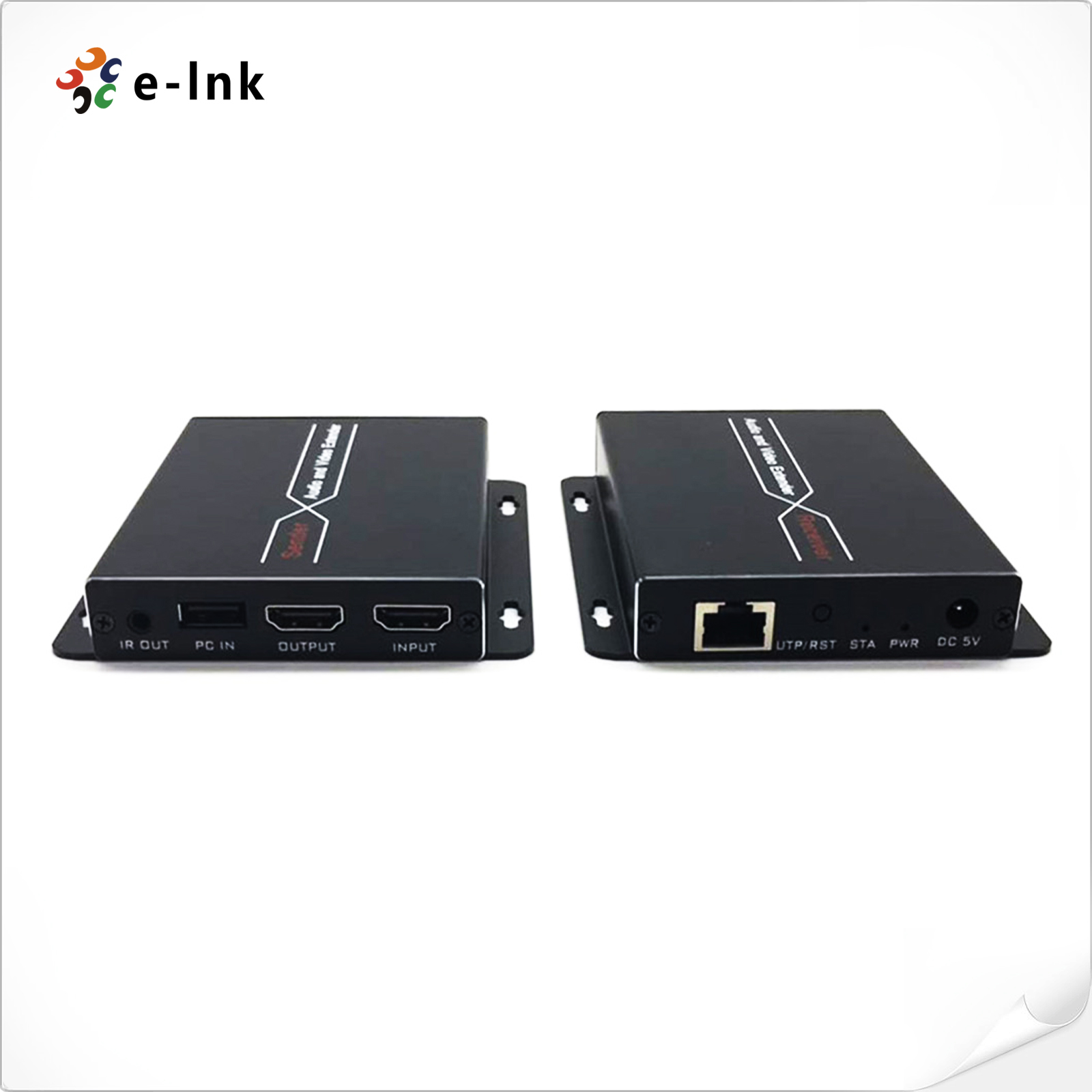

4K@30HZ HDMI KVM Extender 120M with Loopout

Model:LNK-4KE-120KVM

上一张

下一张

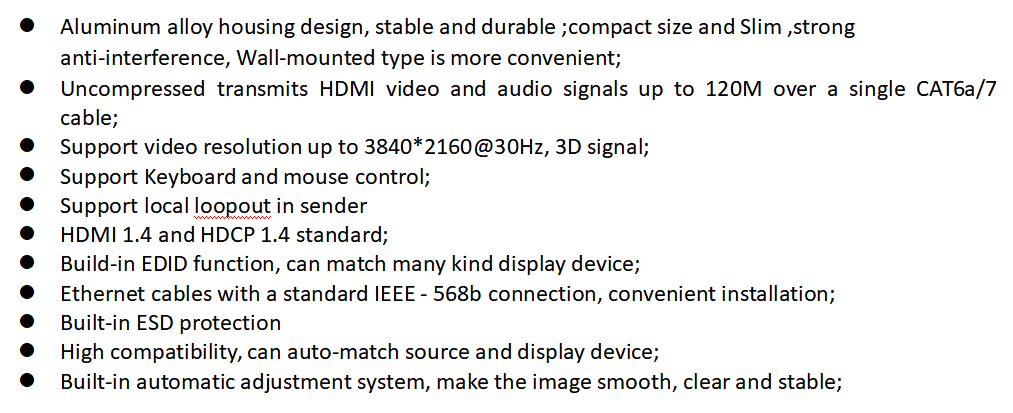

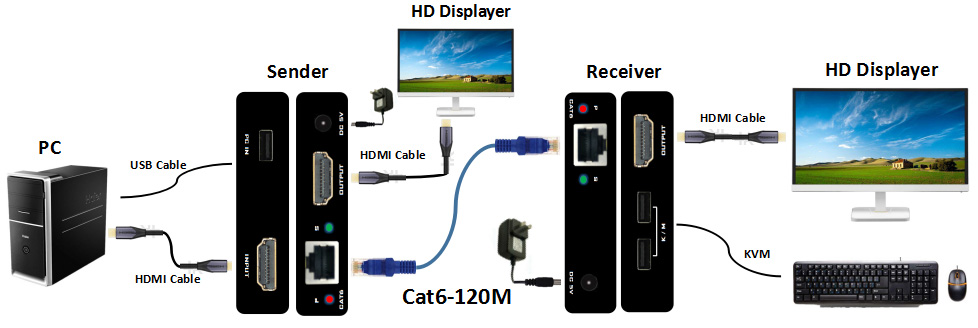

This LNK-4KE-120KVM includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 4K@30Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 120 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. Support Keyboard mouse control and local loopout . This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.

The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.

Parameter		Description
Video	Standards	HDMI1.4; HDCP 1.4
	Maximum pixel clock	225MHz
	Maximum data rate	10.2Gbps
	Maximum resolution	3840*2160@30Hz （backward-compatible）
	Connector	HDMI-A
	Impedance	100Ω
USB	Interface	PC: Standard USB-A K/M: Standard USB-A
USB	USB Signal	HID Signal
UTP	Interface	RJ45 (IEEE - 568b connection)
UTP	Transmission distance	CAT6-120M
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	828517mm
	The warranty	1 year free warranty
