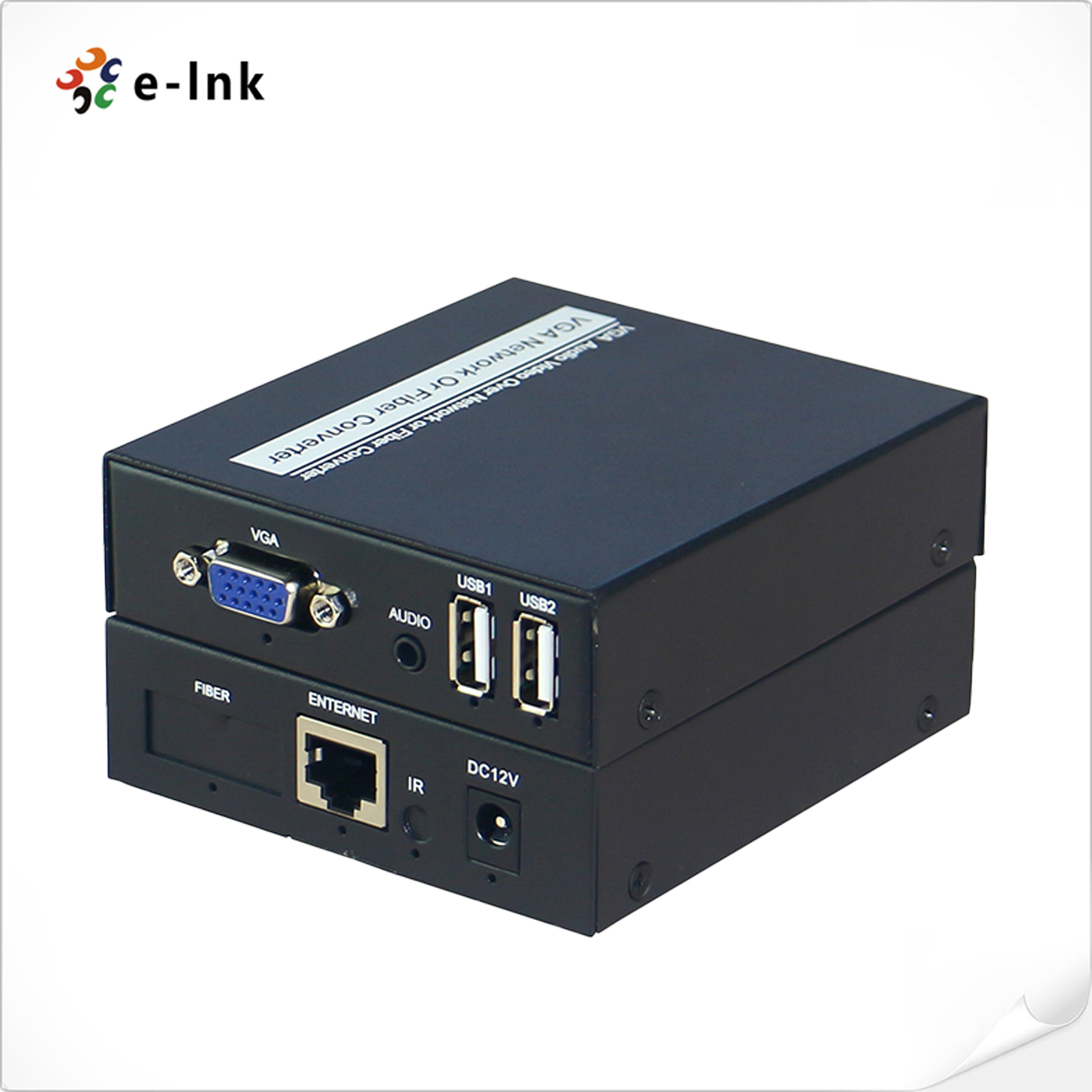

USB VGA KVM over CAT5/6 UTP Extender
Model:LNK-UVGA-KVM
► Transmit VGA video and audio over long distances through the cable, up to 150 meters;
► The highest resolution HD video signals up to 1080P @ 60Hz;
► Compliance with VGA standard protocol;
► Support for external one-way analog stereo audio signal transmission;

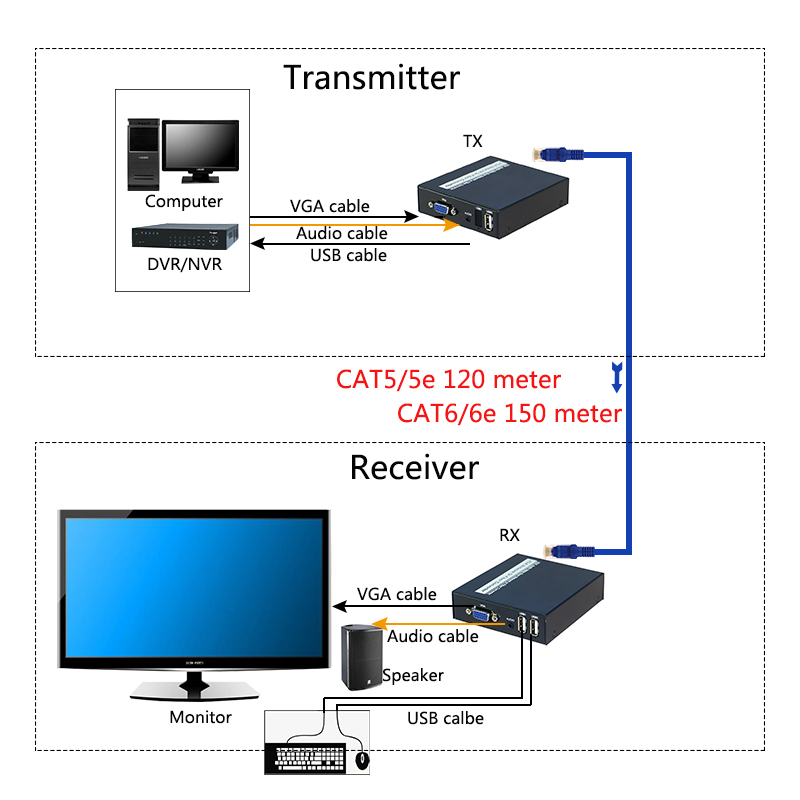

LNK-UVGA-KVM Extender could transmission high-definition video long distance through a single cable, while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications.
The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.► Transmit VGA video and audio over long distances through the cable, up to 150 meters;
► The highest resolution HD video signals up to 1080P @ 60Hz;
► Compliance with VGA standard protocol;
► Support for external one-way analog stereo audio signal transmission;
► Support USB keyboard and mouse transmission;
► It can automatically identify and configure a variety of display modes;
► Built-in automatic equalization system, the picture is smooth, clear and stable;
► Built-in ESD Protection Circuit, comprehensive protection system
|
Parameter |
Description |
|
|
Video |
Signal Type |
VGA |
|
BW |
380MHz |
|
|
Resolution |
1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps |
|
|
Impedance |
75Ω |
|
|
Audio |
Port |
3.5mm Stereo audio socket |
|
Type |
Stereo |
|
|
K/M |
PIN |
USB |
|
Ethernet port |
Cable Type |
IEEE 568B |
|
Max transmission distance |
Cat5e :120m，cat6 :150m |
|
|
Other |
Power |
Adapter: DC 12V/1A |
|
Power dissipation |
MAX 4W |
|
|
Temperature |
Operating：-5℃ ~ +70℃ |
|
|
Humidity |
Operating：5% ~ 90% |
|
|
Size |
92 x 89 x 26 mm |
|
|
Warranty |
1 year |
|
- Download FileName：E-link LNK-UVGA-KVM USB VGA KVM Extender Datasheet V2.0.pdf Size： 814KB
|
Part No |
Description of product |
|
LNK-UVGA-T/R |
VGA Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters |
|
LNK-UVGA-KVM-T/R |
USB VGA KVM Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters |
