E-link HDMI Extender over Coaxial 100M BNC 75ohm RG-6U Coax Cable Balun is used for DVR, DVD, CCTV Camera and Home Theater. The Transmitter and Receiver sends HDMI + IR signals over one 75ohm Coaxial cable up to 100M (328ft) away. The HDMI + IR Over Single Coax Extender supports HDMI 1.2 and HDMI 1.3 with features such as Deep Color and 1080p. By using standard and widely available 75ohm RG-6U cables, the HDMI Over Single Coax Extender makes extending your HDMI + IR signal easier than using heavy and expensive copper cable and more robust than using optical fiber cable.

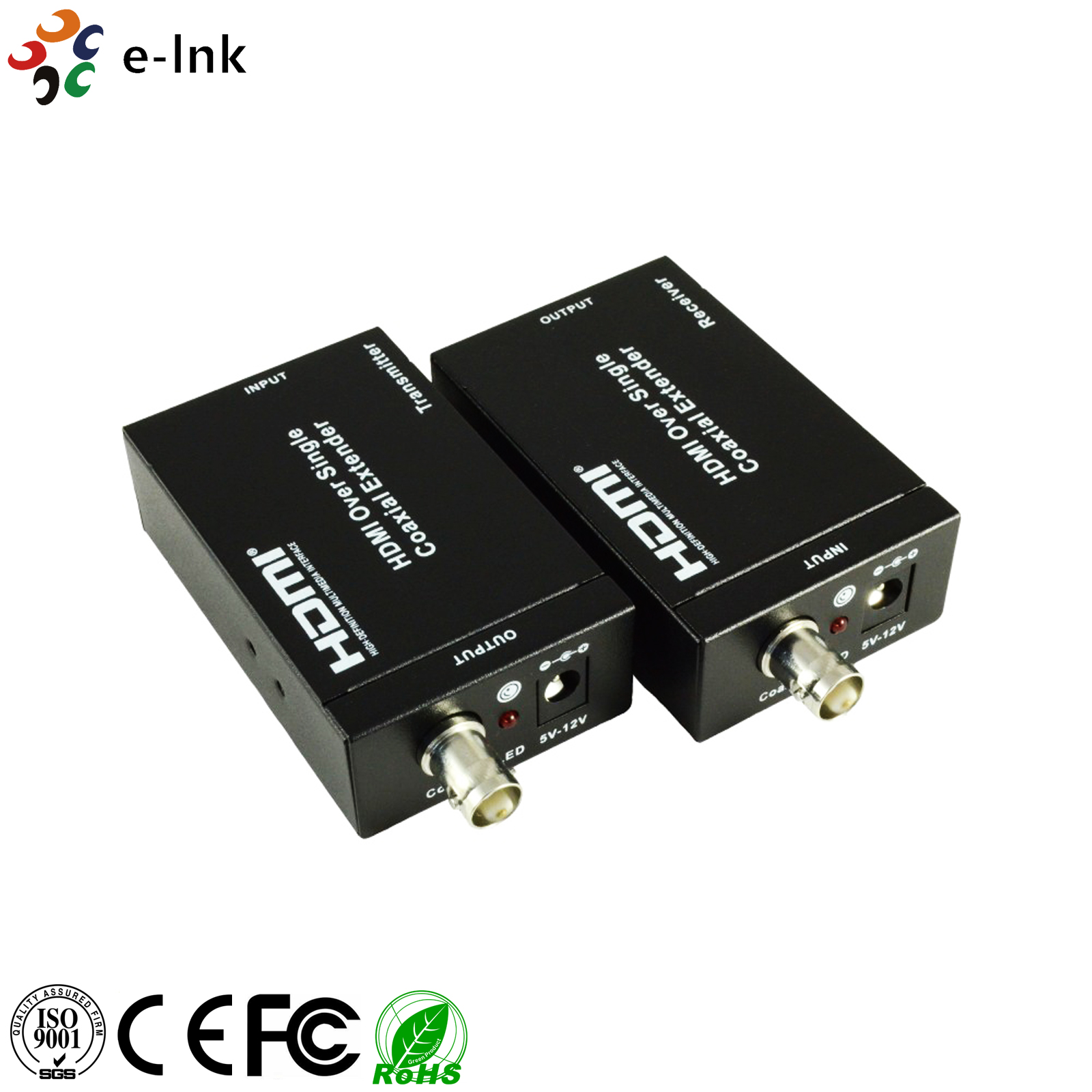

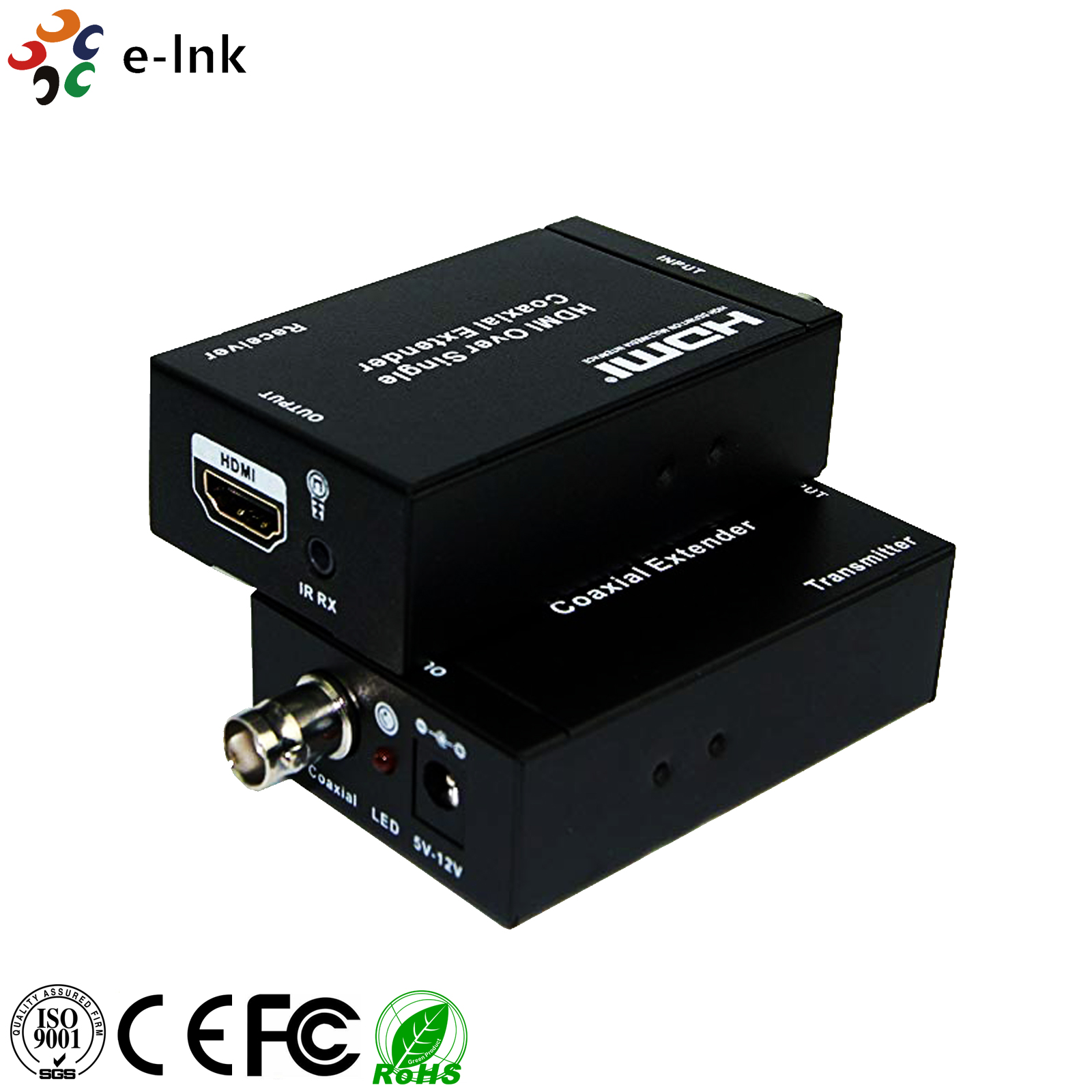

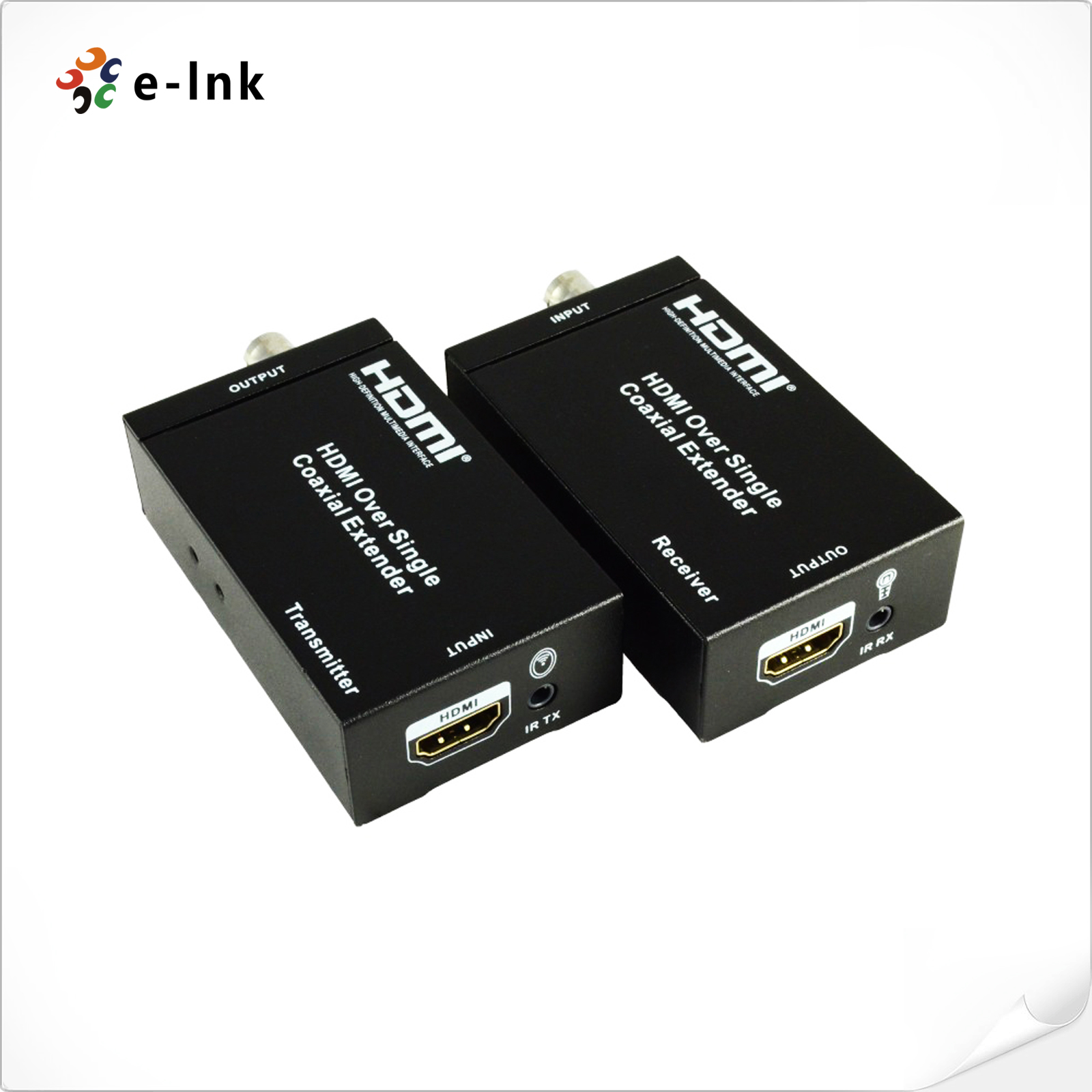

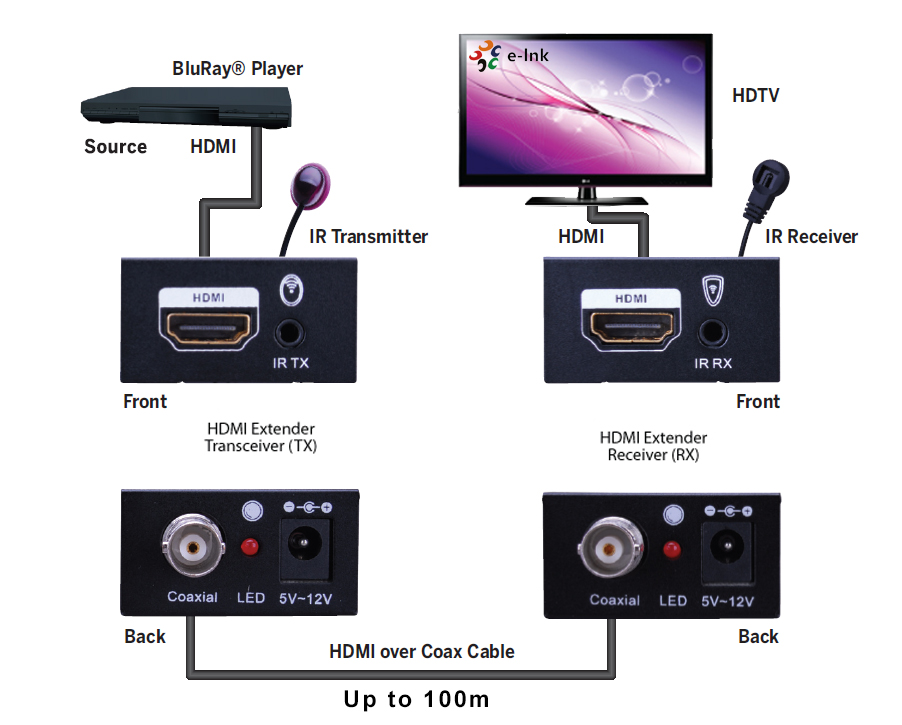

The HDMI + IR Over Single Coax Extender system consists of a Transmitter and a Receiver. The HDMI source (set-top box, DVD player, or gaming console) connects to the Transmitter box with a HDMI cable. The Receiver box connects to the HDTV display in the same way up to 100M (328ft) away. One 75ohm RG-6U Coax cable links the Transmitter and Receiver. Power is applied to the Transmitter and Receiver with the included power adapters.

►    HDMI Extender Over Coaxial Cable With IR Remote Control

►    Send HDMI + IR signals over one 75ohm Coaxial cable up to 100M (328ft) away

►    Compliant with HDMI 1.3, HDCP 1.1standards

►    Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/color) and 48KHz,LPCM Digital audio

►    Equalizes and recovers incoming TMDS data before re-transmitting it in high quality, regardless of the incoming signal quality

►    Super IR control system, IR transport channel can be forward or backward.

• Download FileName：E-link HDMI Extender over Coaxial Cable Datasheet V1.0.pdf Size： 338KB
