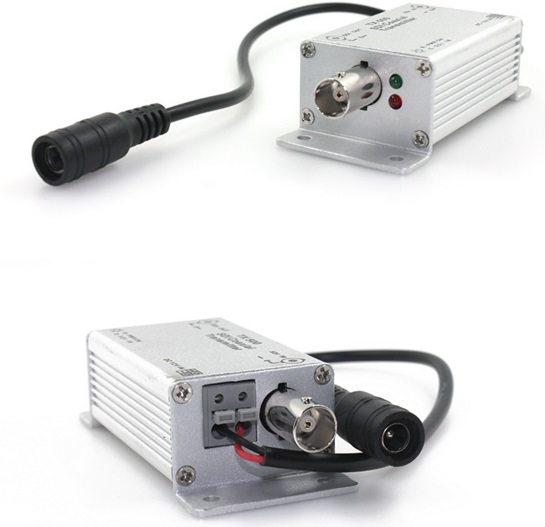

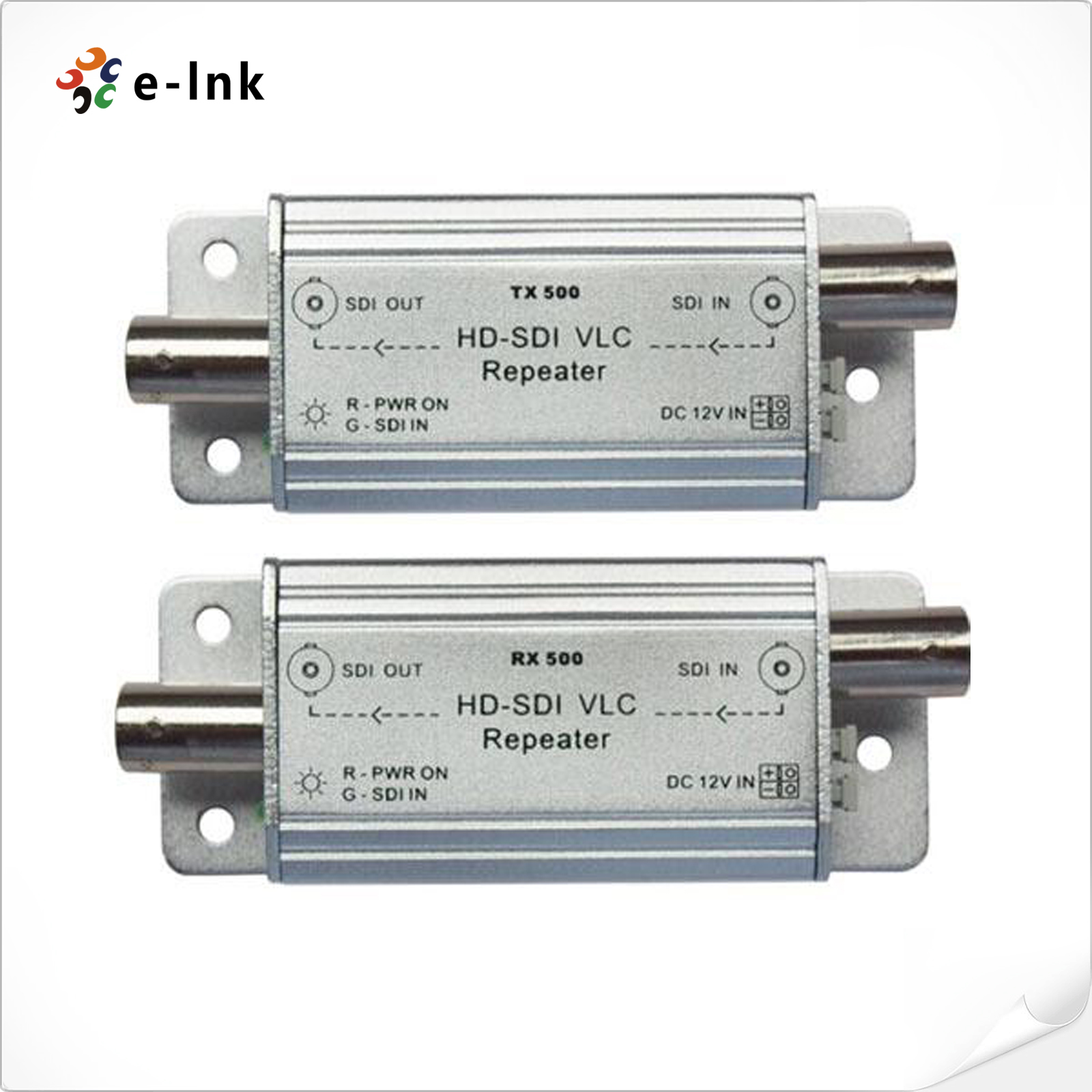

HD-SDI Extemder Repeater over Coax Cable
Model:LNK- SDI-TX500& LNK- SDI-RX500
► Support resolution of 1280 x 720 (24/25/30/50/60fps) and 1920 x1080 (24/25/30fps) ·Support data width of 20-bit(Non-multiplexed) or 10-bit(Multiplexed)
► Support transmission ratio of 2.97Gbps, 1.485Gbps, and 270Mbps
► Support resolution of 1280 x 720 (24/25/30/50/60fps) and 1920 x1080 (24/25/30fps) ·Support data width of 20-bit(Non-multiplexed) or 10-bit(Multiplexed)
► Support transmission ratio of 2.97Gbps, 1.485Gbps, and 270Mbps
► Embedded surge protection cables
► Light Aluminum Housing, Easy to carry and install
|
Model No. |
LNK-SDI-TX500 & LNK-RX500 |
|
Input / Output Signal Type |
HD-SDI |
|
Power Consumption |
DC12V/1W |
|
Power Input |
DC12V/0.07A |
|
Max Distance of Each Pair |
RG-6(Belden 1694A)-400m(Full SD:270M) |
|
Connect Info |
SDI Signal Joint BNC-F(75Ω) |
|
LED Instruction |
Green OFF: HD-SDI input Red ON: Power input |
|
Operation Temperature / Humidity |
-10-50 |
|
Housing Material / Net Weight(each) |
Aluminum/61g |
|
Gross Weight(pair) |
160g |
|
Dimension(MM) |
87.5(L)x33(W)x22(H)mm 121(L)x54(W)x36(H)mm(Sale package) |
- Download FileName：E-link HD-SDI Repeaters Datasheet V1.0.pdf Size： 230KB
|
Model No. |
LNK-SDI-TX500 & LNK-RX500 |
|
Description |

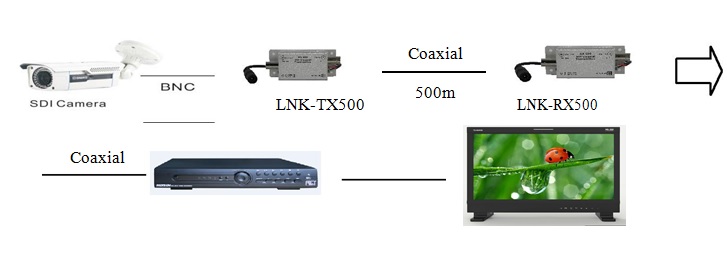

LNK-TX500 is to apply for signal transmitting terminal. LNK-Rx500 is to apply for receivingterminal. LNK-TX500 &LNK-TX500 repeaters is a equipment of HD-SDI signal data transmission, which can support transmitting HD-SDI signal data for 500 meters. |
