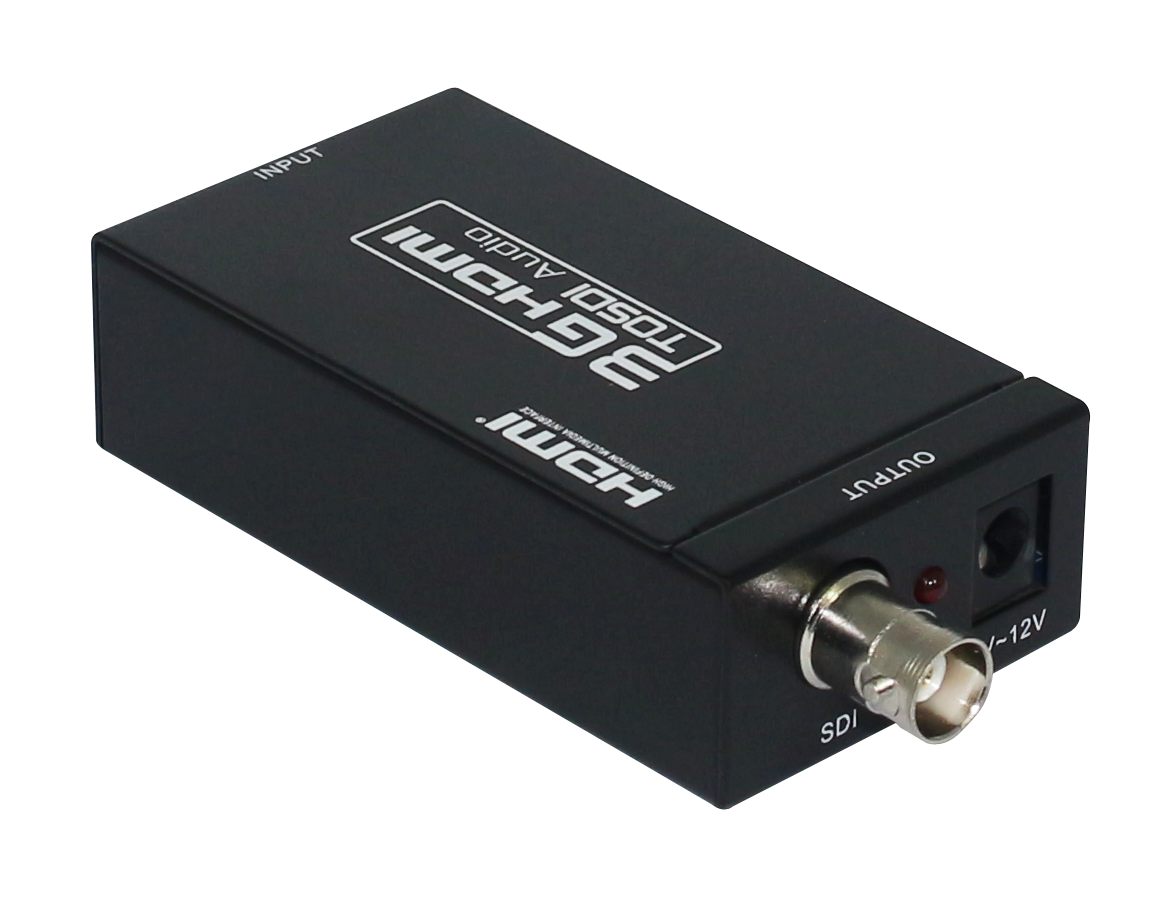

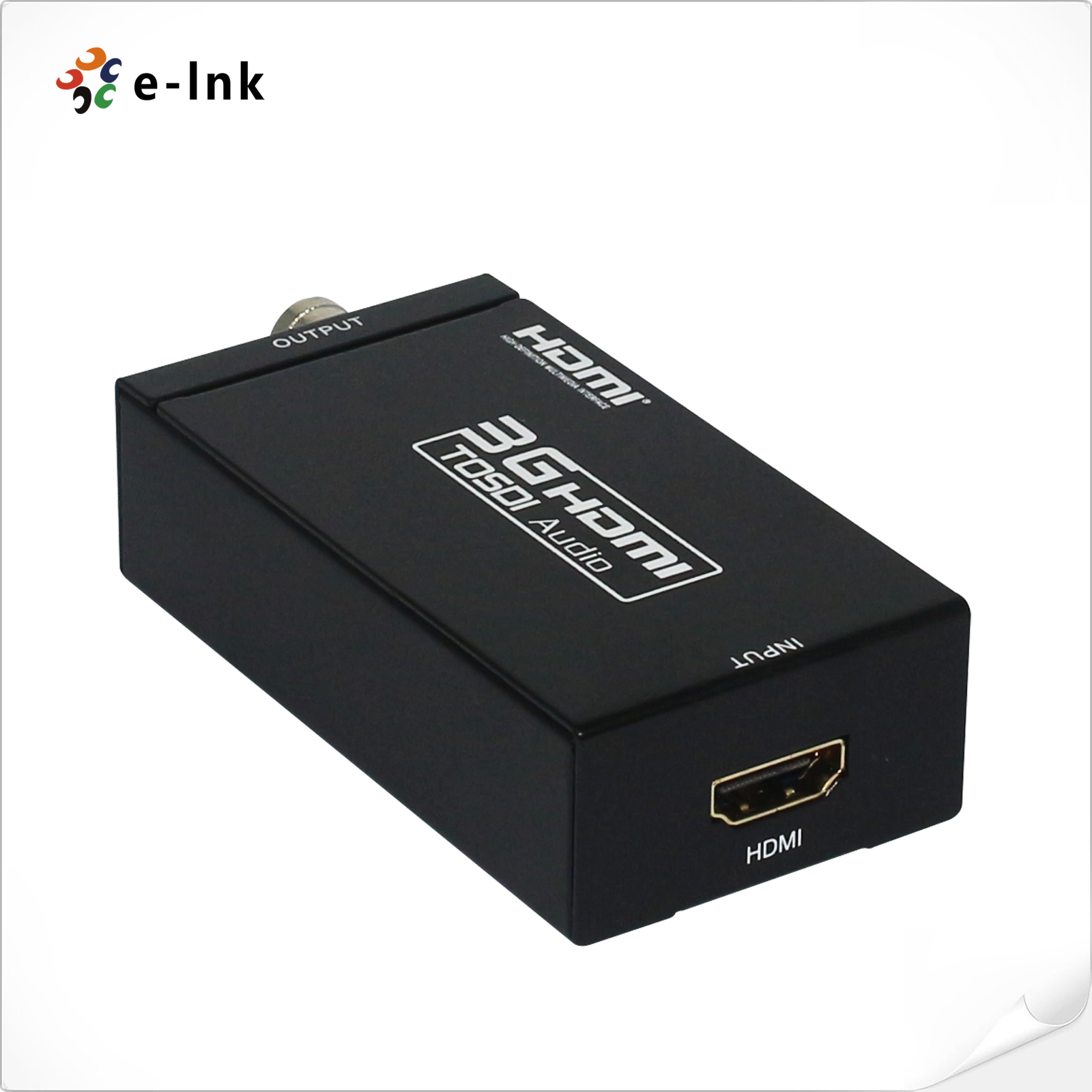

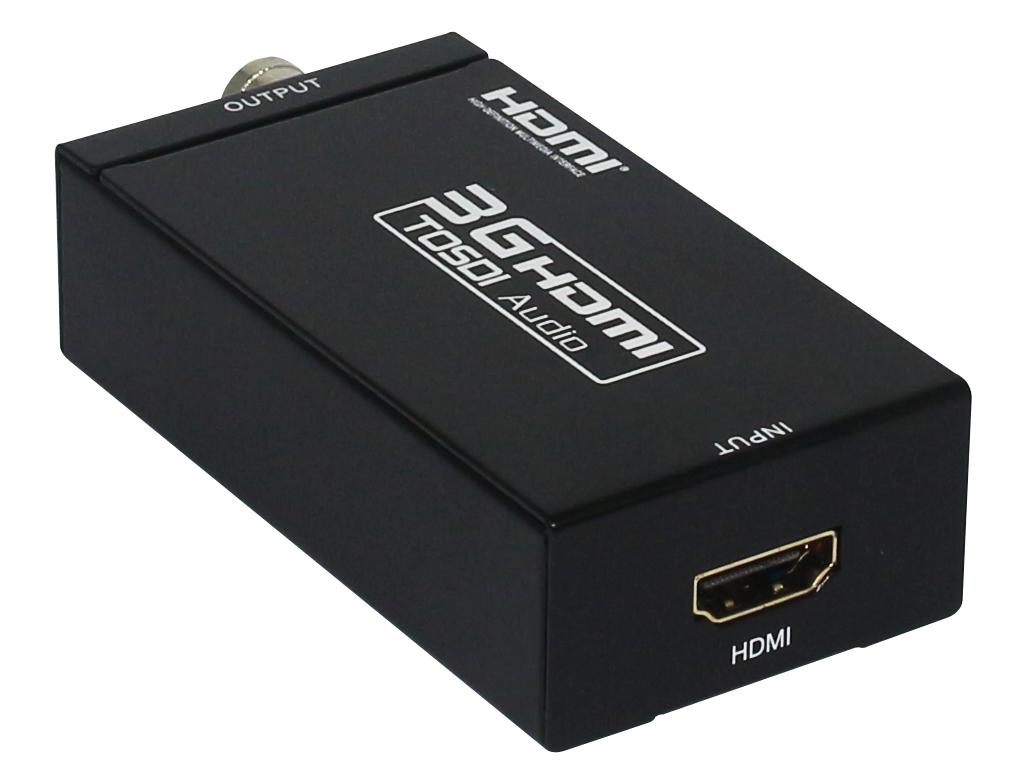

HDMI to 3G-SDI Converter
Model:LNK-HSC110
► SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
► Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60,1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
► SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
► Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60,1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
► 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
► 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
► Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
|
Parameter |
Specifications |
|
Video amplifier bandwidth |
3.4 GHz Max. |
|

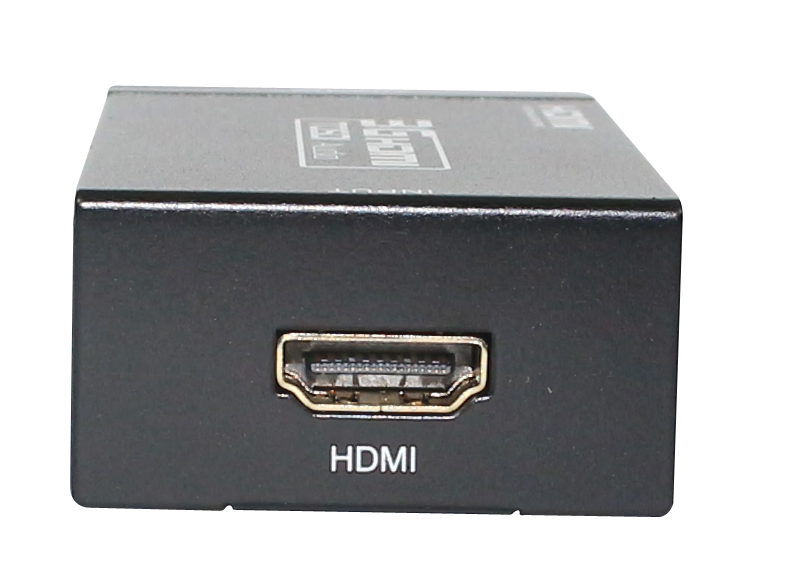

Video Intput |
1 x HDMI |
|

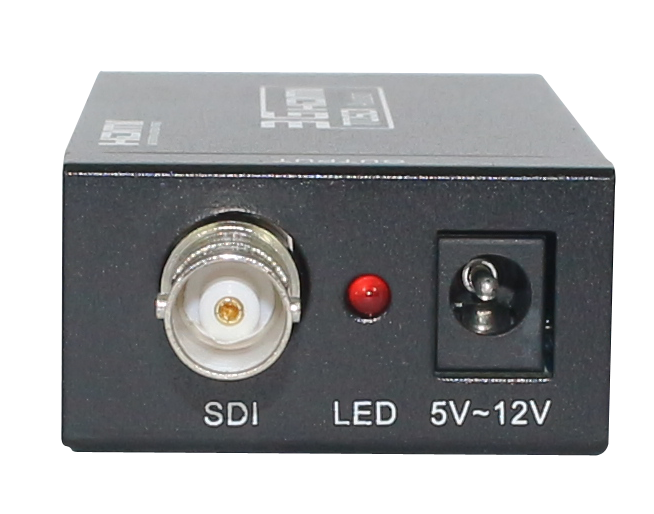

Video output |
1 x BNC (SDI/HD-SDI/3G-SDI) |
|
SDI Transmission Rates |
2.970 Gbit/s and 2.970/1.001 Gbit/s |
|
In/Output Resolution |
480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60 1080p@23.97/24/25/29.97/30/50/59.94/60 |
|
HDMI input/output connect |
HDMI type A 19Pin |
|
Link Connector |
BNC Shielded |
|
Power Adapter |
DC5-12V/1A |
|
Operating temperature range |
-40℃ to +70℃ |
|
Operating humidity range |
5 to 90% RH (no condensation) |
|
Shipping weight |
0.15 KGS |
|
Dimensions( L x W x H) |
80*41*25mm |
- Download FileName：E-link HDMI to 3G-SDI Converter Datasheet V1.0.pdf Size： 611KB
|
Model |
LNK-HSC110 |
|
Description |
HDMI to SDI Converter, allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s |
