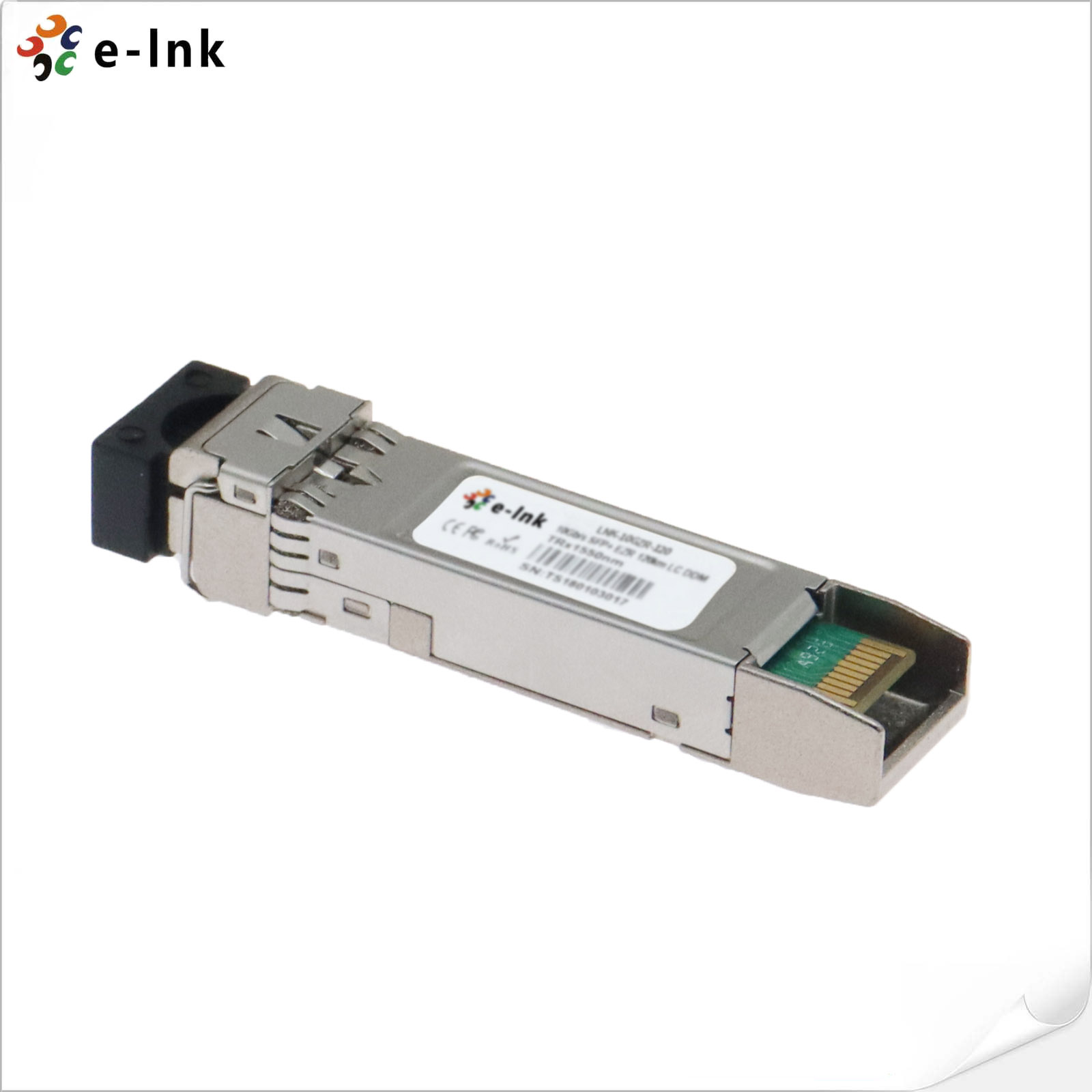

10Gbps 1.4km 1310nm SFP+ Optical Transceiver

Model:LNK-SFP-10G-1.4

►Link lengths at 10G 1.4km with 1310nm

►LC duplex connector

►Low power consumption <1.0W

►-40℃ to 85℃ operating temperature range

►Support work with 100M and 1.25G SFP transceivers

上一张

下一张

LNK-SFP-10G-1.4 10Gigabit 1310nm Transceiver is designed to transmit and receive serial optical data links up from 2.1Gb/s to 10.52Gb/s data rate over 1.4km single mode fiber. The Transceiver is compliant with SFF-8432, FC-PI-4, IEEE802.3ae and applicable portions of SFF-8431. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

►Link lengths at 10G 1.4km with 1310nm

►LC duplex connector

►Low power consumption <1.0W

►Hot Pluggable

►-40℃ to 85℃ operating temperature range

►Single +3.3V±5% power supply

►Digital Monitoring SFF-8472 compliant

►Support work with 100M and 1.25G SFP transceivers

Parameter	Symbol	Unit	Min	Typ	Max	Note
Transmitter
Nominal Wavelength	λ	nm	1260	1310	1360
Side Mode Suppression Ratio(DFB)	SMSR	dB	30
Spectral width RMS(FP)	⊿λ	nm			3
Spectral width(DFB)	⊿λ	nm			1
Optical Modulation Amplitude	POMA	dBm	-5.2
Optical Output Power	Pav	dBm	-8.2		0.5
Extinction Ratio	ER	dB	3.5
Transmitter and Dispersion Penalty	TDP	dB			3.2
Average launch power of OFF transmitter	POFF	dBm			-35
Relative Intensity Noise	RIN	dB/Hz			-128
Optical Return Loss Tolerance	ORLT	dB			12
Receiver
Center Wavelength	λ	nm	1260		1610
Receiver overload		dBm	+0.5			1
Receiver Sensitivity	RSENSE1	dBm			-14.4	1
Receiver Sensitivity (OMA)	RSENSE2	dBm			-12.6
Receiver Reflectance	RREFL	dB			-12
Assert LOS	LOSA	dBm	-30
De-Assert LOS	LOSD	dBm			-17
LOS Hysteresis		dB	0.5
