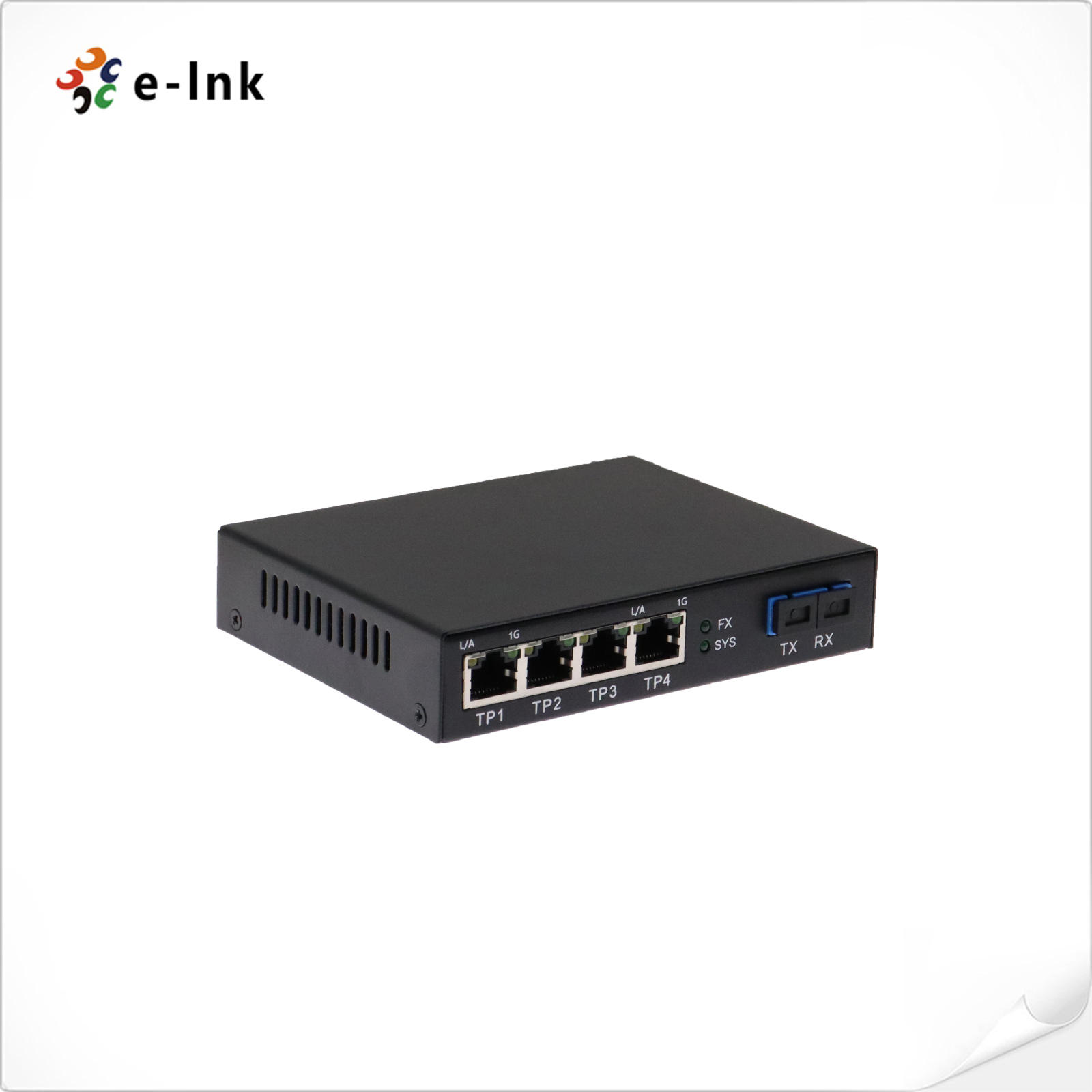

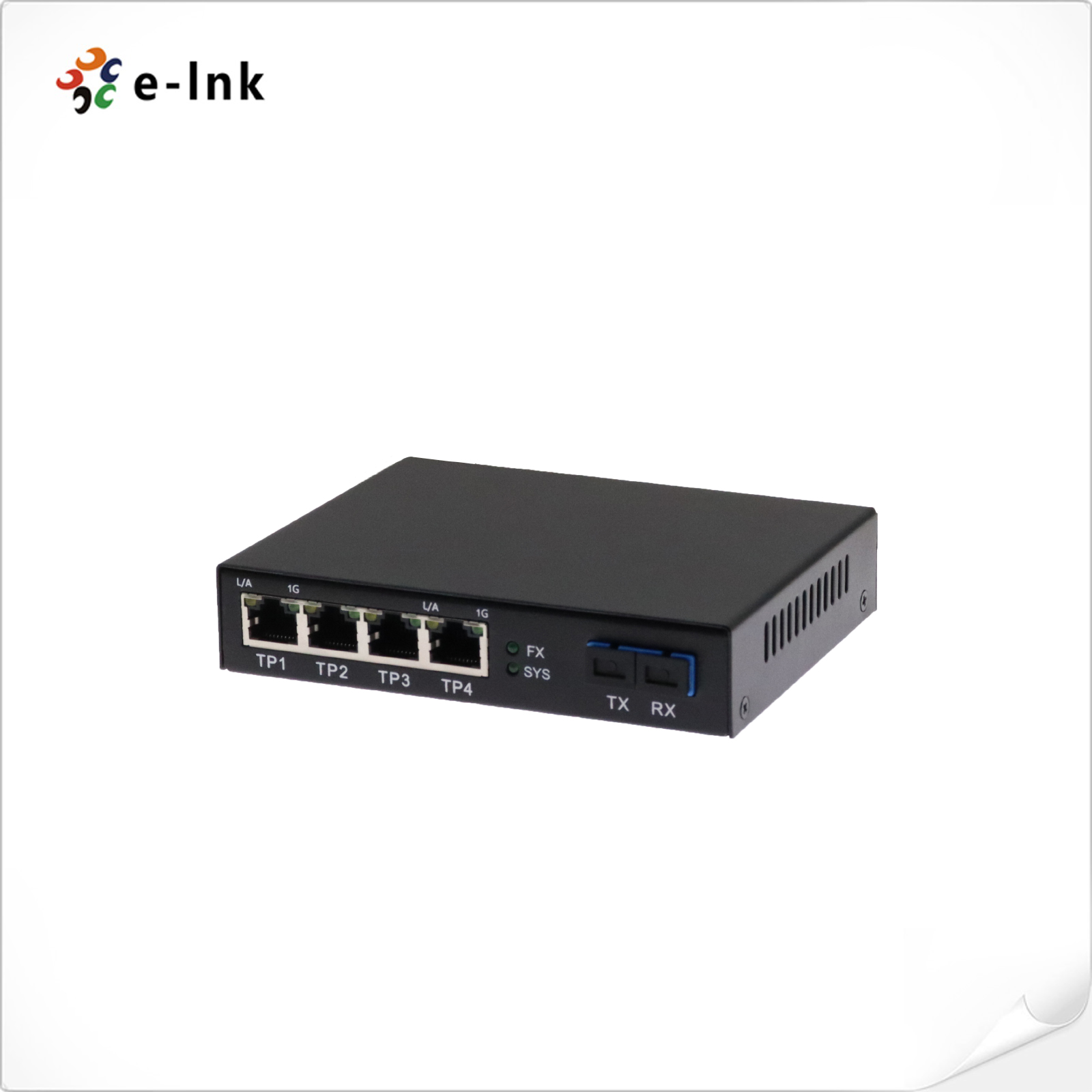

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
Model:LNK-LED104G
► 1 x 10G SC duplex optical port, single mode 10KM distance
► 4 x Gigabit Ethernet ports
► Not support VLAN

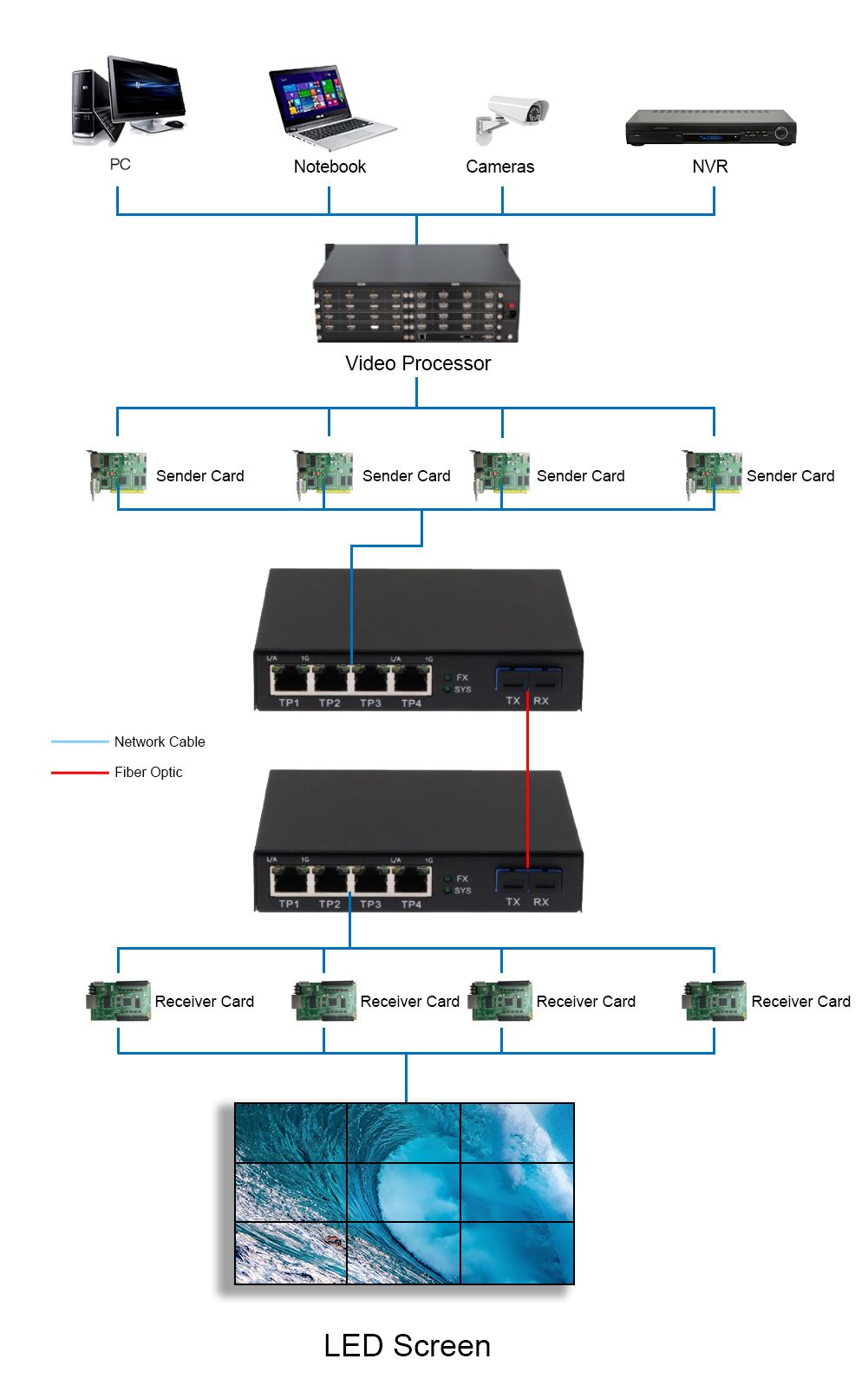

The E-link LNK-LED104G fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.
► 1 x 10G SC duplex optical port, single mode 10KM distance
► 4 x Gigabit Ethernet ports
► supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
► Not support VLAN
|
Connector Type |
1 x 10G SC duplex port 4 x Gigabit Ethernet RJ45 ports |
|
Distance |
Single mode fiber 10km |
|
Resolution |
1920*1080@60Hz |
|
Compatible brand |
NovaStar, Colorlight |
|
Connection method |
Used in pairs, each ports must be connected accordingly, Such as Device A’s Port-1 must link to Device B’s Port-1 |
|
Power Supply |

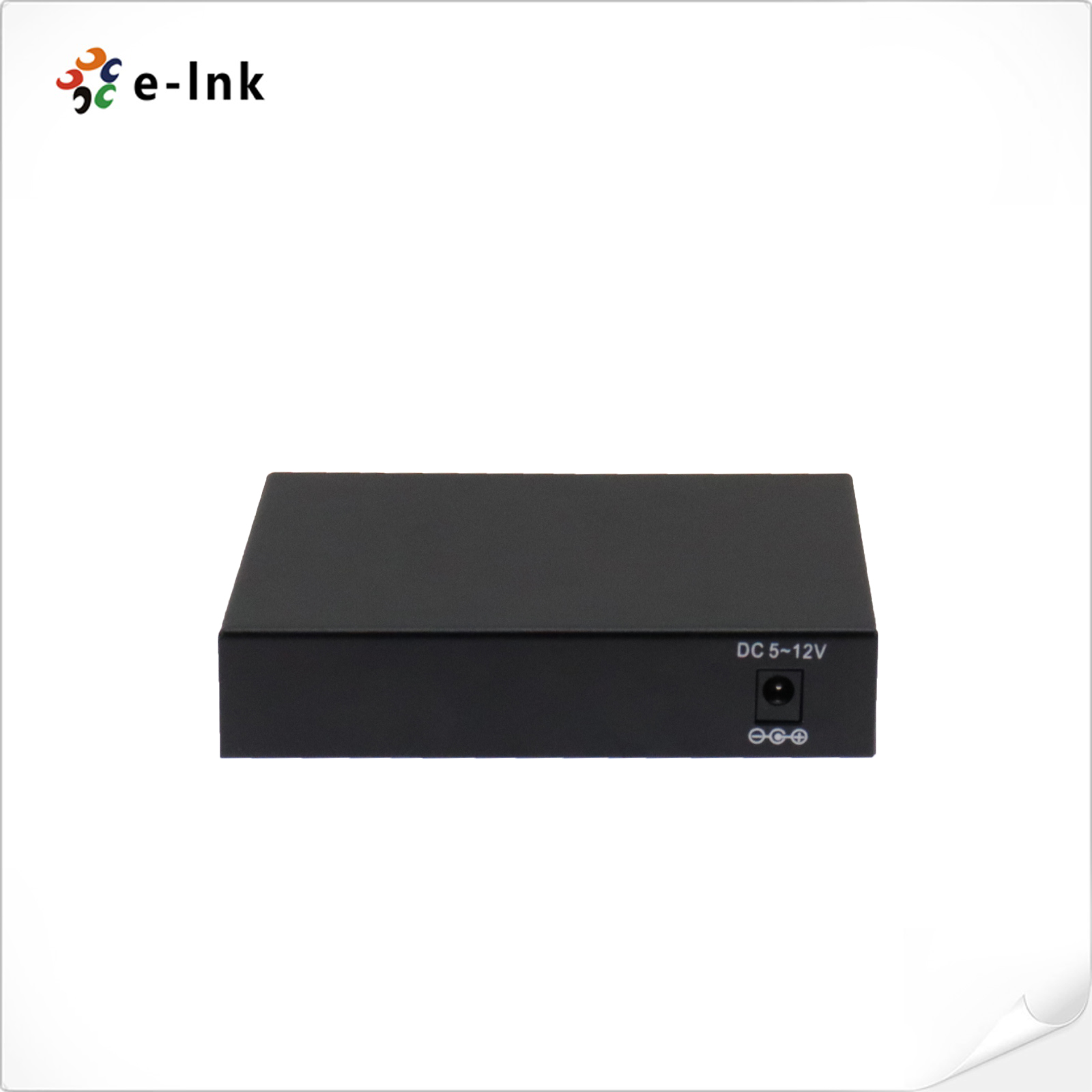

Power input: 5-12V DC |
|
Working Environment |
Operating Temperature: 0℃~ 55℃; Storage Temperature: -40℃~ 75℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing |
|
MTBF |
100,000 hours |
|
Dimensions |
130 x 105 x 28mm |
|
Weight |
350g |
- Download FileName：E-link LNK-LED104G LED Screen Fiber Media Converter Datasheet V1.0.pdf Size： 997KB
| Model | Description |
| LNK-LED104G | LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports, single mode fiber 10km. |
