Interface

Connector:

8 x 10/100/1000M RJ45

Optical Port:

1 x 10G SFP+

Distance

Depend on SFP+ modules used, 20km recommended.

Electrical and Mechanical

Input Power:

12~48VDC(Non PoE)

48~57VDC (PoE)

Redundant Power (6-pin Terminal Block)

Power Consumption:

5W Max (PoE in use)

253W Max (PoE not in use)

Resolution

1920*1080@60Hz

Compatible brand

NovaStar, Colorlight

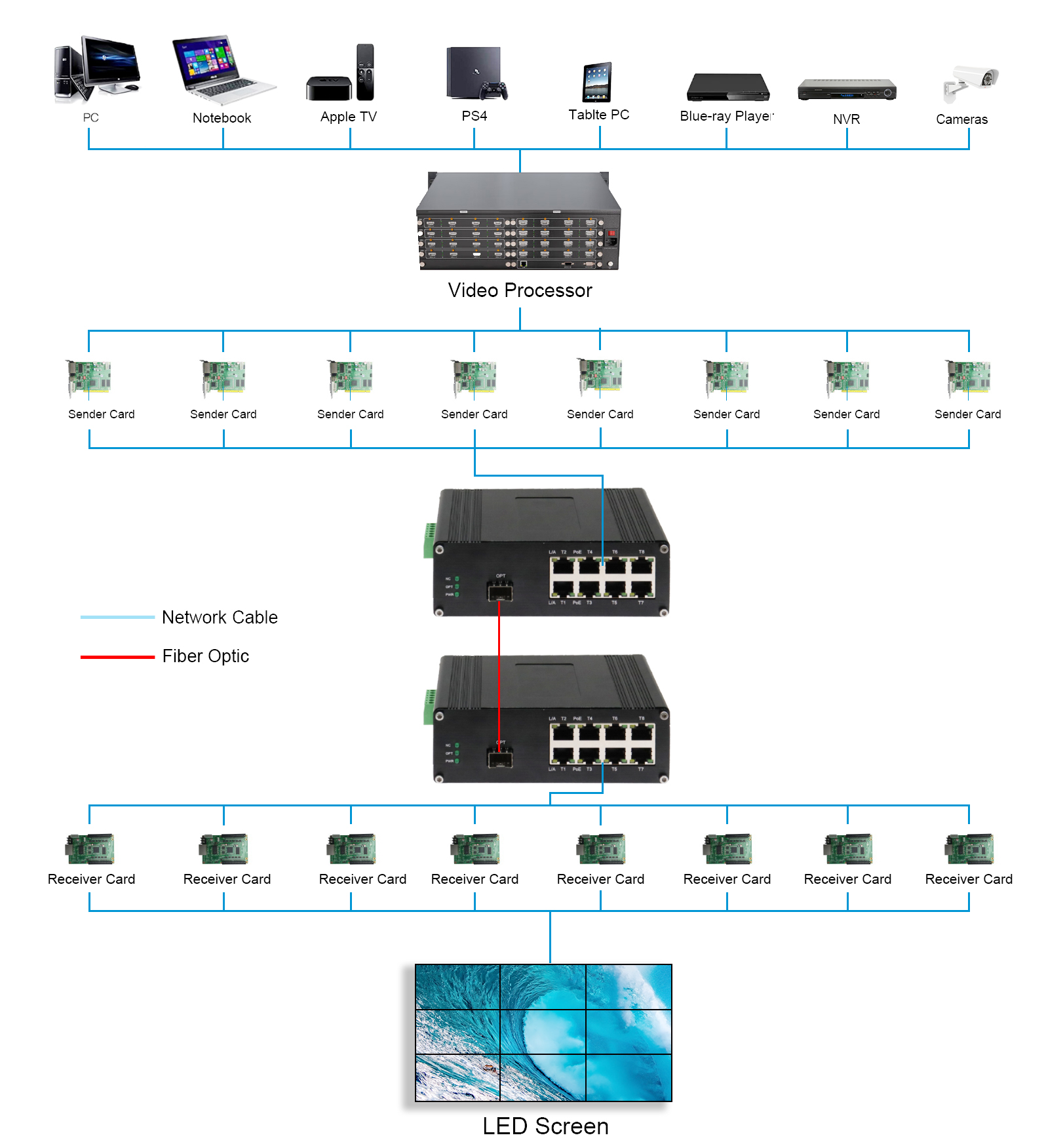

Connection method

Used in pairs, each ports must be connected accordingly,

Such as Device A’s Port-1 must link to Device B’s Port-1

Dimensions (WxDxH):

150 x 115 x 50 mm

Weight:

0.6Kg

Casing:

Aluminum Case

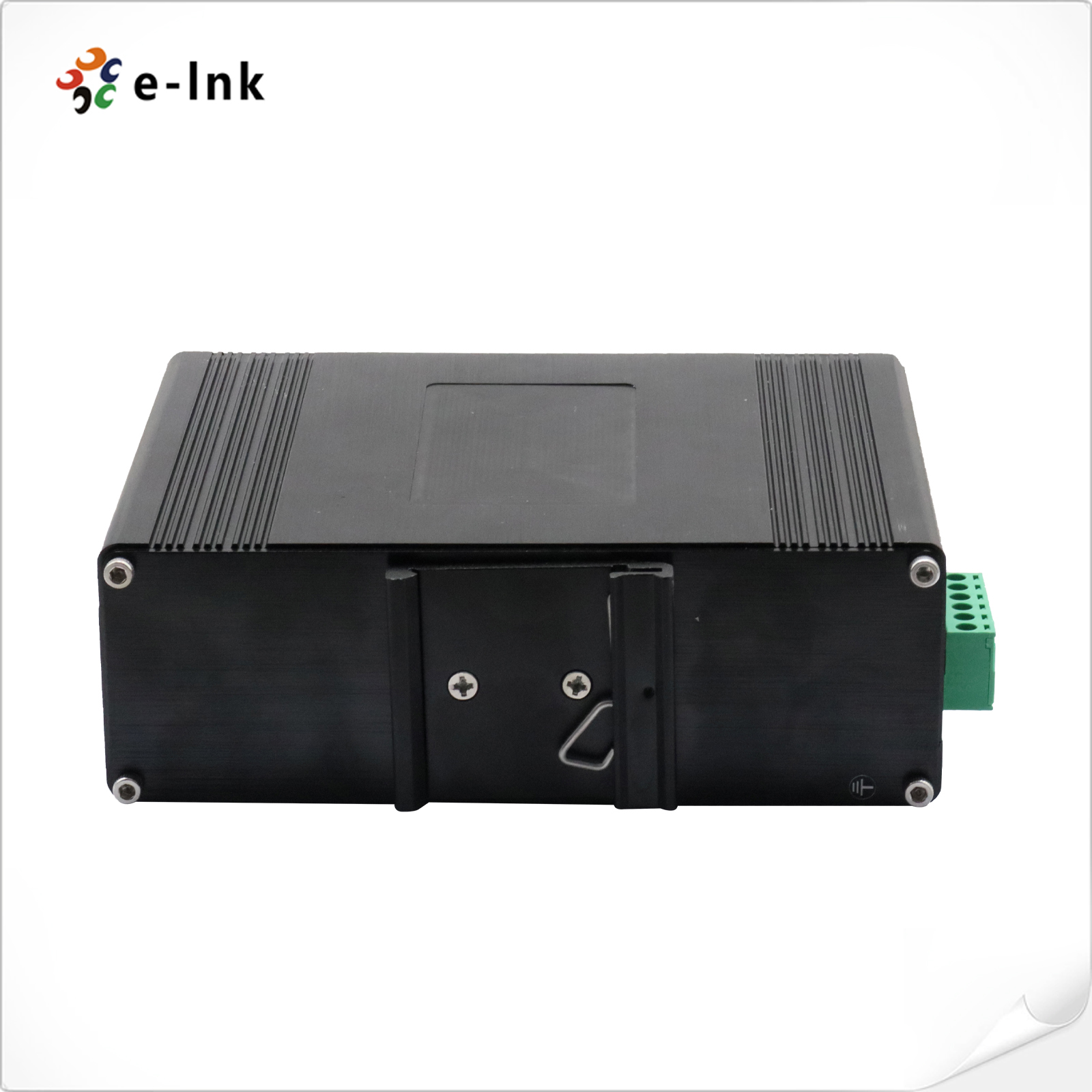

Mounting Options:

DIN-Rail

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs
