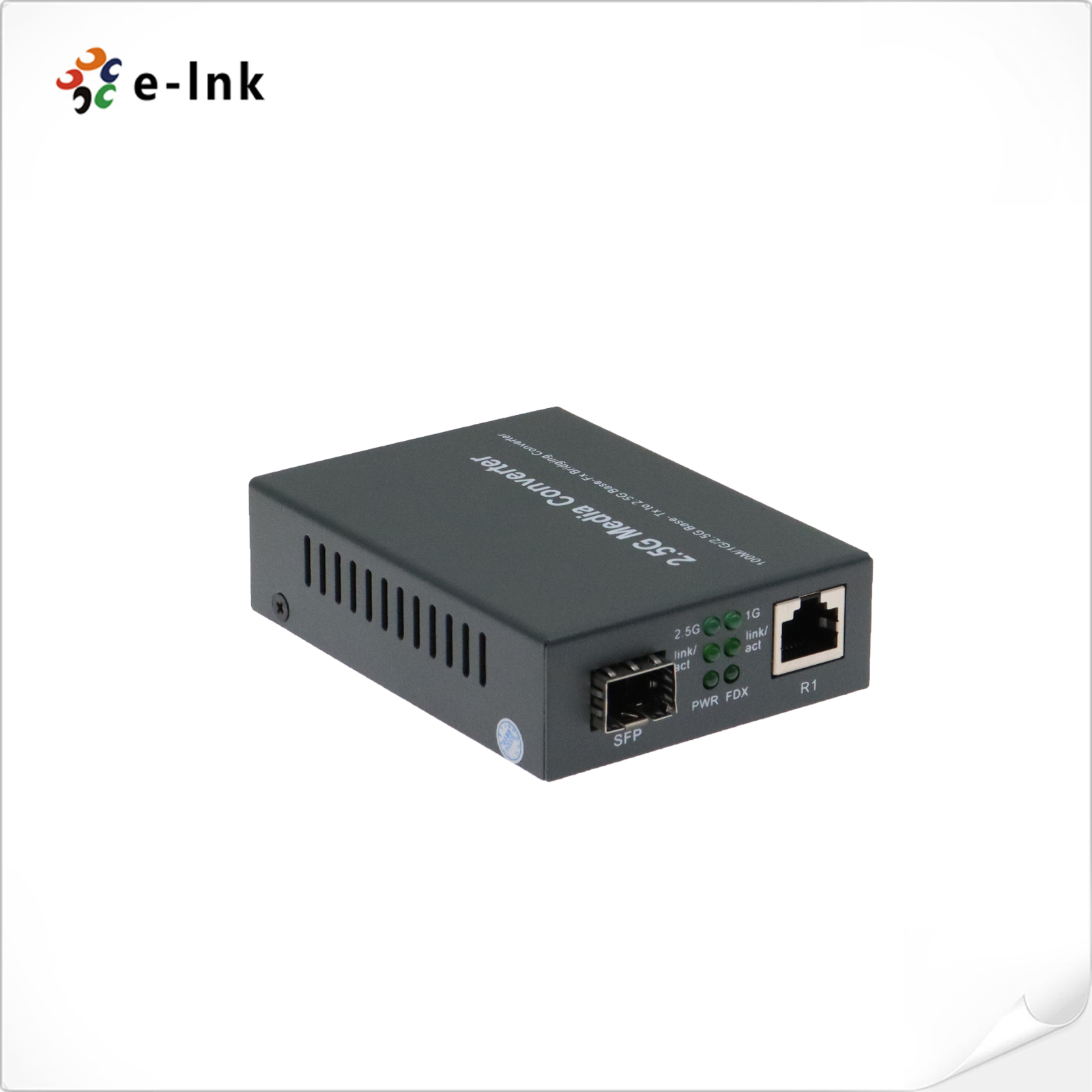

E-link 2.5G fiber media converter is converter which can convert Ethernet signals and fiber optic signals. Users can choose different types of SFP modules according to their needs, which can realize seamless connection between fiber optical signals and Ethernet signals in 100/1000M/2.5G Ethernet. It not only extends the transmission distance, but also has many advantages such as isolation protection, good data confidentiality, stable work and easy maintenance.

►    Support the conversion between 100M/1G/2.5GBase-T and 2.5G Base-SX/LX

►    1 full-duplex 2.5Gbps optical port and 1 100M/1G/2.5G adaptive Ethernet port

►    100M/1G/2.5G rate adaptive, MDI/MDI-X adaptive, full/half-duplex adaptive

►    Fiber optical link and Ethernet link have complete connection/activity status indicator LED lights

►    Fiber Optical port supports single mode/multimode, single fiber and double fiber

►    Support QoS to ensure data packet transmission

►    Support broadcast storm suppression

►    Support IEEE802.3x flow control and back pressure flow control

►    Support 12V DC input

►    Support up to 4KV port lightning protection

►    Support low delay transmission, and also have isolation protection function

• Download FileName：E-link LNK-2.5G-MC Fiber Media Converter Datasheet V1.0.pdf Size： 815KB
