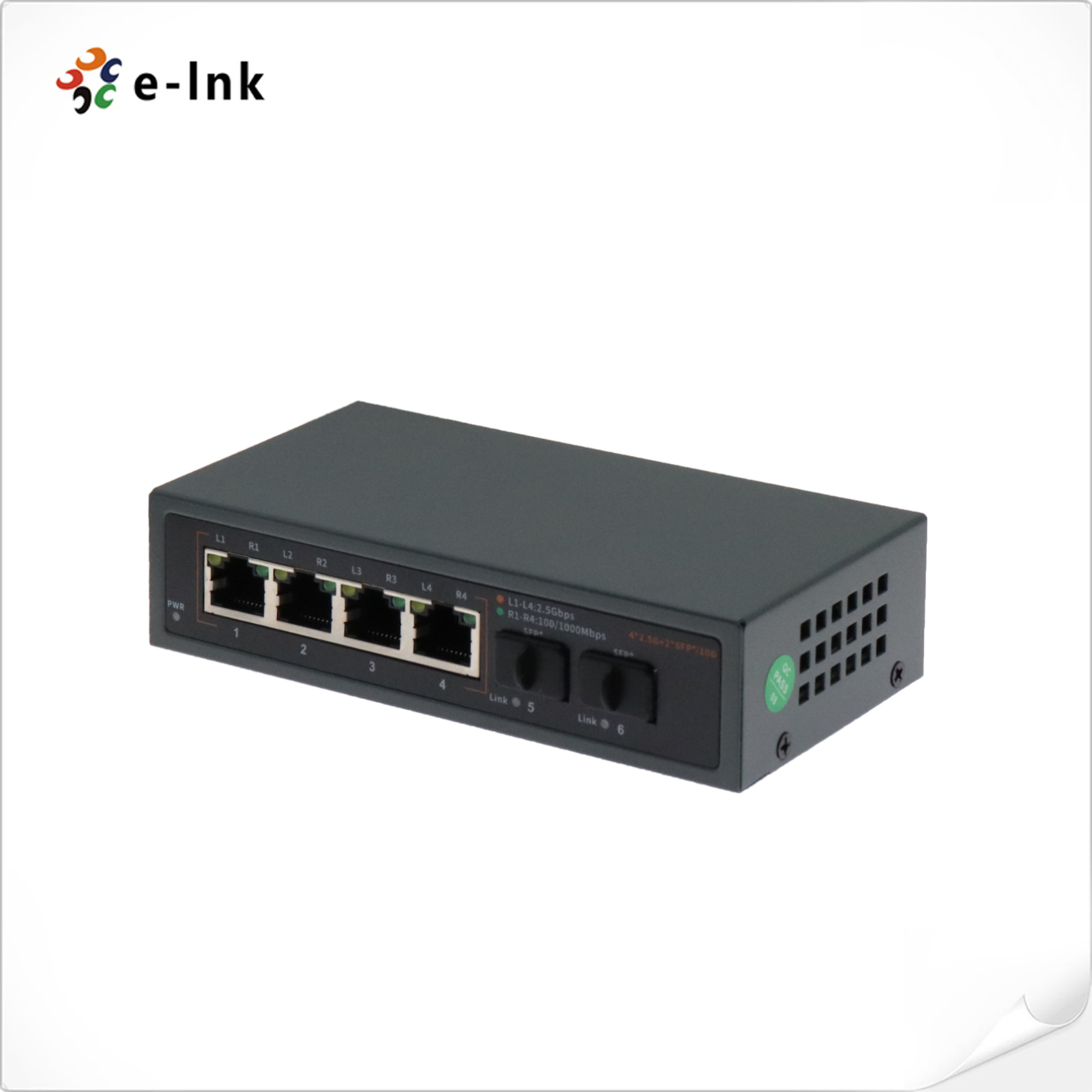

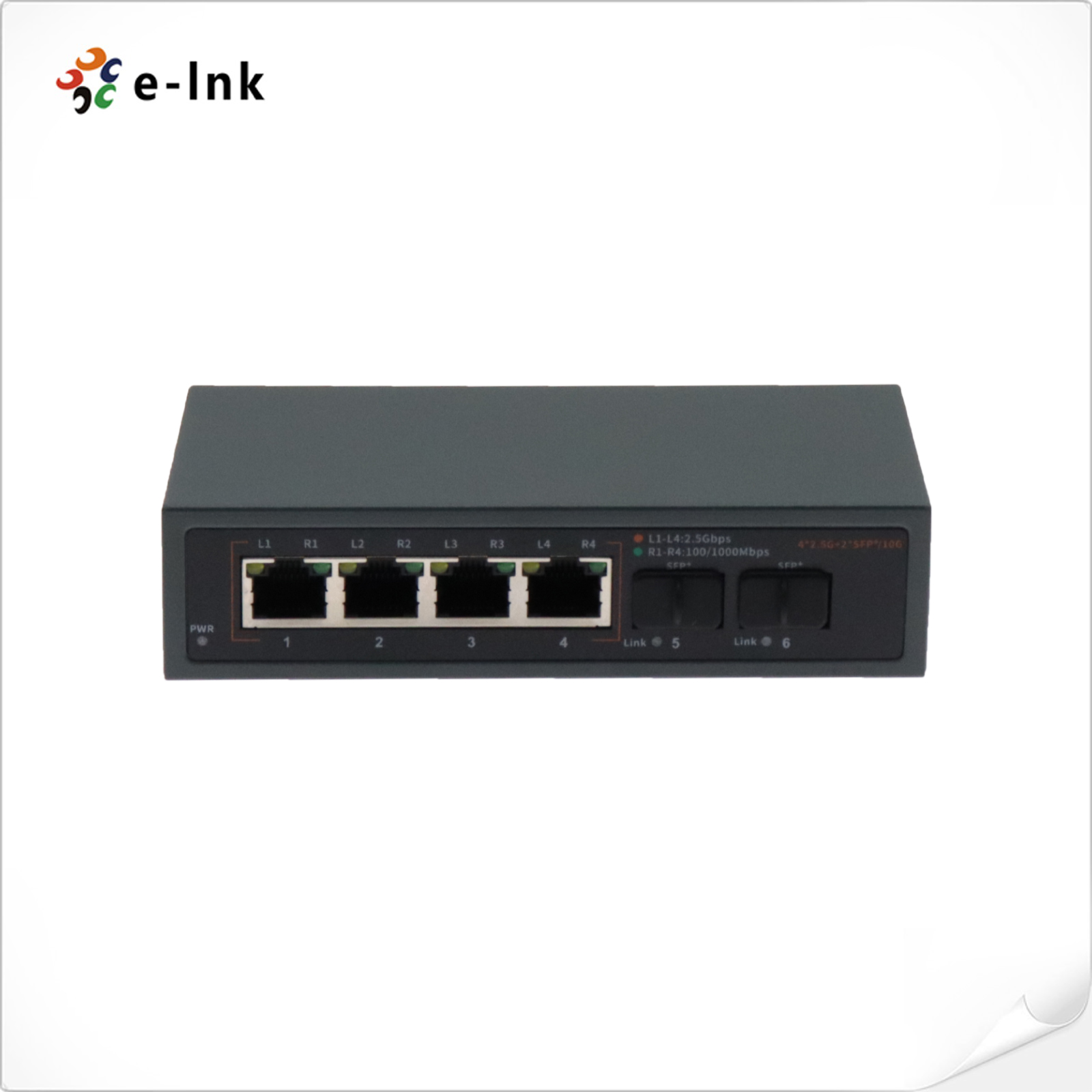

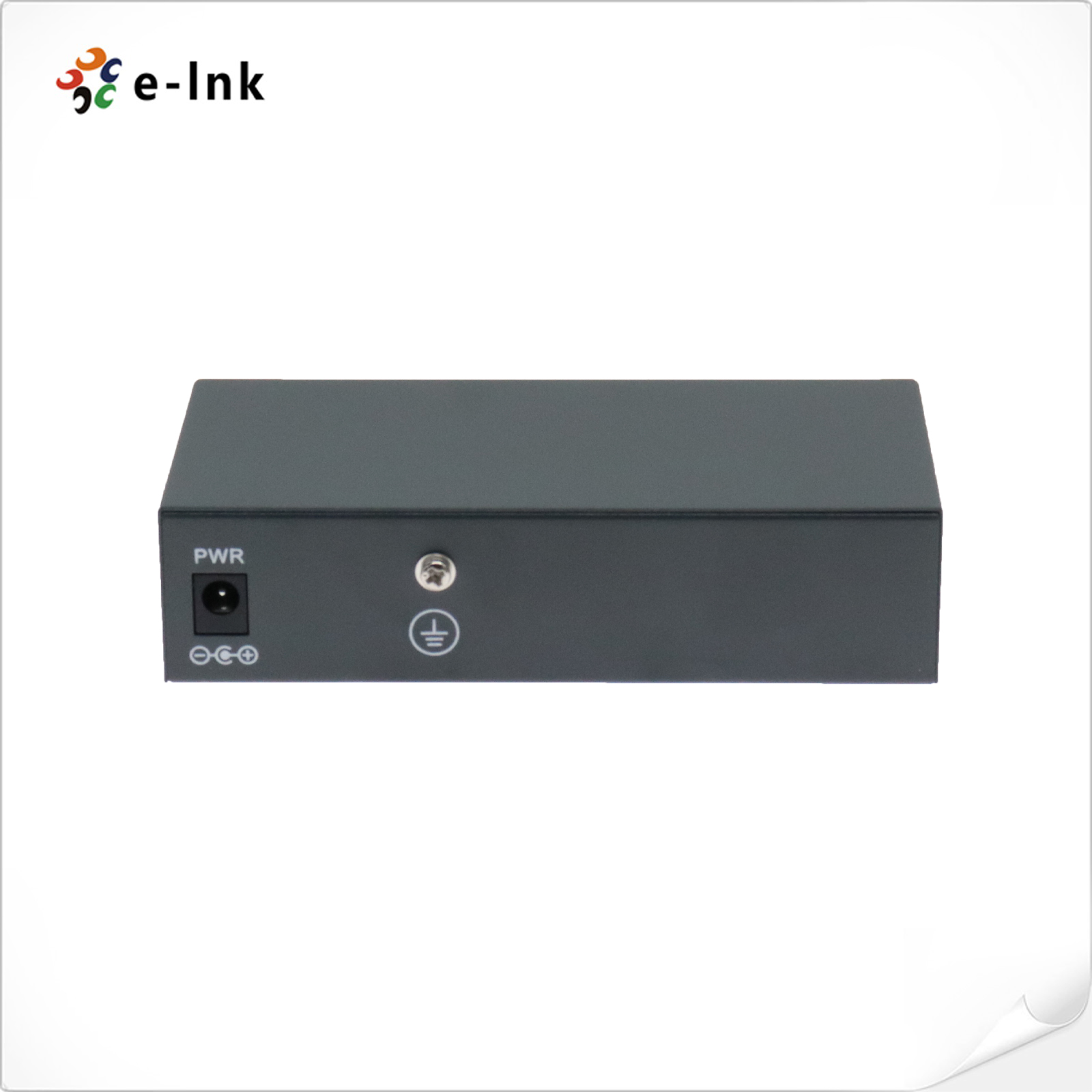

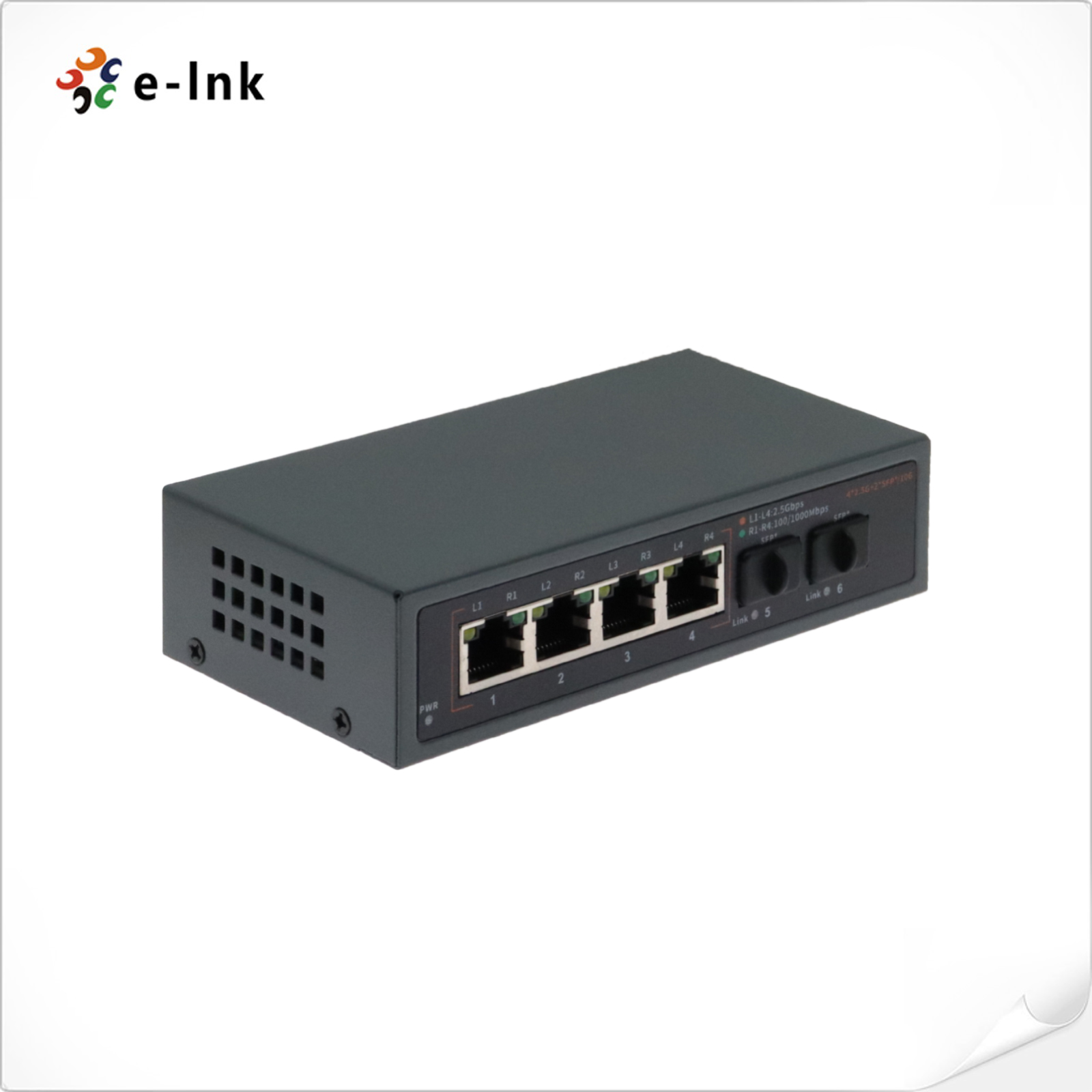

4x2.5Gbps RJ45 Ports + 2 x10G SFP+ Fiber Ports Ethernet Switch
Model:LNK-2.5G-204
► 4 x 2.5Gbps RJ45 Ports
► 2 x 10G SFP+ Fiber Ports
LNK-2.5G-204 Series Ethernet Switch provides 4 x 2.5G ports and 2 x 10Gigabit SFP+ optical ports, which can directly enjoy 2.5G high-speed transmission when connected with various 2.5G devices. It adopts the store-and-forward mechanism and integrates high-capacity cache internally, effectively reducing the data forwarding delay, and all ports can realize non-blocking line-speed forwarding.
► 4 x 2.5Gbps RJ45 Ports
► 2 x 10G SFP+ Fiber Ports
|
Standards |
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3bz |
|
Ethernet Port |
Connector: RJ45 Data rate:100M/1G/2.5G Cable: CAT6 or higher Distance:≤100 meter |
|
Fiber Port |
Connector: SFP+ Data rate: 10G Wavelength: 850nm/1310nm/1490nm/1550nm Fiber type: Single Mode 9/125μm， Multi Mode 50/125μm、62.5/125μm Distance: 550m ~ 100km |
|
Backplane bandwidth |
60Gbps |
|
Forwarding method |
10Base-tx: 14880pps/port. 100BASE-tx：148800pps/port 1000BASE-tx：1488000pps/port 10000BASE-tx：14880000pps/port |
|
MAC address table |
4K |
|
Port function |
power supply priority mechanism, fast and forwarding, MAC automatic learning and aging IEEE802.3X Full Duplex Flow Control and Backpressure Half Duplex Flow Control |
|
Packet forwarding rate |
44.64Mpps |
|
Power |
12V DC |
|
Power consumption |
0.3W ~ 1.8W |
|
Operation Temperature |
-10℃ to 55℃ |
|
Storage Temperature |
-40℃ to 85℃ |
|
Relative Humidity |
10% to 90% (non-condensation) |
|
Size |
133 x 67 x 33mm |
|
Weight |
0.3KG |
|
Material |
Metal |
- Download FileName：E-link LNK-2.5G-204 Ethernet Switch Datasheet V1.0.pdf Size： 743KB
| Model | Description | ||
| LNK-2.5G-204 | 4x2.5Gbps RJ45 Ports + 2 x10G SFP+ Fiber Ports Ethernet Switch | ||
