Port

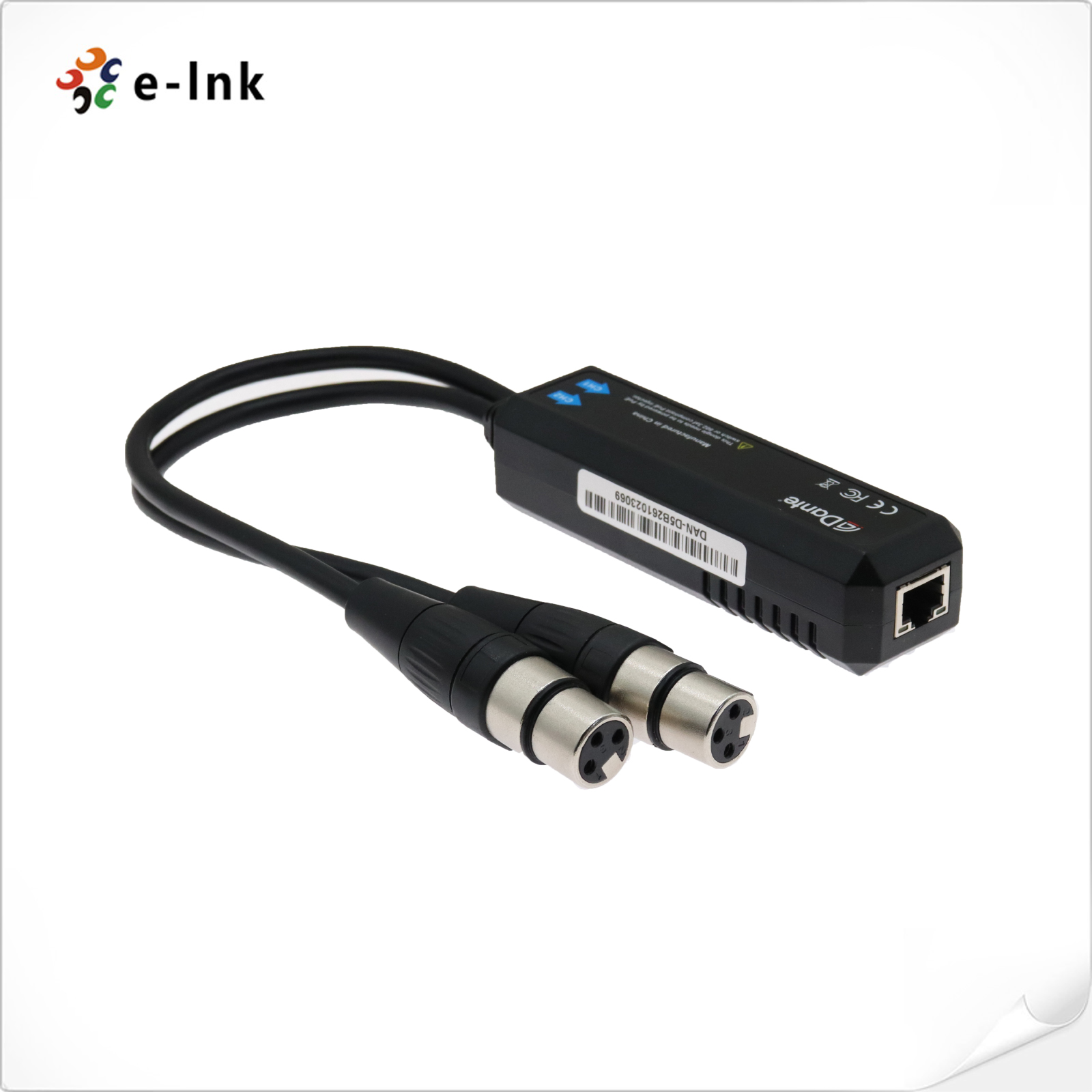

RJ45 Port

Network communication port.

Green light on indicates system is ready

Yellow light flash indicates link/data traffic.

When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device.

XLR Port

2 x XLR port, connect input device

Audio

Max signal level

+24 dBu

Frequency Response

20Hz to 20kHz(-/+0.5dB)

Impedance

20k Ohm balanced, 10k Ohm unbalanced

Dynamic Range

>100 dB

Signal to Noise Ratio

>100 dB

THD

<0.01% @+4dBu

Dante

Sample Rate

44.1kHz, 48kHz, 96kHz

Bit Depth

24

Dante Device latency

1,2 or 5ms (configurable using Dante Controller)

Type

Analog 2x0

General

Operation Temperature

-5 to +55℃(+23° to +131°F)

Storage Temperature

-25 to +70℃(-13° to +158°F)

Power

802.3af PoE

Power Consumption

3.15W(Max)

Dimension (W*H*D)

114 x 30 x 28 mm

Cable length

30cm

Net Weight

145g
