Input

Input

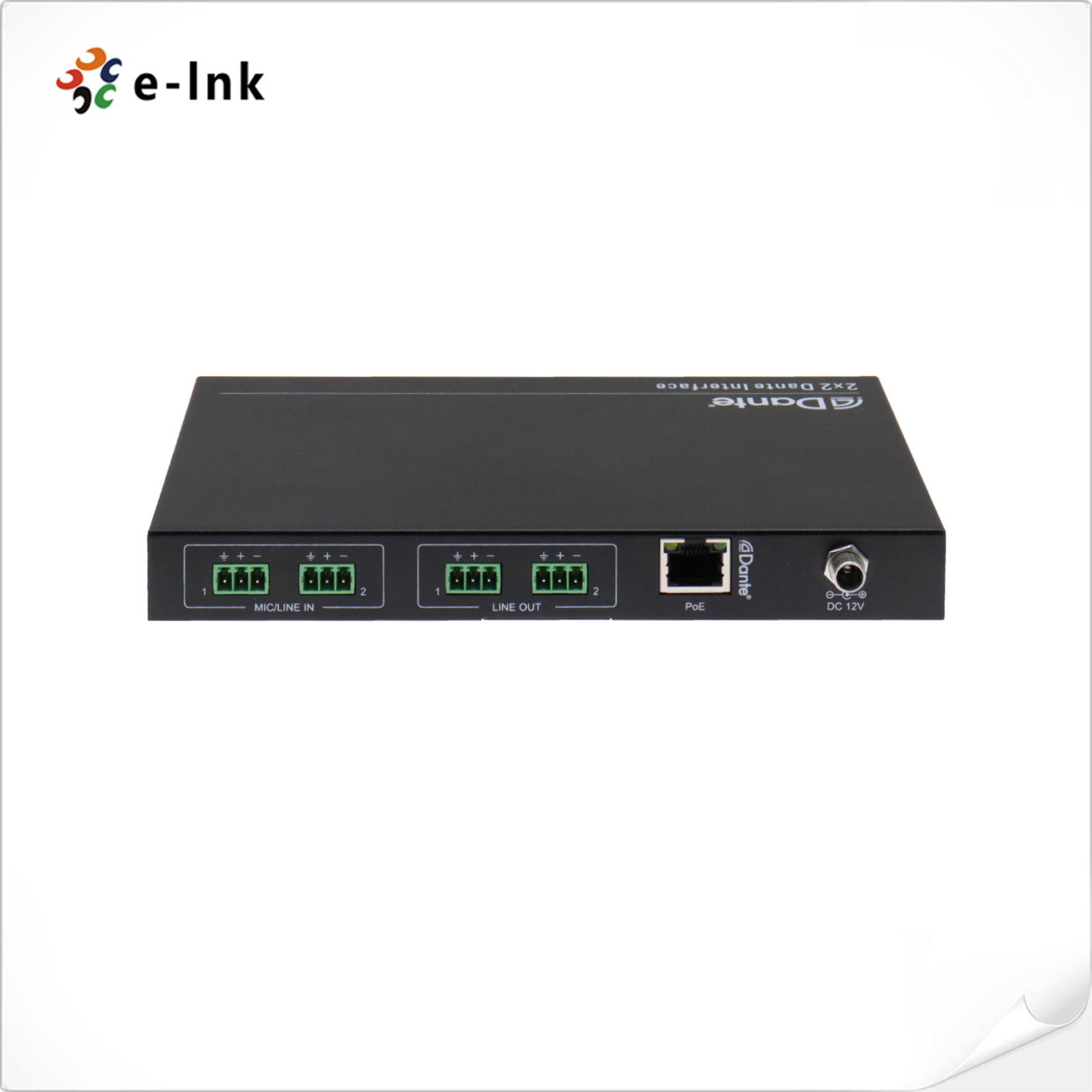

(2) MIC/LINE IN

Input Connector

(2) 3-pin Green Terminal Blocks

Phantom Power

48V, software selectable for each input

Output

Output

(2) LINE OUT

Output Connector

(2) 3-pin Green Terminal Blocks

Output Type

Balanced line level with automatic muting on loss of Dante signal

Audio Performance

Gain

Input: 0 ~ +48dB, 6dB per step

Output: -60 ~ 0dB, 1dB per step

Max Level

Input: +18dBu @ 0dB input gain

Output: +18dBu @ 0dB output gain

Input Impendence

>1.8kΩ

Effective Input Noise (EIN)

-119dB @ 48dB gain

Output Noise

<-79dBu @ 0dB gain

THD

<0.05% at any gain

Sample Rate

44.1kHz or 48kHz

Control

Control Port

(1) Dante Network

Control Connector

(1) RJ45

General

External Power Supply

Input: AC 100~240V, 50/60Hz;

Output: 12V DC 1A

Operation Temperature

-10℃~ +55℃

Storage Temperature

-25℃~ +70℃

Relative Humility

10%-90%

Dimension (W*H*D)

185 x 115 x 22 mm

Net Weight

500g
