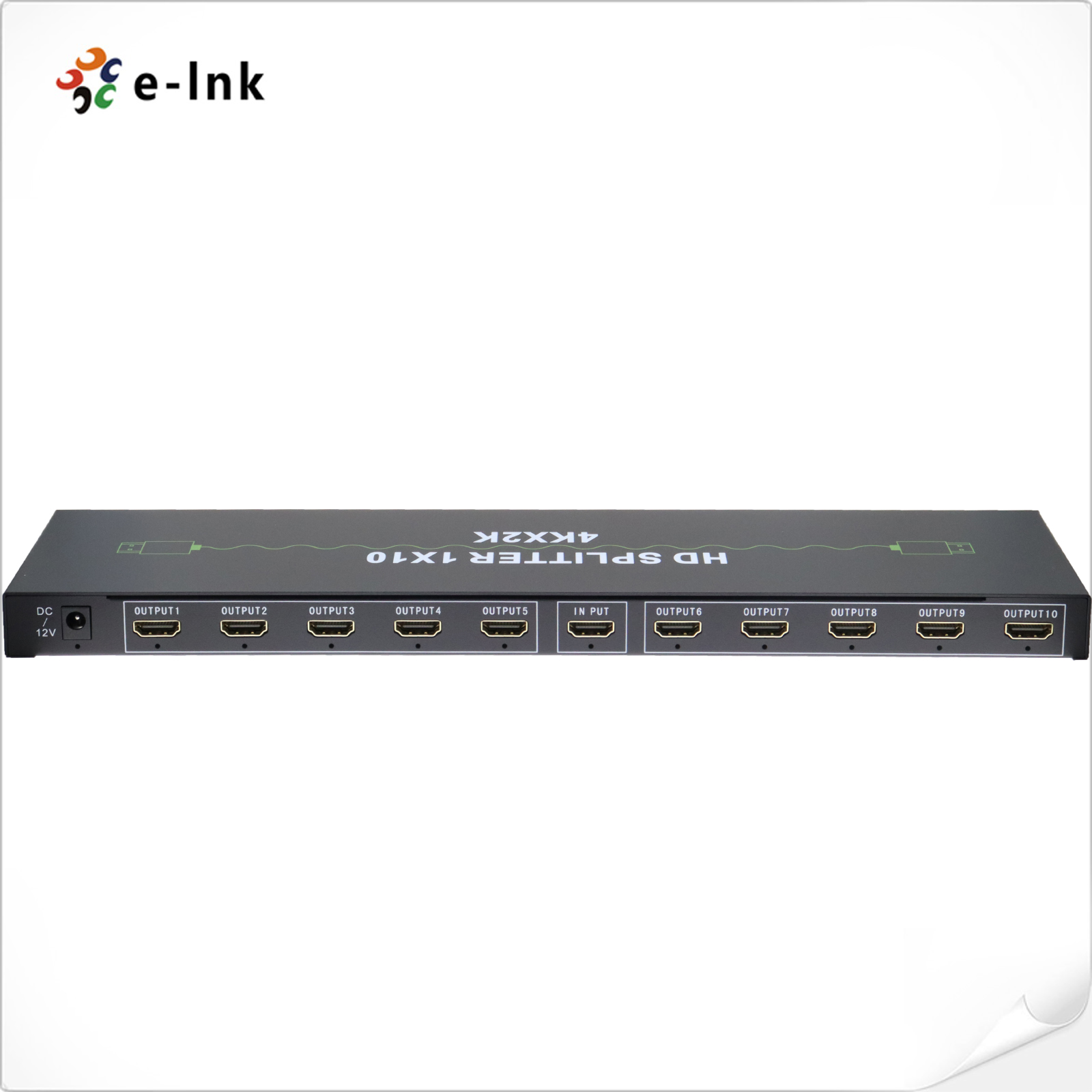

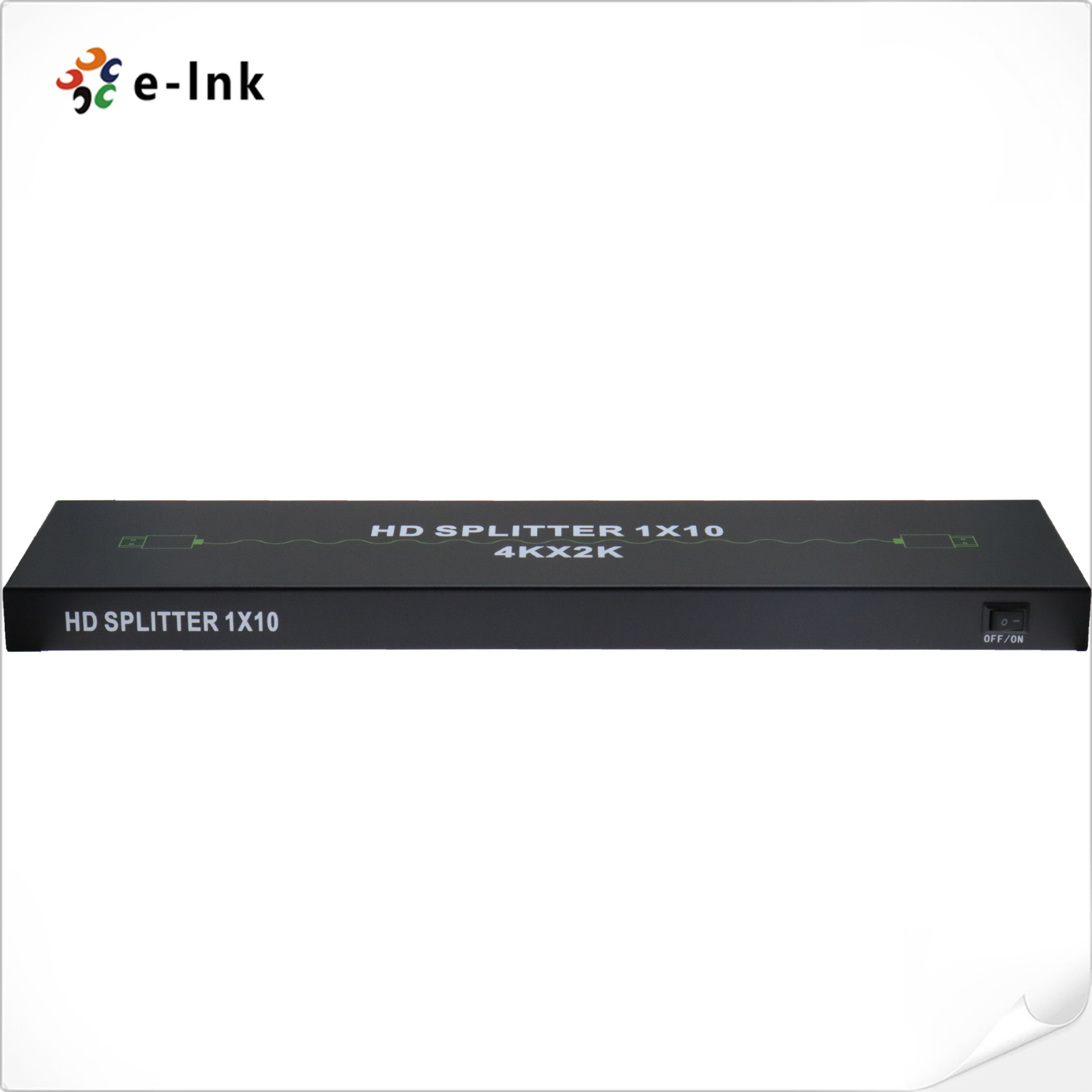

4K HDMI Splitter 1x10
Model:LNK-HDMI-SP1x10
► Support HDMI 1.4b
► Support 3D video format
► Resolution up to 3840x2160/30Hz
► Support 3.2Gbps data rate for TMDS clock up to 320MHz
► Support deep color 8/10/12bit

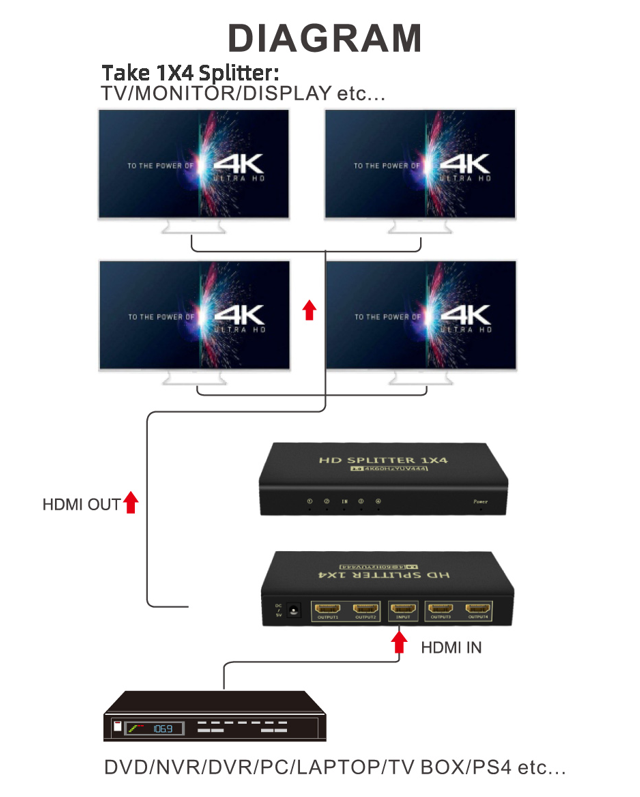

The HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 10 HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. resolution up to 3840x2160/30Hz.
► Support HDMI 1.4b
► Support 3D video format
► Resolution up to 3840x2160/30Hz
► Support 3.2Gbps data rate for TMDS clock up to 320MHz
► Support deep color 8/10/12bit
► support AWG26 HDMI standard cable:
n when the resolution is 1080p and below, input up to 15 meters, output up to 20 meters.
n when the resolution is 4K, input up to 12 meters, output up to 15 meters.
► Support displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
► DC 12V power supply
|
HDMI version |
HDMI 1.4b |
|
HDMI resolution |
up to 3840*2160/30Hz |
|
Support video color format |
deep color 8/10/12bit |
|
Support audio format |
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
320MHz |
|
3.2Gbps |
|
|
Input cable distance |
(1080p resolution) ≤15m, (4K resolution)≤12m AWG26 HDMI standard cable |
|
Output cable distance |
(1080p resolution) ≤20m (4K resolution)≤15m AWG26 HDMI standard cable |
|
HDMI input |
1 |
|
HDMI output |
10 |
|
Power adapter format |
Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V1A/5V2A/12V/3A |
|
Operating Temperature range |
(-15 to +55℃) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Size |
348x90x23mm |
|
Weight |
765g |
- Download FileName：E-link LNK-HDMI-SP 1x10 Datasheet V1.0.pdf Size： 766KB
|
Model |
Description |
|
LNK-HDMI-SP1x10 |
4K HDMI Splitter 1x10 |
