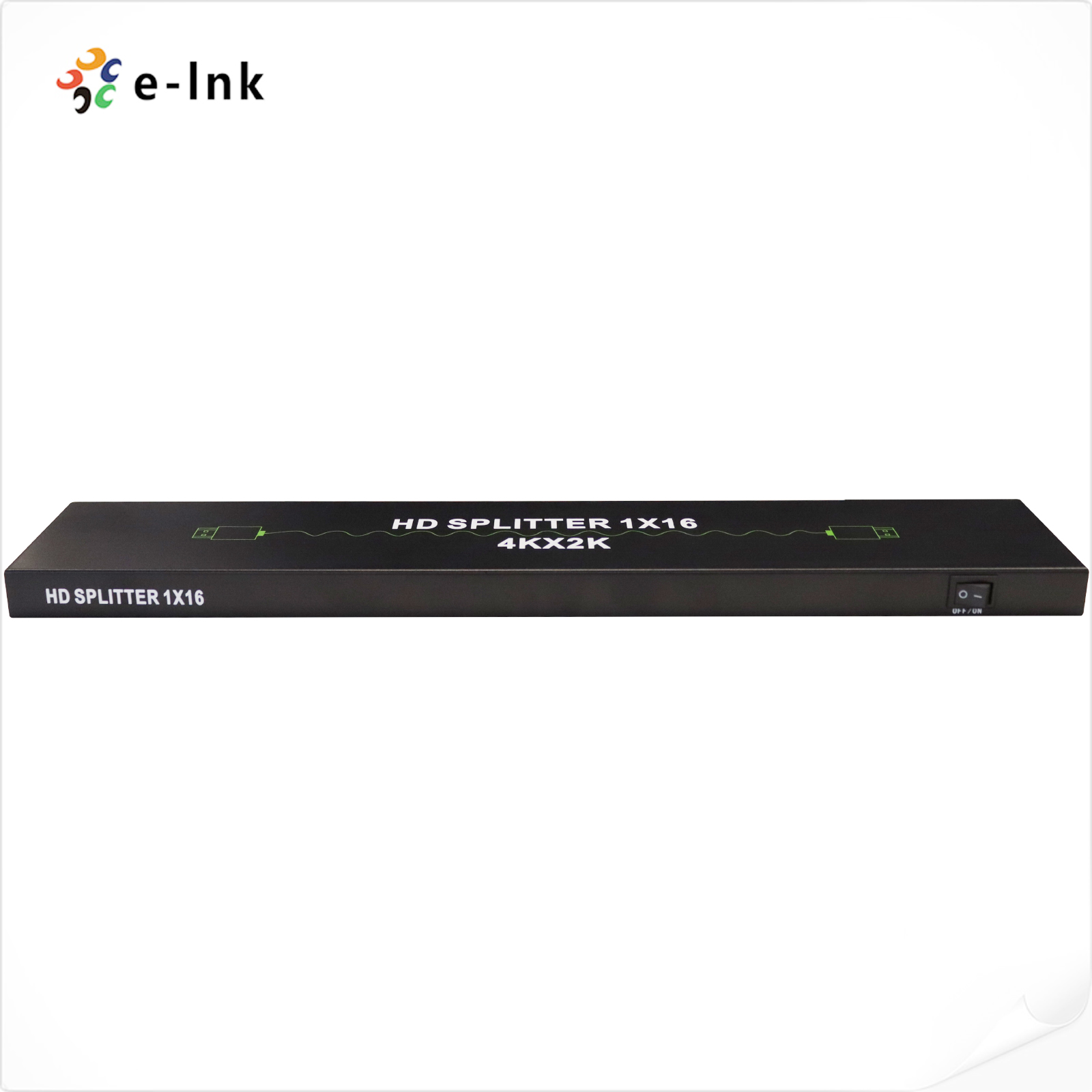

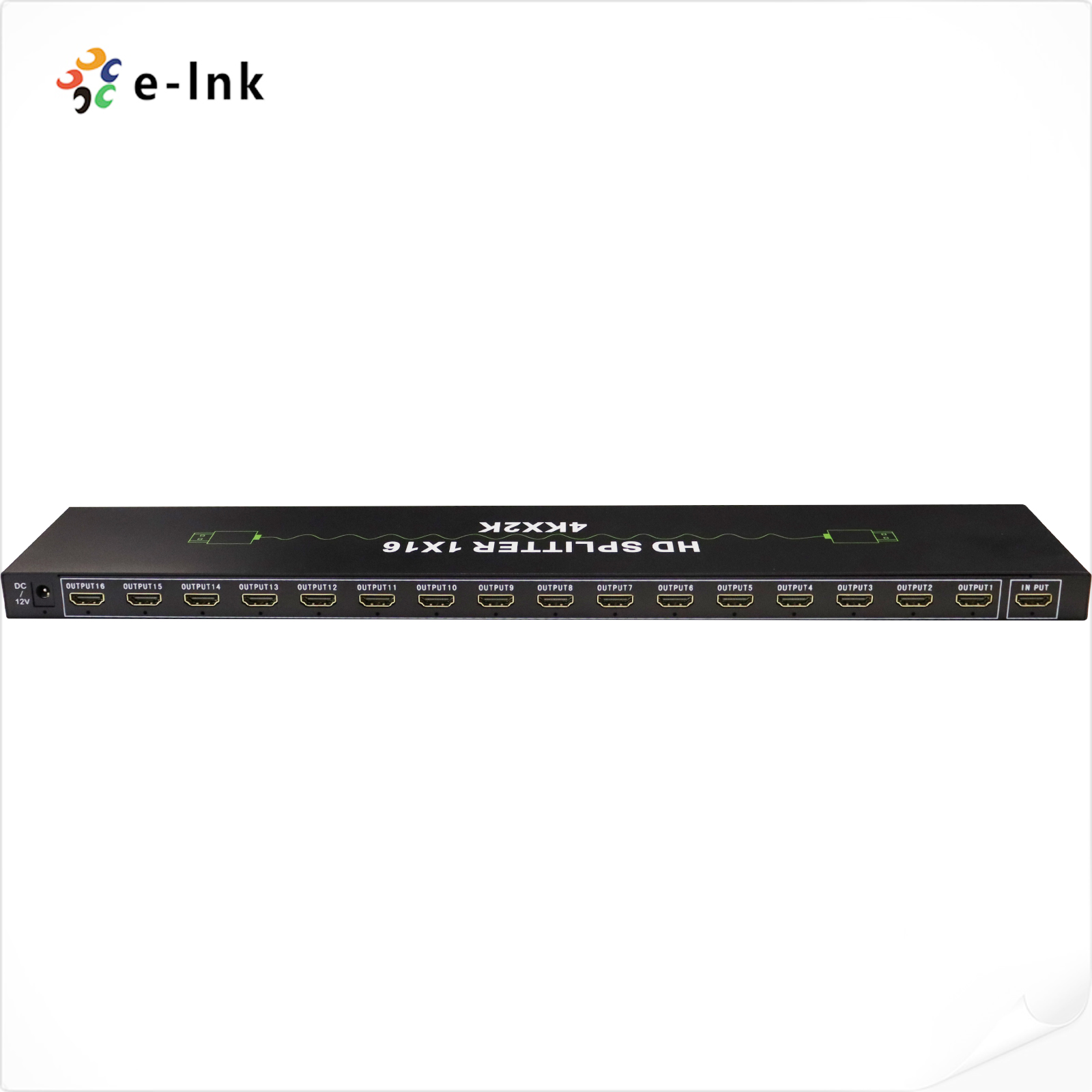

4K HDMI Splitter 1x16

Model:LNK-HDMI-SP1x16

► Support HDMI 1.4b

► Support 3D video format

► Resolution up to 3840x2160/30Hz

► Support 3.2Gbps data rate for TMDS clock up to 320MHz

► Support deep color 8/10/12bit

上一张

下一张

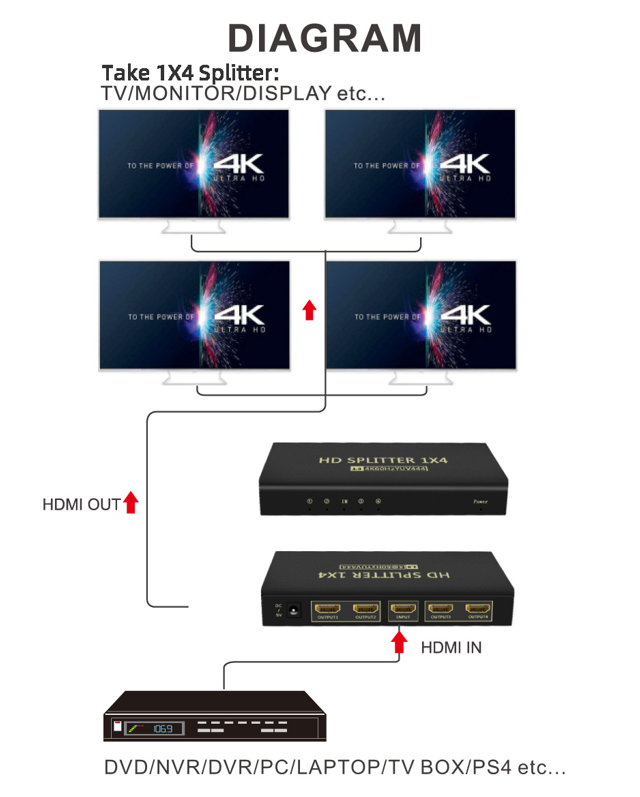

The HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 16 HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. resolution up to 3840x2160/30Hz.

► Support HDMI 1.4b

► Support 3D video format

► Resolution up to 3840x2160/30Hz

► Support 3.2Gbps data rate for TMDS clock up to 320MHz

► Support deep color 8/10/12bit

► support AWG26 HDMI standard cable:

n when the resolution is 1080p and below, input up to 15 meters, output up to 20 meters.

n when the resolution is 4K, input up to 12 meters, output up to 15 meters.

► Support displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box

► DC 12V power supply

HDMI version	HDMI 1.4b
HDMI resolution	up to 3840*2160/30Hz
Support video color format	deep color 8/10/12bit
Support audio format	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	320MHz
Max transmission bandwidth	3.2Gbps
Input cable distance	(1080p resolution) ≤15m, (4K resolution)≤12m AWG26 HDMI standard cable
Output cable distance	(1080p resolution) ≤20m (4K resolution)≤15m AWG26 HDMI standard cable
HDMI input	1
HDMI output	16
Power adapter format	Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V1A/5V2A/12V/3A
Operating Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
Size	460x90x22mm
Weight	974g
